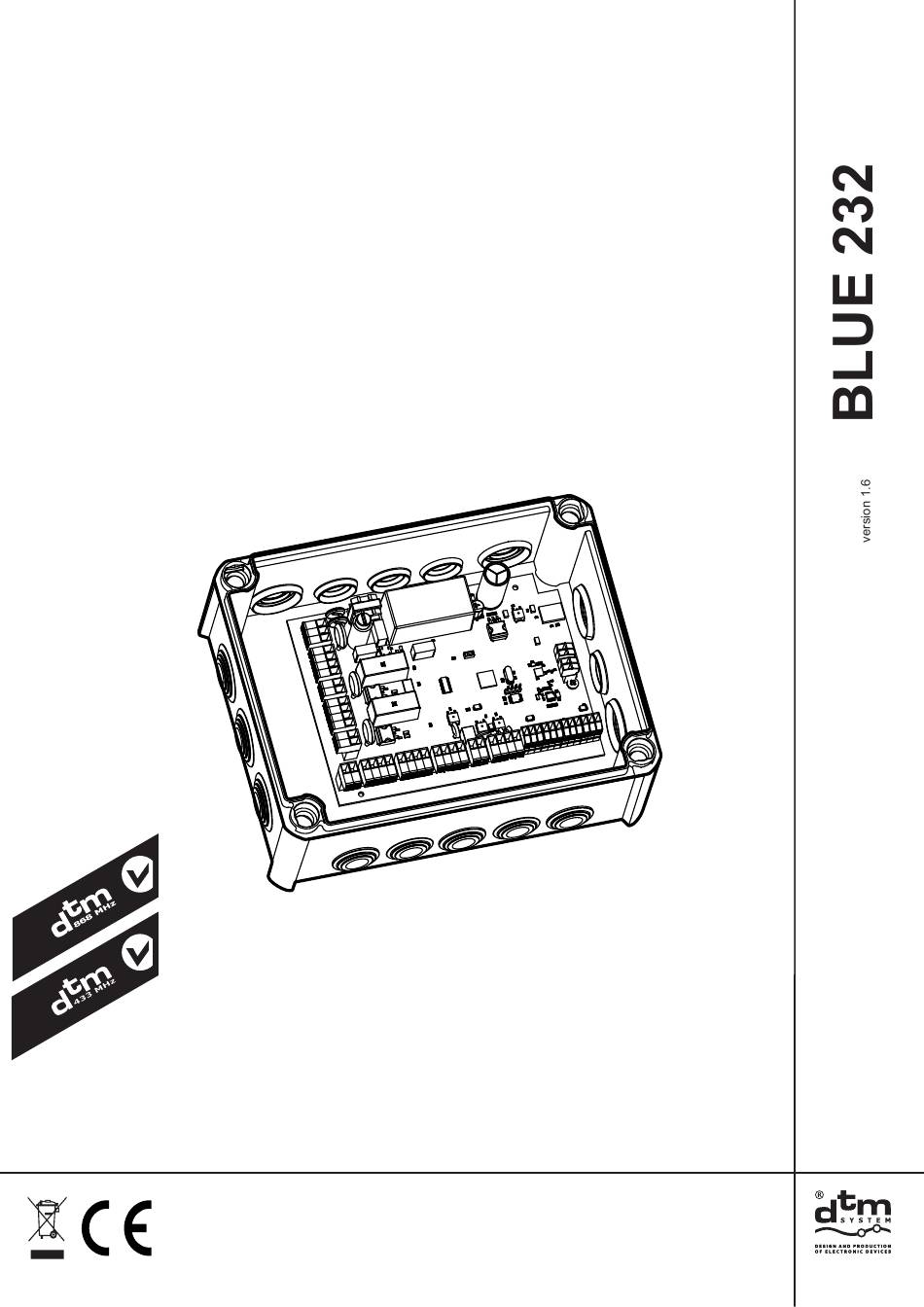

- Page 1 AUTOMATION SYSTEMS DOUBLE-LEAF GATE CONTROLLER manual DTM System ul. Brzeska 7, 85-145 Bydgoszcz tel./fax. (52) 340-15-83, 340-15-84 www.dtm.pl, dtm@dtm.pl...
-
Page 3: Technical Data
The control panel allows you to set automatic closing of the gate after a time and / or photo- closing (activated after the photocells are violated and released again). BLUE 232 has an output for a 12 / 24V DC gate bolt and an additional output controlled by a manual or radio button, which can work in bistable or monostable mode, intended for switching an external device. -
Page 5: Installation
There is a dangerous voltage of 230V / 50Hz in the device, all connections must be made with the voltage turned off. The BLUE 232 controller is classified in the category of "Automatic gates and doors" devices, requiring special care for safety considerations. - Page 6 BLUE 232 14 15 16 Figure 2. View of the controller motherboard with the most important elements marked. 1.time-delay fuse (4A / 250V, T) 2. connector for connecting 230V AC power 3.connector for connecting the motor 1 4.connector for connecting the motor capacitor 1 5.connector for connecting the motor 2...
- Page 7 3.3. Description of the electrical connections of the BLUE 232 controller Connection to the 230VAC electrical network may only be performed by a qualified specialist with appropriate authorizations. The delivered controller is immediately ready for operation. Connect all installed additional protection and control devices to the appropriate terminals in accordance with the connection diagrams.
- Page 8 INPUT STOP CL OP/CL + 24 V +24V OPEN INPUT PHOTO OUT C STOP OP/CL Button STOP (NC) Electro- additional channel lock (NO) 12 / 24V max. 1A, 30V AC/DC 300mA Manual control button A (NO) Manual control button B (NO) 24V DC max.
- Page 9 3.3.10 Terminals for connecting the limit switches of the M1 and M2 motors The controller allows operating the limit switches built into the actuators. If present, it should be connected to the appropriate terminals LSO - open when opening, LSC - open when closing, COM - common terminal.
- Page 10 OPEN direction). 5. Programming the BLUE 232 controller The BLUE 232 controller is programmed to the needs of a given installation using a dedicated Blue Motor Control application for Android devices, communicating with the controller via Bluetooth ™. The Blue Motor Control app is available for download from the GooglePlay store.
- Page 11 5.1. SW button and LED STATUS The SW button (see fig. 2, point 19) is used to restore the default settings of the controller. The STATUS diode is a status diode informing about the controller operation. 5.2. Pairing the controller with Bluetooth™ device. In order to use the application to configure the device, it is necessary to pair the controller Bluetooth™...
- Page 12 5.2.2. List of controllers Run the application searching for available controllers within Bluetooth™ range. If more control panels are to be operated nearby, select the one you want to configure from the list. Figure 7. Search and select a controller fron the list. 5.2.3.
- Page 13 5.2.4. View of the connected Blue Motor Control App ready-to-run If everything went well, the devices are ready for further operation. The application will display a group of icons with groups of parameters and functions assigned to them. These paired devices will connect automatically at a later time. Rysunek 9.
-
Page 14: Acceptance Tests
6. Acceptance tests 6.1. General remarks After installing the controller and all cooperating devices, especially the safety devices, final tests should be made to check the entire automation. These tests should be performed by competent personnel who are aware of the risks involved! Final tests are the most important phase in the implementation of automation. Individual components such as motors, photocells, etc. -
Page 15: Warranty
Warranty. The manufacturer DTM System provides the devices that are operational and ready for use. The warranty is granted for a period of 30 months from the date of sale by the manufacturer. The warranty period is determined based on the manufacturer's warranty seals identifying the production batch, placed on each product. - Page 16 D E S I G N A N D P R O D U C T I O N O F E L E C T R O N I C D E V I C E S DTM System ul. Brzeska 7, 85-145 Bydgoszcz, Polska http://www.dtm.pl...
