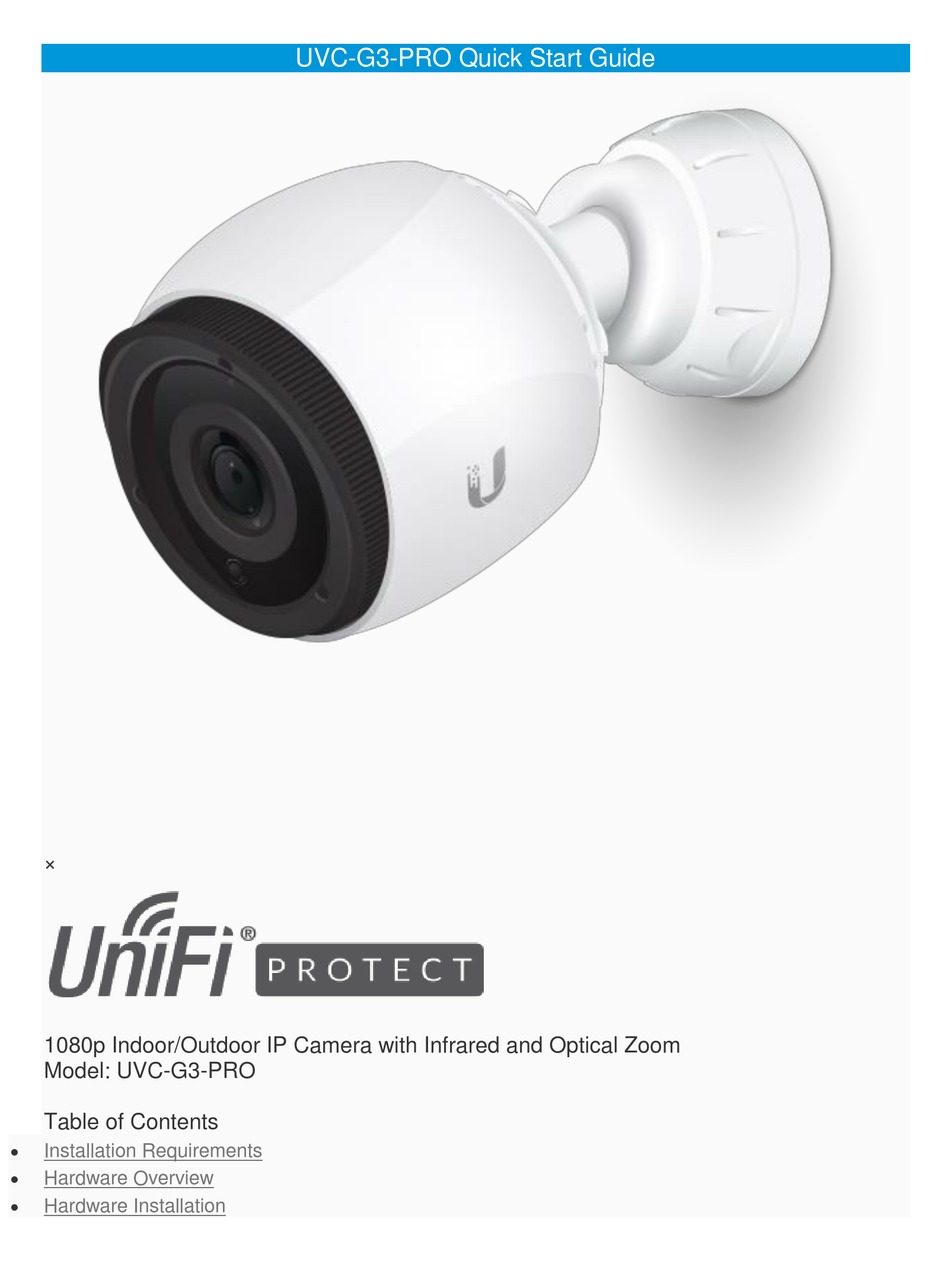

- Page 1 UVC-G3-PRO Quick Start Guide × 1080p Indoor/Outdoor IP Camera with Infrared and Optical Zoom Model: UVC-G3-PRO Table of Contents Installation Requirements Hardware Overview Hardware Installation...
-
Page 2: Installation Requirements
Connecting Power UniFi Protect App Adjusting the Camera View Specifications Safety Notices Electrical Safety Information Installation Requirements Pole-mounting: Two metal straps / hose clamps (not included) Shielded Category 5 (or above) cabling with drain wire should be used for all outdoor wired Ethernet connections and should be grounded through the AC ground of the PoE. -
Page 3: Hardware Installation
Ethernet Port 10/100 RJ45 port connects to an 802.3af/802.3at or 24V Passive PoE switch for PoE power and data. Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the camera is powered on. Hardware Installation Wall/Ceiling Mount... -
Page 8: Pole Mount
Proceed to the Connecting Power section. Pole Mount... -
Page 10: Connecting Power
The UVC G3 Pro supports 802.3af, 802.3at, and 24V Passive PoE and can be powered by any 802.3af/802.3at or 24V Passive PoE compliant switch, such as a UniFi PoE Switch. Connect the Ethernet cable from the camera directly to a PoE port on the switch. - Page 11 Setting Up UniFi Protect via App Download and install the UniFi Protect app to configure the UVC-G3-PRO. Launch the UniFi Protect app and follow the on-screen instructions to complete setup. Adjusting the Camera View...
-
Page 13: Specifications
Specifications... - Page 14 UVC-G3-PRO Dimensions Ø 86 x 153 mm (Ø 3.39 x 6.02") (Without Mounting Plate) Weight 700 g (1.54 lb) (Without Mounting Plate) Enclosure UV Stabilized Polycarbonate and Die-Cast Aluminum Networking Interface (1) 10/100 Ethernet Port Sensor Sony IMX290, 1/2.8" Lens 3-9 mm, f/1.2-f/2.1 Powered Zoom Lens...
-
Page 15: Safety Notices
UVC-G3-PRO Operating Temperature -20 to 50° C -4 to 122° F Operating Humidity 0 to 90% Noncondensing Weatherproofing IP67 Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer.
