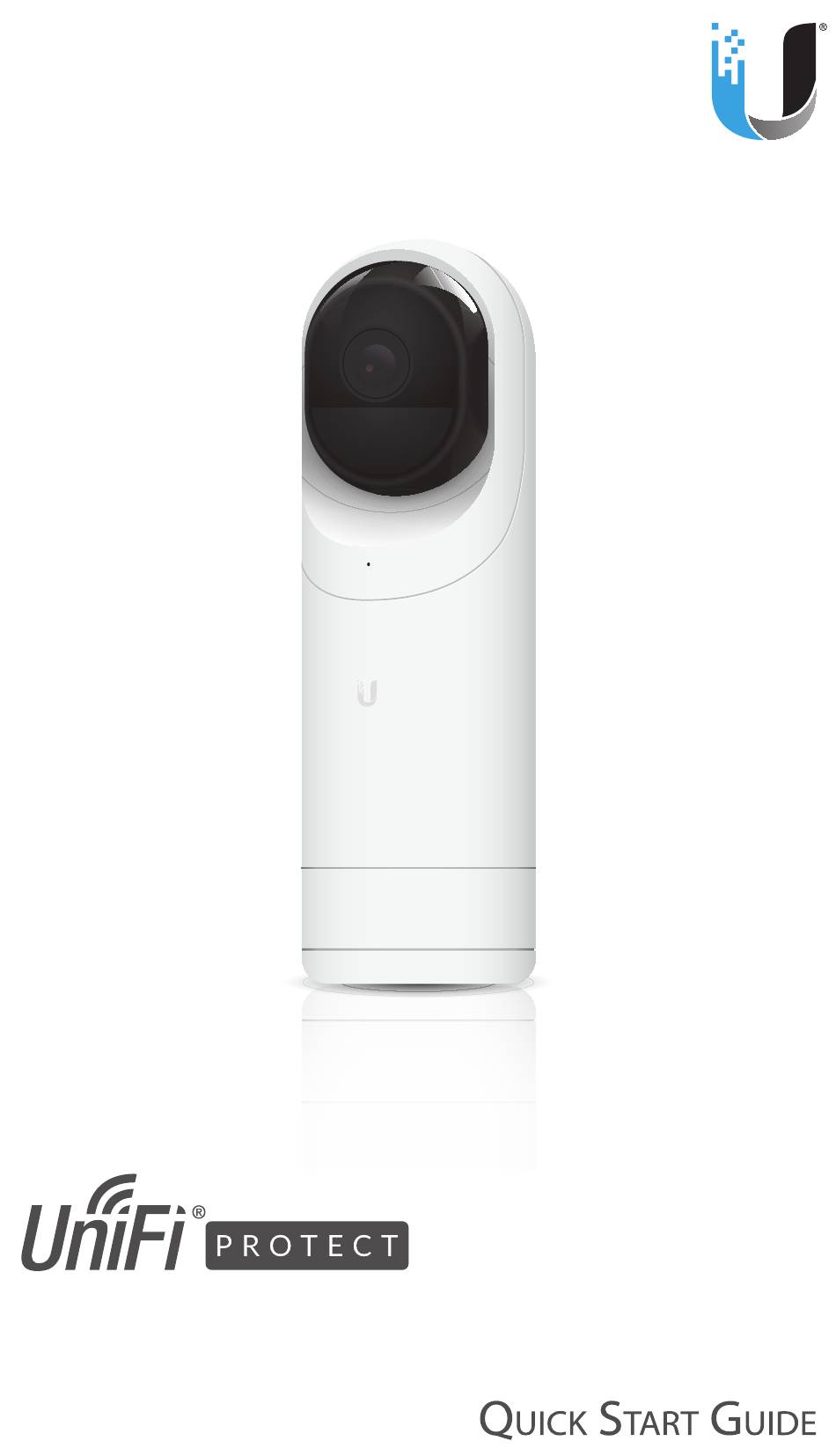

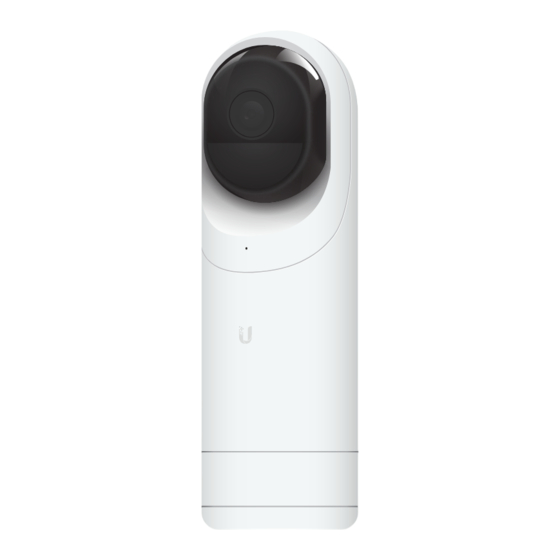

- Page 1 Battery-Powered 1080p IP Camera with Infrared Model: UVC-G3-BATTERY...
-
Page 2: Package Contents
Package Contents G3 Battery Camera USB-C Cable Bridge Mount Wall Mount Screw Kit (Qty. 2) -
Page 3: Before You Begin
Before You Begin The G3 Battery camera is designed to work with Ubiquiti’s new integrated management system, UniFi Protect. UniFi Protect is a flexible and powerful IP video surveillance system that can manage UniFi Protect cameras and the UniFi Protect mobile app. The software is free from all hosting and licensing fees and comes pre-installed on UniFi’s Cloud Key... -
Page 4: Hardware Overview
Hardware Overview Reset The LED will flash blue during bootup. When the camera is ready to connect to the Wi-Fi network, the LED pattern will flash two times accompanied by two beep tones. Once connected to the network, the LED will glow with a steady breathing pattern. -
Page 5: Installation
Installation The G3 Battery camera can be installed using one of the following methods: • Desktop For installing on a flat surface such as a desktop or table/shelf; could be set up for temporary installations. Wall/Ceiling • For installing in a secure location; used more for stationary or permanent installations. -
Page 6: Wall Mount
Wall Mount 1. Use the Screws and Screw Anchors to secure the Wall Mount to the wall. 2. Attach the G3 Battery to the magnetic Bridge Mount. 3. Attach the G3 Battery to the magnetic Wall Mount. -
Page 7: Pole Mount
Use the Outdoor Cover for additional protection from moisture. 1. Attach the G3 Battery pole mount to a pole using metal straps or zip ties. 2. Attach the G3 Battery to the pole mount. - Page 8 3. Enter the SSID of the wireless network this camera will join. 4. Enter the password for the wireless network and click Next. 5. Scan the QR code using the G3 Battery lens. 6. The camera will emit two tones once it pairs and adopts.
-
Page 9: Specifications
Specifications UVC-G3-Battery Dimensions 54 x 54 x 169 mm (2.13 x 2.13 x 6.65") Weight 466 g (1.03 lb) Mounting Options Table, Pole, Indoor/Outdoor Wall Setup Options Bluetooth with Mobile App or Built-In Wi-Fi Networking Interface Dual-Band Wi-Fi Management Interface... -
Page 10: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in a location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. -
Page 11: Limited Warranty
Limited Warranty ui.com/support/warranty The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions. Disclaimer EXCEPT FOR ANY EXPRESS WARRANTIES PROVIDED HEREIN, UBIQUITI, ITS AFFILIATES, AND ITS AND THEIR THIRD PARTY DATA, SERVICE, SOFTWARE AND HARDWARE PROVIDERS HEREBY DISCLAIM AND MAKE NO OTHER REPRESENTATION OR WARRANTY OF ANY KIND, EXPRESS, IMPLIED OR... - Page 12 Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
- Page 13 ISED Canada CAN ICES-3(B)/NMB-3(B) This device complies with ISED Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: This device may not cause interference, and This device must accept any interference, including interference that may cause undesired operation of the device. This radio transmitter (IC: 6545A-UVCG3B) has been approved by ISED Canada.
- Page 14 RF Exposure Warning The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter. Les antennes utilisées pour ce transmetteur doivent être installé...
- Page 15 RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
- Page 16 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 17: Declaration Of Conformity
English Hereby, UBIQUITI, declares that this UVC-G3-Battery device, is in compliance with the essential requirements and other relevant provisions of Directives 2014/53/EU, 2014/30/EU, 2014/35/EU. The full text of the EU declaration of conformity is available at the following internet address: ui.com/compliance... - Page 18 2014/53/EÚ, 2014/30/EÚ, 2014/35/EÚ. Úplné EÚ vyhlásenie o zhode je k dispozícii na tejto internetovej adrese: ui.com/compliance Slovenščina [Slovenian] Družba UBIQUITI izjavlja, da je naprava UVC-G3-Battery v skladu z obveznimi zahtevami in drugimi ustreznimi določbami direktiv 2014/53/EU, 2014/30/EU in 2014/35/EU. Celotno besedilo izjave EU o skladnosti je na voljo na naslednjem spletnem naslovu: ui.com/compliance...
-
Page 19: Online Resources
©2019 Ubiquiti Inc. All rights reserved. Ubiquiti, the Ubiquiti U logo, the Ubiquiti beam logo and UniFi are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners.
