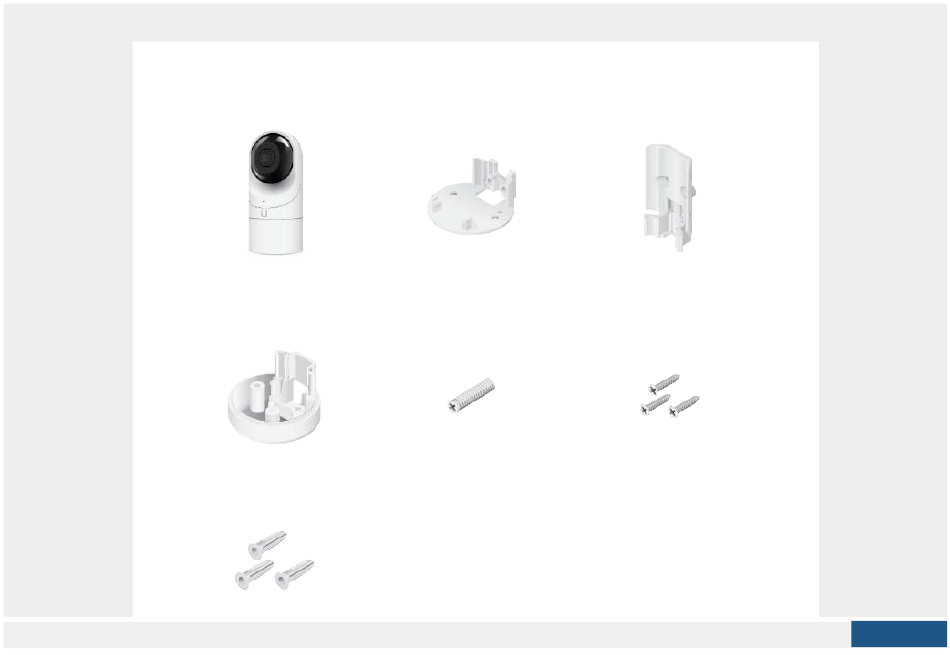

Package Contents

Camera

Flush Mount

Pole/Wall Mount

Outdoor Cover

Security Screw (Qty. 1)

Screws (Qty. 3)

Create PDF in your applications with the Pdfcrowd

HTML to PDF API

PDFCROWD

Table of Contents

Need help?

Do you have a question about the UVC-G3-FLEX and is the answer not in the manual?

Questions and answers

Summary of Contents for UniFi UVC-G3-FLEX

Page 1 Package Contents Camera Flush Mount Pole/Wall Mount Outdoor Cover Security Screw (Qty. 1) Screws (Qty. 3) Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
Page 2: Installation Requirements
Screw Anchors (Qty. 3) Zip Ties (Qty. 2) Installation Requirements Phillips screwdriver Drill and 6 mm (1/4") bit for drywall anchors and 3 mm (1/8") for screws) Category 5e (or above) Ethernet cable Note: When using the Outdoor Cover, use an Ethernet cable without a strain- relief boot on the connector.
Page 3 Shielded Category 5e (or above) cabling with drain wire should be used for all outdoor wired Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti.
Page 4: Before You Begin
UniFi Protect. UniFi Protect is a flexible and powerful IP video surveillance system that can manage UniFi Protect cameras and the UniFi Protect mobile app. The software is free from all Create PDF in your applications with the Pdfcrowd...
Page 5 UniFi's Cloud Key Gen2 Plus, model UCK-G2-PLUS. UniFi Cloud Key Gen2 Plus, model UCK-G2-PLUS For more information on UniFi Protect, visit us on the web at: unifi-protect.ui.com Note: The UVC G3 Flex camera will also work with the UniFi Video® 3 controller software.
Page 6: Hardware Overview
UniFi Application Server, model UAS-XG UniFi NVR, model UVC-NVR-2TB Note: The latest UniFi Video 3 software, for Linux- or Windows-based computers, is available for free download at: ui.com/download/unifi-video Hardware Overview Create PDF in your applications with the Pdfcrowd HTML to PDF API...
Page 7 Device is busy; do not touch or unplug it. This usually Alternating White/Blue indicates that a process such as a firmware upgrade is taking place. Connected to UniFi Video Controller; Reset Button Steady Blue Pressed Flashing Green Disconnected from Controller...
Page 8: Bottom View
Microphone Microphone for recording audio Camera Lens Lens for viewing/recording video Light Sensor Sensor for ambient light detection Swivel Base Allows you to change the viewing angle of the camera by adjusting left or right. Useful if mounted on a wall or other permanent surface. Bottom View Create PDF in your applications with the Pdfcrowd HTML to PDF API...
Page 9: Mounting Options
The Ethernet Port is a 10/100 Mbps port used to supply power from a PoE 802.3af- compliant switch to the camera. The switch should be connected to a LAN running DHCP services and the UniFi Video Controller software. Reset Button The Reset Button is used to reset the camera to factory defaults.
Page 10 Use the Flush Mount with two screws to install the G3 Flex camera on a wall (vertically). Use the Flush Mount with two screws to install the G3 Flex camera on a solid horizontal surface or ceiling. Use the Pole Mount with two screws and the Outdoor Cover to install the G3 Flex camera on a wall or flat surface outdoors.
Page 11 Additional Mounts Available There are two additional mounts available for the G3 Flex: a Ceiling Mount and a Pendant Mount. Each is sold separately. Use the optional Ceiling Mount, Screw Kit, and Mount Cover to install the G3 Flex camera on a solid horizontal surface or ceiling.
Page 12 Use the Pendant Mount to install the G3 Flex camera onto a fitted 3/4" or 1.5" conduit mount or ceiling pipe. Optional Covers There are also optional skin covers available to enhance the look of the G3 Flex camera and allow it to discreetly blend into the setting or environment it is installed in. Choose from one of the following design patterns: Black, Camouflage, Concrete, Marble, and Wood.
Page 13: Installation
Black Camoflauge Concrete Marble Wood Installation The UVC G3 Flex can be installed using one of the following methods: Desktop For installing on a flat surface such as a desktop or table/shelf; could be set up for temporary installations. Wall/Ceiling For installing in a secure location;...
Page 14 Proceed to the appropriate section for your installation. Note: The viewing angle or surveillance coverage of the G3 Flex camera can be changed at any time. Tilt the lens up or down for vertical adjustment Turn the base left or right for horizontal adjustment Desktop 1.
Page 15 2. Insert one end of the RJ-45 cable into the Ethernet Port and the other end into a PoE 802.3af-compliant switch. 3. Attach the camera to the Flush Mount by lining up the notches with the slots in the base of the camera. Press firmly together until the camera is secure. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
Page 16 Note: Ensure the Ethernet cable is seated in the notch between the Flush Mount and base of the camera. 4. Place the camera on a desk or table in its upright position. 5. Adjust the viewing angle or surveillance coverage as needed by following these steps: Tilt the lens up or down to adjust the angle vertically Turn the camera body left or right to adjust the angle horizontally...
Page 17 Installation complete. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
Page 18 Desktop / Table Install Wall/Ceiling 1. If the Ethernet cable is coming from the inside of a wall: a. Drill or cut a hole in the wall and feed the Ethernet cable through the opening. b. Pull the Ethernet cable forward and slide it through the opening in the mount. 2.
Page 19 Top Side Down Mounting Vertical Upright Mounting 3. Connect the Ethernet cable to the Ethernet Port in the base of the camera. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
Page 20 4. Attach the camera to the Flush Mount by lining up the notches with the slots in the base of the camera. Press firmly together until the camera is secure. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
Page 21 Vertical mounting on ceiling Vertical mounting on a wall Installation complete. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
Page 22 Horizozntal Surface / Ceiling with Flush Mount Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
Page 23 Indoor Wall with Flush Mount Pole Note: If you are mounting the camera outdoors, it must be installed in the upright position to prevent water from getting into the base of the camera. Use the Outdoor Cover for additional protection from moisture. 1.
Page 24 2. Insert and pull an Ethernet cable through the back port opening of the Outdoor Cover. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
Page 25 Note: When using the Outdoor Cover, use an Ethernet cable without strain- relief boots on the connector. This will prevent unnecessary tension on the cable ends. 3. Connect the Ethernet cable to the Ethernet Port on the G3 Flex camera. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
Page 26 4. Attach the camera to the Outdoor Cover by lining up the notches with the slots on the bottom of the camera. Press firmly until the camera snaps on. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
Page 27 5. Attach the camera to the Pole Mount: a. Press the camera against the Pole Mount and line up the notches on the mount with the slots on the bottom of the camera. b. Slide the camera down onto the Pole Mount until it is secure. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
Page 28 Note: When using the Outdoor Cover, use an Ethernet cable without strain- relief boots on the connector. This will prevent unnecessary tension on the cable ends. 6. Use a phillips screwdriver to install the Security Screw through the Outdoor Cover and into the base of the camera.
Page 29 7. Adjust the camera to the desired viewing angle by: Tilting the lens up or down for vertical adjustment Turn the camera body left or right to adjust the angle horizontally Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
Page 30 Installation is complete. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
Page 31 Setting Up UniFi Protect via App Download and install the UniFi Protect app to configure the UVC-G3-Flex. Note: When you first launch UniFi Protect, the app will prompt you to enable Create PDF in your applications with the Pdfcrowd HTML to PDF API...
Page 32 Please allow these features and permissions to take place for proper app functionality. 1. Launch the UniFi Protect app. 2. Tap the side menu in the upper-left corner of the app to access additional options. 3. Tap Add Cameras to add a new camera.
Page 33 4. When the Select cameras screen appears, tap each camera in the list you would like to add to your UniFi Protect system. Tap Set up cameras to continue. Create PDF in your applications with the Pdfcrowd...
Page 34 5. A Name your camera screen appears individually for each camera you selected in step 4. Enter a name for each camera and tap Next, repeating this process until all cameras have been named. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
Page 35 6. If necessary, any camera requiring a firmware upgrade will update at this time. Once completed, a live view of each camera will display in the app. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
Page 36 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
Page 37 UniFi Video App Note: For UniFi Video 3 deployments, there is a UniFi Video mobile app available for download in the App Store® for iOS devices and Google Play™ store for Android-based devices. Create PDF in your applications with the Pdfcrowd...
Page 38: Specifications
For details on using the UniFi Video software, refer to the User Guide at: ui.com/download/unifi-video Specifications UVC-G3-FLEX Dimensions Ø 107.5 x 48 x 48 mm (Ø 4.23 x 1.89 x 1.89") Weight 170 g (5.99 oz) Sensor 1/2.7" 2-Megapixel HDR Sensor Lens EFL 4mm / f2.0...
Page 39: Safety Notices
UVC-G3-FLEX Max. Power Consumption Power Method 802.3af PoE Power Supply 802.3af PoE Switch Port Mounting Table, Wall (Indoor/Outdoor), Pole Operating Temperature -20 to 50° C (-4 to 122° F) Operating Humidity 20 to 90% Noncondensing Safety Notices 1. Read, follow, and keep these instructions.
Page 40: Limited Warranty
result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed. 2. There are no operator serviceable parts inside this equipment. Service should be provided only by a qualified service technician. Limited Warranty ui.com/support/warranty The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions.
Page 41: Declaration Of Conformity
CAN ICES-3(A)/NMB-3(A) Australia and New Zealand Warning: This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference. CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it.
