Preface This document is the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.
........................Faults – Interference ......................Dimensions in mm ......................... Technical details Order no. 774700, 774701, 774703 ............Technical details Order no. 774706, 774709 ................ Safety characteristic data ..................... Supplementary data ......................Service life graph ........................Operating Manual PNOZ X10 19554-EN-09...
Page 4
Contents Order reference ........................EC declaration of conformity ....................Operating Manual PNOZ X10 19554-EN-09...

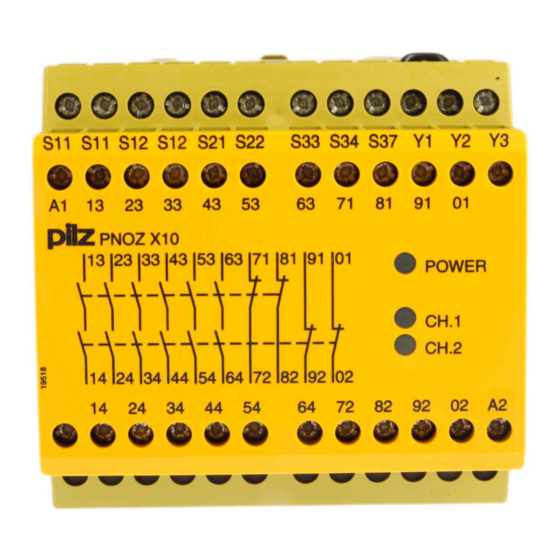

PNOZ X10 Introduction Validity of documentation This documentation is valid for the product PNOZ X10. It is valid until new documentation is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product.
This gives advice on applications and provides information on special fea- tures. Safety Intended use The safety relay PNOZ X10 provides a safety-related interruption of a safety circuit. The safety relay meets the requirements of EN 60947-5-1 and EN 60204-1 and may be used in applications with: E-STOP pushbuttons...
Note for overvoltage category III: If voltages higher than low voltage (>50 VAC or >120 VDC) are present on the unit, connected control elements and sensors must have a rated insulation voltage of at least 250 V. Operating Manual PNOZ X10 19554-EN-09...
III), Protective separation (overvoltage category II) Function Description The safety relay PNOZ X10 provides a safety-oriented interruption of a safety circuit. When supply voltage is supplied the "POWER" LED is lit. The unit is ready for operation when the feedback loop Y1-Y2 and the start circuit S12-S34 are closed.
Use the notch on the rear of the unit to attach it to a DIN rail (35 mm). When installed vertically: Secure the unit by using a fixing element (e.g. retaining bracket or end angle). Operating Manual PNOZ X10 | 10 19554-EN-09...
Important for detection of shorts across contacts: As this function for detecting shorts across contacts is not failsafe, it is tested by Pilz during the final control check. If there is a danger of exceeding the cable runs, we recommend the following test after the installation of the device: 1.
ESPE (only when U = 24 VDC) NOTICE With single-channel wiring the safety level of your machine/plant may be lower than the safety level of the unit (see Safety characteristic data [ 26]). Operating Manual PNOZ X10 | 12 19554-EN-09...
Page 13
PNOZ X10 NOTICE Operation with a light guard or safety switch It must not be possible to switch off the supply voltage for the PNOZ X10 separately from the supply voltage for the light guard or safety switch. Start circuit...
SIL CL 2/PL d at least 1x per year NOTICE The safety function should be checked after initial commissioning and each time the plant/machine is changed. The safety functions may only be checked by qualified personnel. Operating Manual PNOZ X10 | 14 19554-EN-09...
Contact malfunctions: If the contacts have welded, reactivation will not be possible after the input circuit has opened. LED "POWER" does not light: Short circuit or no supply voltage. Dimensions in mm 75 (2.95") 90 (3.54") 87 (3.42") Operating Manual PNOZ X10 | 15 19554-EN-09...
Number of output con- tacts Safety contacts (N/O), instantaneous Auxiliary contacts (N/C) 4 Max. short circuit current 1 kA 1 kA 1 kA Utilisation category In accordance with the standard EN 60947-4-1 EN 60947-4-1 EN 60947-4-1 Operating Manual PNOZ X10 | 16 19554-EN-09...
Page 17
240 V AC G. P. 240 V AC G. P. With current Voltage 24 V DC Resistive 24 V DC Resistive 24 V DC Resistive With current Pilot Duty B300, R300 B300, R300 B300, R300 Operating Manual PNOZ X10 | 17 19554-EN-09...
Page 18
5,6 A 5,6 A Conv. therm. current with 4 contacts 4,9 A 4,9 A 4,9 A Conv. therm. current with 5 contacts 4,4 A 4,4 A 4,4 A Conv. therm. current with 6 contacts Operating Manual PNOZ X10 | 18 19554-EN-09...
Page 19
61000-6-2, EN 61326-3-1 Vibration In accordance with the standard EN 60068-2-6 EN 60068-2-6 EN 60068-2-6 Frequency 10 - 55 Hz 10 - 55 Hz 10 - 55 Hz Amplitude 0,35 mm 0,35 mm 0,35 mm Operating Manual PNOZ X10 | 19 19554-EN-09...
Page 20
87 mm Width 90 mm 90 mm 90 mm Depth 121 mm 121 mm 121 mm Weight 720 g 720 g 720 g Where standards are undated, the 2020-07 latest editions shall apply. Operating Manual PNOZ X10 | 20 19554-EN-09...
UB AC 15 Ohm – Relay outputs 774706 774709 Number of output contacts Safety contacts (N/O), instant- aneous Auxiliary contacts (N/C) Max. short circuit current IK 1 kA 1 kA Operating Manual PNOZ X10 | 21 19554-EN-09...
Page 22
DC13 (6 cycles/min) at 24 V 24 V Max. current Utilisation category of auxiliary con- tacts AC15 at 230 V 230 V Max. current DC13 (6 cycles/min) at 24 V 24 V Max. current Operating Manual PNOZ X10 | 22 19554-EN-09...
Page 23
Conv. therm. current with 3 con- tacts 5,6 A – Conv. therm. current with 4 con- tacts 4,9 A – Conv. therm. current with 5 con- tacts 4,4 A – Conv. therm. current with 6 con- tacts – Operating Manual PNOZ X10 | 23 19554-EN-09...
Page 24
Environmental data 774706 774709 Climatic suitability EN 60068-2-78 EN 60068-2-78 Ambient temperature Temperature range -10 - 55 °C -10 - 55 °C Storage temperature Temperature range -40 - 85 °C -40 - 85 °C Operating Manual PNOZ X10 | 24 19554-EN-09...
Page 25
Torque setting with screw terminals 0,6 Nm 0,6 Nm Stripping length with screw termin- 8 mm 8 mm Dimensions Height 87 mm 87 mm Width 90 mm 90 mm Depth 121 mm 121 mm Operating Manual PNOZ X10 | 25 19554-EN-09...
A safety function's SIL/PL values are not identical to the SIL/PL values of the units that are used and may be different. We recommend that you use the PAScal software tool to calculate the safety function's SIL/PL values. Operating Manual PNOZ X10 | 26 19554-EN-09...
To increase the service life, sufficient spark suppression must be provided on all output contacts. With capacitive loads, any power surges that occur must be noted. With DC con- tactors, use flywheel diodes for spark suppression. Operating Manual PNOZ X10 | 27 19554-EN-09...
Page 28
European Parliament and of the Council. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/support/downloads. Representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ost- fildern, Germany Operating Manual PNOZ X10...
Page 29
We are represented internationally. Please refer to our homepage www.pilz.com for further details or contact our headquarters. Headquarters: Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: info@pilz.com, Internet: www.pilz.com...
