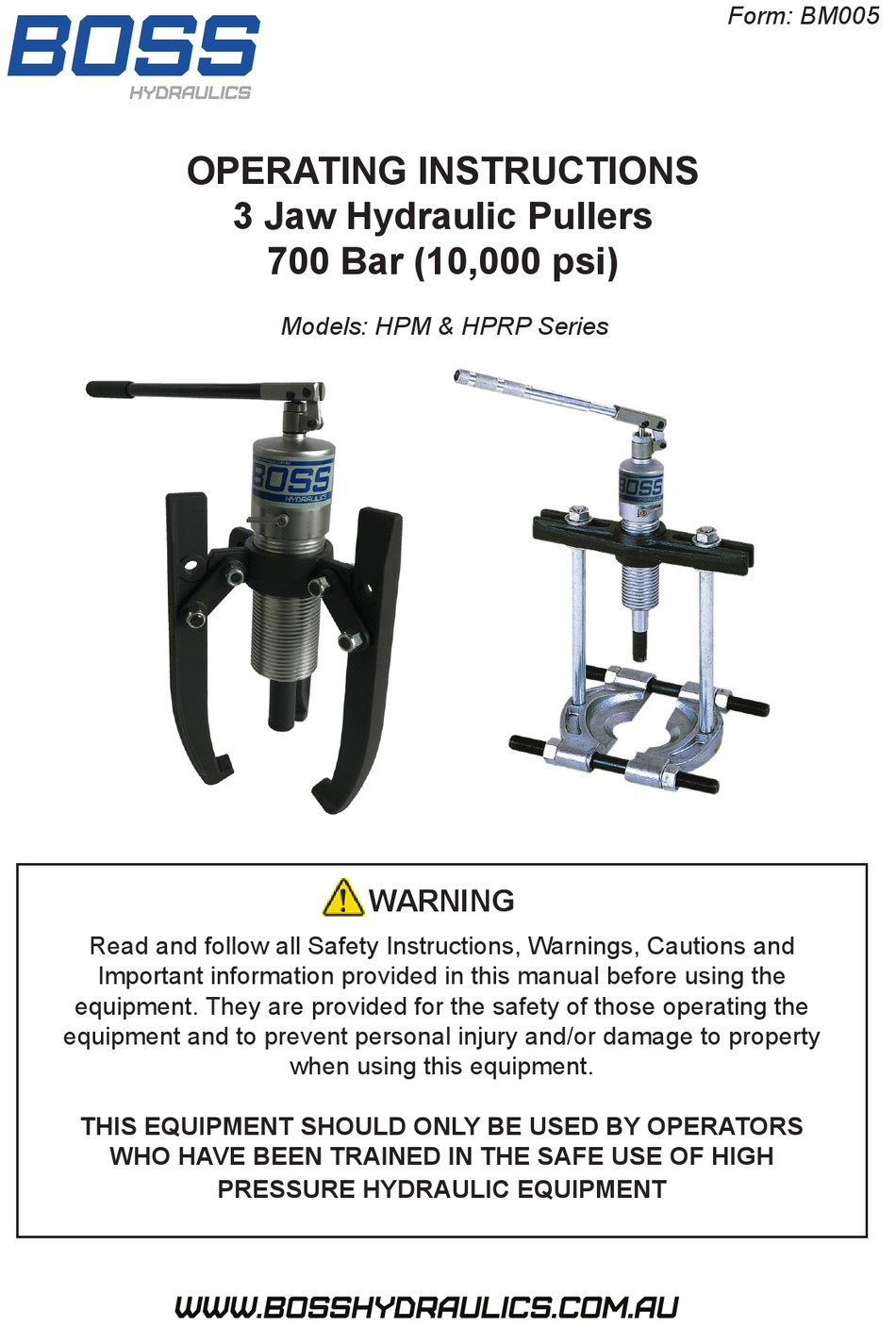

Form: BM005
OPERATING INSTRUCTIONS
3 Jaw Hydraulic Pullers
700 Bar (10,000 psi)
Models: HPM & HPRP Series
WARNING
Read and follow all Safety Instructions, Warnings, Cautions and
Important information provided in this manual before using the
equipment. They are provided for the safety of those operating the
equipment and to prevent personal injury and/or damage to property
when using this equipment.
THIS EQUIPMENT SHOULD ONLY BE USED BY OPERATORS
WHO HAVE BEEN TRAINED IN THE SAFE USE OF HIGH
PRESSURE HYDRAULIC EQUIPMENT
www.bosshydraulics.com.au
Advertisement
Related Manuals for Boss HPM Series
Summary of Contents for Boss HPM Series
- Page 1 Form: BM005 OPERATING INSTRUCTIONS 3 Jaw Hydraulic Pullers 700 Bar (10,000 psi) Models: HPM & HPRP Series WARNING Read and follow all Safety Instructions, Warnings, Cautions and Important information provided in this manual before using the equipment. They are provided for the safety of those operating the equipment and to prevent personal injury and/or damage to property when using this equipment.
- Page 2 WARNING: • Boss cylinders and pumps • Always wear the correct personal are designed to operate at a protective equipment when maximum of 700 bar (10,000 psi) operating high pressure hydraulic unless specified. Never connect a tools and equipment. cylinder to a pump with a higher •...
- Page 3 High pressure hydraulic • Always immediately replace equipment should only be worn or damaged parts with serviced, adjusted, repaired and genuine Boss Hydraulics tested by qualified hydraulic parts. The use of non- technicians. genuine parts can result in • After unpacking the equipment...
-
Page 4: Setup/ Installation
SETUP/ INSTALLATION WARNING: • Always align the puller on the centreline of the part being removed. Failure to do so can cause a catastrophic failure to any or all parts of the puller and the components being used on. • Align all puller jaws and pushing adaptor set ups on the same centreline as the part being removed. - Page 5 SETUP/ INSTALLATION (CONT) 2) Turn the control valve in the clockwise direction until completely closed and in the advance position (see Figure 2). Figure 2 3) Position the puller and attachments around the part to be pulled. Remove the slack by threading the puller down or adjusting the puller legs. Pump the handle until the removable cone touches the shaft.
- Page 6 SETUP/ INSTALLATION (CONT) 4) If required the handle can rotate 360° to locate the best pumping position. 5) Pump the handle until the part has been removed (Figure 5). Figure 5 6) Once the part has been pulled free turn the control valve counter clockwise to retract the puller piston (Figure 6).
-
Page 7: Specifications
SPECIFICATIONS HPM SERIES: Reach Spread Jaw Tip Pump Tip (mm) (mm) Stroke Weight Model (mm) (kg) (mm) (mm) HPM4 HPM6 HPM8 HPM12 HPM20 HPM30 HPR SERIES: Reach Spread Jaw Tip Pump Tip (mm) (mm) Stroke Weight Model (mm) (kg) (mm) - Page 8 BOSS HYDRAULICS: Head Office: 19 Ricketts Road, Mt Waverley VIC 3149 I P: 1300 BOSS HYD (1300 267 749) E: sales@bosshydraulics.com.au I W: www.bosshydraulics.com.au...
