Technaxx

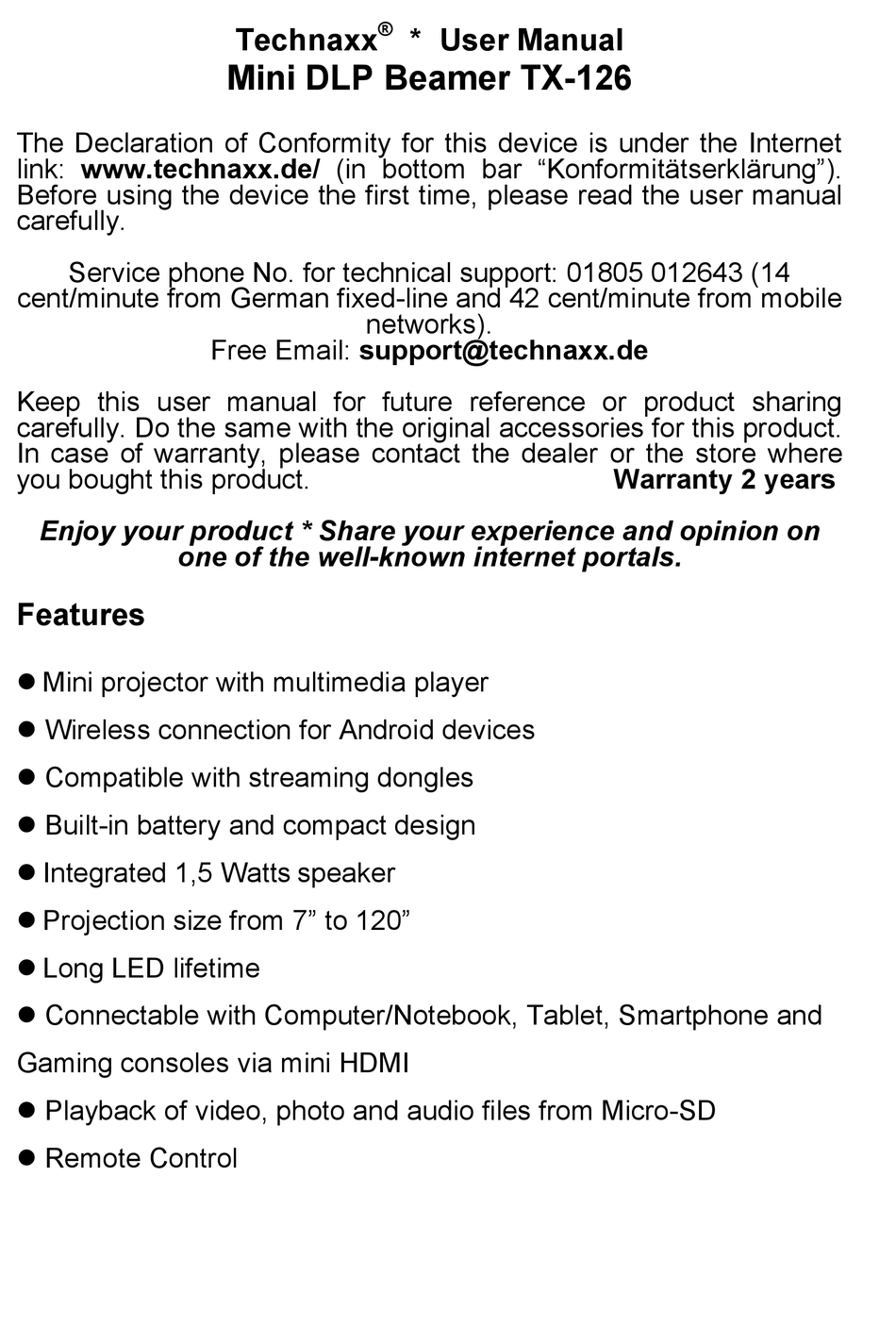

* User Manual
Mini DLP Beamer TX-126
The Declaration of Conformity for this device is under the Internet
link: www.technaxx.de/ (in bottom bar "Konformitätserklärung").
Before using the device the first time, please read the user manual
carefully.
Service phone No. for technical support: 01805 012643 (14
cent/minute from German fixed-line and 42 cent/minute from mobile
networks).
Free Email: support@technaxx.de
Keep this user manual for future reference or product sharing
carefully. Do the same with the original accessories for this product.
In case of warranty, please contact the dealer or the store where
you bought this product.
Warranty 2 years
Enjoy your product * Share your experience and opinion on
one of the well-known internet portals.
Features
Mini projector with multimedia player
Wireless connection for Android devices
Compatible with streaming dongles
Built-in battery and compact design
Integrated 1,5 Watts speaker
Projection size from 7" to 120"
Long LED lifetime
Connectable with Computer/Notebook, Tablet, Smartphone and
Gaming consoles via mini HDMI
Playback of video, photo and audio files from Micro-SD
Remote Control
Advertisement
Related Manuals for Technaxx TX-126
Summary of Contents for Technaxx TX-126
- Page 1 * User Manual Mini DLP Beamer TX-126 The Declaration of Conformity for this device is under the Internet link: www.technaxx.de/ (in bottom bar “Konformitätserklärung”). Before using the device the first time, please read the user manual carefully. Service phone No. for technical support: 01805 012643 (14 cent/minute from German fixed-line and 42 cent/minute from mobile networks).
-
Page 2: Product View
Product view 1 2 3 Power button On/Off - return 2 ◄ Volume - Previous / Decrease the volume 3 ► Volume + Next / Increase the volume ■ Enter Play/pause - Select in Menu 5 Focus wheel Adjust the picture focus 6 Audio out 3,5mm Aux-port 7 Mini HDMI... -
Page 3: Remote Control
Remote control 1 Volume down Exit 2 Volume up 10 Rewind 3 Enter / Media menu 11 Fast Forward 4 Move Up 12 Previous 5 Move Left 13 Next 6 Move Right 14 Play / Pause 7 Move Down 15 Mute 8 System menu 16 Stop... - Page 4 Do not put the remote control in high temperature or damp places, in order to avoid damage. Charging Connect the power cable to the power adapter and a power socket as shown in the picture below. Plug the micro-USB to the DC port of the projector to charge the device.
- Page 5 The device does not have keystone correction function. Adjust the projector manually to the wall for the best picture quality. Please refer to the following table for the relationship between projection distance and screen size: Screen size (Unit: Inch) Projection distance (Unit: Meter) 0.18 Connections ...
- Page 6 Multimedia main screen The screen display takes about 10 seconds to come into the multimedia screen after power on. Movie Accesses the video files on your micro-SD card. Music Accesses the music files on your micro-SD card. Picture Accesses the image files on your micro-SD card.
- Page 7 Setup options Change the language of the projector – multiple languages are available Restore to default – restores to factory settings Do not use the option “Software update”. This is for manufacturer maintenance only. Supported multimedia files format for microSD card ...
- Page 8 File explorer functions Select the file category you want to play in the main menu screen. Select the file which should be played. Press the play button on the device or press the play button on the remote control for instant play the file.
- Page 9 For the Miracast option: Choose Miracast and press “OK” or the Enter button on the device. Follow the instructions on the screen. For Samsung OS select in the extended panel “Smart View” and the projector will appear with his serial number “S6-XXXX”. Note: Different brands may have different wireless connection names and settings.
- Page 10 Follow the instructions on the screen. Please refer to the manual of each device. Note: In this mode, your smartphone has a Wi-Fi connection with the projector. If an internet connection is required you have to use the phone's data plan or set a connection to your home Wi-Fi first. WiFi Select this option for an internet connection between home Wi-Fi and projector.
- Page 11 The video resolution is higher than 1080p. The supported resolution is only up to 1080p. The file format is not supported. Please refer to the video format support list in the micro-SD card section. Q: Why does my movie not playing sound? A: Due to the copyright issue of Dolby, this projector does not support Dolby audio decoding.
- Page 12 used with accessories not preapproved. Refer to and heed all warnings and precautions in the user manual.
-
Page 13: Technical Specifications
Weight / Dimensions 174g / (L) 55 x (W) 55 x (H) 55mm ® Technaxx Mini DLP Beamer TX-126, 1x Remote control, 1x HDMI to mini HDMI cable, Packing contents 1x HDMI to mini HDMI adapter, mini tripod, 1x power cable, user manual Safety instructions ... - Page 14 Cleaning: Protect the device from contamination and pollution. Avoid using rough, coarse-grained materials solvents/aggressive cleaner. Wipe the cleaned device accurately. Distributor: Technaxx Deutschland GmbH & Co.KG, Kruppstr. 105, 60388 Frankfurt a.M., Germany...
