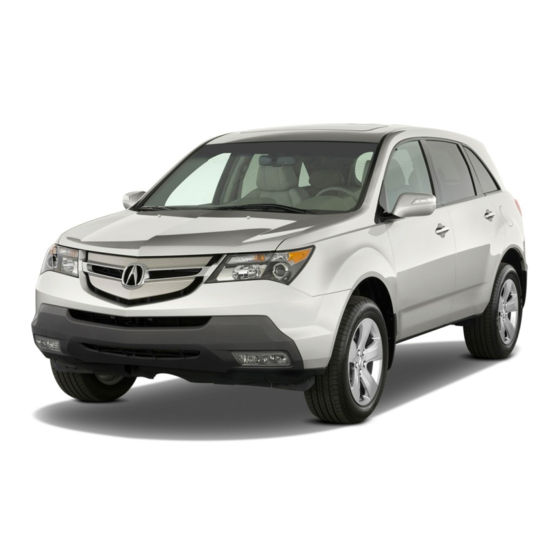

Page 1 Main Menu Congratulations! Your selection of a 2009 Acura MDX was a wise investment. It will give you years of driving pleasure. One of the best ways to enhance the enjoyment of your new vehicle is to read this manual. In it, you will learn how to operate its driving controls and convenience items.
Page 2 This vehicle is equipped with service-related devices that record information about powertrain performance. The data can be used to verify emissions law requirements and/or help technicians diagnose and solve service problems. It may also be combined with data from other sources for research purposes, but it remains confidential. 2009 MDX...
Page 3: A Few Words About Safety
Safety Section － such as Driver and Passenger Safety. ● Instructions － how to use this vehicle correctly and safely. ● This entire book is filled with important safety information － please read it carefully. 2009 MDX A Few Words About Safety and one of...
Page 4: Important Handling Information
For information on how to reduce the risk of rollover, read ‘‘Driving Guidelines’’ on page of this manual and the section on page 378. Failure to operate your vehicle correctly might result in loss of Off-Highway Driving Guidelines control or an accident. 2009 MDX...
Page 5 Owner's Identification Form Introduction ... A Few Words About Safety ... Important Handling Information ... Your Vehicle at a Glance (main controls) ... Driver and Passenger Safety (seat belts, SRS, and child protection) ... Instruments and Controls (indicators, gauges, multi-information display, dashboard, and steering column) ... Features (climate control,audio,rear entertainment,steering wheel,security,cruise control,and other convenience items) ...
Page 6 Taking Care of the Unexpected This section covers several problems motorists sometimes experience, and details how to handle them. 2009 MDX Technical Information ID numbers, dimensions, capacities, and technical information. Warranty and Client Relations (U.S. and Canada only)
Page 7: Your Vehicle At A Glance
® BUTTONS MOONROOF SWITCH (P. 276) (P. 152) ꭧ AUXILIARY INPUT JACKS HEADPHONE CONNECTORS (P. 267) (P. 268) 2009 MDX MIRROR CONTROL ꭧ AUTO BUTTON (P. 154) PASSENGER'S FRONT AIRBAG (P. 9, 27) CLIMATE CONTROL SYSTEM (P. 170) AUDIO SYSTEM (P.
Page 8 ꭧ2: If equipped STEERING WHEEL AUDIO CONTROLS (P. 233) ꭧ1 HORN HOOD RELEASE STEERING WHEEL HANDLE ADJUSTMENTS (P. 325) (P. 124) 2009 MDX WINDSHIELD INSTRUMENT PANEL WIPERS/WASHERS BRIGHTNESS (P. 116) (P. 123) PASSENGER AIRBAG OFF INDICATOR (P. 34) HAZARD WARNING BUTTON (P.
Page 9: Table Of Contents
All Children Must Be Restrained All Children Should Sit in a Back Seat The Passenger's Front Airbag Can Pose Serious Risks 2009 MDX Driver and Passenger Safety If You Must Drive with Several Children If a Child Requires Close Attention...
Page 10: Important Safety Precautions
Infants, young children, and short adults are at the greatest risk. Be sure to follow all instructions and warnings in this manual. 2009 MDX Don't Drink and Drive Alcohol and driving don't mix. Even one drink can reduce your ability to...
Page 11: Your Vehicle's Safety Features
(7) Front Airbags (8) Side Airbags (9) Side Curtain Airbags (10) Front Seat Belt Tensioners (11) Door Locks 2009 MDX Your Vehicle's Safety Features Your vehicle is equipped with many features that work together to protect you and your passengers during a crash.
Page 12: Seat Belts
– frontal impacts – side impacts – rear impacts – rollovers 2009 MDX Help keep you from being thrown ● against the inside of the vehicle and against other occupants. Keep you from being thrown out of ●...
Page 13: Airbags
(see page for more information on how your side airbags work). 2009 MDX Your Vehicle's Safety Features In addition, your vehicle has side curtain airbags to help protect the heads of the driver, front passenger,...
Page 14 A front passenger should move their seat as far back from the dashboard as possible. 2009 MDX The rest of this section gives more detailed information about how you can maximize your safety. Remember, however, that no safety...
Page 15: Protecting Adults And Teens
When one or more doors are not tightly closed, the ‘‘DOOR OPEN’’ message will come on. 2009 MDX Protecting Adults and Teens When the tailgate is not tightly closed, the ‘‘TAILGATE OPEN’’ message will come on.
Page 16: Adjust The Front Seats
Your vehicle has the auto door locking/unlocking feature. For more information, see page 130. 2009 MDX 2. Adjust the Front Seats Adjust the driver's seat as far to the rear as possible while allowing you to maintain full control of the vehicle.
Page 17: Adjust The Seat-Backs
Always sit as far back from the front airbags as possible. See page for how to adjust the front seats. 2009 MDX Protecting Adults and Teens 3. Adjust the Seat-Backs Adjust the driver's seat-back to a comfortable, upright position, leaving...
Page 18: Adjust The Head Restraints
Have passengers adjust their head restraints properly as well. Taller persons should adjust their restraint as high as possible. 2009 MDX Improperly positioning head restraints reduces their effectiveness and you can be seriously injured in a crash. Make sure head restraints are in place and positioned properly before driving.
Page 19: Fasten And Position The Seat Belts
This lets your strong pelvic bones take the force of a crash and reduces the chance of internal injuries. 2009 MDX Protecting Adults and Teens If necessary, pull up on the belt again to remove any slack, then check that the belt rests across the center of your chest and over your shoulder.
Page 20 (it has four positions). 2009 MDX Never place the shoulder portion of a lap/shoulder belt under your arm or This could cause behind your back.
Page 21: Maintain A Proper Sitting Position
2009 MDX Protecting Adults and Teens Sitting improperly or out of position can result in serious injury or death in a crash.
Page 22: Advice For Pregnant Women
When riding as a front passenger, adjust the seat as far back as possible. 2009 MDX This will reduce the risk of injuries to both you and your unborn child that can be caused by a crash or an inflating front airbag.
Page 23: Additional Safety Precautions
2009 MDX Protecting Adults and Teens Keep your hands and arms away ● If your from the airbag covers.
Page 24: Additional Information About Your Seat Belts
6 seconds after the ignition switch is turned to the ON (II) position. 2009 MDX If either the driver or a front passenger does not fasten their seat belt while driving, the beeper will sound and the indicator will flash again at regular intervals.
Page 25: Lap/Shoulder Belt
After exiting the vehicle, be sure the belt is out of the way and will not get closed in the door. 2009 MDX All seat belts have an emergency locking retractor. In normal driving, the retractor lets you move freely in your seat while it keeps some tension on the belt.
Page 26: Automatic Seat Belt Tensioners
When activated, the tensioners immediately tighten the belts to help hold the driver and a front passenger in position. 2009 MDX The tensioners are designed to activate in any collision severe enough to cause the front airbags to...
Page 27: Seat Belt Maintenance
409). Any belt that is not in good condition or working properly will not provide good protection and should be replaced as soon as possible. Acura provides a limited warranty on seat belts. See your Acura Warranty booklet for details. Information...
Page 28: Additional Information About Your Airbags
(5) Side Airbags (6) Driver's Seat Position Sensor (7) Front Passenger's Weight Sensors (8) Passenger Airbag Off Indicator (9) Occupant Position Detection System (OPDS) Sensors (10) Front Passenger's Weight Sensors/OPDS Sensors Control Unit (11) SRS Indicator (10) 2009 MDX (11)
Page 29 (13) ● (12) ● ● (14) 2009 MDX Two SRS (Supplemental Restraint System) front airbags. The driver's airbag is stored in the center of the steering wheel; the front passenger's airbag is stored in the dashboard. Both are marked ‘‘SRS AIRBAG’’...
Page 30 ON (II) position. 2009 MDX An indicator on the instrument ● panel that alerts you to a possible problem with your airbags, sensors, or seat belt tensioners (see page 33).
Page 31: How Your Front Airbags Work
(see page 34). 2009 MDX After inflating, the front airbags immediately deflate, so they won't interfere with the driver's visibility, or the ability to steer or operate other controls.
Page 32 This provides longer airbag inflation time with a little less force. 2009 MDX Dual-Threshold Airbags Your front airbags are also dual- threshold airbags. Airbags with this feature have two deployment...
Page 33 WEIGHT SENSOR The passenger's advanced front airbag system has weight sensors under the seat. Although Acura does not encourage carrying an infant or small child in front, if the sensors detect the weight of an infant or small child (up to about 65 lbs or 29 kg), the system will automatically turn the passenger's front airbag off.
Page 34: How Your Side Airbags Work
410). If it is not, the mat may interfere with the proper operation of the sensors and operation of the seat. 2009 MDX How Your Side Airbags Work If you ever have a moderate to severe side impact, sensors will detect rapid...
Page 35 Your vehicle has a side airbag cutoff system designed primarily to protect a child riding in the front passenger's seat. Although Acura does not encourage children to ride in front, if the position sensors detect a child has leaned into the side airbag's deployment path, the airbag will shut off.
Page 36: How Your Side Curtain Airbags Work
If the impact is on the passenger's side, the passenger's side curtain airbag will inflate even if there are no occupants on that side of the vehicle. 2009 MDX In a Rollover If the rollover sensor detects your vehicle is about to roll over, it signals...
Page 37: How The Srs Indicator Works
Have your vehicle checked by a dealer as soon as possible if the SRS indicator alerts you to a possible problem. 2009 MDX How the Side Airbag Off Indicator Works U.S. Canada This indicator alerts you that the passenger's side airbag has been automatically shut off.
Page 38: How The Passenger Airbag Off Indicator Works
2009 MDX If the indicator comes on with no front seat passenger and no objects on the seat, or with an adult riding there, something may be interfering with the weight sensors.
Page 39: Airbag Service
2009 MDX Additional Safety Precautions Do not attempt to deactivate your ● Together, airbags and seat airbags.
Page 40 If it is necessary to remove or modify a front seat to accommodate a person with disabilities, first contact Acura Client Services at 800-382-2238. Do not cover or replace front seat- ● back covers without consulting Improperly replacing your dealer.
Page 41: Protecting Children － General Guidelines
Infants and small children must be restrained in an approved child seat that is properly secured to the vehicle － 53). (see pages 2009 MDX Children who are unrestrained or improperly restrained can be seriously injured or killed in a crash.
Page 42: All Children Should Sit In A Back Seat
2009 MDX Small Children Placing a forward-facing child seat in the front seat of a vehicle equipped with a passenger's front airbag can be hazardous.
Page 43 (U.S. models) and on the front visors. Please read and follow the instructions on these labels. Protecting Children － General Guidelines U.S. Models SUN VISORS Canadian Models SUN VISORS 2009 MDX DASHBOARD CONTINUED...
Page 44: If You Must Drive With Several Children
2009 MDX If a child requires close physical attention or frequent visual contact, we strongly recommend that another adult ride with the child in a back seat.
Page 45: Additional Safety Precautions
Canadian provinces, and can be very hazardous. 2009 MDX For example, infants and small children left in a vehicle on a hot day can die from heatstroke. A child left alone with the key in the...
Page 46: Protecting Infants And Small Children
2009 MDX Rear-facing Child Seat Placement A rear-facing child seat can be placed in any seating position in the back seat, but not in the front.
Page 47: Protecting Small Children
Of the different seats available, we recommend those that have a five- point harness system as shown. 2009 MDX We also recommend that a small child use the child seat until the child reaches the weight or height limit for the seat.
Page 48 2009 MDX Placing a forward-facing child seat in the front seat can result in serious injury or death if the front airbag inflates.
Page 49: Selecting A Child Seat
In seating positions and vehicles not equipped with LATCH, a LATCH- compatible child seat can be installed using a seat belt. 2009 MDX Selecting a Child Seat Whatever type of seat you choose, to provide proper protection, a child seat should meet three requirements: The child seat should meet U.S.
Page 50: Installing A Child Seat
A child who is not properly secured in a child seat can be seriously injured in a crash. 2009 MDX The following pages provide guidelines on how to properly install a child seat. A forward-facing child...
Page 51: Installing A Child Seat With Latch
LATCH. Do not attach two child seat connectors to a single lower anchor at a time. 2009 MDX Installing a Child Seat Using the Outer LATCH To install a LATCH-compatible child seat in either outer second row seat: 1.
Page 52 4. Whatever type you have, follow the child seat maker's instructions for adjusting or tightening the fit. 2009 MDX TETHER STRAP 5. Lift the head restraint (see page 141), then route the tether strap through the legs of the head...
Page 53 The other anchor is located underneath the flap at the bottom of the outer seat's inner bolster. 2009 MDX Installing a Child Seat 2. Follow step 1 through 4 as described previously to secure the child seat.
Page 54: Installing A Child Seat With A Lap/Shoulder Belt
2009 MDX 2. To activate the lockable retractor, slowly pull the shoulder part of the belt all the way out until it stops, then let the belt feed back into the retractor.
Page 55: Installing A Child Seat With A Tether
To deactivate the lockable retractor and remove a child seat, unlatch the buckle, unroute the seat belt, and let the belt fully retract. 2009 MDX Installing a Child Seat Installing a Child Seat with a Tether A child seat with a tether can be installed in any seating position in the second or third row.
Page 56 (see page 50), lift the head restraint, then route the tether strap over the seat-back and through the head restraint legs. 2009 MDX For the center seat, lower the head restraint, then route the tether strap over the head restraint and seat-back.
Page 57 Then open the anchor cover with a small flat-tip screwdriver. 2. Secure the child seat in the desired position (see page 50). 2009 MDX Installing a Child Seat 3. Route the tether strap over the head restraint, then attach the...
Page 58: Protecting Larger Children
2009 MDX Checking Seat Belt Fit To determine if a lap/shoulder belt properly fits a child, have the child...
Page 59: Using A Booster Seat
2009 MDX Protecting Larger Children Some states and Canadian provinces also require children to use a booster seat until they reach a given age or weight (e.g., 6 years or 60 lbs).
Page 60: When Can A Larger Child Sit In Front
2009 MDX Of course, children vary widely. And while age may be one indicator of when a child can safely ride in front, there are other important factors you should consider.
Page 61: Additional Safety Precautions
Two children should never use the ● If they do, they same seat belt. could be very seriously injured in a crash. 2009 MDX Protecting Larger Children Do not put any accessories on a ● Devices intended to seat belt.
Page 62: Carbon Monoxide Hazard
Even with the door open, run the engine only long enough to move the vehicle out of the garage. 2009 MDX With the tailgate open, airflow can pull exhaust gas into your vehicle's interior and create a hazardous condition.
Page 63: Safety Labels
If a label comes off or becomes hard to read (except for the U.S. dashboard label which may be removed by the owner), contact your dealer for a replacement. HOOD RADIATOR CAP BATTERY LABEL 2009 MDX Safety Labels DASHBOARD U.S. models only CONTINUED...
Page 64 Main Menu Table Of Contents Safety Labels SUN VISOR U.S. models Canadian models U.S. models DOORJAMBS U.S. models 2009 MDX Canadian models...
Page 65 Brightness Steering Wheel Adjustments Keys and Locks Immobilizer System Ignition Switch Door Locks Childproof Door Locks Tailgate Power Tailgate Remote Transmitter 2009 MDX Instruments and Controls Seats Detachable Anchor Seat Heaters Power Windows Moonroof Parking Brake Mirrors Driving Position Memory...
Page 66: Control Locations
PEDAL (P. 153) ꭧ: If equipped HomeLink ® BUTTONS MOONROOF SWITCH (P. 276) (P. 152) ꭧ AUXILIARY INPUT JACKS (P. 267) 2009 MDX MIRROR CONTROL ꭧ AUTO BUTTON (P. 154) CLIMATE CONTROL SYSTEM (P. 170) AUDIO SYSTEM (P. 180) AUTOMATIC TRANSMISSION (P.
Page 67: Instrument Panel
CRUISE MAIN INDICATOR (P. 70) SECURITY SYSTEM INDICATOR (P. 71) PARKING BRAKE AND BRAKE SYSTEM INDICATOR (P. 65) VEHICLE STABILITY ASSIST (VSA) SYSTEM INDICATOR (P. 67) VSA ACTIVATION INDICATOR (P. 67) 2009 MDX Instrument Panel SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR (P. 66) SIDE AIRBAG OFF INDICATOR (P.
Page 68: Instrument Panel Indicators
6 seconds after the ignition switch is turned to the ON (II) position. 2009 MDX If either of you do not fasten your seat belt while driving, the beeper will sound and the indicator will flash again at regular intervals, and you will also see a ‘‘FASTEN SEAT...
Page 69 ‘‘RELEASE PARKING BRAKE’’ message on the multi-information display (see page 81). 2009 MDX Instrument Panel Indicators 2. If it stays on after you have fully released the parking brake while the engine is running, or if it...
Page 70 ‘‘PASSENGER SIDE AIRBAG OFF’’ message on the multi- information display (see page 81). For more information, see page 33. 2009 MDX Anti-lock Brake System (ABS) Indicator This indicator normally comes on for a few seconds when you turn the ignition switch to the ON (II) position.
Page 71 ‘‘CHECK VSA SYSTEM’’ message and a ‘‘CHECK TRAILER STABILITY ASSIST’’ message on the multi- information display (see page 81). 2009 MDX Instrument Panel Indicators Turn Signal and Hazard Warning Indicators The left or right turn signal indicator blinks when you signal a lane change or turn.
Page 72 If this happens, have your dealer check the system as soon as possible. For more information, see page 354. 2009 MDX A/T Temperature Indicator This indicator monitors the temperature of the automatic transmission fluid. It should come on...
Page 73 (see page 82). Take your vehicle to a dealer to have it checked. For more information, see page 348. 2009 MDX Instrument Panel Indicators If the indicator blinks while driving, it indicates the differential temperature is too high.
Page 74 Fog Light Indicator This indicator comes on when you turn on the fog lights. For more information, see page 120. 2009 MDX High Beam Indicator This indicator comes on with the high beam headlights. For more information, see page 118.
Page 75 2.9 U.S. gal (10.8 ꤲ) of fuel remaining in the tank. When the needle reaches E, there is a very small amount of fuel in the tank. 2009 MDX Instrument Panel Indicators Security System Indicator SECURITY SYSTEM INDICATOR This indicator comes on when the security system is set.
Page 76 TACHOMETER TEMPERATURE GAUGE U.S. model is shown. SPEEDOMETER FUEL GAUGE 2009 MDX Temperature Gauge This shows the temperature of the engine's coolant. During normal operation, the pointer should rise to about the middle of the gauge. In severe driving conditions, the pointer may rise to the upper zone.
Page 77: Multi-Information Display
To change the display, press the INFO (▲/▼) button on the steering wheel repeatedly until the main menu appears (see page 74). 2009 MDX Multi-Information Display With the ignition switch in the ON (II) position, the multi-information display changes as shown on the next page each time you press the INFO (▲/▼) button or SEL/RESET...
Page 78 Multi-Information Display Main Menu Tire Pressure for each tire (See page 77) Go to Customize Menu (See page 83) Go to HandsFreeLink Menu (See page 278) 2009 MDX INFO button SEL/RESET button (See page 75) Trip Computer (See page 78)
Page 79 Canadian provincial regulations to disconnect, reset, or alter the odometer with the intent to change the number of miles or kilometers indicated. 2009 MDX Multi-Information Display Trip Meter TRIP METER This meter shows the number of miles (U.S.) or kilometers (Canada) driven since you last reset it.
Page 80 CANADA This shows the outside Fahrenheit temperature in U.S. models, and Celsius temperature in Canadian models. 2009 MDX The temperature sensor is in the front bumper. The temperature reading can be affected by heat reflection from the road surface, engine heat, and the exhaust from surrounding traffic.
Page 81 SH-AWD Torque Distribution Monitor This monitor shows how much torque is being delivered to each wheel. For more information, see page 348. 2009 MDX Multi-Information Display Tire Pressure Monitor U.S. Canada When the tire pressure monitor is shown on the multi-information display, press the SEL/RESET button.
Page 82 HFL and how to receive or make phone calls, or visit the handsfreelink.com website. ® 2009 MDX Trip Computer When the main menu displays ‘‘TRIP COMPUTER’’, pressing the SEL/ RESET button changes the display to ‘‘AVERAGE FUEL A/RANGE’’...
Page 83 (km/h) for Canadian models. To reset the AVERAGE SPEED you have traveled, press and hold the SEL/RESET button until the number resets. 2009 MDX Multi-Information Display ELAPSED TIME This shows the time passed traveled since you last reset it. When you turn the ignition switch to the ON (II) position, ELAPSED TIME is reset.
Page 84 5 seconds, and then the normal display returns. If there are several system messages to be shown, the display switches these messages every 5 seconds. 2009 MDX To cancel the message(s) before 5 seconds elapsed, press the INFO (▲/▼) button on the steering wheel.
Page 85 See page See page See page See page U.S. See page Canada U.S. See page Canada U.S. See page Canada U.S. See page Canada 2009 MDX Multi-Information Display See page See page See page See page See page See page CONTINUED...
Page 86 Main Menu Table Of Contents Multi-Information Display See page See page See page See page U.S. See page Canada See page See page See page See page See page See page 2009 MDX See page See page See page See page...
Page 87 To have the driver's ID detected, make sure your remote transmitter is linked to the system (see Keyless Memory Settings™ on page 139). 2009 MDX Multi-Information Display If you want the settings as they were when the vehicle left the factory, select DEFAULT ALL, as described on page 86.
Page 88 Changes the interior light sensitivity to your liking. Changes the driver's seat, the steering wheel, and the outside mirror positions to a stored setting. Moves the steering wheel fully in and up when the key is removed. 2009 MDX Setting Option Page ENGLISH ꭧ...
Page 89 Changes the wiper operation between two settings when the wiper switch is in the INT position. Set/Cancel all the customized settings as default. 2009 MDX Multi-Information Display Setting Option Page 60 sec 15 sec ꭧ...
Page 90 If you want to cancel DEFAULT ALL, select CANCEL, then press the SEL/ RESET button. The screen goes back to the previous display. 2009 MDX When DEFAULT ALL is set, you will see the above display for several seconds, then the screen returns to CUSTOMIZE ENTRY.
Page 91 INFO (▲/▼) button to select CHG SETTING, then press the SEL/ RESET button. 2009 MDX Multi-Information Display Each time you press the INFO (▲/▼) button, the screen changes as shown on the next page. Press the INFO (▲/▼) button, until you see...
Page 92 Main Menu Table Of Contents Multi-Information Display Select ‘‘EXIT’’ Select ‘‘CANCEL’’ Select ‘‘DEFAULT ALL’’ SEL/RESET BUTTON INFO (▲/▼) BUTTON 2009 MDX METER SETUP see page POSITION SETUP see page LIGHTING SETUP see page DOOR/WINDOW SETUP see page WIPER SETUP see page...
Page 93 (▲/▼) button, the screen changes as shown in the illustration. Press the INFO (▲/▼) button until you see the setting you want to customize, then press the SEL/RESET button to enter your selection. Multi-Information Display SEL/RESET BUTTON INFO (▲/▼) BUTTON 2009 MDX CONTINUED...
Page 94 Select the desired language by pressing the INFO (▲/▼) button, then enter your selection by pressing the SEL/RESET button. 2009 MDX When your selection is successfully completed, the display changes as shown above, and then goes back to the customize item screen.
Page 95 Canadian models Adjust the outside temperature value by pressing the INFO (▲/▼) button repeatedly. Press the SEL/RESET button to set the desired value. 2009 MDX Multi-Information Display U.S. models Canadian models When your selection is successfully completed, the display changes as shown above, and then goes back to the customize item screen.
Page 96 Select ON or OFF by pressing the INFO (▲/▼) button, then enter your selection by pressing the SEL/ RESET button. 2009 MDX When your selection is successfully completed, the display changes as shown above, and then goes back to the customize item screen.
Page 97 Select the desired level by pressing the INFO (▲/▼) button, then enter your selection by pressing the SEL/ RESET button. 2009 MDX Multi-Information Display When your selection is successfully completed, the display changes as shown above, and then goes back to the customize item screen.
Page 98 Trip B is reset. You can choose this customize item from ‘‘METER SETUP’’ by pressing the INFO (▲/▼) button repeatedly. 2009 MDX Press the SEL/RESET button to see the selections. Select the desired setting by pressing the INFO (▲/▼) button, then enter your selection by pressing the SEL/RESET button.
Page 99 MIN. Choose HIGH, MID, or LOW for levels in between. To disable the auto interior illumination function, select OFF. 2009 MDX Multi-Information Display You can choose this customize item from ‘‘METER SETUP’’ by pressing the INFO (▲/▼) button repeatedly.
Page 100 When your selection is successfully completed, the display changes as shown above, and then goes back to the customize item screen. If the ‘‘SETTING INCOMPLETE’’ message appears, go back to ‘‘AUTO INTERIOR ILLUMINATION’’ and repeat the procedure again. 2009 MDX...
Page 101 (▲/▼) button, the screen changes as shown in the illustration. Press the INFO (▲/▼) button until you see the setting you want to customize, then press the SEL/RESET button to enter your selection. Multi-Information Display SEL/RESET BUTTON NFO (▲or▼) BUTTON 2009 MDX CONTINUED...
Page 102 Select ON or OFF by pressing the INFO (▲/▼) button, then enter your selection by pressing the SEL/ RESET button. 2009 MDX When your selection is successfully completed, the display changes as shown above, and then goes back to the customize item screen.
Page 103 Select ON or OFF by pressing the INFO (▲/▼) button, then enter your selection by pressing the SEL/ RESET button. 2009 MDX Multi-Information Display When your selection is successfully completed, the display changes as shown above, and then goes back to the customize item screen.
Page 104 (▲/▼) button, the screen changes as shown in the illustration. Press the INFO (▲/▼) button until you see the setting you want to customize, then press the SEL/RESET button to enter your selection. SEL/RESET BUTTON INFO (▲or▼) BUTTON 2009 MDX...
Page 105 Select the desired setting by pressing the INFO (▲/▼) button, then enter your selection by pressing the SEL/RESET button. 2009 MDX Multi-Information Display When your selection is successfully completed, the display changes as shown above, and then goes back to the customize item screen.
Page 106 You can choose this customize item from ‘‘LIGHTING SETUP’’ by pressing the INFO (▲/▼) button repeatedly. 2009 MDX Press the SEL/RESET button to see the selections. Select the desired setting by pressing the INFO (▲/▼) button, then enter your selection by pressing...
Page 107 LOW － The headlights come on when it is somewhat dark. MIN － The headlights come on when it is dark. 2009 MDX Multi-Information Display You can choose this customize item from ‘‘LIGHTING SETUP’’ by pressing the INFO (▲/▼) button repeatedly.
Page 108 When your selection is successfully completed, the display changes as shown above, and then goes back to the customize item screen. If the ‘‘SETTING INCOMPLETE’’ message appears, go back to ‘‘AUTO LIGHT SENSITIVITY’’ and repeat the procedure again. 2009 MDX...
Page 109 (▲/▼) button, the screen changes as shown in the illustration. Press the INFO (▲/▼) button until you see the setting you want to customize, then press the SEL/RESET button to enter your selection. Multi-Information Display SEL/RESET BUTTON INFO (▲or▼) BUTTON 2009 MDX CONTINUED...
Page 110 You can choose this customize item from ‘‘DOOR/WINDOW SETUP’’ by pressing the INFO (▲/▼) button repeatedly. 2009 MDX Press the SEL/RESET button to see the selections. Select the desired setting by pressing the INFO (▲/▼) button, then enter your selection by pressing...
Page 111 LOCK (0) position. OFF － The auto door unlock is deactivated all the time. This is the factory default setting. 2009 MDX Multi-Information Display You can choose this customize item from ‘‘DOOR/WINDOW SETUP’’ by pressing the INFO (▲/▼) button repeatedly.
Page 112 Then, press the SEL/RESET button to enter your selection. 2009 MDX When your selection is successfully completed, the display changes as shown above, and then goes back to the customize item screen.
Page 113 Select the desired setting by pressing the INFO (▲/▼) button, then enter your selection by pressing the SEL/RESET button. 2009 MDX Multi-Information Display When your selection is successfully completed, the display changes as shown above, and then goes back to the customize item screen.
Page 114 You can choose this customize item from ‘‘DOOR/WINDOW SETUP’’ by pressing the INFO (▲/▼) button repeatedly. 2009 MDX Press the SEL/RESET button to see the selections. Select ON or OFF by pressing the INFO (▲/▼) button, then enter your selection by pressing the SEL/ RESET button.
Page 115 You can change this relock time from 30 seconds to 60 or 90 seconds. 2009 MDX Multi-Information Display You can choose this customize item from ‘‘DOOR/WINDOW SETUP’’ by pressing the INFO (▲/▼) button repeatedly.
Page 116 When your selection is successfully completed, the display changes as shown above, and then goes back to the customize item screen. If the ‘‘SETTING INCOMPLETE’’ message appears, go back to ‘‘SECURITY RELOCK TIMER’’ and repeat the procedure again. 2009 MDX...
Page 117 INFO (▲/▼) button until you see the setting you want to customize, then press the SEL/RESET button to enter your selection. 2009 MDX Multi-Information Display Wiper Action You can select from these two settings when the wiper switch is in the INT (intermittent) position: INTERMITTENT －...
Page 118 Select the desired setting by pressing the INFO (▲/▼) button, then enter your selection by pressing the SEL/RESET button. 2009 MDX When your selection is successfully completed, the display changes as shown above, and then goes back to the customize item screen.
Page 119: Controls Near The Steering Wheel
WINDSHIELD AUDIO CONTROLS WIPERS/WASHERS (P. 233) (P. 116) ꭧ2 HORN STEERING WHEEL CRUISE CONTROL ADJUSTMENTS (P. 124) BUTTONS (P. 270) 2009 MDX INSTRUMENT PANEL BRIGHTNESS (P. 123) PASSENGER AIRBAG OFF INDICATOR (P. 34) HAZARD WARNING BUTTON (P. 122) REAR WINDOW DEFOGGER (P.
Page 120: Windshield Wipers And Washers
12 mph (20 km/h). To change the ‘‘WIPER ACTION’’ setting, see page 113. 2009 MDX LO － The wipers run at low speed. HI － The wipers run at high speed. Windshield Washer － Pull the wiper control lever toward you, and hold it.
Page 121 Windshield Wipers and Washers The headlight washers use the same fluid reservoir as the windshield washers. 2009 MDX Rear Window Wiper and Washer 1. Rotate the switch clockwise to turn the rear window wiper ON. 2. Hold past ON to turn the rear window wiper on and to spray the rear window washer.
Page 122 6. High beams 7. Flash high beams 8. Fog lights off 9. Fog lights on 2009 MDX Turn Signal － Push down on the lever to signal a left turn and up to signal a right turn. To signal a lane change, push lightly on the lever, and hold it.
Page 123: Turn Signal And Headlights
ON (II) position or turn the light switch to the position. 2009 MDX Turn Signal and Headlights Even with the automatic lighting feature turned on, we recommend that you turn on the lights manually...
Page 124 They will go off when the headlights turn off. 2009 MDX Daytime Running Lights With the headlight switch off, the daytime running lights come on when you turn the ignition switch to the ON (II) position and release the parking brake.
Page 125 ‘‘AUTO’’ position, and you remove the key, then open and close the driver's door. 2009 MDX Turn Signal and Headlights If you turn the ignition switch to the LOCK (0) position with the headlight...
Page 126 15 minutes. It also shuts off when you turn off the ignition. You have to turn it on again when you restart the vehicle. 2009 MDX Make sure the rear window is clear and you have good visibility before starting to drive.
Page 127: Instrument Panel Brightness
The level of brightness is shown on the multi-information display while you adjust it. It goes out 5 seconds after you finish adjusting. 2009 MDX Instrument Panel Brightness To reduce glare at night, the instrument panel illumination dims when you turn the light switch to .
Page 128: Steering Wheel Adjustments
ADJUSTMENT SWITCH Move the steering wheel in, out, up, or down by pushing and holding the adjustment switch in that direction. 2009 MDX Release the switch when the steering wheel reaches the desired position. Make sure the steering wheel points...
Page 129: Steering Wheel Adjustments
Insert the key into the ignition switch, and remove it. The steering wheel automatically moves fully in and up to let you know the system is reset. 2009 MDX Steering Wheel Adjustments...
Page 130: Keys And Locks
You should have received a key number tag with your keys. You will need this key number if you ever have to get a lost key replaced. Use only Acura-approved key blanks. 2009 MDX These keys contain electronic circuits that are activated by the immobilizer system.
Page 131 If the key does not fully extend, the immobilizer system may not operate properly and prevents from starting the engine. 2009 MDX Keys and Locks The key may come in contact with your finger while being retracted or extended. Make sure your fingers do not touch the pivot of the key when retracting or extending the key.
Page 132: Immobilizer System
Always take the ignition key with you whenever you leave the vehicle alone. 2009 MDX As required by the FCC: This device complies with Part 15 of the FCC rules. Operation is subject to the...
Page 133: Ignition Switch
START (III) － Use this position only to start the engine. The switch returns to the ON (II) position when you let go of the key. 2009 MDX Ignition Switch You will hear a reminder beeper if you leave the key in the ignition...
Page 134: Door Locks
The remaining doors and the tailgate unlock when you turn the key a second time within a few seconds. 2009 MDX To change the ‘‘KEY AND REMOTE UNLOCK MODE’’ setting, see page 109.
Page 135 To open the door, push the lock tab forward and use the outside door handle. 2009 MDX Door Locks, Tailgate Tailgate To open the tailgate, push up inside the handle, then lift up. To close the...
Page 136 2009 MDX TAILGATE SWITCH The tailgate can also be closed by pressing the button on the tailgate. If...
Page 137 The vehicle is parked on a steep ● hill. When the vehicle is swayed in a ● strong wind. 2009 MDX Tailgate When the tailgate or the roof is ● covered with snow or ice. Do not install any accessories on the tailgate.
Page 138 Use a small flat-tipped screwdriver to remove the cover on the back of the tailgate. 2009 MDX Push the release lever to the right as shown. If you need to unlock the tailgate manually, it means there is a problem with the tailgate.
Page 139 This button does not work if any door or tailgate is not fully closed. 2009 MDX Tailgate, Remote Transmitter Models with power tailgate UNLOCK LOCK...
Page 140: Remote Transmitter
When the tailgate begins to move, you will hear a beep, and some front and rear lights will flash. 2009 MDX If you push the same button again while the tailgate is opening or closing, three beeps sound, the...
Page 141 If it takes several pushes on the button to lock or unlock the doors and the tailgate, replace the battery as soon as possible. Battery type: CR1616 2009 MDX Remote Transmitter SCREW KEYPAD To replace the battery: 1. Remove the screw at the base of the transmitter with a small Phillips-head screwdriver.
Page 142 5. Snap the two halves of the keypad, then install the parts in reverse order. 2009 MDX As required by the FCC: This device complies with Part 15 of the FCC rules. Operation is subject to the...
Page 143 The indicator in the related memory button to the remote comes on. 2009 MDX Remote Transmitter The steering wheel will move to the stored position when you insert the key into the ignition switch.
Page 144 Moves the seat forward and backward. Moves the front of the seat up or down. Raises or lowers the seat. 2009 MDX Moves the whole seat up and forward, or down and backward. The front of the seat also tilts up or down at the same time.
Page 145 They are most effective when you adjust them so the center of the back of the occupant's head rests against the center of the restraint. 2009 MDX Seats FRONT CUSHION SEAT- BACK LEGS...
Page 146 Make sure the head restraint locks in position when you reinstall it. 2009 MDX Failure to reinstall the head restraints can result in severe injury during a crash. Always replace the head...
Page 147 If the restraints do not return to their normal position, or in the event of a severe collision, have the vehicle inspected by an Acura dealer. 2009 MDX Seats For a head restraint system to work properly: Do not hang any items on the head ●...
Page 148 Reverse this procedure to return the seat to the upright position. Make sure the seat is locked securely before driving. 2009 MDX Make sure that the folded seat-back does not press against the front passenger's seat, as this could cause the weight sensors to work improperly.
Page 149 2. Lower the head restraints to their lowest positions. NOTE: To fold the third row seat, the second row seat-back must be folded down or in the full up right position. 2009 MDX Seats THIRD SEAT HANDLE 3. Unlock the seat-back by pulling the handle.
Page 150 Store the detachable anchor and seat belt latch plates in the retractor housing. 2009 MDX When the seats are returned to the upright position, these detachable anchors should be latched back properly.
Page 151 THIRD ROW SEATS HOOK Pull out the outer shoulder belts from the hook. Both of the third-row hooks should only be used when the seat belt is detached. 2009 MDX Seats SMALL LATCH PLATE TRIANGLE MARKS ANCHOR BUCKLE Line up the triangle marks on the...
Page 152: Seat Heaters
After the seat reaches a comfortable temperature, select LO by pushing the back of the switch. This will keep the seat warm. 2009 MDX Second row seat U.S. Entertainment Packages and Canadian models The outer second row seat cushions and seat-backs are equipped with seat heaters.
Page 153 Pull back on the switch and hold it to close the window. 2009 MDX Seat Heaters, Power Windows The windows will operate for up to 10 minutes after you turn off the ignition switch.
Page 154: Power Windows
You should always check that all passengers and objects are away from the window before closing it. 2009 MDX If your vehicle's battery is disconnected or goes dead, or the driver's window fuse is removed, the AUTO function may be disabled.
Page 155 1. Insert the key in the driver's door lock. 2. Turn the key clockwise, then release it. 2009 MDX Power Windows 3. Turn the key clockwise again, and hold it. All four windows and the moonroof start to open. To stop the windows and the moonroof, release the key.
Page 156 The moonroof opens all the way. To stop the moonroof from opening fully, push the switch briefly. 2009 MDX To tilt up the moonroof, push on the center of the moonroof switch. To stop the moonroof from tilting up fully, push the switch briefly.
Page 157 If you try to open the moonroof in below-freezing temperatures, or when it is covered with snow or ice, you can damage the moonroof panel or its motor. 2009 MDX Moonroof, Parking Brake Parking Brake RELEASE HANDLE PARKING BRAKE PEDAL To apply the parking brake, push the pedal down with your foot.
Page 158 Mirrors Keep the inside and outside mirrors clean and adjusted for best visibility. Be sure to adjust the mirrors before you start driving. 2009 MDX SENSOR INDICATOR AUTO BUTTON The inside mirror can automatically darken to reduce glare. To turn on this feature, press the button on the bottom of the mirror.
Page 159 1. Turn the ignition switch to the ON (II) position. 2. Move the selector switch to L (driver's side) or R (passenger's side). 2009 MDX Mirrors 3. Push the appropriate edge of the adjustment switch to move the mirror right, left, up, or down.
Page 160 The indicator in the button comes on as a reminder. Press the button again to turn the heaters off. Pressing this button also turns the rear window defogger on and off. 2009 MDX...
Page 161: Driving Position Memory System
Adjust the steering wheel to a comfortable position (see page 124). Adjust the outside mirrors for best visibility (see page 155). 2009 MDX MEMORY BUTTONS MEMO BUTTON 3. Press and release the MEMO button on the control panel. You will hear a beep. Immediately...
Page 162 To change the ‘‘MEMORY POSITION LINK’’ setting, see page 2009 MDX To stop the system's automatic adjustment, do any of these actions: Press any button on the control ●...
Page 163: Interior Lights
When the doors and the tailgate are closed, the cargo area light can be turned on with the switch in the light. 2009 MDX Interior Lights After all doors are closed tightly, the lights dim slightly, then fade out in about 30 seconds.
Page 164 Push the lens again to turn it off. 2009 MDX COURTESY LIGHT The courtesy light between the map lights comes on when you turn the parking lights on. To adjust its...
Page 165 The tailgate lights do not come on when any other doors are opened. 2009 MDX Interior Lights Individual Interior Lights The courtesy lights in all four doors come on when you open any door.
Page 166: Interior Convenience Items
Main Menu Table Of Contents Interior Convenience Items SUNGLASSES HOLDER SUN VISOR GLOVE BOX CENTER POCKET ACCESSORY POWER SOCKET CONSOLE COMPARTMENT COAT HOOK VANITY MIRROR ARMREST/BEVERAGE HOLDER 2009 MDX STORAGE COMPARTMENTS GROCERY HOOK BEVERAGE HOLDER ACCESSORY POWER SOCKET...
Page 167 ARMREST Beverage holders are also provided in the second row seat armrest. Pivot down the seat-back to use them. 2009 MDX Interior Convenience Items FRONT LID BEVERAGE HOLDER To open the beverage holder, press and release the front lid. To close, press the lid again until it latches.
Page 168 To open the compartment, push the button and lift the lid. 2009 MDX Glove Box Open the glove box by pulling the handle to the left. Close it with a firm push. Lock or unlock the glove box with the master key.
Page 169 2009 MDX Interior Convenience Items Cargo Hooks HOOK The hooks on the floor of the cargo area enable you to tie down items stored in the back.
Page 170 To use the vanity mirror on the back of the sun visor, pull up the cover. The vanity mirror light will not come on if the sun visor is slid outward. 2009 MDX Accessory Power Sockets Your vehicle has two or three accessory power sockets, depending on the model.
Page 171 12 volt DC accessories that are rated 120 watts or less (10 amps). None of the sockets will power an automotive type cigarette lighter element. 2009 MDX Interior Convenience Items AC Power Outlet U.S. Entertainment Packages and Canadian Elite Package models...
Page 172 Any appliances that require an extremely stable power supply such as microcomputer- controlled electric blankets, touch sensor lamps, etc., should not be connected to this outlet. 2009 MDX...
Page 173 Playing the AM/FM Radio (Models with navigation system) AM/FM Radio Reception Playing the AM/FM Radio (Models with navigation system) 2009 MDX Features Playing the XM Satellite Radio ® (Models with navigation system) Playing Discs (Models with navigation system)
Page 174: Climate Control System
AUTO BUTTON OFF BUTTON DRIVER'S SIDE TEMPERATURE AUTO INDICATOR RECIRCULATION BUTTON REAR WINDOW DEFOGGER/HEATED MIRROR BUTTON AUTO SYNC INDICATOR OFF BUTTON 2009 MDX FRONT PASSENGER'S SIDE TEMPERATURE FAN CONTROL BUTTONS FRONT PASSENGER'S SIDE TEMPERATURE CONTROL BUTTONS MODE BUTTON AIR CONDITIONING...
Page 175 3. You can set the driver's side temperature, the passenger's side temperature, and the temperature of the rear passenger compartment separately. 2009 MDX Climate Control System The system automatically selects the proper mix of conditioned and/or heated air that will, as quickly as possible, raise or lower the interior temperature to your preference.
Page 176 (GPS). For example, if the driver's side of the vehicle is getting too much sun, the system will adjust to a lower temperature. 2009 MDX Dual Button You can set the temperatures for the driver's side and the passenger's side separately when this button is pressed (indicator is on).
Page 177 Fan Control ▲ button to increase the Press the fan speed and airflow. Press the button to decrease it. 2009 MDX Climate Control System Air Conditioning (A/C) Button This button turns the air conditioning on and off. You will see A/C ON or A/C OFF in the display.
Page 178 When you turn off by pressing the button again, the system returns to its former settings. 2009 MDX For your safety, make sure you have a clear view through all the windows before driving. When the indicator in the button is...
Page 179: Rear Climate Controls
REAR button on the front control panel is on. Pressing any control button on the rear control panel turns on the rear button indicator on the front control panel. 2009 MDX Climate Control System CONTROL BUTTONS MODE BUTTON OFF BUTTON...
Page 180 When is selected, air flows from the lower vents. 2009 MDX Automatic Operation Pressing the AUTO button puts the system in automatic operation mode. The rear system automatically adjusts the fan speed and airflow...
Page 181 When the indicator in the REAR button is on, the temperature of the rear passenger compartment can be controlled independently. To adjust each temperature, press either of the temperature control buttons (▲or▼) on the climate control panel. Rear Passenger Compartment CONTINUED 2009 MDX...
Page 182 REAR button first. Pressing either button causes the indicator of the REAR button to turn on. When you set each temperature to its lower limit or its upper limit, it will be displayed as ‘‘ ’’ or ‘‘ ’’. 2009 MDX...
Page 183 A sunlight sensor is located in the top of the dashboard and a temperature/ humidity sensor is next to the steering column. Do not cover the sensors or spill any liquid on them. 2009 MDX...
Page 184: Audio System
With rear entertainment system models. Read the appropriate pages (as shown below) to use your vehicle's audio system. For vehicles without navigation system, see pages through 199. For vehicles with navigation system, see pages through 227. Without navigation system 2009 MDX...
Page 185: Playing The Am/Fm Radio (Models Without Navigation System)
Main Menu Table Of Contents Playing the AM/FM Radio (Models without navigation system) AUTO SELECT BUTTON FM BUTTON SCAN BUTTON POWER/VOLUME KNOB AM BUTTON PRESET BUTTONS 2009 MDX SEEK BUTTONS TUNE KNOB CONTINUED...
Page 186 To activate it, press the ＋ or － SEEK button, then release it. 2009 MDX SCAN － The scan function samples all stations with strong signals on the selected band. To activate it, press the SCAN button, then release it.
Page 187 If you do not like the stations auto select has stored, you can store other frequencies on the preset buttons as previously described. 2009 MDX press the A.SEL To turn off auto select, (auto select) button. This restores the presets you originally set.
Page 188 If you feel the sound is too loud, choose low. If you feel the sound is too quiet, choose high. 2009 MDX This function is set to MID as the default setting when the vehicle leaves the factory.
Page 189 Main Menu Table Of Contents Playing the XM XM RADIO BUTTON SCAN BUTTON POWER/VOLUME KNOB Satellite Radio (Models without navigation system) ® PRESET BUTTONS 2009 MDX CATEGORY BUTTONS TUNE KNOB DISP/MODE BUTTON CONTINUED...
Page 190 DISP/MODE button, the display changes in the following sequence: channel name, channel number, category, artist name, and music title. 2009 MDX You may experience periods when XM Radio does not transmit the artist's name and song title information. If this happens, there is nothing wrong with your system.
Page 191: Playing The Xm Satellite Radio (Models Without Navigation System)
3. Once a channel is stored, simply press and release the proper preset button to tune to it. 2009 MDX The presets may be lost if your vehicle's battery goes dead, is disconnected, or the radio fuse is removed.
Page 192 To help compensate for this, ground-based repeaters are placed in major metropolitan areas. 2009 MDX Signal weaker in these areas. GROUND REPEATER Satellite signals are more likely to be blocked by tall buildings and mountains the farther north you travel from the equator.
Page 193 To get your radio I.D. number, turn the TUNE knob until ‘‘0’’ appears in the display. Your I.D. will appear in the display. 2009 MDX After you've registered with XM Radio, keep your audio system in the Satellite Radio mode while you wait for activation.
Page 194: Playing Discs (Models Without Navigation System)
Table Of Contents Playing Discs (Models without navigation system) DISC SLOT DISC LOAD BUTTON POWER/VOLUME KNOB MP3/WMA INDICATOR TRACK/FILE NUMBER FOLDER NUMBER RANDOM BUTTON SCAN BUTTON REPEAT BUTTON 2009 MDX SEEK BUTTONS DISC EJECT BUTTON TUNE (FOLDER) KNOB PRESET BUTTONS...
Page 195 16/22.05/24 kHz (MPEG2) Bitrate: 32/40/48/56/64/80/96/ 112/128/160/192/224/256/320 kbps Compatible with variable bitrate and multi-session. Maximum layers (including ROOT): 8 layers 2009 MDX The specifications of the compatible WMA files are: Sampling frequency: 22.05/32/44.1/48 kHz Bitrate: 48/64/80/96/128/160/192 kbps Compatible with variable bitrate and multi-session.
Page 196 You will see ‘‘BUSY’’ in the display while the disc load indicator turns red and blinks as the disc is loaded. 2009 MDX You cannot load and play 3-inch (8-cm) discs in this unit. 4. When the disc load indicator turns green and ‘‘LOAD’’...
Page 197 When you change the audio mode ● to play a disc with text data or in MP3 or WMA. 2009 MDX When you insert a disc, and the ● system begins to play. When playing a CD-DA with text data, the album and track name are shown in the display.
Page 198 Turn it again to skip to the beginning of the previous folder. Turning the TUNE knob more than two clicks skips several folders. 2009 MDX REPEAT (Track Repeat) － To continuously replay a track (file in MP3 or WMA mode), press and release the RPT button.
Page 199 You will see RDM in the display. Press the RDM button for 2 seconds to return to normal play. 2009 MDX In MP3 or WMA mode FOLDER RANDOM － This feature, when activated, plays the files within a current folder in...
Page 200 10 seconds each. When it plays a file that you want to continue listening to, press and hold the SCAN button. 2009 MDX Pressing either seek button, or selecting a different disc (using the preset buttons) or folder (using the TUNE knob) turns off the SCAN or F-SCAN feature.
Page 201 Each time you press and release the SCAN button, the mode changes from file scan, folder scan, disc scan, then to normal playing. 2009 MDX To Stop Playing a Disc Press the eject button ( ) to remove the disc. If you eject the disc,...
Page 202 You can also eject discs when the ignition switch is off. The disc that was last selected is ejected first. Protecting Discs For information on how to handle and protect compact discs, see page 229. 2009 MDX...
Page 203: Disc Changer Error Message (Models Without Navigation System)
EJECT BAD DISC － PLEASE CHECK Servo Error OWNER'S MANUAL 2009 MDX Solution Will disappear when the temperature returns to normal. Current track will be skipped. The next supported track or file plays automatically. Press the EJECT button and pull out the disc(s).
Page 204: Audio System (Models With Navigation System)
When you make a selection, push the center of the selector (ENTER) to go to that selection. 2009 MDX Personalization Setting When you unlock the doors with your remote and turn the audio...
Page 205: Playing The Am/Fm Radio (Models With Navigation System)
Playing the AM/FM Radio (Models with navigation system) With rear entertainment system AUTO SELECT BUTTON SCAN BUTTON SEEK AM/FM BUTTONS BUTTON TUNE KNOB POWER/ PRESET VOLUME KNOB BUTTONS AUDIO BUTTON 2009 MDX AUDIO DISPLAY PRESET BUTTONS TUNE KNOB INTERFACE DIAL CONTINUED AUTO SELECT BUTTON SEEK BUTTONS...
Page 206 You can use any of five methods to find radio stations on the selected band: TUNE, SEEK, SCAN, the preset buttons, and AUTO SELECT. 2009 MDX TUNE ICON TUNE － Use the TUNE knob to tune the radio to a desired frequency.
Page 207 To activate it, press the SCAN button, then release it. 2009 MDX To scan with the interface dial, push the selector down, and then push it to the right. You will see SCAN flashing on the screen.
Page 208 You will see AUTO SEL on the screen, and the system goes into scan mode for several seconds. 2009 MDX You can also press the A.SEL button. You will see AUTO SEL on the screen, and the system goes into scan mode for several seconds.
Page 209: Am/Fm Radio Reception
Eventually, the stereo indicator will go off and the sound will fade completely as you get out of range of the station's signal. 2009 MDX AM/FM Radio Reception Driving very near the transmitter of a station that is broadcasting on a...
Page 210 Electrical interference from passing vehicles and stationary sources can cause temporary reception problems. 2009 MDX As required by the FCC: Changes or modifications not expressly approved by the party responsible for compliance could void the user's...
Page 211: Playing The Am/Fm Radio (Models With Navigation System)
SOUND. Then press ENTER on the selector. 2009 MDX Select the mode you want to adjust by turning the interface dial. You can also adjust the sound by pushing the SOUND button repeatedly.
Page 212 To equalize the fader or balance, turn the interface knob until the marks on the sound grid come to the center of the adjustment bar. 2009 MDX CENTER/SUBWOOFER － To adjust the strength of the sound from the center or subwoofer speaker, select it and press ENTER on the interface selector.
Page 213 Manufactured under license from Dolby Laboratories. ‘‘Dolby’’, ‘‘ProLogic’’, and the double-D symbol are trademarks of Dolby Laboratories. 2009 MDX Speed-sensitive Volume Compensation (SVC) The SVC mode controls the volume based on vehicle speed. The faster you go, the louder the audio volume becomes.
Page 214 PRESET BUTTONS AUDIO BUTTON INTERFACE DIAL With rear entertainment system CATEGORY BUTTONS SCAN BUTTON TUNE POWER/ KNOB VOLUME KNOB DISPLAY/ MODE BUTTON BUTTON AUDIO BUTTON 2009 MDX AUDIO DISPLAY PRESET BUTTONS CATEGORY BUTTONS TUNE KNOB DISPLAY/ MODE BUTTON INTERFACE DIAL...
Page 215: Playing The Xm Satellite Radio (Models With Navigation System)
The last channel you listened to will show in the display. Adjust the volume by turning the power/volume knob. 2009 MDX Push the AUDIO button to display XM information on the screen. You can operate the XM Satellite Radio system with the interface dial.
Page 216 On the screen, you will see the selected CHANNEL (number), CATEGORY, NAME (artist name), and TITLE (music title). 2009 MDX TUNE － Turn the TUNE knob to change channel selections. Turn the knob right for higher numbered channels and left for lower numbered channels.
Page 217 You will see SCAN on the screen and audio display. 2009 MDX The system plays each channel in numerical order for a few seconds, then selects the next channel. When...
Page 218 ENTER on the interface selector. 4. Repeat steps 2 and 3 to store the first six channels. 2009 MDX 5. Press the button or scroll up again. The other XM band will be shown. Store the next six channels using steps 2 and 3.
Page 219 ’’ － The selected channel number does not exist or is not part of your subscription, or this channel has no artist or title information at this time. ‘‘ANTENNA’’－ There is a problem with the XM antenna. Please consult your dealer. 2009 MDX CONTINUED...
Page 220 SATELLITE Signal weaker in these areas. GROUND REPEATER 2009 MDX The XM satellites are in orbit over the equator; therefore, objects south of the vehicle may cause satellite reception interruptions. To help compensate for this, ground-based repeaters are placed in major metropolitan areas.
Page 221 I.D. number, turn the TUNE knob until ‘‘0’’ appears in the display. Your I.D. will appear in the display. 2009 MDX After you've registered with XM Radio, keep your audio system in the Satellite Radio mode while you wait for activation.
Page 222: Playing Discs (Models With Navigation System)
SEEK BUTTONS SCAN BUTTON EJECT LOAD BUTTON BUTTON POWER/ VOLUME FOLDER KNOB KNOB DISPLAY/ REPEAT MODE BUTTON BUTTON DISC BUTTON AUDIO BUTTON 2009 MDX AUDIO DISPLAY PRESET BUTTONS RANDOM BUTTON SEEK BUTTONS EJECT BUTTON FOLDER KNOB INTERFACE DIAL DISPLAY/MODE BUTTON...
Page 223 & pending. DTS and DTS Digital Surround are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2007 DTS, Inc. All Rights Reserved. You cannot load and play 3-inch (8-cm) discs in this system. 2009 MDX CONTINUED...
Page 224 To load a single disc: 1. Press and release the LOAD button. 2009 MDX 2. ‘‘NO DISC’’ is shown on the screen for an empty position in the changer. When the green load indicator comes on and you see the ‘‘LOAD’’...
Page 225 2009 MDX If the disc does not carry album, track, or artist name, pressing the DISP button changes the display from normal display to ‘‘NO INFO’’.
Page 226 If you don't, the system advances to the next track, plays about 10 seconds of it, and continues through the rest of the tracks the same way. 2009 MDX Disc Scan When you press the SCAN button repeatedly until you see D-SCAN in...
Page 227 DISC REPEAT (if not already highlighted), and press ENTER on the interface selector again. 2009 MDX Random Play To play the tracks of the current disc in random order, press and release the RDM button, or use the interface...
Page 228 Sampling frequency: 32/44.1/48 kHz (MPEG1) 16/22.05/24 kHz (MPEG2) Bitrate: 32/40/48/56/64/80/96/ 112/128/160/192/224/256/320 kbps Compatible with variable bitrate and multi-session. 2009 MDX The specifications of the compatible WMA files are: Sampling frequency: 22.05/32/44.1/ 48 kHz Bitrate: 48/64/80/96/128/160/192 kbps Compatible with variable bitrate and multi-session.
Page 229 Turn the selector knob, highlight the folder you want to see the information within, and press ENTER. 2009 MDX Repeat the procedure to go into a lower folder. If you highlight a file and press ENTER, the system starts to play your selected file.
Page 230 FOLDER REPEAT (if not already highlighted), and press ENTER on the interface selector again. 2009 MDX Folder Random This feature, when activated, plays in the current folder in random order. To activate folder random play, press...
Page 231 You can also eject discs when the ignition switch is off: To eject one disc, press and release the eject button. To eject all discs, press and hold the eject button. 2009 MDX...
Page 232: Disc Changer Error Messages
EJECT BAD DISC － PLEASE CHECK Servo Error OWNER'S MANUAL 2009 MDX Solution Will disappear when the temperature returns to normal. Current track will be skipped. The next supported track or file plays automatically. Press the EJECT button and pull out the disc(s).
Page 233: Protecting Your Discs
Never try to insert foreign objects in the disc changer. 2009 MDX Protecting Your Discs Handle a disc by its edges; never touch either surface. Do not place stabilizer rings or labels on the disc.
Page 234 Examples of these discs are shown to the right: 1. Bubbled, wrinkled, labeled and excessively thick discs Bubbled/ With Label/ Wrinkled Sticker 2. Damaged discs Chipped/ Warped Cracked 2009 MDX Using Printer Sealed With Plastic Label Kit Ring 3. Poor quality discs Burrs...
Page 235 CD-R or CD-RW may not play due ● to the recording conditions. Scratches and fingerprints on the ● discs may cause the sound to skip. 2009 MDX Protecting Your Discs Recommended discs are printed ● with the following logo. For the rear entertainment system, see page 264.
Page 236: Auxiliary Input Jack
U.S. Entertainment Package and Canadian Elite Package models Auxiliary input jacks and headphone connectors for the rear entertainment system are on the back of the center console compartment. For more information, see page 267. 2009 MDX...
Page 237: Remote Audio Controls
(＋) or bottom (－) of the button for 1 second. 2009 MDX Remote Audio Controls If you are playing a disc, the system skips to the beginning of the next track each time you press the top (＋) of the CH button.
Page 238 Each time you press the top (＋) of the button, the system goes to the next chapter. Press the bottom (－) to return to the beginning of the current chapter. Press it again to return to the previous chapter. 2009 MDX...
Page 239: Radio Theft Protection
If you are unsuccessful in 10 attempts, you must then leave the system on for 1 hour before trying again. 2009 MDX Radio Theft Protection The system will retain your AM and FM presets even if power is...
Page 240: Setting The Clock And Calendar
3. Select the desired mode by pressing the SET button, then press either ▼ or ▲ button to change the setting. 2009 MDX 4. After you set the day information, pressing the SET button again will cancel this setting mode and the system shows the adjusted display.
Page 241: Rear Entertainment System
‘‘CTRL OFF’’ message appears in the overhead screen to let your passengers know that the control panel is disabled. 2009 MDX Rear Entertainment System The rear system selects the source it was last set to. If that source has...
Page 242 Main Menu Table Of Contents Rear Entertainment System U.S. Entertainment Package and Canadian Elite Package models REAR PWR BUTTON FRONT SOURCE BUTTON REAR SOURCE BUTTON REAR CTRL OFF BUTTON Overhead Screen Unit 2009 MDX...
Page 243 Front Control Panel The DVD player in your rear entertainment system can play DVD video discs, audio CDs MP3/WMA discs and DTS CDs. 2009 MDX Rear Entertainment System REAR CONTROL PANEL OPEN BUTTON OVERHEAD SCREEN Open the overhead screen by pushing the OPEN button.
Page 244 Canadian Elite Package models PLAY/PAUSE BUTTON SEEK/SKIP BUTTONS EJECT BUTTON 2009 MDX Insert a DVD into the lower DVD/ CD slot in the audio unit. Push the DVD in halfway, the drive will pull it in the rest of the way.
Page 245 The indicator also comes on automatically, when you do not operate the rear entertainment system for 10 seconds. 2009 MDX Rear Entertainment System Using the Rear Control Panel To turn on the rear entertainment system from the rear control panel, press the PWR button.
Page 246 (in CATEGORY mode) or up/down for all channels (in CH mode). 2009 MDX Use the ▲ , ▼ , , or button to highlight CATE (to change categories), CHAN (to change...
Page 247 ENT button. These functions have the same features as those of the front audio system. 2009 MDX Rear Entertainment System To change the disc currently playing, use the ▲ , ▼ ,...
Page 248 Release the button when the system reaches the point you want. 2009 MDX To select the menu on the DVD, press the MENU/SCROLL button. Use the ▲ , ▼ ,...
Page 249 To go to your selected menu, use the button to highlight the icon and press the ENT button. To return to the DVD video screen, select EXIT. 2009 MDX Rear Entertainment System Top Menu When you select ‘‘TOP MENU’’, the screen changes to the DVD's title menu.
Page 250 When you select ‘‘PLAY MODE’’ with the button, you can change the DVD's Audio, Subtitle or Angle setting. 2009 MDX ‘‘Audio’’ To change the Audio setting, highlight ‘‘Audio’’ from the play mode menu with the ▼ or ▲ button and press the ENT button. A submenu of the dubbed language appears.
Page 251 Press the ENT button when your desired subtitle is highlighted. 2009 MDX Rear Entertainment System After selecting your desired subtitle, press the RETURN button or cursor back with the ▼ or ▲ button to go back to the top of the Play Mode menu.
Page 252 ▼ or ▲ button to go back to the top of the Play Mode menu. Press the RETURN button again to exit completely. 2009 MDX Search When you highlight ‘‘Search’’ with button, the ‘‘Jump to chapter and title number input’’...
Page 253 ‘‘Jump to with the keypad’’ message appears. Press the ENT button to go to the NumInput selection screen. 2009 MDX Rear Entertainment System Select the first digit number using the ▼ , ▲ , , or button, and enter it by pressing the ENT button.
Page 254 ENT button. To return to the DVD video screen, select EXIT. 2009 MDX Disp Adjust To adjust the display, highlight ‘‘Disp Adjust’’ from the setup menu with the ▼ or ▲ button and press the ENT button.
Page 255 If you want to set the display to the default setting, select ‘‘Reset’’ by pressing the ▲ or ▼ button, and, then pressing the ENT button. 2009 MDX Rear Entertainment System The display changes as shown above. Select ‘‘Yes,’’ and press the ENT button.
Page 256 Select the desired setting by pressing the button, then press the ENT button. 2009 MDX The selected setting will be highlighted in blue for one second, and the screen returns to the play mode in the selected setting.
Page 257 ENT button. The ‘‘PERSONAL SURROUND’’ logo is displayed in the upper right corner of the screen. 2009 MDX Rear Entertainment System If you select ‘‘Off,’’ the logo disappears, and there will be no special sound effect.
Page 258 To return to the stop or previous screen, select ‘‘Exit’’ using the button, and then press the ENT, or the SETUP button. 2009 MDX Menu Language To select the language used in the DISC menus, select ‘‘Menu Language’’ by pressing the ▼ or ▲...
Page 259 Select ‘‘other,’’ and press the ENT button. The display changes as shown in the next column. 2009 MDX Rear Entertainment System If you select ‘‘No,’’ and press the ENT button, the display returns to the initial screen of the ‘‘Language’’...
Page 260 ENT button on the control panel. Then select and enter the correct digit as described. The display returns to the initial ‘‘Language’’ menu screen. 2009 MDX Audio Language You can select the dubbed language before playing DVDs. Select ‘‘Audio Language’’ by pressing the ▼...
Page 261 INITIAL SETTINGS (Others) When you select ‘‘Others’’ at the top of the ‘‘INITIAL SETTINGS’’ screen, the above menu appears on the screen. 2009 MDX Rear Entertainment System Dynamic Range ‘‘Dynamic Range’’ reduces the differences between the loud and quiet sound levels throughout the disc.
Page 262 You can set the system to display or not display this angle mark. 2009 MDX Select ‘‘Angle Mark’’ by pressing the ▼ or ▲ button. The above submenu appears. If you want the angle mark to be displayed, select ‘‘ON’’...
Page 263 ENT button. You will see the submenu. If you select ‘‘No’’ and press the ENT button, the screen goes back to the ‘‘Others’’ menu. 2009 MDX Rear Entertainment System When you select and enter ‘‘Yes,’’ the display changes as shown above. To change the level, you need to enter your four digit password.
Page 264 Once you correctly enter the password, press the button to change the level, and then press the ENT button to enter your selection. 2009 MDX Changing the Password The password was set to ‘‘1111’’ when the vehicle left the factory.
Page 265 When you enter the fourth number, the cursor automatically moves to ‘‘ENT’’ on the display. Press the ENT button on the control panel. 2009 MDX Rear Entertainment System If the system does not recognize the password you entered, you will see the above display.
Page 266 (1111), select ‘‘Yes,’’ and press the ENT button. The message ‘‘Default password setting applied’’ is displayed for 5 seconds. 2009 MDX Remote Control RELEASE BUTTON The rear control panel can be detached from the ceiling unit and used as a remote control. To remove it from the ceiling unit, press the release button.
Page 267 An improperly disposed of battery can hurt the environment. Always confirm local regulations for battery disposal. 2009 MDX Rear Entertainment System As required by the FCC: This device complies with Part 15 of the FCC rules. Operation is subject to the...
Page 268 Macrovision. Reverse engineering or disassembly is prohibited. 2009 MDX Protecting DVDs The tips on how to handle and protect DVDs are basically the same as those for compact discs. Refer to...
Page 269 Invalid region code REGION ERR PARENT ERR Invalid parental control level 2009 MDX Rear Entertainment System Solution Press the disc eject button, and remove the disc. Check for an error indication. Insert the disc again. If the code does not disappear or the disc cannot be removed, consult your dealer.
Page 270 Wearing the headphones backwards may affect audio reception, limiting the sound quality and range. 2009 MDX To use the headphones, pivot the earpieces outward. This turns them on. To adjust the volume, turn the dial on the bottom of the right earpiece.
Page 271 Slide the cover back into place on the earpiece, then press down on the back edge to lock it in place. 2009 MDX Rear Entertainment System Auxiliary Input Jacks Auxiliary input jacks and headphone...
Page 272 V = Video jack L = Left audio jack R = Right audio jack VOLUME DIALS HEADPHONE CONNECTORS There are three headphone connectors for the third seat passengers. Each connector has its own volume control. 2009 MDX...
Page 273: Security System
It also alarms if the radio is removed from the dashboard or the wiring is cut. 2009 MDX Security System The security system will not set if the hood, tailgate, or any door is not fully closed.
Page 274: Cruise Control
The cruise control system can be left on, even when it is not in use. 2. Accelerate to the desired cruising speed above 25 mph (40 km/h). 2009 MDX 3. Press and release the SET/ DECEL button on the steering wheel. The CRUISE CONTROL...
Page 275 RES/ ACCEL button. Each time you do this, your vehicle will speed up about 1 mph (1.6 km/h). 2009 MDX Cruise Control You can decrease the set cruising speed in any of these ways: Press and hold the SET/DECEL ●...
Page 276 ● steering wheel. Push the CRUISE button on the ● steering wheel. 2009 MDX Resuming the Set Speed When you push the CANCEL button or tap the brake pedal, the system remembers the previously set speed. To return to that speed, accelerate to above 25 mph (40 km/h), then press and release the RES/ACCEL button.
Page 277: Compass
2. Press the SET button. ‘‘CAL ? N’’ will be displayed. At this point, pressing the SET button will exit calibration mode. 2009 MDX Compass Press and hold SET Press SET Press ▼...
Page 278 3. Press the SET button. The zone the compass is currently in will be displayed. 2009 MDX 4. Find the zone for your area on the map. 5. If the zone is incorrect, press the ▼ button to cycle the count down, or the ▲...
Page 279 Main Menu Table Of Contents Compass Zone Map CONTINUED 2009 MDX...
Page 280: Homelink
2009 MDX Important Safety Precautions Refer to the safety information that came with your garage door opener to test that the safety features are functioning properly.
Page 281 HomeLink, see the owner's manual included with the device you are trying to program, or call controlled device should operate. HomeLink at 1-800-355-3515 or go online to www.homelink.com. 2009 MDX Universal Transceiver ® Indicator flashes rapidly for 2 seconds, then...
Page 282: Bluetooth Handsfreelink
1-888-528-7876. handsfreelink, In Canada, visit or call www.acura.ca, 1-888-9-ACURA-9. The HFL is available in English on U.S. models, and in both English and French on Canadian models. To change the language, see page 304. Here are the main features of the HFL.
Page 283 The HFL can store up to 50 names and phone numbers in its phonebook. With a linked phone, you can then automatically dial any name or number in the phonebook. 2009 MDX Bluetooth HandsFreeLink ® On models with navigation system Your vehicle's HFL system has the cellular phonebook import function.
Page 284 Press and release the button, then wait for a beep before giving a command. 2009 MDX HFL Back: This button is used to end a call, go back to the previous voice control command, and to cancel an...
Page 285 Phone Dialing － Indicates the ● number you entered or the number of the incoming call. ꭧ: Some phones do not send this information to the HFL. 2009 MDX Bluetooth HandsFreeLink ® How to Use the HFL The HFL is operated by the HFL Talk and Back buttons on the left side of the steering wheel.
Page 286 ‘‘Please repeat.’’ If it doesn't recognize the command a third time, it plays the Help prompt. 2009 MDX To hear a list of available options at ● any time, press the Talk button, wait for the beep, and say, ‘‘Hands free link help.’’...
Page 287 ‘‘Eric,’’ the HFL response is, ‘‘Eric has been stored.’’ The next time you press the Talk button, you will be at the main menu. 2009 MDX Bluetooth HandsFreeLink ® Setting Up the System The voice of the HFL can be set to male or female (U.S.
Page 288 If you say ‘‘Yes,’’ you can set your passcode. Refer to the setting procedure in the next column. 2009 MDX Setting Your Passcode The HFL will accept a numeric, four- digit passcode that you can use for security purposes.
Page 289 ‘‘1, 2, 3, 4 is incorrect. Please try again.’’ Go back to the step 2. If you forget your passcode and you cannot activate the HFL, consult your dealer to cancel the passcode. 2009 MDX Bluetooth HandsFreeLink ® Pairing Your Phone Your Bluetooth compatible phone ®...
Page 290 For example, say ‘‘1, 2, 3, 4.’’ The HFL response is, ‘‘1, 2, 3, 4. Is this correct?’’ 2009 MDX 4. Press and release the Talk button. After the beep, say ‘‘Yes.’’ The HFL response is ‘‘Searching for a Bluetooth phone.’’...
Page 291 After the beep, say the new name of the phone. For example, say ‘‘Lisa's phone.’’ The HFL response is, ‘‘The name has been changed. Returning to the main menu.’’ 2009 MDX Bluetooth HandsFreeLink ® To delete a paired phone, do this: 1.
Page 292 Signal strength is five bars, and the phone is roaming. Returning to the main menu.’’ 2009 MDX To change from the currently linked phone to another paired phone, do this: 1. Press and release the Talk button.
Page 293 4. To end the call, press the Back button. 2009 MDX Bluetooth HandsFreeLink ® To make a call using a name in the HFL phonebook, do this: 1.
Page 294 NOTE: To send a pound (＃), say ‘‘pound.’’ To send a star (*), say ‘‘star.’’ 2009 MDX 3. Press and release the Talk button. After the beep, say ‘‘Send.’’ The dial tones will be sent, and the call will continue.
Page 295 To transfer a call from your phone to the HFL, do this: Press and release the Talk button. After the beep, say ‘‘Transfer.’’ The audio switches from your phone to the HFL. 2009 MDX Bluetooth HandsFreeLink ® Muting a Call During a call, you can mute or unmute your voice to the person you are talking to.
Page 296 After the beep, say ‘‘Enter.’’ The HFL response is ‘‘Eric (or account number) has been stored. Returning to the main menu.’’ 2009 MDX To edit the number of a name, do this: 1. Press and release the Talk button. After the beep, say ‘‘Phonebook.’’...
Page 297 When the end of the list is reached, the HFL response is, ‘‘The entire list has been read. Returning to the main menu.’’ 2009 MDX Bluetooth HandsFreeLink ® To call a name from the phonebook list, do this: 1.
Page 298 Link consumer support at ® (888) 528-7876. In Canada, visit www.acura.ca or call (888) 9-ACURA-9. You can see your phone's owner's manual for information. To store a phone number from your phone: 1. With your phone on and the ignition switch in the ACCESSORY (I) or ON (II) position, press and release the Talk button.
Page 299 NOTE: Your phone may not have this capability. Visit www.acura.com/ or call the Hands Free handsfreelink Link consumer support at ® (888) 528-7876. In Canada, visit or call www.acura.ca (888) 9-ACURA-9. You can see your phone's owner's manual for information. CONTINUED ®...
Page 300 HFL. When you link your phone to the HFL and select this option, the system will start importing and loading the phonebook. 2009 MDX Search Imported Phonebook: This option allows you to search the phone numbers stored in the HFL.
Page 301 Up to six phones can be paired to ● the HFL. For information on linking to the HFL, see page 285. 2009 MDX Bluetooth HandsFreeLink ® To search the imported phonebook You can search the stored number by entering keywords to make calls by using the HFL.
Page 302 The system will display a list of person's names, with the closest match to the name you entered at the top of the list. 2009 MDX Select the number (1－6) of the desired person from the list. Up to three category icons are displayed in the right side of the list.
Page 303 Say or select ‘‘STORE IN HandsFreeLink’’ from the ‘‘Select a number to call’’ screen. The screen shown above will appear. Select the desired number from the list to store it in the HFL. 2009 MDX HandsFreeLink ® ® ® ®...
Page 304 After you enter the correct PIN number, or if the phonebook you select is not PIN protected, the following screen appears. 2009 MDX Say or select ‘‘Yes’’, and the message ‘‘The imported phonebook has been deleted.’’ will appear. Select ‘‘OK’’ to...
Page 305 PIN number to. The phonebook you select cannot already have a PIN icon. The display will change as shown above. 2009 MDX Bluetooth HandsFreeLink ® 2. Enter the 4-digit PIN number. You will be asked to re-enter the PIN to verify.
Page 306 PIN number for. The display will change as shown above. ® 2. Enter your current PIN number. 2009 MDX 3. Enter your new 4-digit PIN number. You will be asked to re- enter the PIN to verify.
Page 307 Say OK to proceed, otherwise say go back or cancel.’’ 2009 MDX Bluetooth HandsFreeLink ® 4. Press and release the Talk button. After the beep, say ‘‘OK’’ to proceed, or say ‘‘Go back’’...
Page 308 été jumelés dans une autre langue, les noms des téléphones doivent être ré- enregistrés.’’ 2009 MDX 4. The HFL response is, for example, ‘‘Quel est le nom Français pour ＜Paul's phone＞?’’ Press and release the Talk button. After the beep, say ‘‘Téléphone de Paul.’’...
Page 309 ‘‘The language has been changed. For the system to identify phones that were paired while in another language, the phone names need to be re-recorded.’’ 2009 MDX Bluetooth HandsFreeLink ® 4. The HFL says, for example, ‘‘What is the English name for ＜Téléphone de Paul＞?’’...
Page 310 This device complies with Industry Canada Standard RSS-210. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference that may cause undesired operation of the device. ® 2009 MDX...
Page 311: Acuralink (U.s. Models Only)
Table Of Contents U.S. Technology and Sport Packages AcuraLink enhances your ownership experience by providing a direct communication link between your vehicle and the Acura Server. Working through the XM radio satellite, AcuraLink works in conjunction with the navigation system, Bluetooth HandsFreeLink ®...
Page 312 A list of all messages will be shown. New Messages will be at the top. Select the message you want to read by pressing ENTER. 2009 MDX To view previously read messages: Press the INFO button. The information screen will be shown.
Page 313 Your dealer has to register the vehicle identification before you can receive messages. This can take several days to process. 2009 MDX AcuraLink (U.S. models only) ® Message Options When you open a message, you can read a summary of it, and then choose one of several options.
Page 314 Select this button to find the nearest Acura dealer using the navigation system. Call Your Acura Dealer － Select this button to call the Acura dealer you purchased your vehicle from. AcuraLink also directs you to this dealer so you can schedule a maintenance appointment or receive information about a message.
Page 315 Press the SETUP button to view ● the setup screen. Select MORE by pushing the ● interface selector to the right. 2009 MDX AcuraLink (U.S. models only) ® Use the interface knob to scroll to ● the AcuraLink/Messages button, and select it by pressing ENTER on the interface selector.
Page 316 Dealer Appointment Reminders. The system can store up to 256 messages. Message categories can be added, revised, or deleted through broadcast messages from Acura. Quick Tips These messages, based on updated vehicle information and comments from other MDX owners, supplement your Owner's Manual and Quick Start Guide.
Page 317 You can then use the message options to call your dealer for an appointment or to find the nearest dealer. 2009 MDX AcuraLink (U.S. models only) ® Recall/Campaigns If your vehicle is affected by a recall...
Page 318 OK from the navigation disclaimer screen before you can check the information.) 2009 MDX Depending on the severity of the problem, the message will let you know if you should see your dealer immediately or if you can wait until a...
Page 319 When viewing a diagnostic info message through the INFO menu, you can use the Diagnostic Info button to connect to the Acura server and retrieve the latest information regarding the problem. NOTE: There may not be any additional information, depending on...
Page 320 These messages can only be deleted by a certified technician after the recall is done or the problem is corrected, or through a broadcast message from Acura. 2009 MDX New Message Notification － Select ON if you want to be notified of new messages (envelope icon appears on the navigation screen).
Page 321 Main Menu Table Of Contents Phone-Data Connection － Select this button to begin the process required to connect to Acura. This is used to access the most recent diagnostic information when a problem occurs. NOTE: For the Phone Data Connection button to be active, you...
Page 322 Main Menu Table Of Contents AcuraLink (U.S. models only) ® Connect to the Acura Server － The default setting is prompt. When a diagnostic info message appears, and you select the Check Now button, the system will prompt you before connecting to the Acura server.
Page 323: Rearview Camera And Monitor
Since the rearview camera display area is limited, you should always back up slowly and carefully, and look behind you for obstacles. 2009 MDX Rearview Camera and Monitor...
Page 324 Main Menu Table Of Contents 2009 MDX...
Page 325: Before Driving
Break-in Period Fuel Recommendation Service Station Procedures Refueling Tighten Fuel Cap Message Opening and Closing the Hood Oil Check Engine Coolant Check Fuel Economy Accessories and Modifications Carrying Cargo 2009 MDX Before Driving...
Page 326: Break-In Period
NOT contain manganese-based fuel additives such as MMT. 2009 MDX Use of gasoline with these additives may adversely affect performance, and cause the malfunction indicator lamp on your instrument panel to come on.
Page 327: Service Station Procedures
Do not try to ‘‘top off’’ the tank. Leave some room for the fuel to expand with temperature changes. 2009 MDX Service Station Procedures even If the fuel nozzle keeps clicking off though the tank is not full, there may be a problem with your vehicle's fuel vapor recovery system.
Page 328: Tighten Fuel Cap Message
INFO button. The ‘‘TIGHTEN FUEL CAP’’ message will appear each time you restart the engine until the system turns the message off. 2009 MDX If the system still detects a leak in the vehicle's evaporative emissions system, the malfunction indicator lamp (MIL) comes on.
Page 329: Opening And Closing The Hood
If the hood latch handle moves stiffly, or if you can open the hood without lifting the handle, the mechanism should be cleaned and lubricated. 2009 MDX Service Station Procedures 3. Lift the hood up most of the way. The hydraulic supports will lift it...
Page 330: Oil Check
If it is near or below the lower mark, see Adding Engine Oil on page 393. 2009 MDX Engine Coolant Check RESERVE TANK Look at the coolant level in the radiator reserve tank. Make sure it is between the MAX and MIN lines.
Page 331: Fuel Economy
Combined Fuel Economy － Represents a combination of city and highway driving. The scale represents the range of combined fuel economy for other vehicles in the class. 2009 MDX Fuel Economy Highway MPG Estimated Annual Fuel Cost Estimated Annual Fuel Cost －...
Page 332 Drive moderately － Rapid ● acceleration, abrupt cornering, and hard braking increase fuel consumption. 2009 MDX Observe the speed limit － ● Aerodynamic drag has a big effect on fuel mileage at speeds above 45 mph (75 km/h). Reduce your speed and you reduce the drag.
Page 333 Liter 1)Fill the fuel tank until the nozzle automatically clicks off. 2)Reset trip counter to zero. 3)Record the total gallons (liters) needed to refill. 4)Follow one of the simple calculations above. 2009 MDX Fuel Economy Miles per Gallon Kilometers L per 100 km...
Page 334: Accessories And Modifications
Accessories Your dealer has Acura accessories that allow you to personalize your vehicle. These accessories have been designed and approved for your vehicle, and are covered by warranty.
Page 335 Raising your vehicle with a non- ● Acura suspension kit can affect the handling and stability. Non-Acura wheels, because they ● are a universal design, can cause...
Page 336: Carrying Cargo
Table Of Contents Carrying Cargo CONSOLE COMPARTMENT DOOR POCKETS GLOVE BOX STORAGE COMPARTMENT REAR COMPARTMENT SEAT-BACK POCKETS CARGO AREA 2009 MDX Your vehicle has several convenient storage areas: Glove box ● Door and seat-back pockets ● Rear cargo area, including the ●...
Page 337 (3) Subtract the combined weight of the driver and passengers from XXX kg or XXX lbs. 2009 MDX Carrying Cargo (4) The resulting figure equals the available amount of cargo and luggage load capacity. For example, if the ‘‘XXX’’...
Page 338 (558 lbs) Passenger Weight Cargo Weight (150 lbs x 5 = 750 lbs) (408 lbs) 2009 MDX In addition, the total weight of the vehicle, all occupants, accessories, cargo, and trailer tongue load must not exceed the Gross Vehicle Weight Rating (GVWR) or the Gross Axle Weight Rating (GAWR).
Page 339 If you fold down the second or ● third row seats, tie down items that could be thrown about the vehicle during a crash or sudden stop. 2009 MDX Carrying Cargo If you carry large items that ● prevent you from closing the tailgate, exhaust gas can enter the passenger area.
Page 340 Each hook is designed to hold up to 50 lbs (23 kg) of weight. 2009 MDX GROCERY HOOKS Your vehicle also has a grocery hook on each side panel in the cargo area.
Page 341 System ® Parking Tire Pressure Monitoring System (TPMS) Braking System Anti-lock Brakes (ABS) Vehicle Stability Assist (VSA aka Electronic Stability Control (ESC), System Active Damper System Towing a Trailer Trailer Stability Assist Off-Highway Driving Guidelines 2009 MDX Driving ® ®...
Page 342: Driving Guidelines
Do not carry heavy cargo on the ● roof. See page for off-highway driving guidelines. 2009 MDX Preparing to Drive You should do the following checks and adjustments before you drive your vehicle. 1. Make sure all windows, mirrors, and outside lights are clean and unobstructed.
Page 343: Starting The Engine
Depending on the outside temperature, the starter motor runs for about 6 to 9 seconds until the engine starts. 2009 MDX If you hold the ignition switch in the START (III) position for more than 7 seconds, the starter motor,...
Page 344: Check Starting System Message
ON (II) position. You will also see this message when the auto control mode of the starting system has a problem. 2009 MDX If this message is on, the ignition switch has to be held in the START (III) position manually until the engine starts.
Page 345: Automatic Transmission
‘‘CHECK TRANSMISSION’’ message on the multi-information display (see page 82). 2009 MDX Automatic Transmission Shifting To shift from Park to any position, press firmly on the brake pedal, and press the release button on the front of the shift lever, then move the lever.
Page 346 Press on the brake pedal when you are moving the shift lever from neutral to another gear. 2009 MDX Drive (D) － Use this position for your normal driving. The transmission automatically selects a suitable gear (1 through 5) for your speed and acceleration.
Page 347 Pull back on the lever to downshift. The number of the gear selected is displayed on the instrument panel. 2009 MDX Automatic Transmission When you accelerate away from a stop, the transmission starts in first gear. You have to manually upshift between first and fifth gears.
Page 348 It downshifts to first gear when the vehicle speed is under 10 mph (16 km/h). 2009 MDX If you try to manually downshift at a speed that would cause the engine to exceed the redline in a lower gear, the transmission does not downshift.
Page 349 4 → 3 under 93 mph (150 km/h) 5 → 4 under 118 mph (190 km/h) 2009 MDX Automatic Transmission Starting in Second Gear When you are in Sequential SportShift mode, and the vehicle is stopped, push forward on the shift lever to shift to second gear.
Page 350 Before downshifting, make sure the engine will not go into the tachometer's red zone. 2009 MDX Shift Lock Release This allows you to move the shift lever out of Park if the normal...
Page 351 Park to neutral. 2009 MDX Automatic Transmission 6. Remove the key from the shift lock release slot, then reinstall the cover. Make sure the notch on the cover is on the driver's side.
Page 352: Super Handling-All Wheel Drive
Each wheel: right front (RF), left front (LF), right rear (RR), and left rear (LR), has its own torque indicator. 2009 MDX Each torque indicator is displayed as a bar graph divided into 5 segments. The number of segments represents the amount of torque distributed to each wheel.
Page 353 ‘‘CHECK SH-AWD SYSTEM’’ message also appears on the multi- information display, there is problem with the SH-AWD system. 2009 MDX ) System ® Your vehicle still has normal front- wheel drive with vehicle stability assist (VSA), but does not have the advantages of SH-AWD.
Page 354: Parking
Place any packages, valuables, etc. ● in the cargo area or take them with you. Lock the doors and the tailgate. ● 2009 MDX Never park over dry leaves, tall ● grass, or other flammable materials. The hot three way catalytic converter could cause these materials to catch on fire.
Page 355: Tire Pressure Monitoring System (Tpms)
2009 MDX If you think you can safely drive a short distance to a service station, proceed slowly to the station, then inflate the tire to the recommended pressure.
Page 356 (see page 416). 2009 MDX Tire Pressure Monitor To select the tire pressure monitor, press the INFO button several times with the ignition switch in the ON (II) position.
Page 357 Canadian model Each tire pressure is shown in PSI (U.S. models) or in kPa (Canadian models). 2009 MDX This shows that front left tire is losing pressure. Each tire has its own pressure sensor. If the air pressure of a tire...
Page 358 If this happens, you will first see a system warning message ‘‘CHECK TPMS SYSTEM’’ on the multi-information display. 2009 MDX TPMS System Failure If there is a problem with the TPMS, you will see the above message on the multi-information display.
Page 359 Manually check the spare tire pressure to be sure it is correct. 2009 MDX This indicator and the warning message on the multi-information display will go off, after several miles (kilometers) driving, when the spare...
Page 360: Braking System
It also keeps your brake lights on all the time, confusing drivers behind you. 2009 MDX Constant application of the brakes when going down a long hill builds up heat and reduces their effectiveness. Use the engine to...
Page 361: Anti-Lock Brakes (Abs)
This is sometimes referred to as ‘‘stomp and steer.’’ 2009 MDX You will feel a pulsation in the brake pedal when the ABS activates, and may hear some noise. This is normal: it is the ABS rapidly pumping the brakes.
Page 362 The VSA indicator will come on along with the ABS indicator. 2009 MDX Important Safety Reminders ABS does not reduce the time or distance it takes to stop the vehicle. It only helps with steering control during braking.
Page 363: Vehicle Stability Assist
Electronic Stability Control (ESC). The system also includes a traction control function. 2009 MDX If the indicator does not come on when the ignition switch is turned to the ON (II) position, there may be a problem with the VSA system.
Page 364 With the VSA off, the trailer stability assist function is also turned off (see page 376). 2009 MDX VSA is turned on every time you start the engine, even if you turned it off the last time you drove the vehicle.
Page 365: Active Damper System
The system reacts to inputs from various electronic sensors to give exactly the right amount of suspension damping to provide optimal ride comfort and handling. 2009 MDX The system provides two selectable modes. Sport mode: The system prioritizes handling response, vehicle body...
Page 366 ON, and the message ‘‘COMFORT’’ will appear on the multi-information display for five seconds. 2009 MDX When sport mode is selected, the green indicator in the button goes off, and the message ‘‘SPORT’’ will appear on the multi-information display for five seconds.
Page 367: Towing A Trailer
In this case, your vehicle still has the normal damper function, but it will not have the active damper function. 2009 MDX Towing a Trailer Your vehicle has been designed primarily to carry passengers and their cargo.
Page 368 It can also damage the engine and drivetrain. 2009 MDX Tongue Load The weight that the tongue of a fully loaded trailer puts on the hitch should be 5 to 10 percent of the total...
Page 369 2009 MDX Towing a Trailer To Estimate the Tongue Load 1. Park the vehicle on level ground. 2. Measure and record the distance from the ground to the bottom of the trailer hitch.
Page 370 250 lbs (114 kg) 1 5/32’’ 350 lbs (159 kg) 1 1/2’’ 450 lbs (205 kg) If the difference is more than 1 ꀨ inch, you have too much load on the tongue. Redistribute the load or remove cargo as needed. 2009 MDX...
Page 371 Recommended tongue load should be 5 － 15% of the total trailer weight for boat trailers, and 8 － 15% of the total trailer weight for ꭧꭧ all other trailers. Maximum Tongue Load 500 lbs (227 kg) 470 lbs (213 kg) 370 lbs (168 kg) 276 lbs (125 kg) 150 lbs (68 kg) Towing is Not Recommended 2009 MDX Towing a Trailer CONTINUED...
Page 372 1 from the weight in step 2. Limit: 3,064 lbs (1,390 kg) 2009 MDX 5. Check the gross combined weight. Limit: 10,053 lbs (4,560 kg) Remember, maximum gross combined weight should be decreased 2% for every 1,000 feet (305 meters) of elevation.
Page 373 Accessories Towing generally requires a variety of supplemental equipment. To ensure the best quality, we recommend that you purchase Acura equipment whenever possible. Your dealer offers a trailer package that includes a hitch, a ball mount, and a wiring harness.
Page 374 Trailer Brakes Acura recommends that any trailer with a total trailer weight of 1,000 lbs (450 kg) or more has its own brakes. There are two common types of trailer brakes: surge and electric.
Page 375 Even if they don't, you should install special mirrors if you cannot clearly see behind you, or if the trailer creates a blind spot. 2009 MDX Towing a Trailer Spare Tires When towing a trailer, we recommend that you carry a full-size spare wheel and tire for your vehicle and trailer.
Page 376 Acura wiring harness and converter. This harness has been designed for your vehicle. 2009 MDX If you use a non-Acura trailer lighting harness and converter, you can get the mating connector and pins that mate with the connector in your vehicle from your dealer.
Page 377 The trailer tires and spare are in ● good condition and inflated as recommended by the trailer maker. 2009 MDX Towing a Trailer Driving Safely With a Trailer The added weight, length, and height of a trailer will affect your...
Page 378 (30 － 50 km/h) 31 － 41 mph (50 － 65 km/h) over 41 mph (over 65 km/h) 2009 MDX If the automatic transmission fluid temperature increases and exceeds the specified limit, the A/T temperature indicator comes on (see page 68). You will also see a ‘‘A/T TEMP HIGH’’...
Page 379 Park and firmly setting the parking brake. Also, place wheel chocks at each of the trailer's tires. 2009 MDX Towing a Trailer Retrieving a Boat If the vehicle tires slip when retrieving a boat from the water,...
Page 380: Trailer Stability Assist
VSA activation indicator blink. There may also be some noise from the VSA hydraulic system. 2009 MDX Trailer stability assist cannot prevent a loss of control. Always reduce the vehicle speed and steer firmly. Do not brake suddenly or make quick steering motion.
Page 381 VSA system indicator. If you see these warning indicators, have your vehicle checked at your dealer as soon as possible. 2009 MDX Trailer Stability Assist If you turn off the VSA, the trailer stability assist function also shuts off.
Page 382: Off-Highway Driving Guidelines
Keep your speed low, and ● don't drive faster than conditions permit. 2009 MDX Important Safety Precautions To avoid loss of control or rollover, be sure to follow all precautions and recommendations. Be sure to store cargo properly ●...
Page 383 2009 MDX Off-Highway Driving Guidelines Driving on Slopes If you can't clearly see all conditions or obstacles on a slope, walk the slope before you drive on it.
Page 384 Remember that the recovery vehicle needs good traction to avoid becoming stuck, too. 2009 MDX You should never use a jack to try to get unstuck. Your vehicle could easily slip off the jack and hurt you or someone else.
Page 385 See page obtain a copy, or see your dealer. for information on how to 2009 MDX Maintenance Maintenance Safety Maintenance Minder Fluid Locations Engine Compartment Cover...
Page 386: Maintenance Safety
Carbon Monoxide poison from ● engine exhaust. Be sure there is adequate ventilation whenever you operate the engine. 2009 MDX Burns from hot parts. Let the ● engine and exhaust system cool down before touching any parts. Injury from moving parts. Do ●...
Page 387: Maintenance Minder
RESET button on the steering wheel repeatedly until the engine oil life appears (see page 73). The remaining engine oil life is displayed according to the table shown below. 2009 MDX Maintenance Minder Displayed Calculated Engine Engine Oil Life Oil Life (%) 100% －...
Page 388 When you see this message have the indicated maintenance performed as soon as possible. 2009 MDX Press the SEL/RESET button on the steering wheel repeatedly to select the engine oil life. The message ‘‘SERVICE’’, along with ‘‘5%’’, and the...
Page 389 The message will be canceled if the ▼ or ▲ button on the steering wheel is pressed. Press the ▼ or ▲ button to see the message again. 2009 MDX Maintenance Minder Press the SEL/RESET button on the steering wheel repeatedly to select the engine oil life.
Page 390 The message will be canceled if the ▼ or ▲ button on the steering wheel is pressed. Press the ▼ or ▲ button to see the message again. 2009 MDX U.S. CANADA TOTAL PAST DUE MILEAGE When you press the SEL/RESET button to select the engine oil life, the message ‘‘SERVICE’’, along with...
Page 391 10 seconds. The remaining engine oil life reset mode will be shown on the multi- information display. 2009 MDX Maintenance Minder 4. Select ‘‘RESET’’ by pressing the INFO (▲/▼) button, then press the SEL/ RESET button to reset the engine oil life display.
Page 392 Maintenance Journal or Canadian Maintenance Log. Check your warranty booklet for more information. 2009 MDX We recommend using Acura parts and fluids whenever you have maintenance done. These are manufactured to the same high- quality standards as the original components, so you can be confident of their performance and durability.
Page 393 According to state and federal regulations, failure to perform maintenance on the items marked with ＃ will not void your emissions warranties. However, Acura recommends that all maintenance services be performed in accordance with the intervals indicated by the multi-information display.
Page 394 Inspect idle speed every 160,000 miles (256,000 km). ● Adjust the valves during services A, B, 1, 2, or 3 if they are noisy. Symbol ＃ 2009 MDX Maintenance Sub Items ● Rotate tires ● Replace air cleaner element If you dirve in dusty conditions, replace every 15,000 miles (24,000 km).
Page 395: Fluid Locations
Table Of Contents POWER STEERING FLUID (Red cap) ENGINE COOLANT RESERVOIR WASHER FLUID (Blue cap) ENGINE OIL DIPSTICK (Orange loop) RADIATOR CAP 2009 MDX Fluid Locations BRAKE FLUID (Black cap) ENGINE OIL FILL CAP AUTOMATIC TRANSMISSION FLUID DIPSTICK (Yellow loop)
Page 396: Engine Compartment Cover
You may need to remove the HOLDING CLIP cover when you perform some simple maintenance work. Cover is secured by holding clips. To remove the front bulkhead cover, remove the holding clips with a flat- tip screwdriver. 2009 MDX...
Page 397: Adding Engine Oil
American Petroleum Institute's latest requirements. It is highly recommended that you use Acura motor oil in your vehicle. Make sure the API Certification Seal says ‘‘For Gasoline Engines.’’ API CERTIFICATION SEAL...
Page 398: Changing The Engine Oil And Filter
1. Run the engine until it reaches normal operating temperature, then shut it off. 2009 MDX WASHER DRAIN BOLT 2. Open the hood, and remove the engine oil fill cap. Remove the oil drain bolt and washer from the bottom of the engine.
Page 399 Engine oil change capacity (including filter): 4.5 US qt (4.3 L) 2009 MDX 7. Reinstall the engine oil fill cap. Start the engine. The oil pressure indicator should go out within 5 seconds. If it does not, turn off the engine, and check your work.
Page 400: Engine Coolant
Have the cooling system flushed and refilled with Honda antifreeze/ coolant as soon as possible. 2009 MDX If the reserve tank is completely empty, you should also check the coolant level in the radiator. Removing the radiator cap...
Page 401 RADIATOR CAP 3. Remove the radiator cap by pushing down and turning counterclockwise. 2009 MDX Engine Coolant 4. The coolant level should be up to the base of the filler neck. Add coolant if it is low. Pour the coolant slowly and carefully so you do not spill any.
Page 402: Windshield Washers
This will help to condition the blade edges. 2009 MDX Do not use engine antifreeze or a vinegar/water solution in the windshield washer reservoir. Antifreeze...
Page 403: Automatic Transmission Fluid
90 seconds) before doing step 2. DIPSTICK 2. Remove the dipstick (yellow loop) from the transmission, and wipe it with a clean cloth. 2009 MDX Automatic Transmission Fluid DIPSTICK UPPER MARK LOWER MARK 3. Insert the dipstick all the way into the transmission securely as shown in the illustration.
Page 404 Using transmission fluid other than Acura ATF-Z1 may cause deterioration in transmission operation and durability, and could result in damage to the transmission. Damage resulting from the use of transmission fluid other than Acura ATF-Z1 is not covered by the Acura new vehicle warranty.
Page 405: Brake Fluid
Brake fluid marked DOT 5 is not compatible with your vehicle's braking system and can cause extensive damage. 2009 MDX Brake Fluid The fluid level should be between the MIN and MAX marks on the side of the reservoir. If the level is at or below the MIN mark, your brake system needs attention.
Page 406: Power Steering Fluid
Acura PSF as soon as possible. A low power steering fluid level can indicate a leak in the system. Check the fluid level frequently, and have the system inspected as soon as possible.
Page 407: Lights
1. Open the hood. 2. Remove the front bulkhead cover (see page 392). 2009 MDX Lights BULB CONNECTOR 3. Remove the electrical connector from the bulb by pushing on the tab and pulling the connector down.
Page 408 (see page 392). 3. Remove the socket by turning it one-quarter turn counterclockwise. 4. Pull the bulb straight out of its socket. 2009 MDX PARKING LIGHT BULB SOCKET 5. Push the new bulb straight into the socket until it bottoms.
Page 409 Halogen bulbs get very hot when lit. Oil, perspiration, or a scratch on the glass can cause the bulb to overheat and shatter. 2009 MDX Lights BOLT HOLDING CLIPS 1. Remove the bolt and use the flat-...
Page 410 (in Rear Pillar) COVER 1. Open the tailgate. Use a flat-tip screwdriver protected with a cloth to pry open the two covers. 2009 MDX BOLT BOLT 2. Remove the two bolts, and remove the rear light assembly from the rear pillar.
Page 411 9. Install the rear light assembly in the rear pillar. Tighten the two bolts. Snap the bolt covers into position. 2009 MDX Lights Replacing a Back-up Light Bulb COVER 1. Open the tailgate. Place a cloth on the edge of the light assembly cover.
Page 412 7. Place the cover back into the light assembly. Push it up until it locks in place. 2009 MDX Side Turn Signal Light Each outside mirror has side turn signal lights. The lights should be replaced by your dealer.
Page 413: Dust And Pollen Filter
Do not use bleach, dye, or cleaning solvents. Let the belts air-dry before you use the vehicle. 2009 MDX Dirt build-up around the openings of the seat belt anchors can cause the belts to retract slowly. Wipe the...
Page 414: Floor Mats
Rear If you use a non-Acura floor mat, make sure it fits properly and that it can be used with the floor mat anchors. Do not put additional floor mats on top of the anchored mats.
Page 415: Wiper Blades
Do not open the hood when the wiper arms are raised, or you will damage the hood and the wiper arms. 2009 MDX Wiper Blades LOCK TAB 2. Disconnect the blade assembly from the wiper arm: Press and hold the lock tab.
Page 416 2009 MDX 5. Slide the new wiper blade into the holder until the tabs lock. 6. Slide the wiper blade assembly onto the wiper arm.
Page 417 To replace the rear wiper blade: 1. Raise the wiper arm off the rear window. 2. Slide the blade out of the wiper arm. 2009 MDX Wiper Blades BLADE REINFORCEMENT 3. Examine the new wiper blades. If they have no plastic or metal...
Page 418 Main Menu Table Of Contents Wiper Blades 4. Slide the new blade into the wiper arm. Make sure it is engaged in the slot along its full length. 5. Lower the wiper arm. 2009 MDX...
Page 419: Tires
If you think a tire might be low, check it immediately with a tire gauge. 2009 MDX Tires Use a gauge to measure the air pressure in each tire at least once a month.
Page 420 2009 MDX Recommended Tire Pressures The following chart shows the recommended cold tire pressures for most normal and high-speed driving conditions.
Page 421 A tire this worn gives very little traction on wet roads. You should replace the tire if you can see three or more tread wear indicators. 2009 MDX Tires Tire Service Life The service life of your tires is dependent on many factors,...
Page 422 This increases riding comfort and tire life. For best results, have the installer perform a dynamic balance. Improper wheel weights can damage your vehicle's aluminum wheels. Use only Acura wheel weights for balancing. Tire Rotation Front Front (For Non-directional...
Page 423 See page for information about DOT Tire Quality Grading, and page for tire size and labeling information. 2009 MDX Tires Winter Driving Tires marked ‘‘M ＋ S’’ or ‘‘All Season’’ on the sidewall have an all- weather tread design suitable for most winter driving conditions.
Page 424 Mount tire chains on your tires when required by driving conditions or local laws. Install them only on the front tires. Because your vehicle has limited tire clearance, Acura strongly recommends using the chains listed below. SCC Super Z-6＃ SZ 435 When installing chains, follow the manufacturer's instructions and mount them as tightly as you can.
Page 425: Checking The Battery
Always disconnect the negative (－) cable first, and reconnect it last. 2009 MDX Checking the Battery The battery gives off explosive hydrogen gas during normal operation. A spark or flame can cause the...
Page 426: Vehicle Storage
Also, apply a vehicle body wax to the painted surfaces that mate with the door and tailgate seals. 2009 MDX Cover the vehicle with a ● ‘‘breathable’’ cover, one made from a porous material such as cotton.
Page 427: Taking Care Of The Unexpected
If the Engine Won't Start Jump Starting If the Engine Overheats Low Oil Pressure Indicator Charging System Indicator Malfunction Indicator Lamp Brake System Indicator Fuses Fuse Locations Opening the Fuel Fill Door Manually Emergency Towing If Your Vehicle Gets Stuck 2009 MDX...
Page 428: Compact Spare Tire
You will also see a ‘‘CHECK TPMS SYSTEM’’ message on the multi-information display (see page 354). 2009 MDX INDICATOR LOCATION MARK TREAD WEAR INDICATOR BAR Replace the tire when you can see the tread wear indicator bars. The...
Page 429: Changing A Flat Tire
LOCK (0) position. Have all passengers get out of the vehicle while you change the tire. 3. Open the tailgate. 2009 MDX Changing a Flat Tire JACK 4. Push the rear edge of the handle to raise the handle loop and pull up the loop to raise the cargo area floor.
Page 430 6. Turn the jack's end bracket counterclockwise to loosen it, then remove the jack. 2009 MDX PLASTIC COVER 7. The spare tire is stored underneath the rear cargo area. Remove the plastic cover on the cargo area lining to access the shaft for the spare tire hoist.
Page 431 9. Keep turning the wheel nut wrench to create slack in the cable. 10. Remove the bracket from the spare tire. 2009 MDX Changing a Flat Tire WHEEL NUT WRENCH 11. Loosen each wheel nut 1/2 turn with the wheel nut wrench.
Page 432 14. Remove the wheel nuts, then remove the flat tire. 2009 MDX BRAKE HUB 15. Before mounting the spare tire, wipe any dirt off the mounting surface of the wheel and hub with a clean cloth.
Page 433 Tighten the wheel nuts to: 94 lbf·ft (127 N·m, 13 kgf·m) 19. Remove the center cap from the flat tire. 2009 MDX Changing a Flat Tire 20. Place the flat tire face up under the hoist. 21. Insert the hoist bracket into the center hole of the flat tire.
Page 434 Store the tools, and install the cover. 25. Refer to Changing a Tire with TPMS (see page 355). 2009 MDX Loose items can fly around the interior in a crash and could seriously injure the occupants. Store the wheel, jack, and tools...
Page 435: If The Engine Won't Start
You will need a qualified technician to determine the problem. See Emergency Towing on page 446. 2009 MDX If the Engine Won't Start If the headlights dim noticeably or go out when you try to start the...
Page 436: Jump Starting
You cannot start your vehicle by pushing or pulling it. 2009 MDX To Jump Start Your Vehicle: 1. Open the hood, and check the physical condition of the battery. In very cold weather, check the condition of the electrolyte.
Page 437 Do not connect this jumper cable to any other part of the engine. 2009 MDX Jump Starting 5. If the booster battery is in another vehicle, have an assistant start that vehicle and run it at a fast idle.
Page 438: If The Engine Overheats
Do not open the hood if steam is coming out. 2009 MDX 1. Safely pull to the side of the road. Put the transmission in Park, and set the parking brake. Turn off all accessories, and turn on the hazard warning indicators.
Page 439 After the pressure releases, push down on the cap, and turn it until it comes off. 2009 MDX If the Engine Overheats 9. Start the engine and set the climate control to AUTO at ‘‘Hi.’’...
Page 440: Low Oil Pressure Indicator
There is a mechanical problem that needs to be repaired before you can continue driving (see Emergency Towing on page 446). 2009 MDX Charging System Indicator If the charging system indicator comes on brightly when the engine is running, the battery is not being charged.
Page 441: Malfunction Indicator Lamp
You will also see a ‘‘CHECK EMISSION SYSTEM’’ message on the multi-information display (see page 81). 2009 MDX Malfunction Indicator Lamp Readiness Code Your vehicle has certain ‘‘readiness codes’’ that are part of the on-board diagnostics for the emissions systems.
Page 442: Brake System Indicator
You will also see a ‘‘CHECK BRAKE SYSTEM’’ message on the multi- information display (see page 81). 2009 MDX Slow down by shifting to a lower gear, and pull to the side of the road when it is safe. Because of the long distance needed to stop, it is hazardous to drive the vehicle.
Page 443: Fuses
The primary under-hood fuse box is located next to the battery. The secondary fuse box is on the passenger's side. To open it, push the tabs as shown. 2009 MDX Fuses UNDER-HOOD (PRIMARY) UNDER-HOOD (SECONDARY) CONTINUED...
Page 444 2. Remove the cover from the fuse box. FUSE BLOWN 3. Check each of the large fuses in the under-hood fuse boxes by looking through the top at the wire inside. Removing these fuses requires a Phillips-head screwdriver. 2009 MDX BLOWN...
Page 445 5. Look for a burned wire inside the fuse. If it is burned out, replace it with one of the spare fuses of the same rating or lower. 2009 MDX Fuses If you cannot drive the vehicle without fixing the problem, and you...
Page 446 If the radio fuse is removed, the audio system will disable itself. The next time you turn on the radio you will see ‘‘ENTER CODE’’ in the frequency display. Use the preset buttons to enter the digit code (see page 235). 2009 MDX...
Page 447: Fuse Locations
3－3 60 A Cooling Fan, Condenser Fan, MG Clutch, Headlight Washer ꭧ 3－4 50 A Ignition Switch Main ꭧ: Canadian model 2009 MDX Fuse Locations Amps. Circuits Protected 3－5 50 A Power Window 3－6 60 A SH-AWD, Power Tailgate Open/Closer, Rear ACC...
Page 448 Cooling Fan 7.5 A MG Clutch 15 A Left Headlight Low 15 A Right Headlight Low 7.5 A Small Lights (Interior) ꭧ: Canadian model 2009 MDX REAR FUSE BOX Amps. Circuits Protected － Not Used － Not Used － Not Used －...
Page 449 Passenger's Power Slide 10 A Alternator 20 A Fuel Pump 7.5 A SH-AWD, Active Damper Control Unit 7.5 A Gauges 2009 MDX Fuse Locations Amps. Circuits Protected 10 A － Not Used 20 A Left Rear Power Window 20 A...
Page 450: Opening The Fuel Fill Door Manually
RELEASE LEVER To open the fuel fill door, pull the release lever rearward. 2009 MDX Emergency Towing If your vehicle needs to be towed, call a professional towing service or organization. Never tow your vehicle with just a rope or chain.
Page 451: If Your Vehicle Gets Stuck
1. Remove the cover, put cloth on the edge of the cover and carefully pry with a small flat-tip screwdriver or a metal fingernail file. 2009 MDX If Your Vehicle Gets Stuck Rear COVER The cover is attached to the bumper with a tether.
Page 452 WHEEL NUT WRENCH TOWING HOOK Rear 2009 MDX To avoid damage to your vehicle, use the towing hook for straight, flat ground towing only. Do not tow at an angle. The tow hook should not be used to tow the vehicle onto a flat bed.
Page 453: Technical Information
Identification Numbers Specifications DOT Tire Quality Grading (U.S. Vehicles) Tire Labeling Tire Pressure Monitoring System (TPMS) － Required Federal Explanation Emissions Controls Three Way Catalytic Converter Emissions Testing 2009 MDX Technical Information...
Page 454: Identification Numbers
It is also on the certification label attached to the driver's doorjamb, and is stamped on the engine compartment bulkhead. The VIN is also provided in bar code on the certification label. CERTIFICATION LABEL 2009 MDX...
Page 455 Main Menu Table Of Contents Identification Numbers The engine number is stamped into ENGINE NUMBER the engine block. It is on the front. The transmission number is on a label on top of the transmission. AUTOMATIC TRANSMISSION NUMBER 2009 MDX...
Page 456: Specifications
ꭧ1: Including the coolant in the reserve tank and that remaining in the engine Reserve tank capacity: 0.18 US gal (0.7 L) ꭧ2: Excluding the oil remaining in the engine 2009 MDX Approx. 21.00 US gal (79.5 L) ꭧ1 Change 1.93 US gal (7.3 L)
Page 457 Tires Size Front/Rear Spare Pressure Front/Rear Spare 2009 MDX Specifications See page or the fuse label attached to the inside of the fuse box lid. See page or the fuse label attached to the inside of the fuse box lid.
Page 458 2009 MDX Traction The traction grades, from highest to lowest, are AA, A, B, and C. Those grades represent the tire's ability to...
Page 459 Warning: The temperature grade for this tire is established for a tire that is properly inflated and not overloaded. Excessive speed, underinflation, or excessive loading, either separately or in combination, can cause heat buildup and possible tire failure. 2009 MDX...
Page 460: Tire Labeling
－ Tire construction code (R indicates radial). 18 － Rim diameter in inches. 2009 MDX 104 － Load index (a numerical code associated with the maximum load the tire can carry). H － Speed symbol (an alphabetical code indicating the maximum speed rating).
Page 461 2202 － Date of manufacture. Year Week Maximum Tire Pressure Max Press －The maximum air pressure the tire can hold. Maximum Tire Load Max Load － The maximum load the tire can carry at maximum air pressure. 2009 MDX Tire Labeling...
Page 462: Tire Pressure Monitoring System (Tpms) － Required Federal Explanation
2009 MDX Driving on a significantly under- inflated tire causes the tire to overheat and can lead to tire failure.
Page 463 TPMS from functioning properly. Always check the TPMS malfunction telltale after replacing one or more tires or wheels on your vehicle to ensure that the replacement or alternate tires and wheels allow the TPMS to continue to function properly. 2009 MDX...
Page 464: Emissions Controls
This section summarizes how the emissions controls work. Scheduled maintenance is on page 390. ꭧ In Canada, Acura vehicles comply with the Canadian emission requirements, as specified in an agreement with Environment Canada, at the time they are manufactured.
Page 465 Clean Air Act. To make sure the emissions remain low, you should use only new Acura replacement parts or their equivalent for repairs. Using lower quality parts may increase the emissions from your vehicle.
Page 466: Three Way Catalytic Converter
The catalytic converter is referred to as a three-way catalyst, since it acts on HC, CO, and NOx. A replacement unit must be an original Acura part or its equivalent. The three way catalytic converter must operate at a high temperature for the chemical reactions to take place.
Page 467: Emissions Testing
6 hours or more. 3. Make sure the ambient temperature is between 40° and 95°F (4° and 35°C). 2009 MDX Emissions Testing 4. Without touching the accelerator pedal, start the engine, and let it idle for 20 seconds.
Page 468 2009 MDX 9. Make sure the vehicle has been parked with the engine off for 30 minutes. If the testing facility determines the readiness codes are still not set, see your dealer.
Page 469 Main Menu Warranty and Client Relations Client Service Information Warranty Coverages Reporting Safety Defects (U.S. Vehicles) Authorized Manuals 2009 MDX...
Page 470: Client Service Information
Main Menu Table Of Contents Client Service Information Acura dealership personnel are trained professionals. They should be able to answer all your questions. If you encounter a problem that your dealership does not solve to your satisfaction, please discuss it with the dealership's management.
Page 471: Warranty Coverages
Time and mileage limits depend on the type of accessory and other factors. Please read your warranty manual for details. Replacement Parts Limited Warranty － covers all Acura replacement parts against defects in materials and workmanship. 2009 MDX Warranty Coverages Replacement Battery Limited －...
Page 472 However, NHTSA cannot become involved in individual problems between you, your dealer, or American Honda Motor Co., Inc. 2009 MDX To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://www.safercar.gov;...
Page 473: Authorized Manuals
Form Number 61STX02 2007-2009 Acura MDX Service Manual 61STX02EL 2009 Acura MDX Electrical Troubleshooting Manual 61STX30 2008 Acura MDX Body Repair Manual 31STX620 2009 Acura MDX Owner's Manual 31STX820 2009 Acura MDX Navigation System Owner's Manual 31STXM20 2009 Acura MDX Maintenance Journal...
Page 474 Main Menu Table Of Contents 2009 MDX...
Page 475 Checking Fluid Level Shifting Shift Lever Position Indicators Shift Lever Positions Shift Lock Release Auxiliary Input Jack Battery Charging System Indicator 2009 MDX Jump Starting Maintenance Specifications Before Driving Belts, Seat Beverage Holders Booster Seats Brakes Anti-lock Brakes (ABS) Break-in, New Linings...
Page 476 Where Should a Child Sit? Child Seats LATCH Anchorage Points Tether Anchorage Points Cleaning the Seat Belts Client Services Climate Control System 2009 MDX Clock Code, Audio System CO in the Exhaust Cold Weather, Starting in Compact Spare Tire Console Compartment Consumer Information (U.S.
Page 477 Economy, Fuel Emergencies on the Road Battery, Jump Starting Brake System Indicator Changing a Flat Tire Charging System Indicator 2009 MDX Checking the Fuses Driving with a Flat Tire Hazard Warning Flashers Jump Starting Low Oil Pressure Indicator Malfunction Indicator...
Page 478 Power Steering Windshield Washer FM Stereo Radio Reception Fog Lights Folding the Second Seat Folding the Third Seat Four-way Flashers Front Airbags 2009 MDX Front Seat Adjusting Airbags Heaters Fuel Fill Door and Cap Gauge Low Fuel Indicator Octane Requirement...
Page 479 Headphones Head Restraints Heated Mirror Heaters, Seats Heating and Cooling High-Low Beam Switch HomeLink Universal ® Transceiver Hood, Opening and Closing Horn 2009 MDX Identification Number, Vehicle Ignition Keys Switch Timing Control System Immobilizer System Important Safety Precautions CONTINUED Index...
Page 480 Instrument Panel Instrument Panel Brightness Instruments and Controls Interface Dial Interior Lights Introduction Jacking up the Vehicle Jack, Tire 2009 MDX Jump Starting Keyless Memory Settings Keys Label, Certification Lane Change, Signaling Lap/Shoulder Belt LATCH Anchorage System Light Control Switch...
Page 481 Neutral Gear Position New Vehicle Break-in NOTICE, Explanation of Numbers, Identification Odometer Odometer, Trip Off-Highway Driving Guidelines Off-Road Precautions 2009 MDX Change, How to Change, When to Checking Engine Life, Engine Pressure Indicator Selecting Proper Viscosity Chart ON (Ignition Key Position)
Page 482 Rear Window Wiper and Washer Reclining the Seat Backs Reclining the Second Seats Refueling Reminder Indicators Remote Audio Controls Remote Control (RES) Remote Transmitter 2009 MDX Replacement Information Dust and Pollen Filter Engine Oil and Filter Fuses Light Bulbs 181, Schedule Timing Belt...
Page 483 Shifting the Automatic Transmission Shift Lever Position Indicators Shift Lock Release Side Airbags How the Side Airbag Off Indicator Works 2009 MDX How Your Side Airbags Work Off Indicator Side Curtain Airbags How Your Side Curtain Airbags Work Side Marker Lights, Bulb...
Page 484 ) System Supplemental Restraint System Servicing SRS Indicator System Components Synthetic Oil Tachometer Tailgate Opening the 2009 MDX Open Monitor Power Taillights, Changing Bulbs Taking Care of the Unexpected Technical Descriptions DOT Tire Quality Grading (U.S. Vehicles) Emissions Control Systems...
Page 485 Checking Fluid Level Fluid Selection Identification Number Shifting the Automatic Treadwear Trip Computer Trip Meter Turn Signals 2009 MDX Unexpected, Taking Care of Uniform Tire Quality Grading Unleaded Gasoline Used Oil, How to Dispose of Vanity Mirror Vehicle Capacity Load...
Page 486 Compact Spare Wrench, Nut Windows Auto Down Auto Reverse Operating the Power Rear, Defogger Windshield Cleaning Defroster Washers Wipers, Windshield Changing Blades Operation Rear Windshield Wiper and Washer Worn Tires Wrecker, Emergency Towing ® Satellite Radio 2009 MDX 116, 185,...
Page 487 Main Menu 2009 MDX...
Page 488: Service Information Summary
4.5 US qt (4.3 L) Automatic Transmission Fluid: Acura ATF-Z1 (Automatic Transmission Fluid) (see page 400). Rear Differential Fluid: Use Acura ATF-Z1 (Automatic Transmission Fluid) only. Capacity: SH-AWD differential case 2.6 US qt (2.5 L) Transfer Assembly Fluid: SAE 90 or SAE 80W-90 viscosity hypoid gear oil, API service classified GL4 or GL5 only.
Page 489 POSTAL CODE STREET STATE/PROVINCE ZIP CODE/ POSTAL CODE 2009 MDX This owner's manual should be considered a permanent part of the vehicle and should remain with the vehicle when it is sold. This Owner's Manual covers all models of the MDX.
