AMiO 01136 User Manual

EN PL ES CZ
EN - USER MANUAL

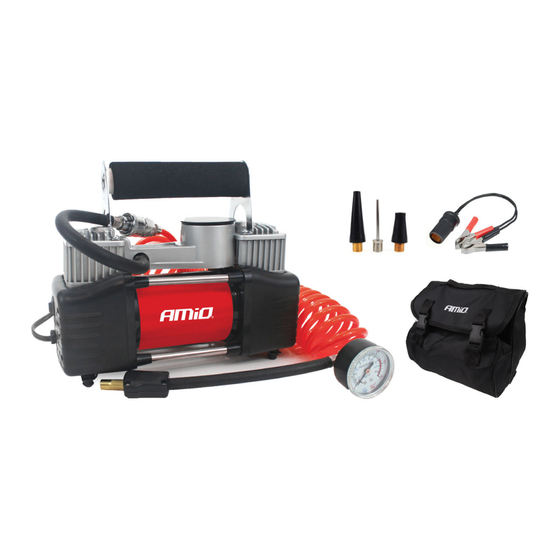

Car Air compressor 2 cylinder 12V HQ
The compressor is designed to pump tyres, balls, beach toys,
mattresses, etc. It is equipped with a set of terminals and a
12 V power plug.

SAFETY INSTRUCTIONS:

• do not use the compressor on snow and rain
• do not use near flammable gases or liquids
• keep the device in a dry, closed place, do not allow children
to use it
• do not overload the device, damage caused by overload is
not covered by the warranty
• check the condition of the supply and compressed air line
before each use
• keep it clean
• disconnect the device from the power supply when not in

use

• do not use damaged or leaking objects for pumping
• do not connect to circuits protected by a smaller fuse than
15 A
• do not use the device with the engine turned off for more
than a few minutes, prolonged use of the compressor may
discharge the battery in the car.

PREVENTING MALFUNCTIONS:

Keep the contacts of the compressor plug clean, dirty contacts
can cause malfunction of the compressor and overheating of
the plug.
Do not overload the device, the maximum continuous
operation time is 10 minutes.
USE:
• check what pressure is appropriate for the item being filled
- never exceed the maximum values!
• place the compressor on a stable surface, outside the car,
do not use it inside the car.
SK
• start the car engine, this will speed up the compressor and
protect the battery from discharge.
• plug the compressed air hose into the object, plug the
power cord into the socket.
• fill the item with the required air pressure.
Never leave the unit unattended.
Disconnect the device from the power supply when you have
finished working with the compressor.
CAUTION!
The compressor is not for commercial use. It can operate for
up to 10 minutes, after that time, unplug it from the power
supply and wait at least 10 minutes for it to cool down.
Prolonged use may cause the compressor to overheat and
seize.
When the compressor is used to inflate tyres in motor
vehicles, take an additional measurement with an approved
pressure gauge, the values indicated on the built-in pressure
gauge are indicative.

IN CASE THE COMPRESSOR STOPS WORKING:

• check the power cord for damage
• check that the contacts of the plug and socket are not dirty
• check that the fuse of the socket outlet has not blown out
(for proper operation of the compressor, the outlet should
be protected with a minimum fuse of 15 A)

TECHNICAL PARAMETERS:

• voltage:DC12V
• max pessure: 150PSI
• double Cylinder diameter: 30mm
• air flow: 60liter/min
• max Voltage: 13.8V.max.
• amperage: 18A
• longitude of cord: 3m, with battery clips
• longitude of air hose: 5m extendable coiled hose with pressure
gauge

ENVIRONMENTAL PROTECTION

This marking shown on the product and its literature
indicates this kind of product mustn't be disposed with
household wastes at the end of its working life in order to
prevent possible harm to the environment or human health.
P/N: 01136
1
