AMiO FY-005A User Manual

EN
EN - USER MANUAL
Car compressor 12V FY-005A
CAUTION! Before use or installation, please read this
operation and use manual.
The supplier is not responsible for any damage or injury
resulting from incorrect use not in accordance with the
instructions.
Amio Sp z o.o., ul. Handlowa 3, 41-807 Zabrze

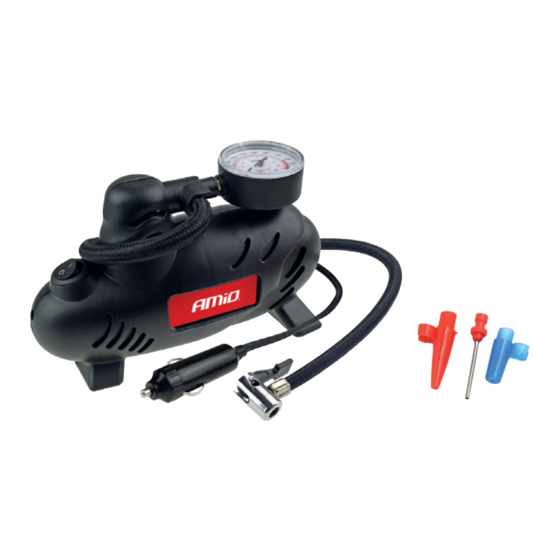

GENERAL DESCRIPTION
1. Tyre inflation hose
2. Pressure gauge
3. Cigarette lighter hose
4. Adapters for inflating bicycles, balls, mattresses.
Compressor is designed for inflating tyres, balls, beach toys,
mattresses, etc. It is equipped with set of tips and 12 V power
plug. Service life of the device is foreseen for 10 years.
USE IN ACCORDANCE WITH FOR
ITS INTENDED USE
The compressor is not intended for commercial use. It may
operate for a maximum of 10 minutes, after which time it
should be disconnected from the power supply and allowed
to cool down for at least 10 minutes. Prolonged use may
cause overheating and seizure of the compressor. When the
compressor is used to inflate tyres on motor vehicles, take an
additional measurement with an approved pressure gauge,
the values indicated on the built-in pressure gauge are for
reference only.
3
WARNINGS DUE TO IMPROPER USE
• do not use the compressor in snow or rain
• check the condition of the power cable and compressed air
hose before each use do not use near inflammable gases and
liquids
• Do not overload the device, damage caused by overloading is
not covered by the warranty
• Unplug the device when not in use
• Keep the machine in a dry, closed place and keep out of the
reach of children
• do not use the unit for more than a few minutes with the
engine switched off, longer use of the compressor may
discharge the car battery
• keep the device clean
• do not use for pumping damaged and leaking objects
• do not connect to circuits protected with a smaller fuse than
15 A
Keep the contacts of the compressor plug clean, dirty contacts
may cause malfunction of the compressor and overheating of
the plug. Do not overload the device, maximum continuous
operation time is 10 minutes.
TECHNICAL DATA
a. MACHINE PARAMETERS
• input voltage: DC 12V
• maximum pressure: 17 bar / 250PSI
• power supply cable length: 3m
• hose length: 39 cm
• weight: 0,5 kg
• dimensions: (L x W x H): 180 x 65 x 110mm
b. WORK STATIONS
The workstation should be kept clean.
Ensure that it is well lit. Insufficient lighting or a messy work area
can cause accidents.
The floor on which the compressor is placed must be solid,
stable and durable.
Keep children and bystanders away from areas where the
compressor is used.
