AMiO YF651-2 User Manual

EN PL
EN - USER MANUAL
(Translation of the original instructions)

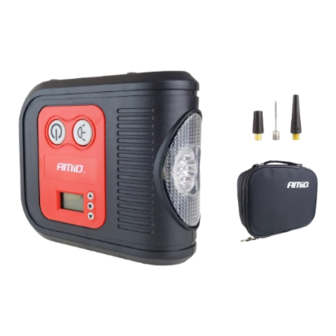

Car air compressor 12V YF651-2
The compressor is designed to pump tyres, balls, beach toys,
mattresses, etc. It is equipped with a set of terminals and a 12
V power plug.
SAFETY INSTRUCTIONS:
• do not use the compressor on snow and rain
• do not use near flammable gases or liquids
• keep the device in a dry, closed place, do not allow children
to use it
• do not overload the device, damage caused by overload is not
covered by the warranty
• check the condition of the supply and compressed air line
before each use
• keep it clean
• disconnect the device from the power supply when not in use
• do not use damaged or leaking objects for pumping
• do not connect to circuits protected by a smaller fuse than 15 A
• do not use the device with the engine turned off for more
than a few minutes, prolonged use of the compressor may
discharge the battery in the car.
PREVENTING MALFUNCTIONS:
Keep the contacts of the compressor plug clean, dirty contacts can
cause malfunction of the compressor and overheating of the plug.
Do not overload the device, the maximum continuous operation
time is 10 minutes.
USE:
• check what pressure is appropriate for the item being filled -
never exceed the maximum values!
• place the compressor on a stable surface, outside the car, do
not use it inside the car.
• start the car engine, this will speed up the compressor and
protect the battery from discharge.
• plug the compressed air hose into the object, plug the power
cord into the socket.
• fill the item with the required air pressure.
Never leave the unit unattended.
Disconnect the device from the power supply when you have fin-
ished working with the compressor.
CAUTION!
The compressor is not for commercial use. It can operate for up to
10 minutes, after that time, unplug it from the power supply and
wait at least 10 minutes for it to cool down. Prolonged use may
cause the compressor to overheat and seize.
When the compressor is used to inflate tyres in motor vehicles,
take an additional measurement with an approved pressure
gauge, the values indicated on the built-in pressure gauge are
indicative.
IN CASE THE COMPRESSOR STOPS WORKING:
• check the power cord for damage
• check that the contacts of the plug and socket are not dirty
• check that the fuse of the socket outlet has not blown out
(for proper operation of the compressor, the outlet should be
protected with a minimum fuse of 15 A)
TECHNICAL PARAMETERS:
• input voltage: DC 12V
• maximum pressure: 10 bar / 150PSI
• length of the power cord: 3 m
• length of the hose: 50 cm
• dimensions (l x w x h): 190 x 150 x70 mm
ENVIRONMENTAL PROTECTION
To prevent damage during transport, the appliance is
packed. This packaging is raw material that can be reused
or recycled.
The appliance and its accessories consist of various
materials, such as metal and plastic.
Please take damaged appliance parts to a recycling collection
point. Recycling as an alternative to the obligation to return
the appliance: As an alternative to the obligation to return the
appliance at the end of its useful life, the owner is obliged to
participate in its proper disposal. The end-of-life unit may also
be taken to a recycling collection point, which will dispose of it in
accordance with the national regulations concerning waste and
the use of secondary raw materials.
DECLARATION OF CONFORMITY
Product model/SEE identifier: YF651-2/02380
Name and address of the manufacturer Amio Sp. z o.o. ul.
Handlowa 3, 41 - 807 Zabrze
This declaration of conformity is issued under the sole
responsibility of the manufacturer.
Subject of the declaration:
Name: Car Air compressor Acomp-10
Serial No.: YF651-2/02380
Year of manufacture: 2023
The above mentioned product complies with the following
directives EMC 2014/30/UE
Norms:
EN 60335-1:2012+A11:2014,
EN 61000-6-3:2007+A1:2011,
EN 61000-6-1:2007, EN 61000-3-2:2014,
EN 61000-3-3:2013
EN 55014-1:2017, EN 55014-2:2015,
EN 50498:2010
The EC market test was carried out by: Ente Certificazione
Macchine Srl Via Ca' Bella, 243 - Loc. Castello di Serravalle - 40053
Valsamoggia (BO) - ITALY +39 051 6705141 +39 051 6705156
The technical documentation is kept at the head office of Amio
Sp. z o.o. 3 Handlowa street,
41-807 Zabrze.
Other information: Manufactured in PRC for Amio Sp. z o.o., 3
Handlowa St., 41 - 807 Zabrze
The person authorised to prepare the technical documentation
and to draw up
the declaration on behalf of, is:
President of the Board
Grzegorz Dudziak
Zabrze, 2023 r.
PL - INSTRUKCJA ORYGINALNA
Kompresor samochodowy cyfrowy 12V YF651-2
Kompresor przeznaczony jest do pompowania opon, piłek,
zabawek plażowych, materacy itp. Wyposażony jest w zestaw
końcówek i wtyczkę zasilania 12 V.
