EAW UB22 Technical Specifications

DESCRIPTION

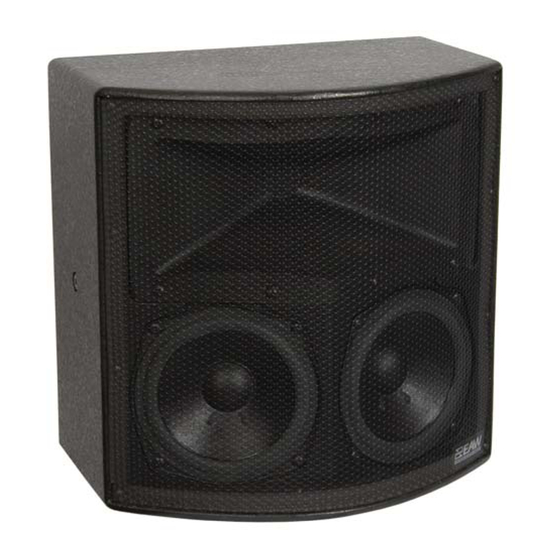

A 2-way full range system (passive LF/HF crossover) in an
ultracompact dual baffle enclosure. Includes 2x 5.25-in woof-
ers and a 1-in exit compression driver on a 120 x 50 con-
stant directivity horn.

APPLICATIONS

The UB22 is engineered to provide extra-wide-angled cover-
age (horizontal) from a wall mounted position. Surprisingly
high output with high definition. Effective as a delay loud-
speaker in a larger system or in a distributed background/
foreground music system. Comprehensive mounting/suspen-
sion points. Six year warranty.
Applications include:
Large Theaters (fill/delay)
Small Theaters (fill/delay)
Boardrooms
Small HOW's (fill/delay)
Restaurants
Retail Spaces (distributed)

DESCRIPTIVE DATA

Part Number 999041
Product Group I
LF Subsystem & Loading 2x 5.25-in Cone
HF Subsystem & Loading 1x 1-in Exit Compression Driver on
Constant Directivity Horn
System Configuration 2-way, Full Range, Wallmount
Powering Configuration(s) Passive LF/HF Crossover
Recommended High-Pass
Frequency (24 dB/Octave) 50Hz
Cabinet Type (shape) Square with Curved Face,
Dual Angled Baffles
Enclosure Materials Baltic Birch Plywood & MDF
Finish Black Catalyzed Polyurethane
Connectors 2-Terminal Barrier Strip
Suspension Hardware (4) 1/4"-20 Threaded Mounting/
Suspension Points (1 each top,
bottom and sides)
Grill Vinyl Coated Perforated Steel
Mounting Bracket 980006
EASTERN ACOUSTIC WORKS
One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email info@eaw.com • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# UB22 999041(A)/2p/3/14/97 • Printed In USA
TECHNICAL SPECIFICATIONS UB22

NOMINAL DATA

Frequency Response (Hz)
Axial Sensitivity (dB SPL/1 Watt/1m)
Impedance (Ohms)
Power Handling (Watts)
AES Standard
Calculated Maximum Output (dB SPL, @ 1m)
Nominal Coverage Angle / -6 dB points (degrees)
Dimensions
Weights
Shipping Weight
3 db 100Hz to 19kHz
-10 dB 60Hz
93
4
200
Peak 122.0
Long Term 116.0
Horizontal 120
Vertical 50
inches millimeters
Height 11.75 298
Width 11.75 298
Depth 7.50 191
pounds kilograms
Net Weight 16.5 7.5
19 8.6
