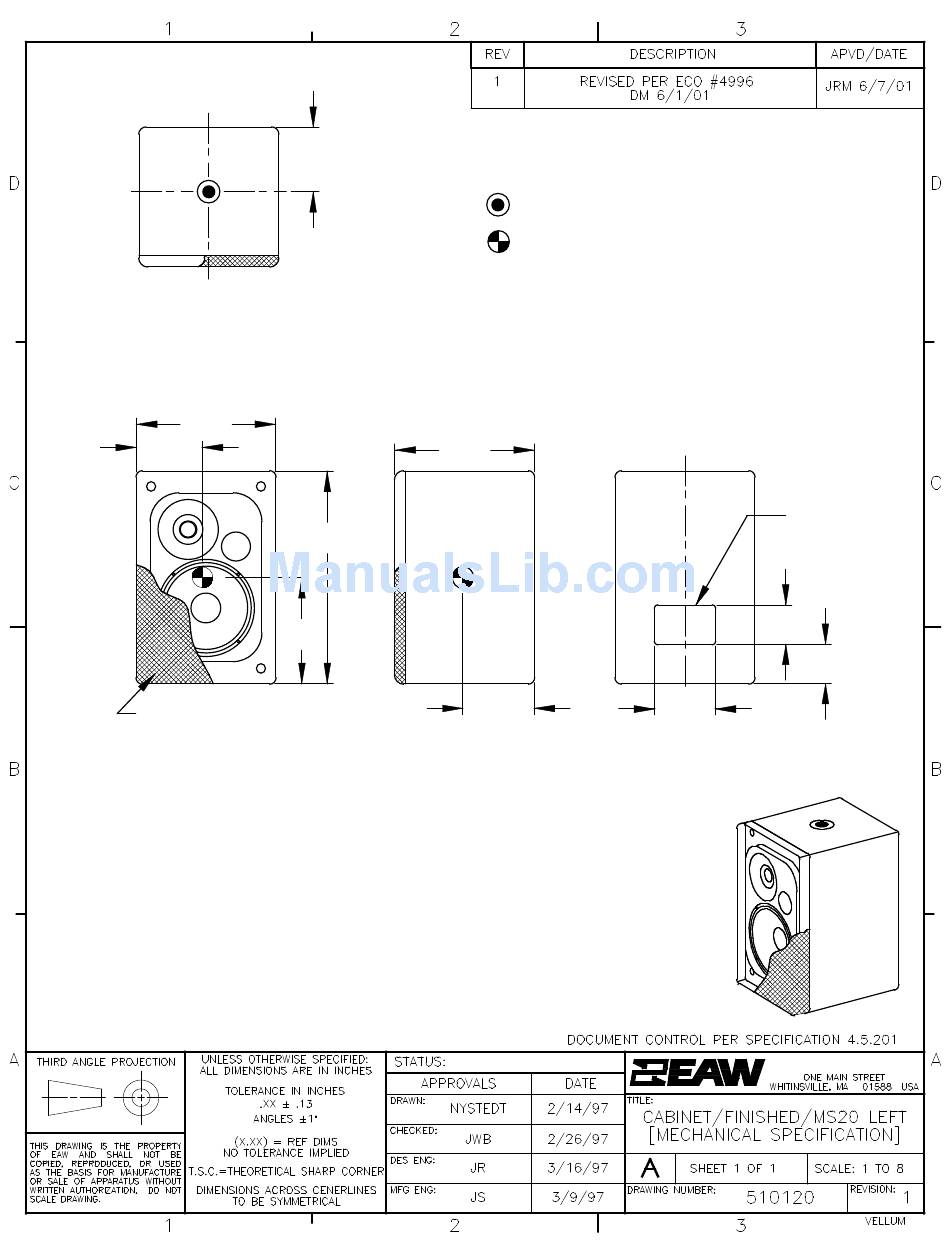

EAW MS20 Dimensions

C L
TOP/BOTTOM
DIMENSIONS APPLY
TO TOP AND BOTTOM
9.75
4.62
7.44
REMOVABLE GRILLE
PARTIALLY SHOWN
FRONT
4.50

NOTES:

1. SYMBOL
THREADED HOLE (T-NUT).
2. SYMBOL
3. WEIGHT APPROX. 18 LBS.
4. SHIPPING WEIGHT APPROX. 19 LBS.
9.75
14.87
RIGHT
DIMENSIONS APPLY
TO BOTH SIDES
INDICATES MOUNTING POINT, 1/4-20
INDICATES CENTER OF BALANCE.
5.00
MS20 LEFT
PRODUCTION
C
L

INPUT

2.75
2.75
4.25
BACK
EASTERN ACOUSTIC WORKS
