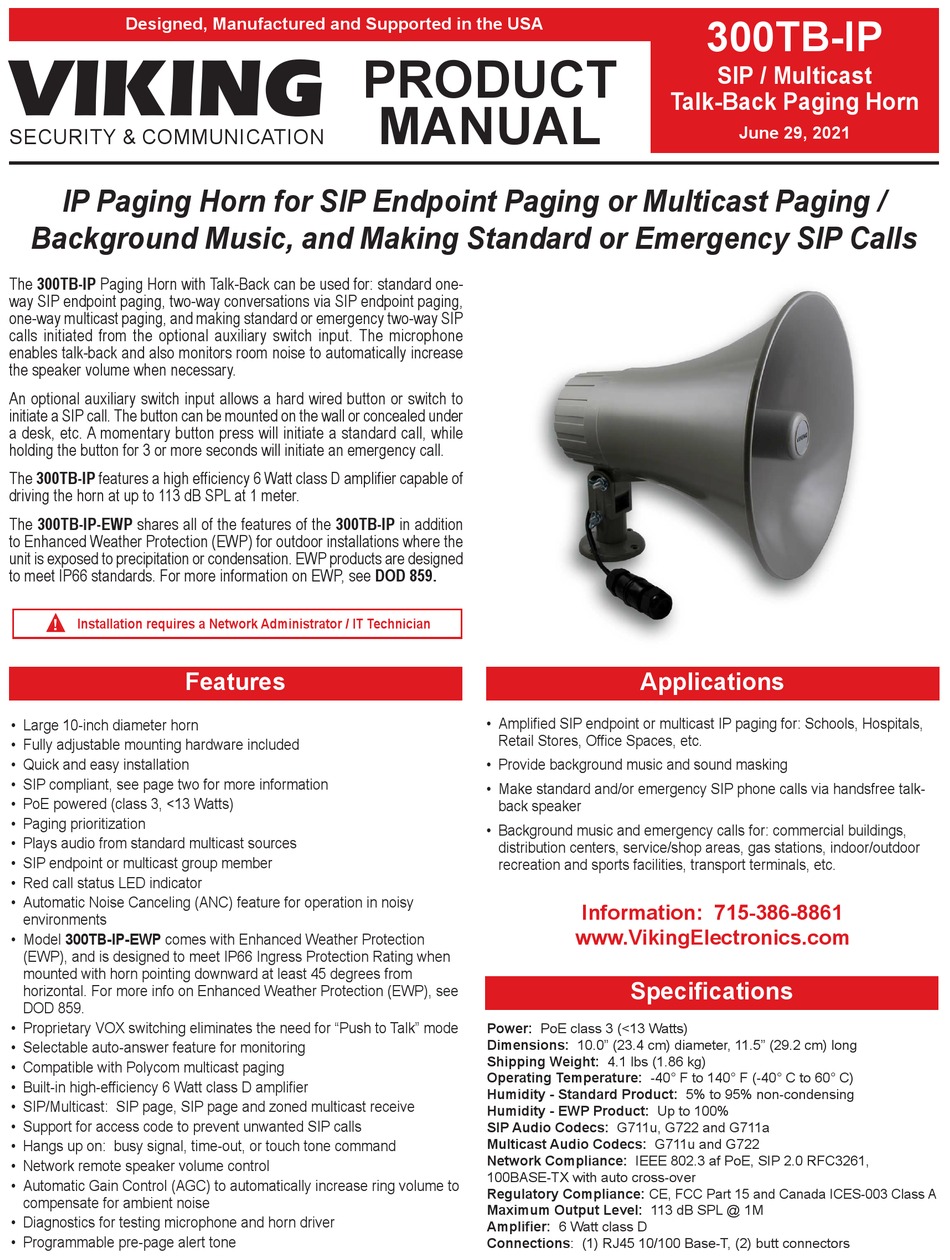

Designed, Manufactured and Supported in the USA
VIKING
SECURITY & COMMUNICATION
IP Paging Horn for SIP Endpoint Paging or Multicast Paging /
Background Music, and Making Standard or Emergency SIP Calls
The 300TB-IP Paging Horn with Talk-Back can be used for: standard one-
way SIP endpoint paging, two-way conversations via SIP endpoint paging,
one-way multicast paging, and making standard or emergency two-way SIP
calls initiated from the optional auxiliary switch input. The microphone
enables talk-back and also monitors room noise to automatically increase
the speaker volume when necessary.
An optional auxiliary switch input allows a hard wired button or switch to
initiate a SIP call. The button can be mounted on the wall or concealed under
a desk, etc. A momentary button press will initiate a standard call, while
holding the button for 3 or more seconds will initiate an emergency call.
The 300TB-IP features a high efficiency 6 Watt class D amplifier capable of
driving the horn at up to 113 dB SPL at 1 meter.
The 300TB-IP-EWP shares all of the features of the 300TB-IP in addition
to Enhanced Weather Protection (EWP) for outdoor installations where the
unit is exposed to precipitation or condensation. EWP products are designed
to meet IP66 standards. For more information on EWP, see DOD 859.
!
Installation requires a Network Administrator / IT Technician
Features
• Large 10-inch diameter horn
• Fully adjustable mounting hardware included
• Quick and easy installation
• SIP compliant, see page two for more information
• PoE powered (class 3, <13 Watts)
• Paging prioritization
• Plays audio from standard multicast sources
• SIP endpoint or multicast group member
• Red call status LED indicator
• Automatic Noise Canceling (ANC) feature for operation in noisy
environments
• Model 300TB-IP-EWP comes with Enhanced Weather Protection
(EWP), and is designed to meet IP66 Ingress Protection Rating when
mounted with horn pointing downward at least 45 degrees from
horizontal. For more info on Enhanced Weather Protection (EWP), see
DOD 859.
• Proprietary VOX switching eliminates the need for "Push to Talk" mode
• Selectable auto-answer feature for monitoring
• Compatible with Polycom multicast paging
• Built-in high-efficiency 6 Watt class D amplifier
• SIP/Multicast: SIP page, SIP page and zoned multicast receive
• Support for access code to prevent unwanted SIP calls
• Hangs up on: busy signal, time-out, or touch tone command
• Network remote speaker volume control
• Automatic Gain Control (AGC) to automatically increase ring volume to
compensate for ambient noise
• Diagnostics for testing microphone and horn driver
• Programmable pre-page alert tone
PRODUCT
MANUAL
• Amplified SIP endpoint or multicast IP paging for: Schools, Hospitals,
Retail Stores, Office Spaces, etc.
• Provide background music and sound masking
• Make standard and/or emergency SIP phone calls via handsfree talk-
back speaker
• Background music and emergency calls for: commercial buildings,
distribution centers, service/shop areas, gas stations, indoor/outdoor
recreation and sports facilities, transport terminals, etc.
Power: PoE class 3 (<13 Watts)
Dimensions: 10.0" (23.4 cm) diameter, 11.5" (29.2 cm) long
Shipping Weight: 4.1 lbs (1.86 kg)
Operating Temperature: -40° F to 140° F (-40° C to 60° C)
Humidity - Standard Product: 5% to 95% non-condensing
Humidity - EWP Product: Up to 100%
SIP Audio Codecs: G711u, G722 and G711a
Multicast Audio Codecs: G711u and G722
Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261,
100BASE-TX with auto cross-over
Regulatory Compliance: CE, FCC Part 15 and Canada ICES-003 Class A
Maximum Output Level: 113 dB SPL @ 1M
Amplifier: 6 Watt class D
Connections: (1) RJ45 10/100 Base-T, (2) butt connectors
300TB-IP
SIP / Multicast
Talk-Back Paging Horn
June 29, 2021
Applications
Information: 715-386-8861
www.VikingElectronics.com
Specifications

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 300TB-IP and is the answer not in the manual?

Questions and answers

Related Manuals for Viking 300TB-IP

Summary of Contents for Viking 300TB-IP

  • Page 1 A momentary button press will initiate a standard call, while holding the button for 3 or more seconds will initiate an emergency call. The 300TB-IP features a high efficiency 6 Watt class D amplifier capable of driving the horn at up to 113 dB SPL at 1 meter.
  • Page 2 VoIP SIP System Compatibility For compatibility and vendor specific detailed configuration instructions, see the Viking VoIP SIP System Compatibility List, DOD 944. To open and download this PDF file: Scan the QR code below to open 1. Go to www.vikingelectronics.com...
  • Page 3 It resides in the device’s memory and is used by routers to send network traffic to the correct IP address. You can find the MAC address of your 300TB-IP speaker printed on a white label on the side of the chassis (see page 4).
  • Page 4 Features Overview Front View Back View Microphone: Red Call/Status LED: MAC Address Label: Built-in omni-directional Flashes when unit is not The MAC address is a microphone for talk-back registered, during manual unique 12 digit number paging and automatic reset and during dialing, lights used by routers to send volume control.
  • Page 5 With both wing nuts loose, rotate and angle the horn into position, then tighten both wing nuts to secure. Diagram A Diagram B Screws (4) 0.217” diameter 1.99” (not included) VIKING MODEL 300TB-IP SIP / Multicast 1.99” Talk-Back Paging Horn Round 3.26” www.VikingElectronics.com Mounting...

  • Page 6: Sip Server

    5. Follow the prompts on your screen to complete software installation 6. To start the Viking IP Programming application, click on the Viking IP Programming icon on your desk top. The main screen will appear, allowing the user to program any 300TB-IP connected to that LAN.
  • Page 7 Open the “Viking IP Programming” software on the PC and the start screen shown below will appear. Any Viking IP speakers that are connected to the network will appear on the list. Simply select the 300TB-IP on the list and click on the “Connect” button at the bottom or double click the selected speaker.
  • Page 8 C. Configuring 300TB-IP VLAN Settings Step 1. Click on the “VLAN” tab. Step 2. Disable or enable VLAN tagging by setting the value of “VLAN Tagging”. Step 3. Set the VLAN tag ID by selecting an integer (1 to PSA-94) in “ID for all packets”.

  • Page 9: Table Of Contents

    D. Manually Resetting the Security Code to Enter Programming Note: This procedure will not erase a username and password used to access the 300TB-IP program mode. Only the security code is set to default. Step 1. Power down the 300TB-IP speaker by disconnecting the LAN Cable (RJ45 plug).
  • Page 10 Programming Features 1. Unit Name Up to a 30 character unit name can be assigned to the 300TB-IP being programmed. 2. SIP Server Enter the IP address or URL of your SIP server or service provider in this field. The SIP server IP address is limited to 74 characters.

  • Page 11: Outbound Proxy

    4. Outbound Proxy If your SIP provider requires an outbound proxy IP address enter it in the “Outbnd Proxy” field. If outbound proxy is not required enter the SIP sever IP address into the “Outbnd Proxy” field. NOTE: If not required, this field must match your SIP server IP address.

  • Page 12: Sip Page / Call Priority Vs Multicast 10

    Polycom Multicast Paging Tab 10. SIP Page / Call Priority vs Multicast Incoming and outgoing non-emergency SIP call audio streams can be programmed to have priority over any of the 10 standard multicast paging groups. Use the “SIP In Above” and “SIP Out Above” drop down menus to select which multicast groups you want SIP calls to have priority over.

  • Page 13: Multicast Paging Volume (0 - 1 9, Factory Set

    The multicast paging groups can also be used for up to ten different paging zones for receiving audio streams. A paging zone can consist of one or many 300TB-IP multicast speakers. There is no limit to how many speakers can be in a given paging zone.

  • Page 14: Emergency Phone Number And Non-Emergency Phone Number

    300TB-IP. It is recommended that the factory set security code be changed. The security code can be set back to default by holding the Reset button while the 300TB-IP powers up. See section D on page 9 for details. It can also be defaulted by connecting to the unit with the IP Programming Software and clicking on the “Clear Speaker Settings”...

  • Page 15: External Relay (Factory Set To Disabled)

    19. External Relay A Viking remote model RC-4A relay controller can be used to activate up to four external relays (see page 23). With the external relay set to “EXT ” the 300TB-IP will activate an optional RC-4A relay controller.
  • Page 16 The SIP Paging Volume can alternatively be set to Auto 0 – 10, 15 or 19. 0 = the lowest automatic volume setting and 10, 15 or 19 = the highest automatic volume setting. With volume set to auto the 300TB-IP will use its built-in microphone to monitor background room noise and automatically increase or decrease the SIP Paging Volume, incoming/outgoing phone calls and Multicast paging.
  • Page 17 28. Ring Volume When the Inbound Call Mode is set to Ring, Ring with AGC or Night Ring timed operation is in effect, the 300TB-IP will output a loud ring when it is called. The level can be adjusted from 0 - 19. Factory Setting: 5 29.
  • Page 18 The Inbound Call Mode determines how the 300TB-IP handles incoming SIP calls. One option is to generate a loud ring sound through the speaker. The 300TB-IP can also auto answer a SIP call to transmit a page, control the relay or listen to transmit audio from the microphone.
  • Page 19 42. IP Firmware Update IP is currently not available. The ability to update IP firmware will be made available in a later release of Viking IP Programming software. If an IP firmware update is needed, Viking Technical Support will assist in updating the IP...
  • Page 20 43. Unit Firmware If new 300TB-IP firmware is available, after opening the programming software a pop up window will ask if you would like to update firmware. Another way to update is accomplished by clicking the speaker firmware “Update Unit” button.
  • Page 21 Ring option outputs a fixed volume ring and is adjustable (see Programming section 28). The Ring with AGC option makes the 300TB-IP vary the volume of the loud ring based on the background noise around the unit. If Night Ring...
  • Page 22 D. Operation Commands (Relay Mode must be set to “Door Strike”) The following commands can be entered after answering an outbound SIP call from the 300TB-IP or on an inbound SIP call to the unit, when the Inbound Call Mode is set to auto answer. After the unit auto answers the call, one beep will be heard if Pre Page Alert Tone is enabled.
  • Page 23 The relay controller is mounted securely inside the building and connected to the same LAN as the 300TB-IP. The 300TB-IP will send an encrypted message to the RC-4A to activate its relays which control the door strikes / gates.
  • Page 24 SIP / Multicast Paging Adapter The Viking model PA-IP SIP / Multicast Paging Adapter provides an interface between new VoIP phone systems (hardware or hosted/cloud based) and analog paging systems, eliminating the need for an ATA or FXS port. The PA-IP can be used for standard SIP endpoint paging or multicast paging and background music.
  • Page 25 2’ x 2’ Drop-In Ceiling Tile IP Speaker for SIP Endpoint or Multicast Paging and Making Standard and / or Emergency SIP Calls The Viking model 22TB-IP Talk-Back 2 x 2 ceiling tile replacement speaker enables two-way conversations and end point paging via SIP, yet also allows for standard paging via multicast.
  • Page 26 TWO YEAR LIMITED WARRANTY Viking warrants its products to be free from defects in the workmanship or materials, under normal use and service, for a period of two years from the date of purchase from any authorized Viking distributor. If at any time during the warranty period, the product is deemed defective or malfunctions, return the product to Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI., 54016.
