IMER COMBI 200 VA Operating, Maintenance, Spare Parts Manual
  1. Manuals
  2. Brands
  3. IMER Manuals
  4. Sewing Machine
  5. COMBI 200 VA
  6. Operating, maintenance, spare parts manual

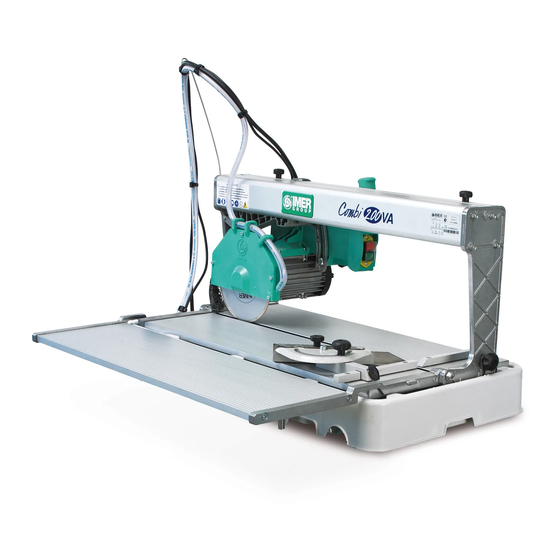

IMER COMBI 200 VA Operating, Maintenance, Spare Parts Manual

Hide thumbs Also See for COMBI 200 VA:

Advertisement

Quick Links

Download this manual
I
manuale uso manutenzione ricambi
F
manuel utilisation entretien pieces de rechange
GB
Operating,maintenance, spare parts manual
D
Handbuch für Bedienung, Wartung und Esatzteile
E
manual de uso, mantenimiento y recambios
IMER INTERNATIONAL S.p.A.
53036 POGGIBONSI (SIENA) loc. SALCETO
tel.0577 97341 - fax 0577 983304
COMBI 200 VA
1188080 (230V-50Hz) / 1188082 (110V-50Hz)
SEGATRICE
SAWING MACHINE
SÄGEMASCHINE
TRONZADORA
(ITALY)
SCIE
INTERNATIONAL S.p.A
2006/04 - R02
- Cod. 3226089 -
