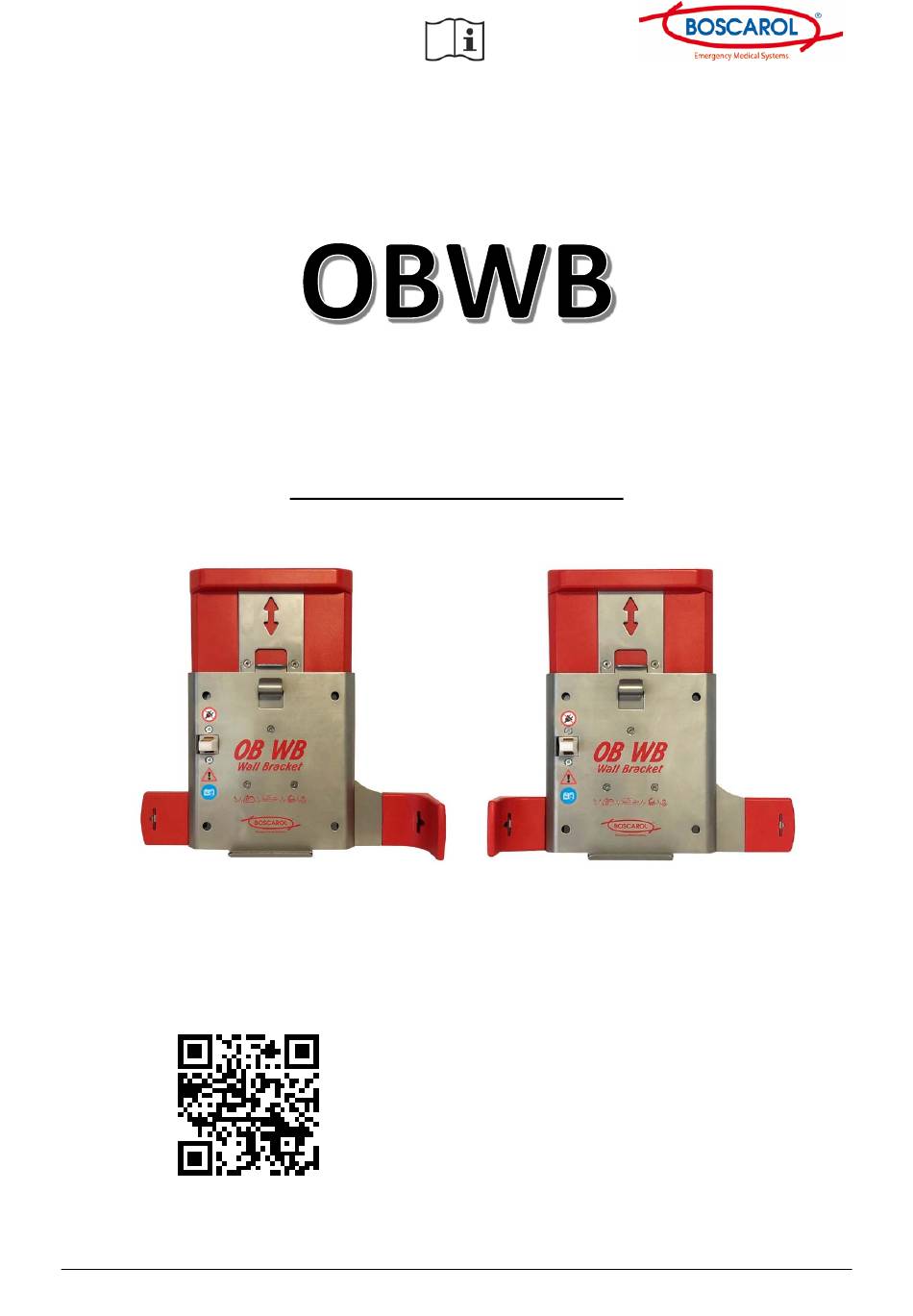

- Page 1 ED01_REV01-2021 IFU OBWB_EN SUPPORT AND CHARGING BRACKET FOR BSU FOR MEDICAL SUCTION UNIT OB2012, OB1000 and OB3000 OPERATING INSTRUCTIONS 1- 12...
- Page 2 13485 and ISO 9001. • The OB WB is not a medical device and is intended as an auxiliary system for fixing and restraining medical devices OB3000, OB2012 and OB1000. The device is intended for exclusive use on these devices •...
-
Page 3: Table Of Contents
Dimensions of the device complete with bracket ..............8 Power cable connection ......................8 How to attach the suction unit to the OB WB bracket ............... 8 Functionality test of the wall bracket ..................9 REUSE AND MAINTENANCE ....................9 After docking the device ...................... -
Page 4: Meaning Of Symbols And Pictograms
ED01_REV01-2021 IFU OBWB_EN MEANING OF SYMBOLS AND PICTOGRAMS Symbols used on the device and in this user manual Important warnings: important information for the correct use of the device and to avoid the risk of injury to the operator, patient and/or damage to the device Warnings: information to which attention should be paid Notes or information for correct use of the device List of actions to be performed: follow them step by step... -
Page 5: Warnings, Precautions And Important Information
• vehicles, hospitals, clinics and/or other medical facilities. • The bracket cannot be used to fix other medical devices than those of the BSU family produced by Oscar Boscarol srl. • The OBWB wall bracket, appropriately connected, with the supplied cable, to the external power source (SELV type only) allows the internal battery to be recharged and the suction unit to be powered. -
Page 6: Ob Wb Support And Charging Bracket
Any device received in such a condition will be refused and returned to the sender with all the appropriate consequences. Health authority will be informed of possible contamination. OB WB SUPPORT AND CHARGING BRACKET The device must be installed in emergency vehicles. This operation may only be carried out by authorised personnel and vehicle fitters, after having performed a careful risk assessment (see ISO 14971 latest edition) related to the specific type of process. -
Page 7: Installing The Wall Bracket In Vehicles

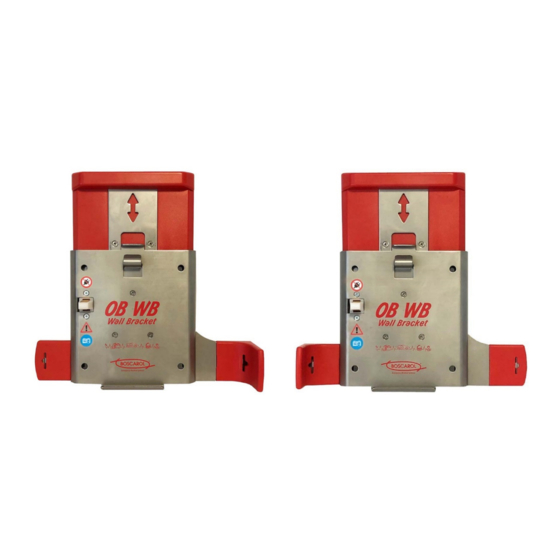

The two red plastic flaps on the lower part are designed to allow the attachment of all aspirators of the BSU family (Boscarol suction unit). The OB2012 and OB3000 suction units have the "L" flap reference on the right, while the OB1000 suction unit has it on the left (see picture above). -
Page 8: Dimensions Of The Device Complete With Bracket
(EMC). Risks of interference How to attach the suction unit to the OB WB bracket The OBWB wall bracket has been designed and manufactured to make operation simple and easy. The usability study conducted has minimised the risks involved in attaching or detaching the medical device. -
Page 9: Functionality Test Of The Wall Bracket
ED01_REV01-2021 IFU OBWB_EN Final position Suction unit insertion and extraction operations (OB2012 model pictured): After grasping the suction unit with two hands as shown in the first photo, place the bottom of the suction unit on • the skid of the wall bracket. •... -
Page 10: Cleaning The Bracket
Do not use abrasive substances. Oscar Boscarol srl can supply you with such disinfectants (also suitable for our suction units). These disinfectants, available in various formats (wipes, sprays, liquids) are laboratory tested and guarantee the deactivation of viruses, bacteria and microorganisms. -
Page 11: Technical Assistance Service
For indoor use only WARRANTY The company Oscar Boscarol srl warrants the OBWB wall bracket for a period of twenty-four (24) months from the date of purchase by the original user, against any defects due to workmanship, materials or construction. - Page 12 European standards and laws With reference to what is described in these warranty conditions, Oscar Boscarol srl cannot be held responsible for accidental or indirect damages, if modifications, repairs, unauthorized technical interventions have been made on the device or any of its parts have been damaged by accident, misuse and/or abuse.
