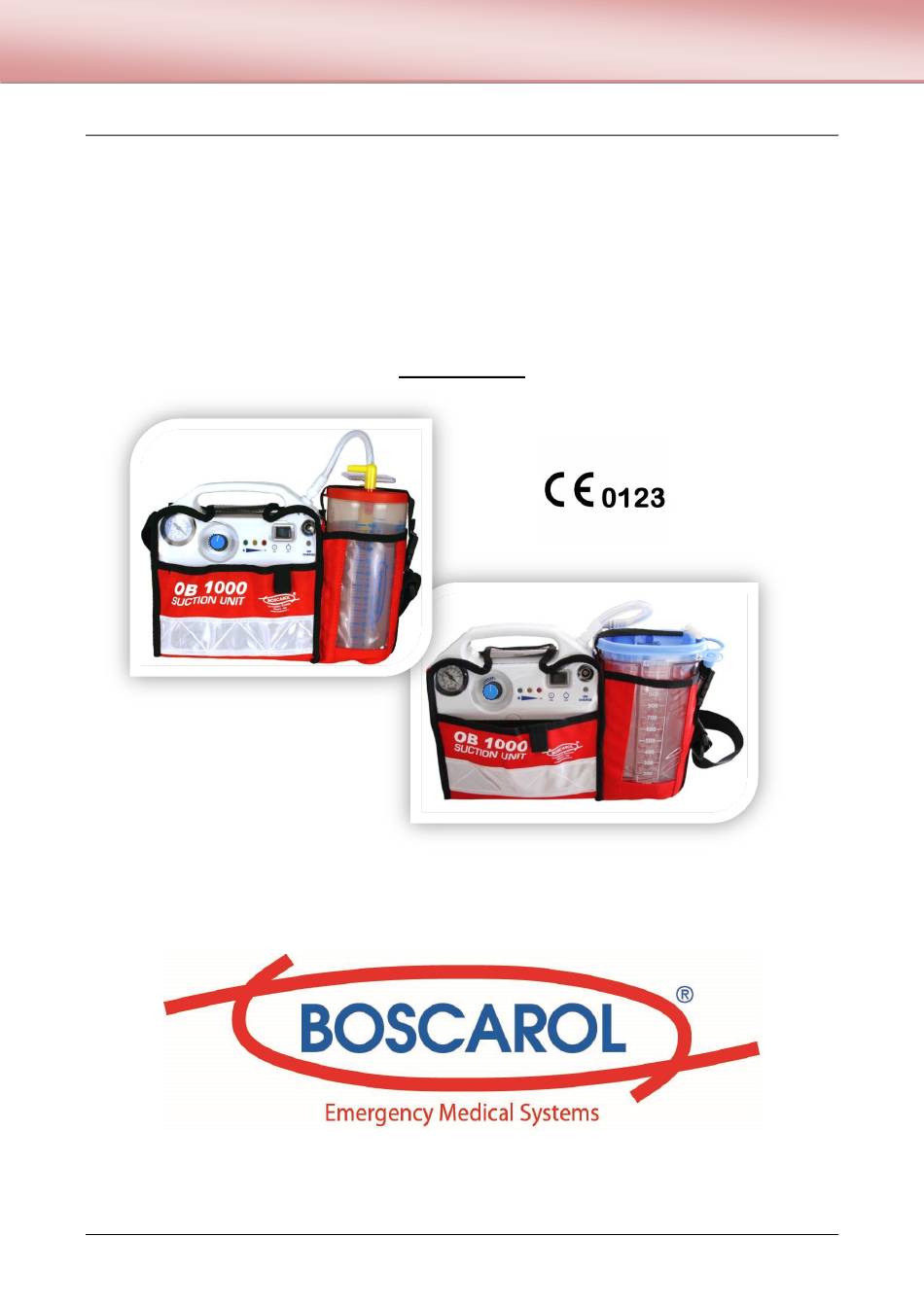

- Page 1 Rev. 09-2013 USMAN1000 3P -UK Rev. 04-2010 USMAN2012-IT MEDICAL SUCTION UNIT OB1000 FA OB1000 LINER USER MANUAL MANUFACTURED BY 1 - 24...
- Page 2 Rev. 09-2013 USMAN1000 3P -UK Rev. 04-2010 USMAN2012-IT 2 - 24...
-
Page 3: Table Of Contents
Rev. 09-2013 USMAN1000 3P -UK Rev. 04-2010 USMAN2012-IT INDEX INDEX ……………………………………………………………………………………………………………………. SYMBOLS AND IMPORTANT SAFEGUARDS …………………………………….………………………………… ….…………………………………………. WARNINGS, PRECAUTIONS AND IMPORTANT INFORMATION OB1000 SUCTION UNIT MODELS ………………………………………………………………………………………………………………… DESCRIPTION AND INTENDED USE STATEMENT ……………………………………………………………… CONTRAINDICATIONS FOR USE ………………………………………………………………………………….. CONTROLS, INDICATIONS AND CHECK PANEL ……………………………………….…………….………... INDICATOR LIGHTS ………………………………………………………………………………………..…………. -
Page 4: Symbols And Important Safeguards
Rev. 09-2013 USMAN1000 3P -UK Rev. 04-2010 USMAN2012-IT SYMBOLS Applied part type BF Disposable part Double insulation Read the user manual Minimum and maximum Follow the instructions for use temperature use CE mark perform to the MDD 93/42/EEC for Medical devices with class above I The device contains electrical and/or electronic equipment that must be recycled per EC Directive 2002/96/EC –... -
Page 5: Warnings, Precautions And Important Information
Use only genuine and authorised spare parts supplied by the manufacturer (Oscar Boscarol Company) or their agents. Using genuine spare parts will increase the reliability of the unit and ensure that the guarantee remains unaffected. -
Page 6: Ob1000 Suction Unit
Description and intended use statement The OB1000 FA / LINER is a portable, battery operated medical suction unit, used for remove fluids from the upper airway and restore breathing either spontaneously or with assistance. High vacuum values are normally used for the suction of oropharyngeal tract, whereas low values are used for tracheal suction of children or newborns. -
Page 7: Indicator Lights
Rev. 09-2013 USMAN1000 3P -UK Rev. 04-2010 USMAN2012-IT Fig.1 Fig.2 Indicator lights All lights are placed on the front and display the operation of the device (see Fig1) : the autonomy of the battery (2) and the recharge state (3). The table below indicates the condition of the LEDs and the relative power of the battery: LEDS STATUS AUTONOMY VALUE LED green on... -
Page 8: Collection Jar
Rev. 09-2013 USMAN1000 3P -UK Rev. 04-2010 USMAN2012-IT (70kPa ÷ 80kPa; 525 ÷ 600mmHg). tight and that all connections are secure. Change the disposable liner. Check the vacuum regulation. Gauge reading ranges from maximum to Check the vacuum connections and/or the minimum. -
Page 9: Jankauer Suction Tube
Rev. 09-2013 USMAN1000 3P -UK Rev. 04-2010 USMAN2012-IT Jankauer suction tube and Finger-typ end-piece The suction unit is sold complete with a sterile, Jankauer type suction probe which is connected to a plastic suction tube. The probe and the tube are disposable and must be changed after each use. - Page 10 Rev. 09-2013 USMAN1000 3P -UK Rev. 04-2010 USMAN2012-IT CLEANING INSTRUCTION Reusable collection jar OB-J FA Wear gloves and protective clothing. Disconnect patient tube. Disconnect silicone tube and conical connector. Carefully remove the jar from the unit. Remove the lid of the bottle (attention to possible contamination with the liquids contents!). Empty the contents of the bottle in accordance with local regulations or hospital practice.
- Page 11 Rev. 09-2013 USMAN1000 3P -UK Rev. 04-2010 USMAN2012-IT Replacing the protection filter Disconnect the tube from the top side of the contaminated filter. Carefully remove the filter from the collection jar lid and dispose of it in accordance with local regulations or hospital practices. Install a new filter ensuring that the written “IN” is on the underside, above the ‘VACUUM’...
-
Page 12: Safety
In order to correctly disinfect and decontaminate the device, we suggest you to use specific products, not harmful for people and the environment. These disinfectants must be free of alcoholic and abrasive substances. Oscar Boscarol srl can provide you of specific equipment for disinfection of medical equipment, including the suction units we produce. -
Page 13: Accessories And Spare Parts
Lid for OB-J FA complete with shut-off valve and 90° plastic joint Conical connector – 5 pcs SPS6014 SPS6023 Silicone tube 15 cm with conical connector BSU825 Red carrying bag for OB1000 FA BSU826 Red carrying bag for OB1000 LINER ZMA3004 User manual NOTE The parts listed in the list may be changed without prior notice from the manufacturer and / or technical improvements. -
Page 14: Service
Rev. 09-2013 USMAN1000 3P -UK Rev. 04-2010 USMAN2012-IT SERVICE There are no serviceable components inside the suction unit Do not open the suction unit and do not modify any electrical or mechanical parts. Always contact your service center or the manufacturer. Any even minimal intervention on the device voids the warranty. -
Page 15: Technical Data And Conformity To International Law
Rev. 04-2010 USMAN2012-IT TECHNICAL DATA AND CONFORMITY TO INTERNATIONAL LAW Classification according to the MDD93/42/EEC The Boscarol OB1000 is an ACTIVE MEDICAL SUCTION UNIT for use in the field and for transportable use in accordance with ISO10079-1:2009. MDD Classification: Vacuum degree:... -
Page 16: Risk Of Mutual Interference With Other Devices
Rev. 09-2013 USMAN1000 3P -UK Rev. 04-2010 USMAN2012-IT Protection filter technical data Antibacterial / viral filter for suction devices, with PTFE filter and polypropylene hermetically sealed chassis. Max pressure applicable: 1bar (100kPa) Retention capacity: for water solution: up to 0,9bar (90kPa) ... - Page 17 Rev. 09-2013 USMAN1000 3P -UK Rev. 04-2010 USMAN2012-IT RF emissions Class B The OB1000 suction unit is suitable for use in all CISPR11 establishments, including domestic establishments and those directly connected to Harmonic Emissions the public low-voltage power supply network that Class A IEC 61000-3-2 supplies buildings used for domestic purposes.
- Page 18 Rev. 09-2013 USMAN1000 3P -UK Rev. 04-2010 USMAN2012-IT GUIDELINES AND DECLARATION OF COMPLIANCE FOR MEDICAL DEVICES TEST OF CONDUCTED AND RADIATED ELECTROMAGNETIC IMMUNITY For the purposes of conducting the tests using test levels IEC60601, V =3 and E The BSU suction units are intended for use in the electromagnetic environment specified below. The user of the OB1000 suction unit should assure that it’s used in such an electromagnetic environment.
-
Page 19: Guarantee
Rev. 04-2010 USMAN2012-IT GUARANTEE Oscar Boscarol Company supplies the OB1000 FA and OB1000 LINER with a 24 month guarantee from the date of purchase. Oscar Boscarol Company guarantees that each new OB1000 FA and OB1000 LINER unit is free from defects in materials and workmanship. -
Page 20: Declaration Of Conformity
MEDICAL SUCTION UNIT (name): Dichiariamo sotto nostra responsabilità che il dispositivo ASPIRATORE MEDICALE DI SECRETI (nome): Type: OB1000 FA – OB1000 LINER Tipo: UMDNS code: 15016 BSU210 – BSU214 – BSU220 – BSU224 Boscarol code: XAS0100 – XAS0104 _ XAS0106 – XAS0108 XAS0200 - XAS0112 - XAS0150 - XAS0152 Devices classification (MDD 93/42/EEC –... - Page 21 Rev. 09-2013 USMAN1000 3P -UK Rev. 04-2010 USMAN2012-IT 21 - 24...
- Page 22 Rev. 09-2013 USMAN1000 3P -UK Rev. 04-2010 USMAN2012-IT 22 - 24...
- Page 23 Rev. 09-2013 USMAN1000 3P -UK Rev. 04-2010 USMAN2012-IT 23 - 24...
- Page 24 Rev. 09-2013 USMAN1000 3P -UK Rev. 04-2010 USMAN2012-IT Printed in Italy by Oscar Boscarol company Rev. 09-2013 USMAN1000 3P-UK 24 - 24...
