EAW UB82e Installation Instructions

Installation Instructions

UB82 BRACKET

1. Inventory

Before beginning installation, inventory kit to items listed.
Item EAW P/N Qty
1 606008
2 102246
3 105062
4 105010
5 105011
WARNING: Installation should only be done by an experienced technician. Improper installation may cause
serious injury. The surface where the bracket/cabinet is to be fastened must have enough structural integrity
to support 250 pounds.

2. Mounting the Bracket

Due to various construction methods and materials used today, the hardware for securing the
bracket to the mounting surface is not supplied. It is recommended that you consult a building
professional for the proper mounting hardware before mounting the bracket.

3. Removing the Shipping Hardware

Remove the center flat head screws from the sides of the cabinet using a 7/32 Allen wrench.

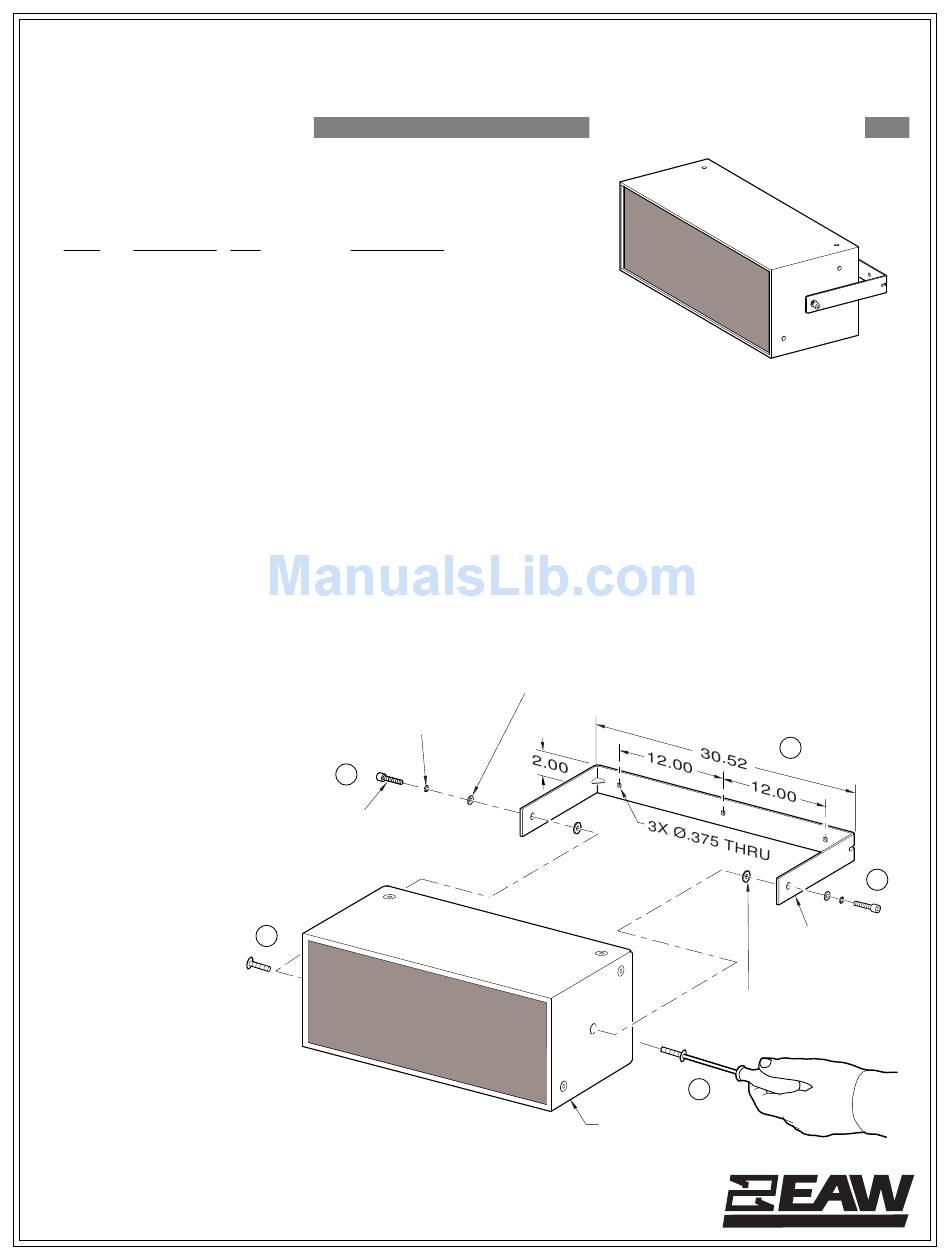

4. Hanging the Cabinet

A. Holding the cabinet in
position, insert the screw
with its lock washer and
flat washer through the
bracket's right side arm
hole then through the
neoprene washer and
into the cabinet's
threaded mounting
hole and hand tighten.
B. Repeat step A
through the
left side arm
bracket hole.
C. Position cabinet and
tighten both mounting
screws with a 5/16
Allen wrench.
1 Main Street • Whitinsville, MA 01588 • Phone (800) 992-5013 • FAX (508) 234-8251
Description
1 Bracket, HD82CM
2 Screw, 3/8-16 x 1-1/2 Lg. SHCS, Black
2 Washer, Neoprene, 3/8 I.D. X 1 O.D.
2 3/8 Washer, Flat, Black
2 3/8 Washer, Lock, Black
(2) LOCK WASHER 3/8
EAW P/N 105011
4
(2) SCREW 3/8-16 X 1-1/2
SHCS 18-8 BLK
EAW P/N 102246
3
EAW DWG NO 480358 (0)
(2) FLAT WASHER 3/8
EAW P/N 105010
UB82
2
4
MOUNTING BRACKET
HD82CM EAW
P/N 606008
(2) NEOPRENE WASHERS
EAW P/N 105062
3
EASTERN ACOUSTIC WORKS
