EAW JFX100i Installation Instructions

1. Inventory
Before beginning installation, inventory your
JFX100 bracket kit to items listed.
Item Qty Description
A 1 Bracket/Wallmount
B 1 Plate/Top Hat Span
C 2 Screw, 3/8-16 x 1-1/2 inch Lg
D 2 Rubber Washer
E 2 Lock Washer
F 2 Flat Washer
Warning: Installation should only be done by an experienced technician. Improper installation
may cause damage, serious injury, or death.
2. Mounting the Bracket
Due to various construction methods and
materials, the hardware for securing the bracket
to the mounting surface is not supplied.
It is recommended that you consult a building
professional for the proper mounting hardware
before mounting the bracket (A). When horizontally
mounting an enclosure make sure the four
openings in the bracket arms face upward.
3. Installing the Plate/Top Hat Span
Remove the 2 screws (G) on each side of the top
hat. Fit the span plate (B) into the recess and
secure it to the cabinet with the same 2 screws
(G) just removed.
4. Removing the Threaded Plug
In the center of the top fly mount is a
3/8-16 plug (H). Remove it using a Phillips head
screwdriver.
5. Choosing which Slot to Use
There are two slots in the bracket arm. The
forward slot is used in these instructions. The
forward slot is intended for use with weather
protected cabinets. The back slot is intended
for indoor installations where cable connections
are made to the terminal strip.

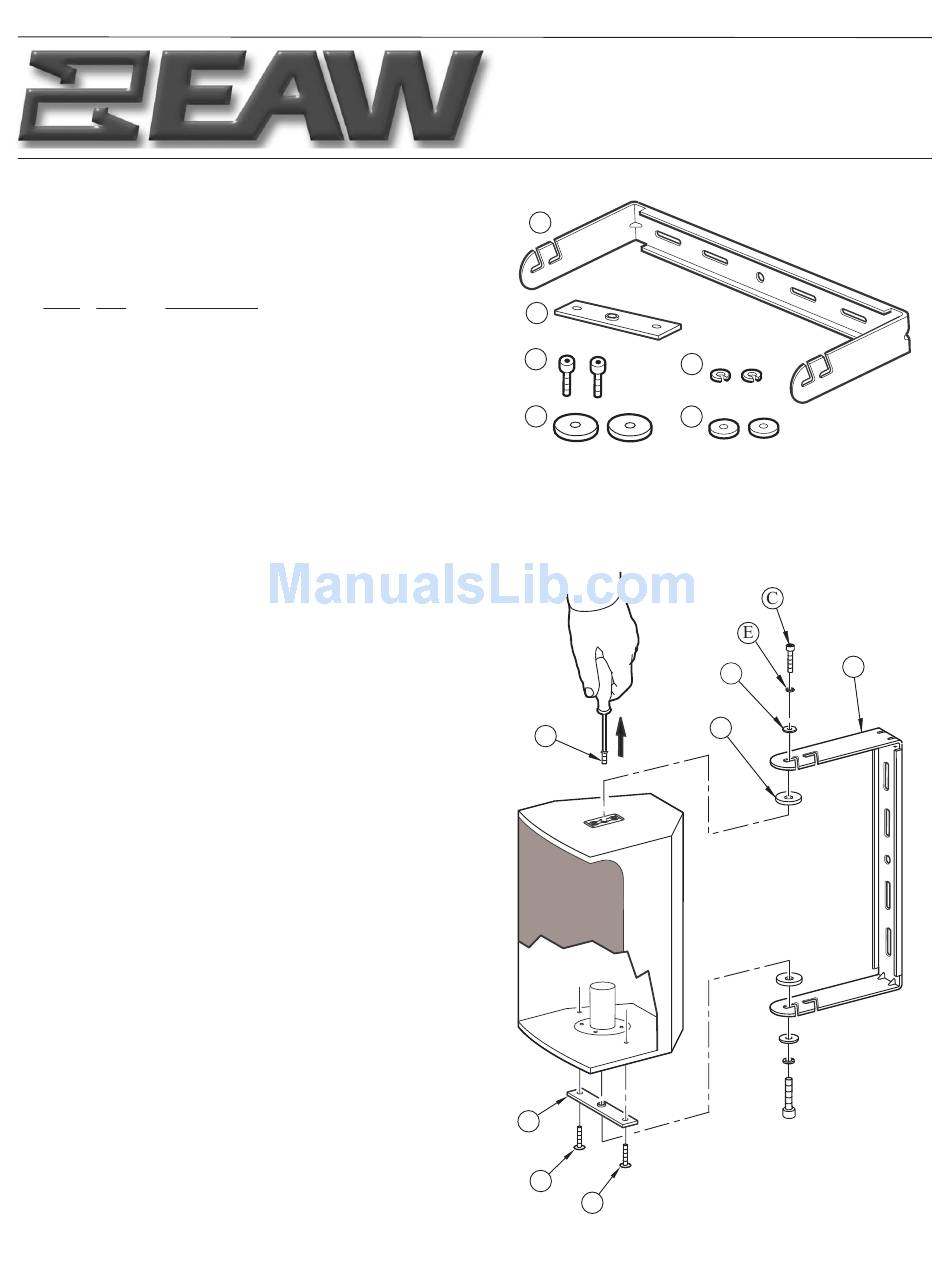

Installation Instructions

JFX100 Bracket Kit
A
B
C
D
H
B
(2) SCREWS (G) ORIGINALLY INSTALLED
G
IN CABINET TO BE REUSED
G
(1/4-20 X 1-1/4 LG PH FHMS)
E
F
A
F
D
