Summary of Contents for LEI accessories PD-N

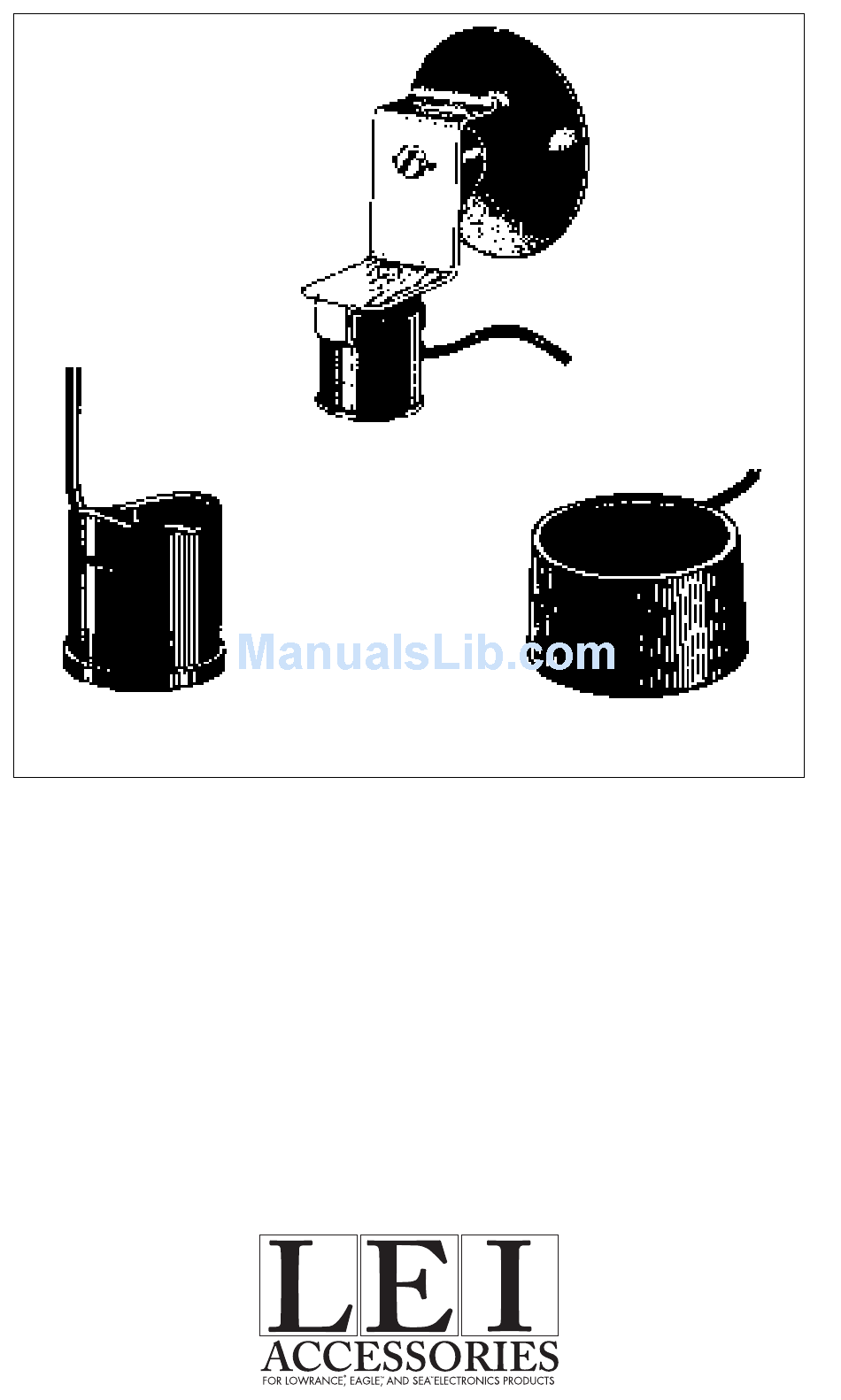

- Page 1 PT-W PD-N and PD-W and PD-WBK PD-WBK PT-W, PD-W, PD-WBK, PD-N and PD-NBK TRANSDUCERS INSTALLATION MANUAL...
- Page 2 When the transducer is mounted on the outside of the hull, periodi- cally wash the transducer’s face with soap and water to remove any oil film that may collect. Oil and dirt on the face will reduce the sensitivity or may even prevent operation. ©...
- Page 3 PT-W INSTALLATION INSTRUCTIONS ONLY The PT-W is a wide cone angle (20 degree) transducer designed to be used with portable sonar units. Assemble the transducer and bracket as shown below. Press the rubber grommet into the hole in the top of the bracket. Tie one end of the lanyard through this hole.
- Page 4 (20 degree) transducers and can be mounted to shoot through the hull, or, with an automo- tive hose clamp, attached to a troll- ing motor. The PD-N and PD-NBK narrow cone angle (8 degree) trans- ducers are shoot-thru-hull mount only.
- Page 5 SHOOT-THRU-HULL The transducer installation inside a fiberglass hull must be in an area that does not have air bubbles in the resin or separated fiberglass layers. The sonar signal must pass through solid fiberglass. A success- ful transducer installation can be made on hulls with flotation materials (such as plywood, balsa wood, or foam) between layers of fiberglass if the material is removed from the chosen area.
- Page 6 TRANSDUCER LOCATION TRANSDUCER LOCATION TRANSDUCER LOCATION TRANSDUCER LOCATION TRANSDUCER LOCATION (HIGH SPEED) (HIGH SPEED) (HIGH SPEED) (HIGH SPEED) (HIGH SPEED) Shoot-thru-hull Installation 1. Dry the chosen area thoroughly, then sand both the inside surface of the hull and the face of the transducer with 100 grit sandpaper. The surface of the hull must be flat so the entire transducer face is in contact with the hull prior to bonding.
- Page 7 HULL HULL HULL HULL HULL 3. Follow the instructions on the epoxy package and mix it thoroughly. Do not mix it too fast, as it will cause bubbles to form in the epoxy. Apply a small amount on the entire face of the transducer, then pour 1/16"...
- Page 8 CABLE TIE CABLE TIE CABLE TIE CABLE TIE CABLE TIE TRANSDUCER TRANSDUCER TRANSDUCER TRANSDUCER TRANSDUCER Trolling Motor Mount - PD-W Only The top of the transducer is curved to fit the contour of the motor on electric trolling motors. Attach it using a automotive hose clamp avail- able at any auto parts store.
