  • Page 1 INSTALLATION AND OPERATION INSTRUCTIONS HS-NS, HS-NSPC, HS-NS, HS-NSPC, HS-NS, HS-NSPC, HS-NS, HS-NSPC, HS-NS, HS-NSPC, HS-WS-50, HS-WS-50D, HS-WS-50, HS-WS-50D, HS-WS-50, HS-WS-50D, HS-WS-50, HS-WS-50D, HS-WS-50, HS-WS-50D, HS-WS-50/192 HS-WS-50/192 HS-WS-50/192 HS-WS-50/192 HS-WS-50/192 MODELS TRANSDUCERS...
  • Page 2 The HS-NS and HS-NSPC are 192 kHz, 8 degree cone angle transduc- ers. The HS-WS-50 and HS-WS-50D are 50 kHz, 36 degree cone angle transducers. The HS-WS-50/192 is a dual frequency transducer with 192 kHz, 20 degree and 50 kHz, 36 degree cone angle elements.

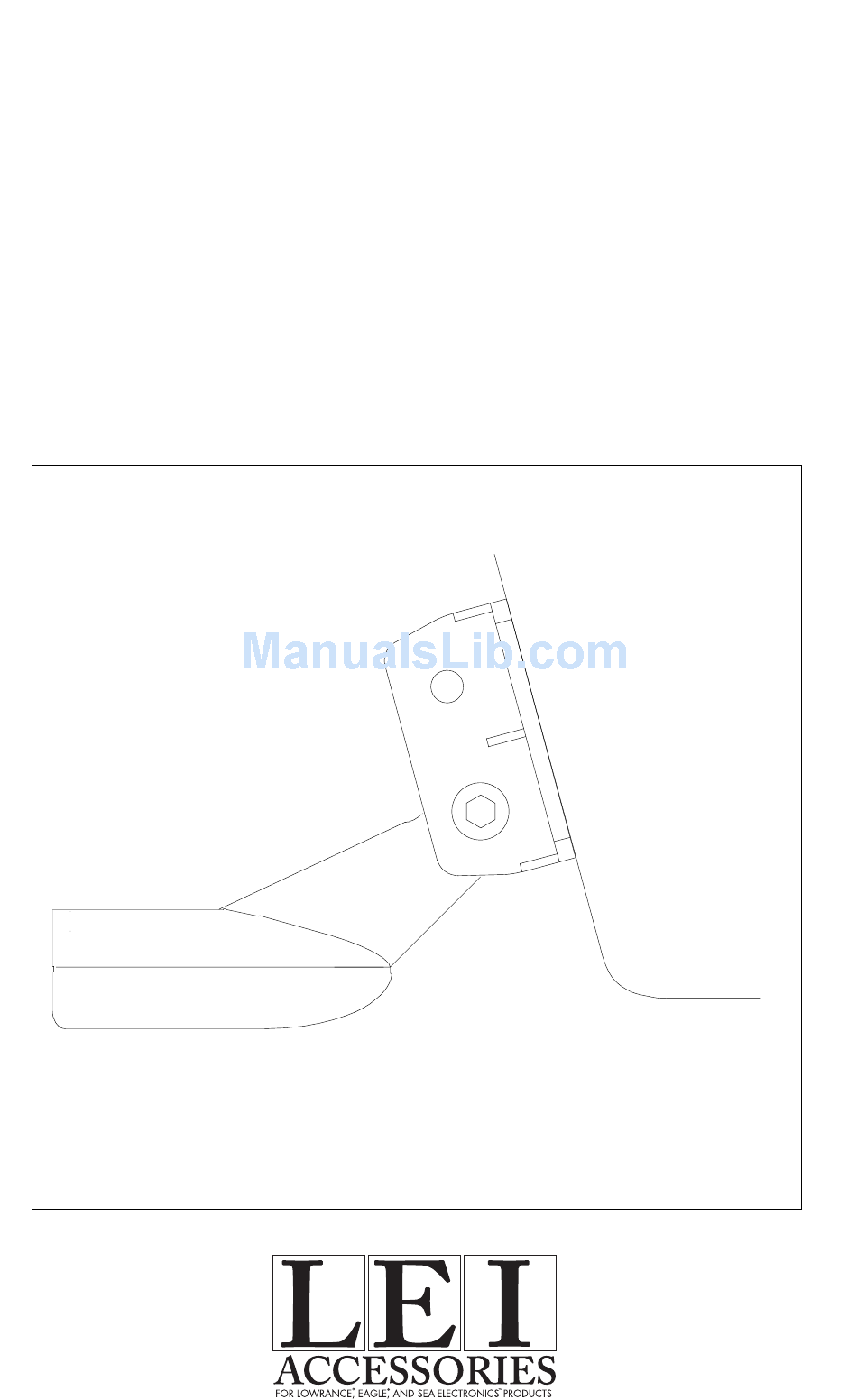

  • Page 3 TRANSDUCER TRANSDUCER BRACKET RATCHET RATCHET See the chart at the top of the next page for example transducer angles for letter "A" at 12, 14, and 16 degree transom angles. DEGREES ANGLE ATTACK This is the way the transducer should look when it's mounted on the transom.
  • Page 4 12 DEGREE TRANSOM ANGLE 12 DEGREE TRANSOM ANGLE 12 DEGREE TRANSOM ANGLE 12 DEGREE TRANSOM ANGLE 12 DEGREE TRANSOM ANGLE INDEX MARKS ANGLE OF ATTACK IN DEGREES (REF. BOTTOM OF HULL) PER RATCHET CLICK 14 DEGREE TRANSOM ANGLE 14 DEGREE TRANSOM ANGLE 14 DEGREE TRANSOM ANGLE 14 DEGREE TRANSOM ANGLE 14 DEGREE TRANSOM ANGLE...
  • Page 5 BOLT FLAT WASHER 2. Once you've determined the proper ratchet placement, assemble the transducer and bracket as shown above. Don't tighten the nut at this time. INSTALLATION - Location INSTALLATION - Location INSTALLATION - Location INSTALLATION - Location INSTALLATION - Location 1.
  • Page 6 GOOD LOCATION GOOD LOCATION GOOD LOCATION GOOD LOCATION GOOD LOCATION 3. Don’t mount the transducer directly behind strakes or ribs on the bottom of the hull. Typically, a good location on aluminum boats is between the ribs closest to the engine. 4.
  • Page 7 6. Route the transducer cable to the sonar unit. Keep the transducer cable away from other wiring on the boat, if possible. Electrical noise from engine wiring or bilge pumps can be picked up on the trans- ducer cable. This can show up as unwanted interference on the sonar display.
  • Page 8 POWER CONNECTIONS - HS-NSPC ONLY NOTE! INSTALL THE TRANSDUCER BEFORE MAKING THE POWER CONNECTIONS! The sonar unit works from a 12 volt DC system only. For the best results, run the power cable directly to the boat’s battery. Keep the power cable away from other boat wiring, especially the engine’s wires.
