STERWINS 20VLM2-33P.1 Manual

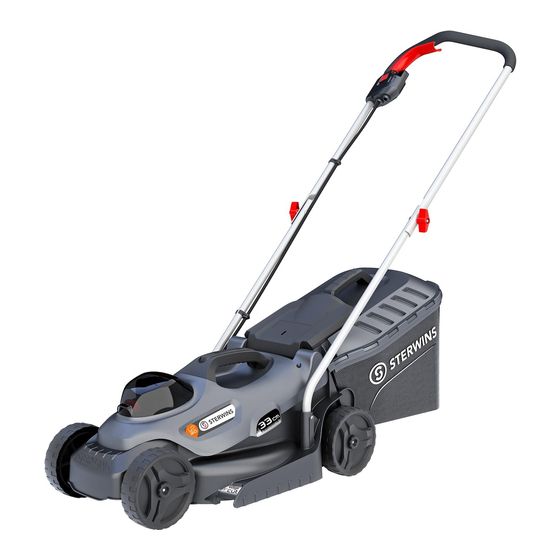

Battery lawn mower
Hide thumbs Also See for 20VLM2-33P.1:
Table of Contents

Advertisement

Quick Links

Introduction
1
Thank you for choosing this product. Upon designing and manufacturing our products, we place all
of our efforts into ensuring an excellent quality that meets the needs of the users. Following these
instructions allow to optimize the lifetime
IMPORTANT! IN ORDER TO OBTAIN THE UTMOST SATISFACTION FROM THIS PRODUCT UPON
SETTING IT UP, USING IT, AND MAINTAINING IT, WE RECOMMEND THAT YOU CAREFULLY READ
THIS USER MANUAL BEFORE USING THE PRODUCT. PLEASE PAY ATTENTION TO BASIC WARNNINGS
RELATING TO SAFETY WITHIN THIS MANUAL, AND KEEP THE MANUAL FOR LATER REFERENCE.
IMPORTANT, KEEP THE MANUAL FOR LATER REFERENCE : READ
CAREFULLY
Contents
1.
Intended use of Battery Lawn Mower 33cm
2.
Safety Instructions
3.
Technical data
4.
Assembly
5.
Transportation
6.
Wintering
1. INTENDED USE OF BATTERY LAWN MOWER 33CM
This product is intended for outdoor use only, and must not be used inside a building under any
circumstances. The cordless lawn mower is only intended for use in dry and well-illuminated conditions.
This lawn mower is only intended to be used for cutting grass in domestic use. Do not use it for others
purposes. The product is not intended to be used by children or persons with reduced physical, mental
or sensory capabilities.
After unwrapping the packing, make sure that the product is complete with its accessories (if any). If the
product is damaged or has any defect, please do not use it and bring back it to your dealer.
If you give this tool to another people, please give him also this instruction manual.
Please note that our equipment has not been designed for use in commercial, trade or industrial
applications. Our warranty will be voided if the machine is used in commercial, trade or industrial
businesses or for equivalent purposes. This product has been designed to be used over a period of
6 years (Expected lifetime).
2. SAFETY INSTRUCTIONS
WARNING : Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
7.
Storage
8.
Maintenance
9.
End of life
10. Warranty
11. CE declaration of conformity
283
FR
ES
PT
IT
EL
PL
RU
KZ
UA
RO
BR
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 20VLM2-33P.1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for STERWINS 20VLM2-33P.1

Summary of Contents for STERWINS 20VLM2-33P.1

  • Page 1 Introduction Thank you for choosing this product. Upon designing and manufacturing our products, we place all of our efforts into ensuring an excellent quality that meets the needs of the users. Following these instructions allow to optimize the lifetime IMPORTANT! IN ORDER TO OBTAIN THE UTMOST SATISFACTION FROM THIS PRODUCT UPON SETTING IT UP, USING IT, AND MAINTAINING IT, WE RECOMMEND THAT YOU CAREFULLY READ THIS USER MANUAL BEFORE USING THE PRODUCT.

  • Page 2: General Safety Warnings

    Read and understand all instructions before operating the product, follow all warning and safety instructions. IPX1 Degree of protection against moisture *Universal : compatible only with Sterwins UP20, Lexman UP20 and Dexter UP20 products. Guaranteed sound power level (tested according to Directive 2000/14/EC as amended by 2005/88/EC).

  • Page 3: Symbols In This Manual

    Do not expose the product to rain or wet conditions. Beware of sharp blades. Blades continue to rotate after the motor is switched off-Remove disabling device before maintenance. Keep bystanders away. Keep the flexible supply cord away from the cutting blades. 2.3 SYMBOLS IN THIS MANUAL Type and source of the danger : Failure to observe this warning may result in physical injury or death.

  • Page 4: Work Area Safety

    This product is recyclable. If it cannot be used anymore, please take it to waste recycling centre. Brazilian environmental label : Recycle this product. Brazilian environmental label : Recycle the packaging of the product. 2.4 WORK AREA SAFETY 1. Training •...

  • Page 5: Maintenance And Storage

    • Walk, never run. • Mow across the face of slopes, never up and down. • Exercise extreme caution when changing direction on slopes. • Do not mow excessively steep slopes. • Use extreme caution when reversing or pulling the machine towards you. •...

  • Page 6: Electrical Safety

    • Be careful during adjustment of the machine to prevent entrapment of the fingers between moving blades and fixed parts of the machine. • Always allow the machine to cool down before storing • When servicing the blades be aware that, even though the power source is switched off, the blades can still be moved.
  • Page 7 • Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. • Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
  • Page 8 • Before each use, ensure that all controls and safety devices function correctly. Do not use the tool if the off switch does not stop the product. • Before each use, always inspect the housing for damage. Ensure that guards and handles are in place and properly secured.

  • Page 9: Residual Risks

    • Injuries may be caused or aggravated by prolonged use of a tool. When using any tool for prolonged periods, ensure you take regular breaks. 3. TECHNICAL DATA Model 20VLM2-33P.1 Rated voltage (V d.c.) 18 V d.c. Machine weigh (including battery pack) 8.01 kg with 5Ah Li-Ion battery...
  • Page 10 Maximum current 45 A Recommended protection Over current protection Grass bag capacity 30 L Cutting width 330 mm Cutting height 25 - 70 mm Mass of unit ≈7.3kg Blade reference A022033 No-load speed (min 3200 Left handle = 2.831 m/s2 Vibration level (K=1.5m/s Right handle = 2.537 m/s2 The declared vibration total value has been measured in accordance with a standard test method and...
  • Page 11 4. ASSEMBLY WARNING! The product must be fully assembled before operation! Do not use a product that is only partly assembled or assembled with damaged parts! Follow the assembly instructions step-by-step and use the pictures provided as a visual guide to easily assemble the product ! 4.1 UNBOXING 1.

  • Page 12: Installation

    • Wear gloves when unboxing. • Do not use cutter, knife, saw or any other similar tool for unboxing. • Carry the tool only by the handles. • Keep the box for further reuse (transport and storage). • Keep instruction manual in a dry area for further consultation. 4.2 INSTALLATION Set up the lawn mower Set up the lawn mower on flat and firm ground to ensure safe and sturdy operating.

  • Page 13: First Use

    4.3 FIRST USE Check the battery WARNING ! Read the « SAFETY INSTRUCTION » section at the beginning of this manual including all text under subheading therein before using this product. The battery is not fully charged at the time of purchase. Before using the product for the first time, place the battery in the charger and charge it fully.
  • Page 14 Operate the product CAUTION ! Always wear safety glasses, substantial footwear and long trousers. Wear a filter mask if the operation is dusty. Use of proper gloves is also recommended. Firmly hold the handle with both hands when mowing. Do not try to cut long grass all at once. Instead, mow the lawn in steps.
  • Page 15 • Operating similar tools nearby increases both the risk of hearing injury and the potential for other persons to enter your work area. • Keep firm footing and balance. • Do not overreach. Overreaching can result in loss of balance. Always be sure of the footing on slopes.

  • Page 16: Maintenance

    6. WINTERING Plug out the battery from the power tool. Before long storage please ensure the battery charge fit to instructions provided on battery instruction manual. Follow all instructions given on chapter storage below. We recommend using the original package for storage or covering the product with a suitable cloth or enclosure to protect it against dust. 7.

  • Page 17: Changing The Cutting Blade

    8.2 CHANGING THE CUTTING BLADE Turn the mower onto its side to reveal the underside of the machine. Place a block of wood or a stop of some kind between the blade and the edge of the deck to prevent the blade from turning freely. Using a wrench , loosen the blade nut on the bottom of the unit .
  • Page 18 PART NUMBER DESCRIPTION 8342-481501-00 Spring 8020-512009-01 Button 8342-463002-00 Spring 8042-660102-00 Push button switch 1-10 A022033-003-00 Switch box 1-11 8301-660803-01 Stifled piece 1-12 8184-302201-00 Cable pressplate 1-13 A022010-034-00 Two - cell cable 8331-515701-00 Sponge A022033-010-00 Handle 8007-512001-00 Line Deduction 8NH-06D 8313-512001-00 Knob A021040-014-00 Handle...

  • Page 19: Troubleshooting

    PART NUMBER DESCRIPTION 236-1017 Tie wire belt A022010-013-02 Electronic components A022010-014-00 Motor assy' 8BC-260908-ST 629Z Bearing 8123-855101-00 Big gear A022010-015-01 Output shaft 8BC-351511-SS01 6202Z Bearing A022010-009-02 Gear box 8SNAB50-20 Self tapping screw A021040-015-00 Knob 8121-512001-00 Wheel 8342-510702-03 Raise the tension spring A021040-006-00 Shaft...
  • Page 20 Qualification Problems Probable causes Solutions required To secure the battery pack, make sure the latches on the Battery is not secure top of the battery pack snap into place Charge the battery pack Battery is not charged according to the instructions Product does included with your model not start...

  • Page 21: End Of Life

    In the event of a problem or defect, you should first always consult your Sterwins dealer. In most cases, the Sterwins dealer will be able to solve the problem or correct the defect. Keep your invoice or your...
  • Page 22 135 Rue Sadi Carnot CS 00001 59790 Ronchin, France Declare that the product Battery Lawn Mower 33cm 20VLM2-33P.1 Is in conformity with the requirements of the Directive MD 2006/42/EC and with national regulations: EMC Directive 2014/30/EU ROHS Directive(EU)2015/863 amending Directive 2011/65/EU NOISE Directive 2000/14/EC,Annex VI and 2005/88/EC Measured Sound power level : 94.5 dB (A)
  • Page 23 6 cm M6x45mm ST5x20mm A022033 included...
  • Page 25 100 cm 92 cm...
  • Page 26 CLACK!
  • Page 28 2.5cm>7cm 100% CLICK!
  • Page 30 1/3 cm 1/3 cm 1/3 cm 1/3 cm 1/3 cm 1/3 cm 1/3 cm 1/3 cm 1/3 cm...
  • Page 31 15°...
  • Page 35 25-30N.m A022033 included...
  • Page 37 4°с ~ 24°с...
  • Page 39 Ce produit se recycle, s’il n’est plus utilisable déposez-le en déchèterie. Notice à trier. Pour en savoir plus : www.quefairedemesdechets.fr Ce produit est recyclable. S’il ne peut plus être utilisé, veuillez l’apporter dans un centre de recyclage de déchets. Este producto es reciclable. Si ya no se puede usar, llévelo a un centro de reciclaje de residuos. Este produto é...
