Summary of Contents for Eastwood 21491
- Page 1 Item #21491 DEEP JAW SHRINKER STRETCHER STAND INSTRUCTIONS...
-
Page 2: Specifications

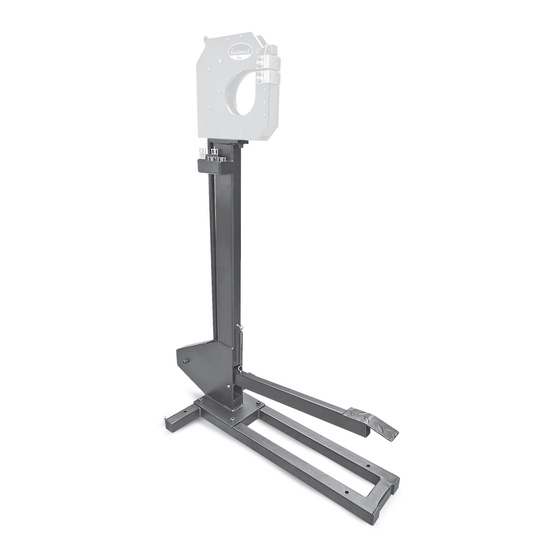

The EASTWOOD ELITE DEEP JAW SHRINKER STRETCHER STAND is designed to provide hands-free operation of the Eastwood Elite Deep Jaw Shrinker Stretcher (#21489, not included) for reduced fatigue while working on involved projects. Placing the Jaws at an ideal 45” working height and built-in casters provide comfort and easy mobility with a solid, stable base. -
Page 3: Read Instructions
• The Eastwood Elite Deep Jaw Shrinker Stretcher Stand consists of heavy metal components which can present a hand/finger pinch hazard and cause potentially serious injuries if dropped on feet. Avoid pinching hands while handling parts during assembly and wear thick, well-fitting work gloves to prevent cuts from handling sharp metal. - Page 4 • Thread two M10 x 20mm Socket Cap Screws through the side holes in Post Assembly and into the threaded Foot Pedal pivot (FIG 4) and tighten securely with an 8mm Hex Key (not included). FIG. 3 FIG. 4 Eastwood Technical Assistance: 800.343.9353 >> techelp@eastwood.com...
- Page 5 INSTALLING ACTUATING CLEVIS [E]. • Insert the shaft portion of the Actuating Clevis [E] into the round bore of the Eastwood Shrinker Stretcher Rocker Arm (FIG 7). NOTE: Using a 3mm Hex Key (not included), back out the set screw in the Rocker Arm to allow the shaft to bottom out in the bore (FIG 7).
- Page 6 Pedal Assembly each time) and check that it shrinks or stretches properly. • Once the final adjustments have been made, the two Snap Rings [G] can be placed into the grooves of the Pivot Pin [F] (FIG 13). FIG. 11 FIG. 12 FIG. 13 Eastwood Technical Assistance: 800.343.9353 >> techelp@eastwood.com...
-
Page 7: Operation
• Insert the legs of the 2nd Cotter Pin through the hole in the right side of the triangular section of the Post Assembly then flare them out (FIG 16). The Eastwood Shrinker Stretcher Foot Pedal Stand is now ready for use. INSERT FOOT PEDAL ARM LOCKPIN [K] FOR TRANSPORT AND STORAGE... -
Page 8: Optional Items
Eastwood 24” Slip Roll If you have any questions about the use of this product, please contact The Eastwood Technical Assistance Service Department: 800.343.9353 >> email: techelp@eastwood.com PDF version of this manual is available online >> eastwood.com/21491manual The Eastwood Company 263 Shoemaker Road, Pottstown, PA 19464, USA US and Canada: 800.343.9353...
