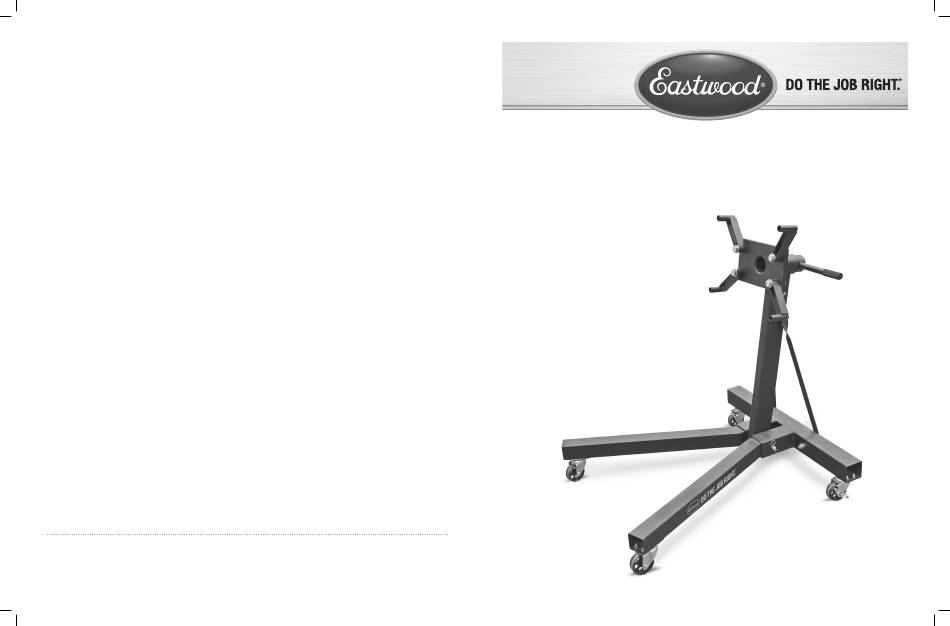

1200 LB ENGINE STAND
INSTRUCTIONS
Item #33915
Advertisement
Related Manuals for Eastwood 33915
Summary of Contents for Eastwood 33915
- Page 1 If you have any questions about the use of this product, please contact The Eastwood Technical Assistance Service Department: 800.343.9353 >> email: tech@eastwood.com PDF version of this manual is available at eastwood.com The Eastwood Company 263 Shoemaker Road, Pottstown, PA 19464, USA 800.343.9353 eastwood.com © Copyright 2020 Eastwood Automotive Group LLC 12/20...
-
Page 2: Specifications
NOTES The EASTWOOD 1200 LB ENGINE STAND features an efficient folding design to minimize storage space when not in use. A wide footprint provides a solid, stable base. Features a rotatable Spindle with 6 locking positions. Steel, ball bearing Locking Swivel Casters and a rugged steel Frame will support up to a total loaded weight of 1200 lbs. - Page 3 (4) M14 x 2.00 Nuts (2) M12 x 1.75 x 90mm Shoulder Bolts (1) M12 x 1.75 x 70mm Shoulder Bolt (3) M12 Flat Washers (3) M12 x 1.75 Nuts Eastwood Technical Assistance: 800.343.9353 >> tech@eastwood.com To order parts and supplies: 800.343.9353 >> eastwood.com...
-
Page 4: Safety Information
ENGINE STAND UNLOADED STORAGE ENGINE STAND CAN TIP OR COLLAPSE CAUSING SEVERE INJURY! The Eastwood Engine Stand may be torn down for compact storage by simply removing two Bolts and Pin. To do so: • DO NOT attempt to mount a top-heavy load. -
