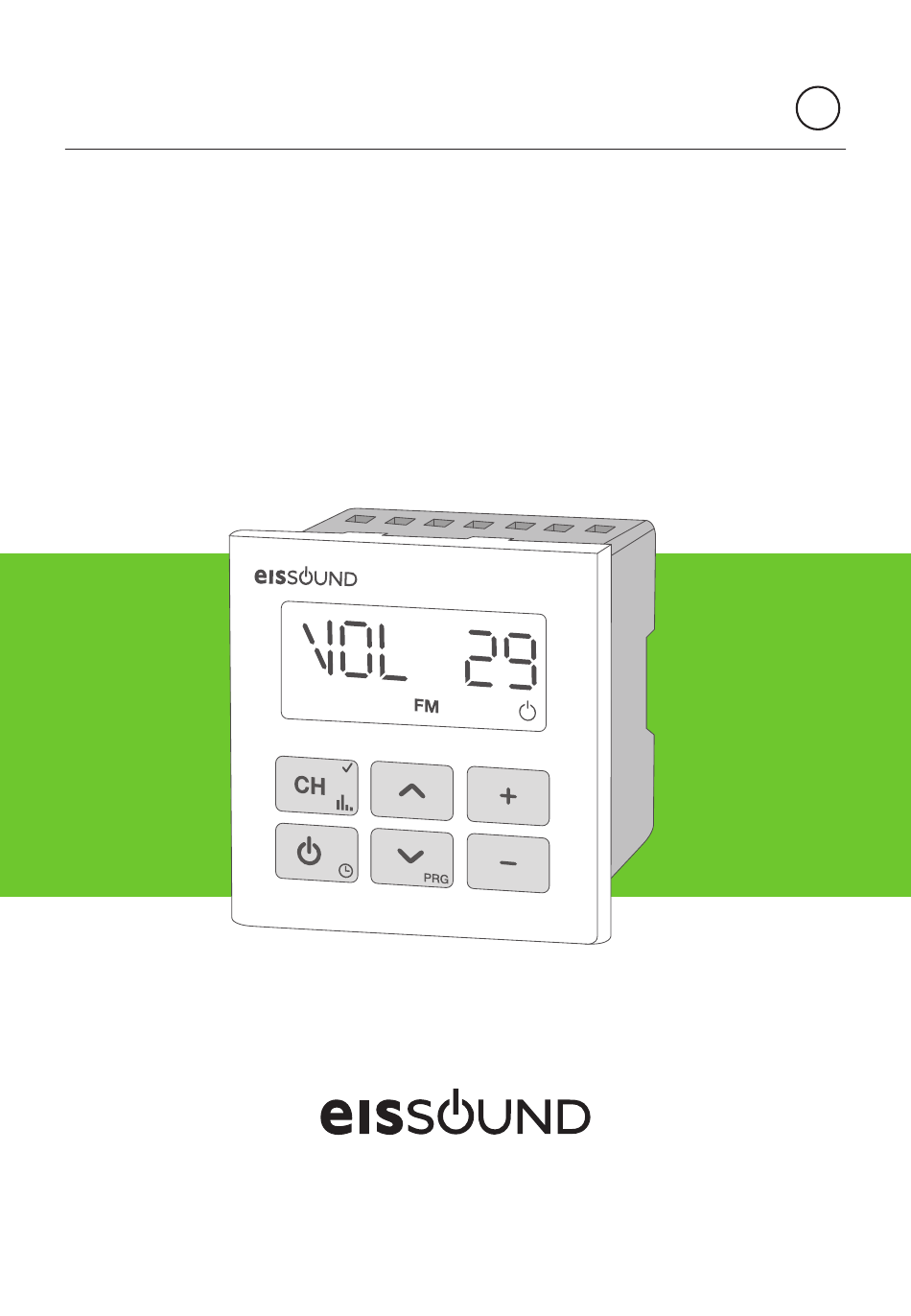

- Page 1 Installation & User Manual In-Wall PREMIUM BT & In-Wall FM/DAB Display...
- Page 2 Installation & User Manual Electrónica Integral de Sonido S.A. declares that the equipment ref.328x1, 328x2, 527x7 and 527x6 is in accordance with directives 2014/53/UE, 2011/65/UE, 2009/125/EC. The EU declaration of conformity can be requested through the website www.eissound.com CC-1205ENG-02 64460133...
-
Page 3: Basic Installation
Installation & User Manual 1. Description In-Wall PREMIUM BT & In-Wall FM/DAB Display is a standalone audio module. It allows you to enjoy four audio channels: Bluetooth Audio, FM/DAB Radio and TWO stereo or four mono audio inputs. Although it is ideal as a standalone FM/DAB radio option (Ref. -
Page 4: Technical Specifications
In-Wall PREMIUM BT & In-Wall FM/DAB Display Installation & User Manual 2.2 TECHNICAL SPECIFICATIONS 328x1 / 328x2 / 527x6 / 527x7 NORMAL COMMENTS 45x45x45,5 exterior (width x height x depth) Measurements 45x45x36 cavity (width x height x depth) 45x45 face cover (width x height) - Page 5 In-Wall PREMIUM BT & In-Wall FM/DAB Display Installation & User Manual TERMINALS Audio output (right) 06 05 Audio output (left) Calls signal 7 A FM/DAB antenna 9 0/62 06 05 04 Call control 9 04 Audio output (common) FM central / Amplifier 0/62...
-
Page 6: Installation Menu
In-Wall PREMIUM BT & In-Wall FM/DAB Display Installation & User Manual 2.3 INSTALLATION MENU When accessing the Installation menu please take note that the Module Control Unit must be in OFF mode. 6” ˅ To activate the installation menu press the keys simultaneously for 6”. - Page 7 In-Wall PREMIUM BT & In-Wall FM/DAB Display Installation & User Manual L1 ENABLE: Activates / deactivates the input channel L1 (terminals 15, 16). When L1 is disabled, it will not appear when selecting the audio channels with the CH key.
- Page 8 In-Wall PREMIUM BT & In-Wall FM/DAB Display Installation & User Manual L1 INPUT LEVEL: Adjust the audio input level of N O R M A L the L1 channel (terminals 15, 16) between the options P R O F NORMAL (100 series), PROF (professional)
- Page 9 In-Wall PREMIUM BT & In-Wall FM/DAB Display Installation & User Manual 3. User Menu When accessing the user menu, please take note that the Module Control Unit must be in OFF mode. 3” ˅ To activate the User Menu press the key for 3”.
-
Page 10: Operation
In-Wall PREMIUM BT & In-Wall FM/DAB Display Installation & User Manual have any service available so it will start the scan automatically. If no services are found, the display will show NO AVAILABLE SERVICES. The DAB SERVICES SCAN can be updated, at any time, by pressing the CH key using the User Menu option. - Page 11 In-Wall PREMIUM BT & In-Wall FM/DAB Display Installation & User Manual 4.3 FM/DAB MEMORY PROGRAM ˄ Pressing simultaneously the keys for 3” 98.10 the FM/DAB station selected is stored into the favourite memory list (max 10 memories). 3” ˄ ˅...
- Page 12 In-Wall PREMIUM BT & In-Wall FM/DAB Display Installation & User Manual 4.6 BLUETOOTH To select the Bluetooth option (PREMIUM BT references: Bluetooth ID 527x7 and 527x6), press the CH key and select the “BT” channel. Before pairing with your Bluetooth device check the ID and password by pressing the key for 3”...
- Page 13 In-Wall PREMIUM BT & In-Wall FM/DAB Display Installation & User Manual 5. Keybord Shortcuts ROCK 3” 3” EQUALIZATION: TIMER: Pressing the key for 3” allows you to select Pressing the ON / OFF key for 3” allows you to set ˄...
- Page 14 In-Wall PREMIUM BT & In-Wall FM/DAB Display Installation & User Manual 98.10 98.10 FM MONO FM MONO 3” 3” AUDIO CHANNEL = FM AUDIO CHANNEL = FM FM FORCED MONO: FM FINE TUNING: ˄ Pressing the keys simultaneously Pressing the keys for 3”...
-
Page 15: Wiring Diagrams
In-Wall PREMIUM BT & In-Wall FM/DAB Display Installation & User Manual 6. Wiring diagrams 6.1 In-Wall PREMIUM BT / In-Wall FM/DAB Display + Amplifier (Ref.13204) ~120/230V / 1,5 W / 1,5 W LINE INPUT SPEAKER OUTPUT 66 65 4 L+ L- R+... - Page 16 In-Wall PREMIUM BT & In-Wall FM/DAB Display Installation & User Manual 7. Annex 1 L1 = STEREO L1 = MONO L1 = MIX Stereo audio input L1 Two independent audio inputs: Two independent audio inputs L11 and L12 (L11 and L12) mixed at the output...
- Page 17 Pol. Malpica - Grupo Quejido 87-88 50016 Zaragoza - SPAIN Tel. +34 976 46 55 50 Fax +34 976 46 55 59 marketing@eissound.com www.eissound.com 6550 St. Augustine rd. Av. Suite 305 Jacksonville, Florida 32217 info@kbsound.com www.kbsound.com...
