USER'S MANUAL
CC-1157ENG-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KBSOUND iSelect and is the answer not in the manual?

Questions and answers

Related Manuals for EisSound KBSOUND iSelect

Summary of Contents for EisSound KBSOUND iSelect

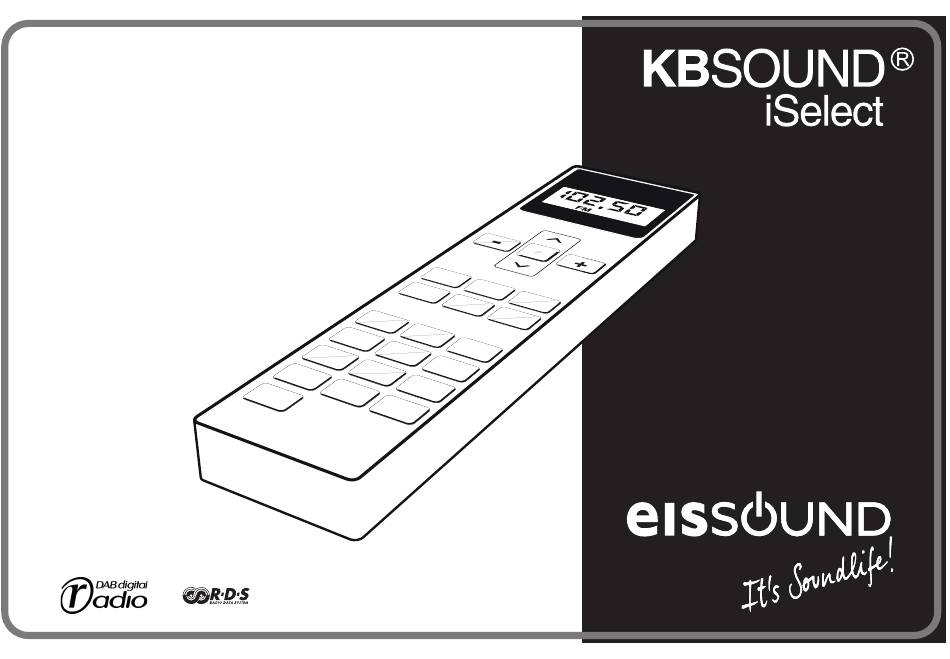

  • Page 1 USER’S MANUAL CC-1157ENG-01...

  • Page 2: Table Of Contents

    Important safety instructions Table of contents Before installing the unit, please read and follow the instructions provided in the Installation Manual included Quick reference guide in this kit. 1. Introduction Before operating the unit, please read and follow the instructions provided in this User´s Manual thoroughly and save it for future reference.

  • Page 3: Quick Reference Guide

    Quick reference guide FM/DAB memory pre-sets Automatic FM station search sensitivity 2” FM/DAB station scan 1” Delete all FM/DAB tuning pre-sets Step forward and back for iPod® playing list. 6” Store all FM/DAB stations detected Audio level adjustment 6” volume/bass/treble/balance/loudness Delete individual FM/DAB tuning pre-sets 2”...

  • Page 4: Introduction

    1. Introduction ® is a sound device specially designed for quick and easy installation. It fits discreetly into the decor of your kitchen, bathroom or SOUND iSelect DAB anywhere in your home. ® Kit comprises: SOUND iSelect DAB Electronic module with built-in FM and DAB+ tuner and power supply. 1,5W + 1,5W stereo audio output.

  • Page 5: General Operating Notes

    2. General operating notes 1.- None of the functions (except ON/OFF) work unless the remote control is in “on” mode. ® Once the DAB is connected to the mains, it will remain powered even it is in OFF state. That means KBSOUND iSelect that the OFF state (as indicated in this manual) really means a “standby”...

  • Page 6: Operating Audio Functions

    3. Operating audio functions Key Sequence Display If the electronic module is off, a brief press on the ON/OFF key will turn on the unit. The LED will display the word “ON” When the electronic module is off, the LED will be OFF. vol 58 Increase/decrease in the volume level: The LED will flash to indicate the desired change in volume.

  • Page 7: Operating The Dab Tuner

    4. Operating the DAB tuner Key Sequence Display 4.1. Getting started with DAB The first time the DAB option is selected as a sound source, the unit dab services NOT found does not have any service available. Press the up/down key and the unit automatically creates a list of receivable broadcasts.
  • Page 8 Key Sequence Display 4.4. Tuning to DAB memory pre-sets The up/down key allows you to scroll through the stations stored in the MEM 19 memory (see chapter 4.3). The DAB stations are stored in the memory in the same order they have been PLANET ROCK stored manually 4.5.

  • Page 9: Operating The Fm Tuner

    5. Operating the FM Tuner Key Sequence Display 5.1 FM Station Scan manually SCAN While the search is taking place, the word “SCAN” will appear on the display screen. The screen will duly display the station frequency of the next station found. 1”...
  • Page 10 Key Sequence Display 5.3. Tuning to FM Memory Pre-Sets The SCAN keys allow you to scroll through the stations stored in the memory (see Chapters 5.5 and 5.6, Storing and Clearing Stations in Memory). MEM 19 When stations are stored in the memory they are sorted in ascending order; that is, beginning with 87.5 and ending with 108.0.
  • Page 11 Key Sequence Display delete a station from the memory, select the station and hold down the 7 key for 2 DEL MEM seconds. The station will be deleted from the memory. 2’’ 5.6. Storing and Clearing FM Station Frequencies Automatically To activate the storing station frequencies automatically process, hold down key 6 for 6...

  • Page 12: Operating The Wireless

    9 11 ® 6. Operating the Wireless SOUND DOCK Accessory These functions are available only when ® The wireless SOUND DOCK Key Sequence Display ® KBSOUND DOCK accesory is connected. Accessory for use with the ® 2,5" or 5" allows SOUND iSelect DAB Press key 5 for 6 seconds.

  • Page 13: Selecting Turn-On Mode

    7. Selecting Turn-On Mode ® This function is designed for use in the event that the SOUND iSelect power supply is fed by a specifically designated switch. In this case, the automatic activation mode must be programmed in order to automatically ®...
  • Page 14 Grupo Gregorio Quejido, 87-88 50016 Zaragoza (SPAIN) Tel.: 34 976 465 550 Fax: 34 976 465 559 comercial@eissound.com MADRID Poeta Rafael Morales 2, of.2ºB 28703 San Sebastián de los Reyes Madrid (SPAIN) Tel.: 34 91 659 3678 Fax: 34 91 623 9525 delegacionmadrid@eissound.com...
