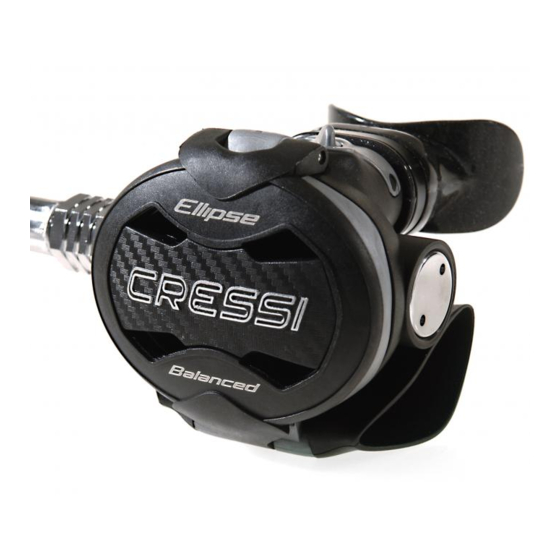

Cressi-sub Ellipse Black Balanced Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

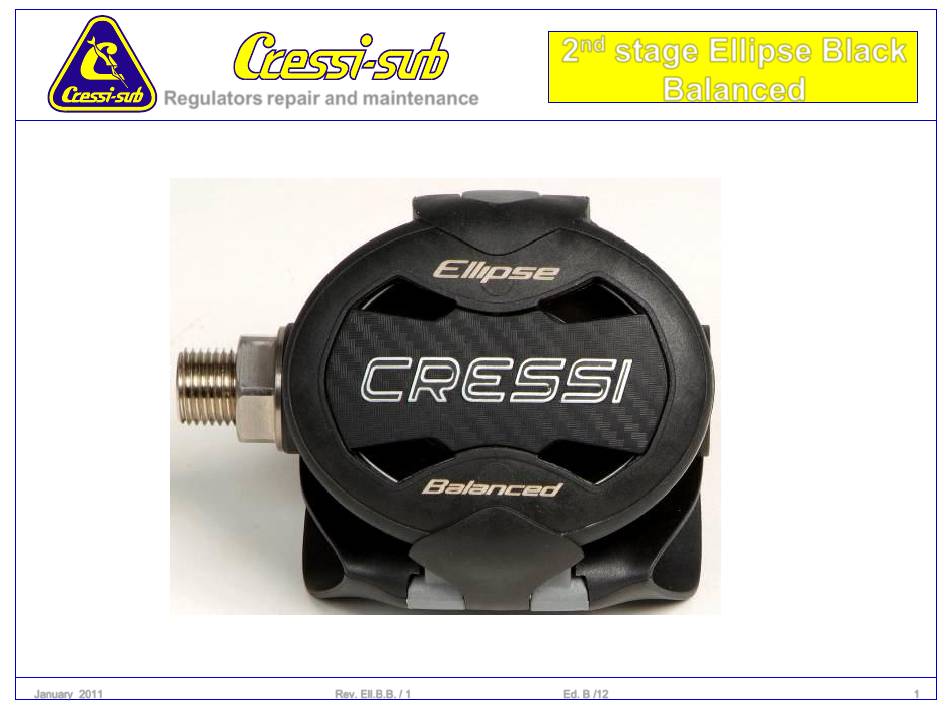

nd
2
stage Ellipse Black
Balanced
Regulators repair and maintenance
January 2011
Rev. Ell.B.B. / 1
Ed. B /12
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ellipse Black Balanced and is the answer not in the manual?

Questions and answers

Related Manuals for Cressi-sub Ellipse Black Balanced

Summary of Contents for Cressi-sub Ellipse Black Balanced

  • Page 1 stage Ellipse Black Balanced Regulators repair and maintenance January 2011 Rev. Ell.B.B. / 1 Ed. B /12...
  • Page 2 EXCLUSIVELY by an authorized Cressi-Sub center. If the information provided in this document is unclear or not fully intelligible, • please contact Cressi-sub before proceeding with any disassembly or maintenance procedures. Before proceeding, Cressi-sub recommends that you read the following document •...
  • Page 3 • To prevent any assembly errors when performing maintenance and/or repairs, we recommend using all the replacement parts provided by Cressi-Sub in every operation. • Pay special attention to the recommendations provided in the margin of the figures that show the various sequences of equipment maintenance and/or repair in order to avoid any problems that could result in an accident.
  • Page 4 Ellipse Black Balanced: spare parts Regulators repair and maintenance Ellipse Balanced/Ellipse Black Balanced 2nd stages (hz 820080) ANNUAL REPLACEMENT KIT CHART (Real Size) January 2011 Rev. Ell.B.B. / 1 Ed. B /12...
  • Page 5 Ellipse Black Balanced Regulators repair and maintenance • Kit Ellipse Balanced/Ellipse Black Balanced Manutenzione Annuale • Cod. N° HZ 820080 (Real Size) Torna •Use only original Cressi-sub spare parts •Note: it is recommended to carry out a complete servicing of the regulator yearly or more frequently in case of intensive use.
  • Page 6 Balanced Regulators repair and maintenance • Annual replacement • Cressi-Sub recommends complete regulator maintenance at least once a year, or more frequently in the case of particularly intense use. • Maintenance must include replacement of all components provided in the annual equipment maintenance kit.
  • Page 7 Users must never perform maintenance themselves; all maintenance must be performed EXCLUSIVELY by an authorized Cressi-Sub center. • You can find your authorized Cressi-Sub center by asking your dealer, or Cressi Sub S.p.A. itself by sending an e-mail to: info@cressi-sub.it •Use only original Cressi-sub spare parts January 2011 Rev.
  • Page 8 Ellipse Black Balanced Special tools Regulators repair and maintenance January 2011 Rev. Ell.B.B. / 1 Ed. B /12...
  • Page 9 To replace the O-ring correctly, press its sides to create a bulge inside which to insert the round pointed tool, as shown in the pictures; • Attention: USE ONLY ORIGINAL CRESSI-SUB SPARE PARTS January 2011 Rev. Ell.B.B. / 1 Ed. B /12...
  • Page 10 Ellipse Black Balanced: disassembling Regulators repair and maintenance • Remove the low pressure hose • Use a 0,75 in. and a 0,67 in. spanner to remove the low pressure hose, holding the lock nut steady with the former and unscrewing the hose with the latter;...
  • Page 11 Ellipse Black Balanced: disassembling Regulators repair and maintenance 0,15 in. Allen wrench HZ 810077 •Cam-lock – Disassembling the regulator • Insert a 0,15 in. Allen wrench into the cam-lock seat, press gently and turn by 90 degrees anticlockwise. The inner spring will push the key outwards, and you will be able to take it out easily.
  • Page 12 Ellipse Black Balanced: disassembling Regulators repair and maintenance • After removing the cam-lock key, press the soft cap with your fingers while levering on the baffle middle port, so as to open it, as shown in the picture. January 2011 Rev.
  • Page 13 Ellipse Black Balanced: disassembling Regulators repair and maintenance • Open the cap, holding the regulator casing in your hand, and remove the soft cap (button), the diaphragm ring and the diaphragm. January 2011 Rev. Ell.B.B. / 1 Ed. B /12...
  • Page 14 Ellipse Black Balanced: disassembling Regulators repair and maintenance HZ 820074 HZ 820073 HZ 820072 January 2011 Rev. Ell.B.B. / 1 Ed. B /12...
  • Page 15 Ellipse Black Balanced: disassembling Regulators repair and maintenance • Use an adjustable wrench to loosen the side cap and HZ 820085 unscrew it slightly. HZ 709013 January 2011 Rev. Ell.B.B. / 1 Ed. B /12...
  • Page 16 Ellipse Black Balanced: disassembling Regulators repair and maintenance Ch.19 HZ 820050 • Use a 0,75 in. spanner to remove the regulator lock nut. January 2011 Rev. Ell.B.B. / 1 Ed. B /12...
  • Page 17 Ellipse Black Balanced: disassembling Regulators repair and maintenance HZ 820051 • Bend the lever (phase 1) and take the whole second stage mechanism out of the case (phase 2), as shown in the picture, then remove the valve body O-ring.
  • Page 18 Ellipse Black Balanced: disassembling Regulators repair and maintenance HZ 810074 HZ 820078 • Take the baffle out of the case, pushing its ends as shown in the picture, then remove the discharge valve out of its seat. January 2011 Rev.
  • Page 19 Ellipse Black Balanced: disassembling Regulators repair and maintenance HZ 820085 HZ 820083 • Remove the side cap unscrewing it fully; remove the valve body spacer. January 2011 Rev. Ell.B.B. / 1 Ed. B /12...
  • Page 20 Ellipse Black Balanced: disassembling Regulators repair and maintenance • Use the tool HZ 709011 to remove the piston including spring and balancing chamber out of the valve body, as shown in the picture; • NOTE: push with a certain amount of strength to overcome the friction induced by the balancing chamber O-ring onto the valve body side, until the whole valve comes out.
  • Page 21 Ellipse Black Balanced: disassembling Regulators repair and maintenance • Use a screwdriver to fully unscrew the adjustable nozzle. It will be shown later how to remove it out of its seat. January 2011 Rev. Ell.B.B. / 1 Ed. B /12...
  • Page 22 Ellipse Black Balanced: disassembling Regulators repair and maintenance HZ 820094 HZ 709011 • Remove the nozzle out of the regulator valve body using the tool HZ 709011 (designed to prevent the edge from being damaged) as shown in the picture;...
  • Page 23 Ellipse Black Balanced: disassembling Regulators repair and maintenance HZ 820058 HZ 820055 OR = HZ 820059 OR = HZ 820057 HZ 820056 HZ 820049 • Remove the 2nd stage piston pad, the piston spring and the balancing chamber out of their seat.
  • Page 24 Ellipse Black Balanced: disassembling Regulators repair and maintenance HZ 820067 • Levering on their sides, lift and remove the upper mask hookings out of the casing, as shown in the picture. January 2011 Rev. Ell.B.B. / 1 Ed. B /12...
  • Page 25 Ellipse Black Balanced: disassembling Regulators repair and maintenance HZ 820076 • Use a 0,08 in. pin pusher to remove the cap titanium upper pin out of its seat: please push in the direction shown by the picture. January 2011 Rev.
  • Page 26 Ellipse Black Balanced: disassembling Regulators repair and maintenance HZ 820086 • Remove the upper mask out of its seat as shown in the picture. January 2011 Rev. Ell.B.B. / 1 Ed. B /12...
  • Page 27 Ellipse Black Balanced: disassembling Regulators repair and maintenance HZ 820066 HZ 820068 OR = HZ 820069 • Remove the flow deviator out of it seat as shown in the picture. January 2011 Rev. Ell.B.B. / 1 Ed. B /12...
  • Page 28 Ellipse Black Balanced: components Regulators repair and maintenance Cap button Button ring Diaphragm Cover + exhaust Upper mask tee closing cap Black and + OR Flow deviator + OR Balancing chamber + OR lock nut Valve nozzle + OR 2°...
  • Page 29 Ellipse Black Balanced: assembling Regulators repair and maintenance • After replacing and lubricating its O-ring, insert the flow deviator into it seat as shown in the picture. HZ 820067 January 2011 Rev. Ell.B.B. / 1 Ed. B /12...
  • Page 30 Ellipse Black Balanced: assembling Regulators repair and maintenance • Place the upper mask onto the 2 stage casing, then press its sides to hook it to the casing as shown in the picture. January 2011 Rev. Ell.B.B. / 1...
  • Page 31 Ellipse Black Balanced: assembling Regulators repair and maintenance HZ 820076 • Insert the upper pin into the cap in the direction shown in the picture. Place the cap hookings into their seats in the 2 stage casing, as •...
  • Page 32 Ellipse Black Balanced: assembling Regulators repair and maintenance • Seat one side of the regulator case onto a hard surface, as shown in the picture; • Now hold the case in one hand firmly and tap with a plastic...
  • Page 33 Ellipse Black Balanced: assembling Regulators repair and maintenance • Insert the eshaust valve, taking care to place correctly the shaft into its seat, by pulling it from the inside of the regulator. HZ 810074 January 2011 Rev. Ell.B.B. / 1...
  • Page 34 Ellipse Black Balanced: assembling Regulators repair and maintenance • Check the piston hole is NOT blocked with impurities. • Insert the fresh pad pushing it into its seat in the piston. Please note the two bulges on HZ 820055 its shaft, which allow its full connection with the piston.
  • Page 35 Ellipse Black Balanced: assembling Regulators repair and maintenance • While inserting the assembled valve, as will be described on next page, please pay attention to hold its fulcrum as shown in the picture (feet downwards with respect to the lever).
  • Page 36 Ellipse Black Balanced: assembling Regulators repair and maintenance • Raising the lever, insert the assembled valve inside its body, as shown in the picture. January 2011 Rev. Ell.B.B. / 1 Ed. B /12...
  • Page 37 Ellipse Black Balanced: assembling Regulators repair and maintenance • Check the lever works perfectly by pressing it more HZ 820053 times: it has to swing freely and go back every time to its vertical position automatically. January 2011 Rev. Ell.B.B. / 1...
  • Page 38 Ellipse Black Balanced: assembling Regulators repair and maintenance HZ 709013 HZ 820085 HZ 820083 • Insert the spacer into the valve body so that its flat side lines up, when screwed, with the side cap inner part. • Screw back the side cap.
  • Page 39 Ellipse Black Balanced: assembling Regulators repair and maintenance • Replace and lubricate the nozzle O-ring. • Screw the nozzle for some turns into the valve body keeping the stage lever pressed, to prevent the sharp edge from damaging the piston pad.
  • Page 40 Ellipse Black Balanced: assembling Regulators repair and maintenance • After replacing and properly lubricating the knob O-ring, lower the lever (1) and introduce (2) the regulator mechanism into the casing, exactly as shown in the picture. January 2011 Rev. Ell.B.B. / 1...
  • Page 41 Ellipse Black Balanced: assembling Regulators repair and maintenance OR = HZ 820051 HZ 820050 • Replace and lubricate the valve body O-ring, then place it into its seat as shown in the picture; • After screwing it, a tooth placed on the closing side of the titanium lock nut will put the O-ring correctly into its seat on the 2 stage.
  • Page 42 Ellipse Black Balanced: assembling Regulators repair and maintenance • Use a 0,75 in. spanner to screw the titanium lock nut. • Check the lever is in parallel to the casing. January 2011 Rev. Ell.B.B. / 1 Ed. B /12...
  • Page 43 Ellipse Black Balanced: assembling Regulators repair and maintenance HZ 709013 • Tighten the side cap, until its head lines up with the case. January 2011 Rev. Ell.B.B. / 1 Ed. B /12...
  • Page 44 Ellipse Black Balanced: assembling Regulators repair and maintenance HZ 820078 • Assemble the second stage baffle, inserting and pushing it into the seats in the casing as shown in the picture. January 2011 Rev. Ell.B.B. / 1 Ed. B /12...
  • Page 45 Ellipse Black Balanced: assembling Regulators repair and maintenance HZ 820073 HZ 820072 • Place the diaphragm onto the ring as shown in the picture; • Now check their correct coupling, as shown in the picture. January 2011 Rev. Ell.B.B. / 1...
  • Page 46 Ellipse Black Balanced: assembling Regulators repair and maintenance • Insert the ring including the correctly placed diaphragm into the second stage case, making sure all the ring vertices line up perfectly with the case, as shown in the picture.
  • Page 47 Ellipse Black Balanced: assembling Regulators repair and maintenance • While holding the ring in your hand tightly, pull gently the diaphragm plate outwards, to check its perimeter sits perfectly in the regulator case. January 2011 Rev. Ell.B.B. / 1...
  • Page 48 Ellipse Black Balanced: assembling Regulators repair and maintenance HZ 820074 • Insert the button into the ring, making sure all the ring teeth connect with the corresponding holes in the button. • The picture show how they are correctly coupled.
  • Page 49 Ellipse Black Balanced: assembling Regulators repair and maintenance January 2011 Rev. Ell.B.B. / 1 Ed. B /12...
  • Page 50 Ellipse Black Balanced: assembling Regulators repair and maintenance • Bend the swinging cap towards the exhaust valve seat. January 2011 Rev. Ell.B.B. / 1 Ed. B /12...
  • Page 51 Ellipse Black Balanced: assembling Regulators repair and maintenance • When closing it, make sure the teeth shown in the picture are free to lie TEETH and rotate only in their seats. These latter serve also as closing fulcrum of the cap.
  • Page 52 Ellipse Black Balanced: assembling Regulators repair and maintenance • Keep rotating the swinging cap until the regulator is fully closed. January 2011 Rev. Ell.B.B. / 1 Ed. B /12...
  • Page 53 Ellipse Black Balanced: assembling Regulators repair and maintenance • Press the baffle main cap (grey in the picture) and close the regulator. • It will be fully locked after inserting the safety camlock key. January 2011 Rev. Ell.B.B. / 1...
  • Page 54 Ellipse Black Balanced: assembling Regulators repair and maintenance • Place the “Cam-lock” as shown in the picture, insert an Allen wrench into its seat and press gently, while turning by 90 degrees clockwise. • The “Cam-lock” inner spring will push the key into its position to lock the regulator, as shown in the picture.
  • Page 55 Ellipse Black Balanced: setting Regulators repair and maintenance • Ellipse Black Balanced second stage setting: valve nozzle setting (pag 57) • Screw the second stage to the setting gauge (HZ 710011) connected with a middle pressure hose to a correctly set MC9 first stage (10 bars – 200 bars tank) ;...
  • Page 56 Ellipse Black Balanced: setting Regulators repair and maintenance • Ellipse Black Balanced second stage setting: lever height setting • NOTE: please take care not to tighten the valve nozzle too much, that might cause the lock pad to bend exceedingly and lead to a subsequent inhaling effort due to the excessive compression of the valve spring;...
  • Page 57 Ellipse Black Balanced: setting Regulators repair and maintenance 10 bar HZ 710011 January 2011 Rev. Ell.B.B. / 1 Ed. B /12...
  • Page 58 Ellipse Black Balanced: checking Regulators repair and maintenance • After setting the regulator, keep it pressurized with a correctly set MC9 first stage and carry out following final checks: • move the Venturi effect check lever on Dive “+” and put the second stage gently under water holding the mouthpiece upwards, so as not to let water flow in.
  • Page 59 Ellipse Black Balanced: Service records Regulators repair and maintenance Download January 2011 Rev. Ell.B.B. / 1 Ed. B /12...
  • Page 60 Ellipse Black Balanced: Service records Regulators repair and maintenance Download Tab Scheda di manutenzione / registro interventi (Service record) January 2011 Rev. Ell.B.B. / 1 Ed. B /12...
