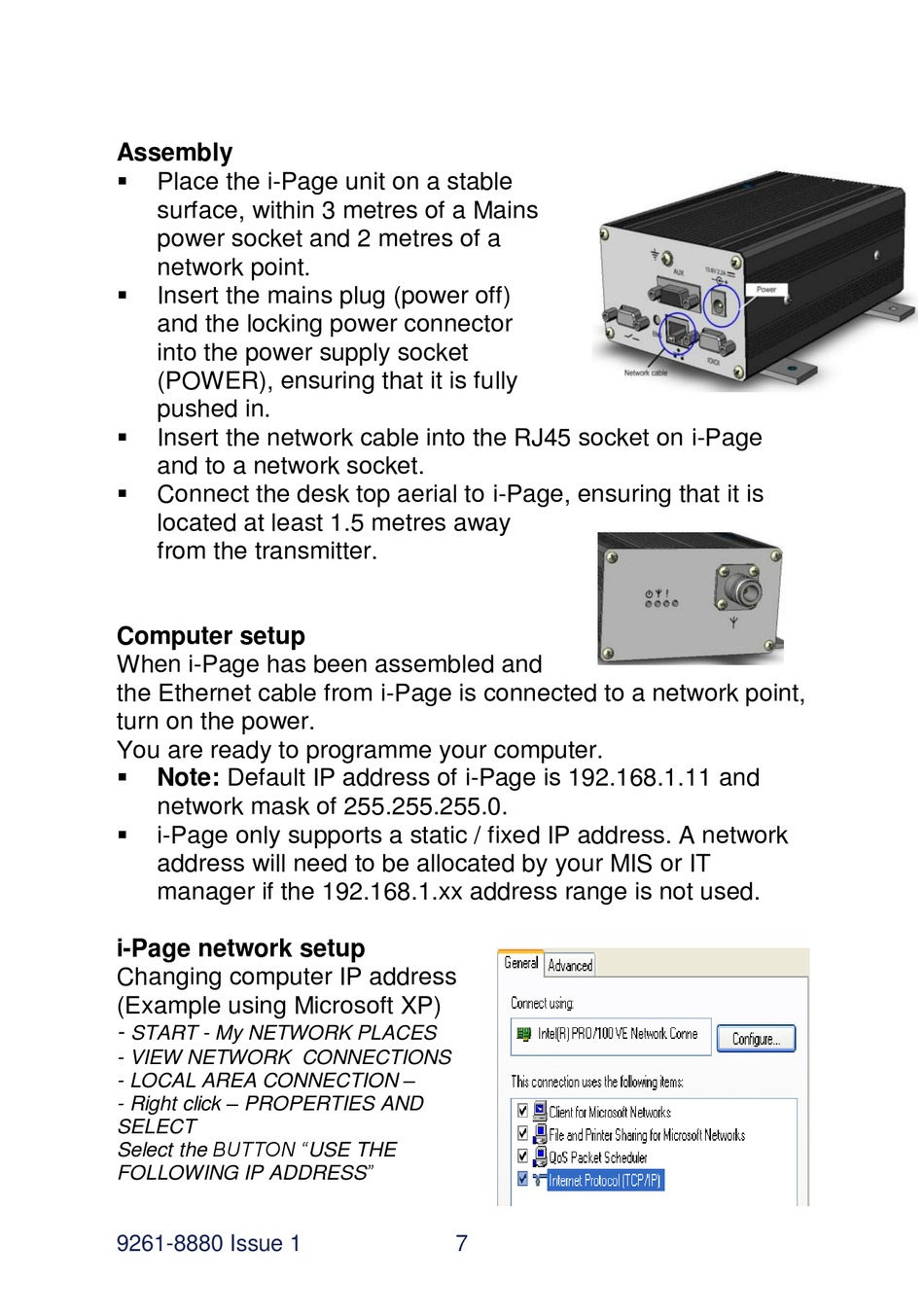

Multitone i-Page IP133 User Manual page 7

Assembly

Place the i-Page unit on a stable
surface, within 3 metres of a Mains
power socket and 2 metres of a
network point.

Insert the mains plug (power off)
and the locking power connector
into the power supply socket
(POWER), ensuring that it is fully
pushed in.

Insert the network cable into the RJ45 socket on i-Page
and to a network socket.

Connect the desk top aerial to i-Page, ensuring that it is
located at least 1.5 metres away
from the transmitter.
Computer setup
When i-Page has been assembled and
the Ethernet cable from i-Page is connected to a network point,
turn on the power.
You are ready to programme your computer.

Note: Default IP address of i-Page is 192.168.1.11 and
network mask of 255.255.255.0.

i-Page only supports a static / fixed IP address. A network
address will need to be allocated by your MIS or IT
manager if the 192.168.1.xx address range is not used.
i-Page network setup
Changing computer IP address
(Example using Microsoft XP)
-
START - My NETWORK PLACES
- VIEW NETWORK CONNECTIONS
- LOCAL AREA CONNECTION –
- Right click – PROPERTIES AND
SELECT
Select the BUTTON "USE THE
FOLLOWING IP ADDRESS"
9261-8880 Issue 1 7
