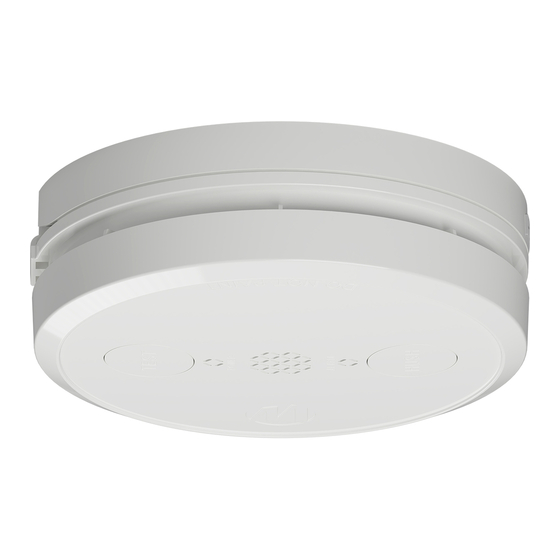

SMOKE ALARM FSA-60000
2 40 Vac c/w 3 V DC B a t te r y Ba ck u p P ho to e le c t r i c S m o ke Al a r m
Main Power Source
Secondary Power Source
AC Operating Current
Interconnecting
Operating Temperature
Ambient Humidity
Alarm Sensitivity
Alarm Volume
Sound Pattern
Complies with
THIS SMOKE ALARM MUST BE INSTALLED BY A LICENSED ELECTRICIAN IN ACCORDANCE
WITH AUSTRALIAN WIRING RULES
•
This product must only be used for the purpose described in these instructions and must be installed in
accordance with local wiring rules and regulations.
M A T E L E C A U S T R A L I A . P 1 8 0 0 2 8 1 2 8 2 . F 1 3 0 0 2 8 1 2 8 2
I N F O @ M A T E L E C A U S T R A L I A . C O M . A U . W W W . M A T E L E C A U S T R A L I A . C O M . A U
220-240 V AC/50 Hz
DC 3V battery: CR17450
<100mA
Max. 24 alarms (wired 150m maximum)
0 °C to 40 °C
≤ 93%
0.118-0.169 dB/m
≥ 85dB(A) @ 3m
ISO8201(BI 0.5s - pause 0.5s- BI 0.5s - pause
0.5s - BI 0.5s - pause 1.5s, with the RED LED
flashing, repeat this alarm pattern)
AS3786:2014
TM
Compatible
with the FSA-50000
Wireless Interconnect
module
*Sold Separately.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FSA-60000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Matelec FSA-60000

Summary of Contents for Matelec FSA-60000

  • Page 1 SMOKE ALARM FSA-60000 2 40 Vac c/w 3 V DC B a t te r y Ba ck u p P ho to e le c t r i c S m o ke Al a r m Compatible with the FSA-50000...

  • Page 2: Avoid These Locations

    RECOMMENDED LOCATIONS FOR SMOKE ALARMS SUGGESTED SMOKE ALARM LOCATIONS 1. Smoke alarms must be installed in accordance with local and national regulations. Please check your State Fire Department requirements prior to installation. 2. As a minimum, smoke alarms should be located between sleeping areas and potential sources of fire such as a kitchen, heater or basement.

  • Page 3: Mounting Instructions

    MOUNTING INSTRUCTIONS 1. Isolate Mains/AC power. 2. Select optimum location for your smoke alarm/s as per earlier details. 3. Press the base on the installation position, mark installation holes of the bracket. 4. Bore two 5mm holes on the markings and install mounting plugs. (See Diagram A) 5.
  • Page 4 • All interconnected alarms must be connected to the same sub/circuit • A common Neutral must be used for interconnect to function • Do not connect the interconnect wires to Active or Neutral Status Description Status Indication Description Standby status The Red LED flashes every 40 Operating under battery power seconds, with no Green LED.

  • Page 5: Troubleshooting

    Trouble Shooting Problem Cause and Remedy The Green LED does not light • Check the AC line is properly connected to the smoke alarm. when AC power supplied • Ensure that the AC power is turned on. The Red LED does not flash every •...
  • Page 6 FSA-60000 Smoke Detector is supplied separate to the FSA-50000 Module. Please contact your dealer for all enquiries. The FSA-60000 comes without the module installed. Only install the module if the alarm is being interconnected. If multiple units are being wire interconnected, then only 1 module per group of wired alarms should be installed.

  • Page 7: Clear Network

    SERVICE AND WARRANTY • The FSA-60000 smoke alarm is warranted for a period of 5 years, to be free of defects in materials or workmanship, under normal use. In the event of a warranty issue, please contact your place of purchase.

Table of Contents
