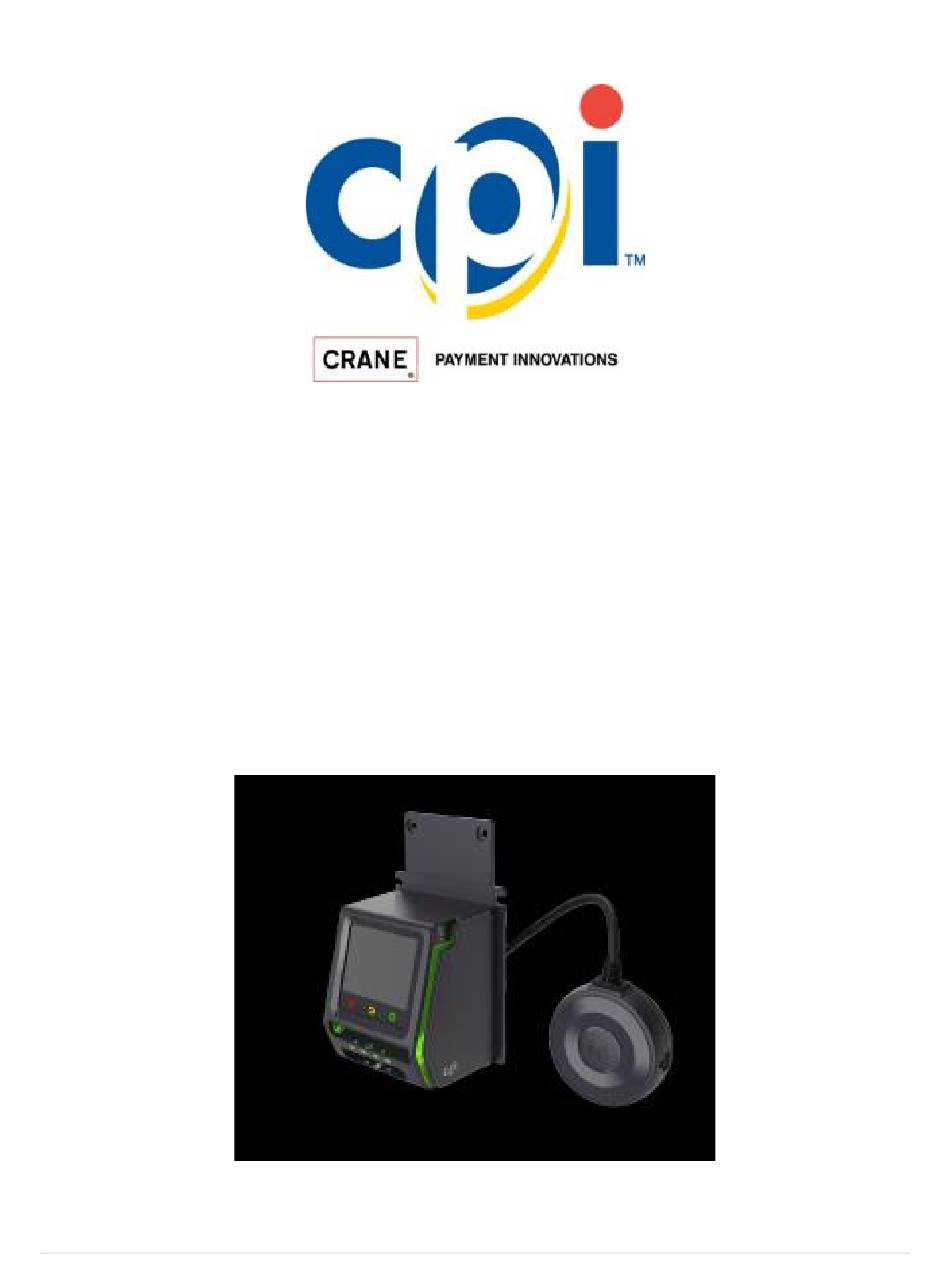

- Page 1 3222 Phoenixville Pike, Suite 200 Malvern, Pennsylvania TEL: 1 610 430 2700 ALIO Note Installation and User Guide P a g e...
-
Page 2: Table Of Contents
Contents: Page Introduction……………………………………………………………………………………3 Specifications………………………………………………………………………………….3 Part List…………………………………………………………………………………………..3 Warnings………………………………………………………………………………………..3 Cleaning………………………………………………………………………………………….3 Installation…………………………………………………………………………………..4-8 Operation……………………………………………………………………………………….8 Diagnostics……………………………………………………………………………………..9 LEDs Status……………………………………………………………………………………..9 Troubleshooting……………………………………………………………………………10 Regulatory…………………………………………………………………………………...10 SERIAL NUMBER CONFIGURATION WWYLCCPPPPP WW - Week Manufactured (01 through 52) Y - Year Manufactured (2 for 2002) L - Manufacturing Location CC - Configuration Code PPPPP - Sequential Production Number P a g e... -
Page 3: Introduction

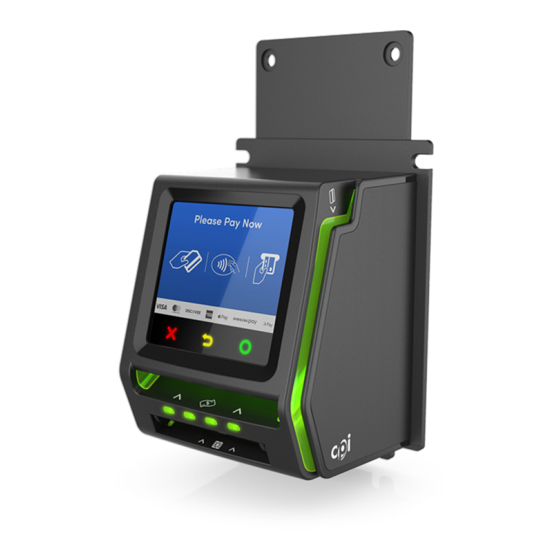

INTRODUCTION: ALIO Note is the next generation cashless and telemetry system from CPI that combines a telemeter, antenna, card reader and a full color display into a single device. Specifications: Input Voltage 20-42 VDC Input Current Max – 1 Amp Operating Temperature (-15°) - +60°C Dimensions (bezel) -
Page 4: Installation
INSTALLATION: Step Process Turn off power to the vend- ing machine Remove the Unscrew the four hex nuts from the mounting posts with the 11/32 nut existing bill driver, and disconnect any cabling. validator Remove the Disconnect all connections to the telemeter and remove the antenna from existing the top of the vendor. - Page 5 INSTALLATION CONTINUED: P a g e...
- Page 6 INSTALLATION CONTINUED: P a g e...
- Page 7 INSTALLATION CONTINUED: P a g e...
-
Page 8: Operation
INSTALLATION CONTINUED: OPERATION: ALIO Note is fully configured for operation from the factory and once mechanically installed onto Talos bill validator and powered it will connect to the cellular network ready for use. Detailed information of connection status can be viewed by pressing the red “X”... -
Page 9: Diagnostics
DIAGNOSTICS: Once ALIO is installed, you can perform basic diagnostics on the device by pressing or holding the large button in the center of ALIO Hub: LEDS STATUS: ALIO Hub has an LED ring around the CPI logo that will change colors, depending on the current state of ALIO. -
Page 10: Troubleshooting
TROUBLESHOOTING: Hold ALIO Hub button for three seconds to access the driver menu, then scroll to the alarm section to view recent issues. The steps below will also help to confirm proper installation. Before Installation 1. Confirm the Asset or Equipment Number and make sure you are at the correct machine After Installation 1. - Page 11 this reason, FDA helped develop a detailed test method to measure EMI of implanted cardiac pacemakers and defibrillators from cell phones. This test method is now part of a standard sponsored by the Association for the Advancement of Medical Instrumentation (AAMI). This standard will allow manufacturers to ensure that cardiac pacemakers and defibrillators are safe from cell phone EMI.
