Subject:

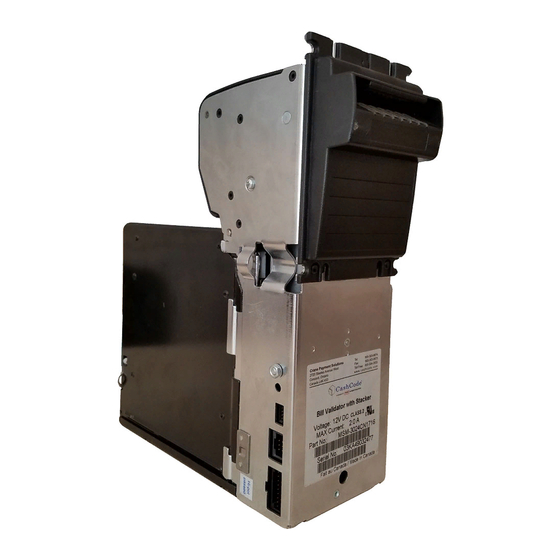

Preventative Maintenance and Cleaning Procedure for MSM Bill Validator
Objective:
To outline a procedure to ensure your Cashcode bill validator continues to operate as per factory specifications for
the Cashcode MSM Bill Validator. Dust and particles of dirt can accumulate on the sensors and rollers during
normal operation, negatively impacting the performance of the device (both speed and acceptance rate).

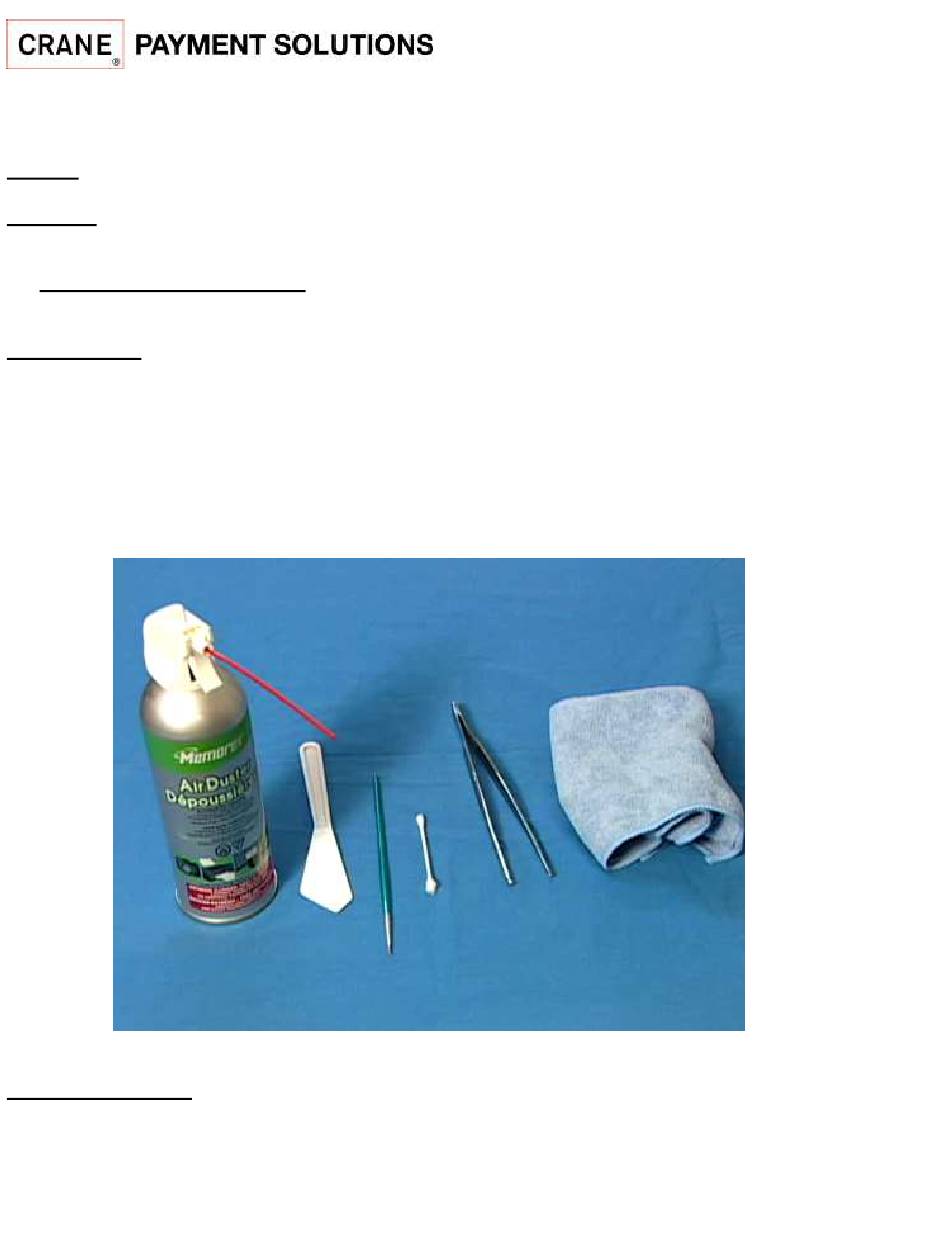

Tools required:
Compressed air (clean and dry supply)
Plastic scraper
Cotton swabs
Tweezers
Soft moist cloth
Isopropil Alcohol (in the case of extremely contaminated parts, use it with the cloth)
Frequency Required:
Every 6 months or 60,000 bills whichever comes first. In adverse conditions (high humidity, dusty environment,
temperature) increase frequency of cleaning.
Engineering the Future of Payment Solutions
Advertisement
Related Manuals for Crane CashCode MSM
Summary of Contents for Crane CashCode MSM
- Page 1 To outline a procedure to ensure your Cashcode bill validator continues to operate as per factory specifications for the Cashcode MSM Bill Validator. Dust and particles of dirt can accumulate on the sensors and rollers during normal operation, negatively impacting the performance of the device (both speed and acceptance rate).
- Page 2 2720 Steeles Avenue West, Unit 2-3 Concord, ON Canada L4K 4S3 phone 905 303 8874 fax 905 303 8875 Procedure: WARNING! DO NOT USE ACETONE OR MINERAL OIL BASED SOLVENTS AS THEY WILL DAMAGE THE LENSES, PLASTIC DETAILS AND VOID THE WARRANTY. Cleaning Procedure: 1.
- Page 3 2720 Steeles Avenue West, Unit 2-3 Concord, ON Canada L4K 4S3 phone 905 303 8874 fax 905 303 8875 Be sure there is no dust accumulation, scratches or other mechanical damage. Performance will be greatly impacted. 3. Transport Drive Mechanism a.
- Page 4 2720 Steeles Avenue West, Unit 2-3 Concord, ON Canada L4K 4S3 phone 905 303 8874 fax 905 303 8875 4. Inspection a. Self Test Functionality: CashCode’s MSM Bill Validator is equipped with a self-diagnostic feature to aid in repair and maintenance.
- Page 5 2720 Steeles Avenue West, Unit 2-3 Concord, ON Canada L4K 4S3 phone 905 303 8874 fax 905 303 8875 Step 1 - Outside locking mechanism To remove the Outside Locking Mechanism, turn the lock to the open position and proceed with removal of the push rivets according below figures 1 and 2 Figure 1 Figure 2...
- Page 6 2720 Steeles Avenue West, Unit 2-3 Concord, ON Canada L4K 4S3 phone 905 303 8874 fax 905 303 8875 Step 2 – Lift outside locking mechanism off cassette to proceed Unscrew the assembly (Reference Assembly) Tighten the nut with socket tool Engineering the Future of Payment Solutions...
- Page 7 2720 Steeles Avenue West, Unit 2-3 Concord, ON Canada L4K 4S3 phone 905 303 8874 fax 905 303 8875 Screw the assembly back on (Reference Assembly) and tighten down the screw. Step 3 – Inside locking mechanism (on cassette door) Unscrew the assembly (Reference Assembly) Engineering the Future of Payment Solutions...
- Page 8 2720 Steeles Avenue West, Unit 2-3 Concord, ON Canada L4K 4S3 phone 905 303 8874 fax 905 303 8875 Tighten the nut with socket tool Screw the assembly back (Reference Assembly) on and tighten down the screw. Engineering the Future of Payment Solutions...
- Page 9 2720 Steeles Avenue West, Unit 2-3 Concord, ON Canada L4K 4S3 phone 905 303 8874 fax 905 303 8875 Reference Assembly Engineering the Future of Payment Solutions...
