Phytec phyGATE-Tauri-L i.MX 8M Mini Quick Start Manual

phyGATE
-Tauri-L
®
i.MX 8M Mini Kit
Get your phyGATE -Tauri-L i.MX 8M Mini powered up and connected
®
in just a few simple steps.
1 | PREPARING THE HARDWARE
1. Connect your +24V DC supply to the power connector.
2. Turn on your power supply. The green power LED will light up and you will see
the boot-log running on the serial terminal window.
3. Connect the Ethernet cable to LAN1 connector (default address 192.168.3.11/24).
NOTE
phyGATE-Tauri-L comes preconfigured with the above defined IP address settings.
Make sure these addressed do not interfere with any IP addresses of your network.
If your network recognizes DHCP capable clients, we recommend initially connecting
the phyGATE-Tauri-L to the Etherport of your workstation. Ensure that the Etherport
is configured for static IP's.
Once connected, you may change the network setting of pyhGATE-Tauri-L for
DHCP client mode. For more information, contact PHYTEC Support.
Germany France
PHYTEC Messtechnik GmbH PHYTEC France SARL
D-55129 Mainz F-72140 Sillé le Guillaume
t +49 6131 9221-32 t +33 2 43 29 22 33
f +49 6131 9221-33 f +33 2 43 29 22 34
www.phytec.de www.phytec.fr
www.phytec.eu
USA India
PHYTEC America LLC PHYTEC Embedded Pvt. Ltd.
Bainbridge Island, WA 98110 Bangalore
t +1 206 780 9047 560102
f +1 206 780 9135 t +91 80 40867046
www.phytec.com www.phytec.in
China
PHYTEC Information Technology Co. Ltd.
Nanshan District, Shenzhen
518026 PRC
t +86 755 6180 2110
www.phytec.cn
Kit Contents includes:

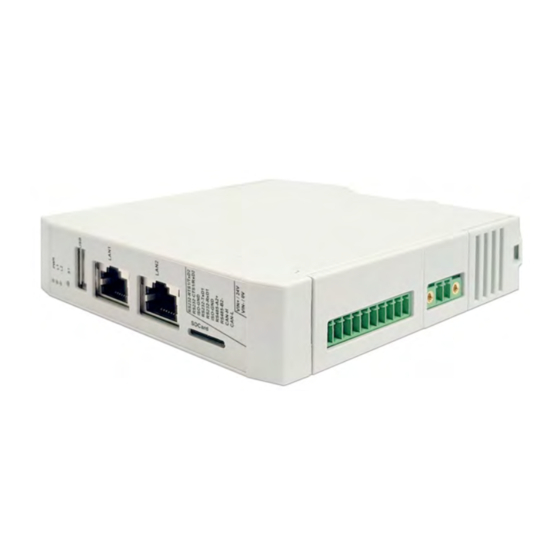

phyGATE-Tauri-L i.MX 8M Mini
PBA-CD-19
Required Additional Equipment, not included:
Power Adapter +24 V
2 | USING LINUX
Once the board is done booting, you can connect to the board via Ethernet and SSH.
C o n t i n u e e x p l o r i n g t h e L i n u x K i t
1. Please read our Linux Kit BSP Manual first to familiarize yourself with the
phyGATE-Tauri-L i.MX 8M Mini Linux Kit. You can find the Linux BSP Manual
online on the phyGATE-Tauri-L i.MX 8M Mini German product page:
https://www.phytec.de/produkte/fertige-geraete-oem/phygate-tauri-l
2. Please also check the above website for the latest documentation, downloads,
and FAQs.
3. Please feel free to contact our support team if you have any questions.
Quick Quick
Start Start
Guide Guide
Ethernet Cable
