VERSARE MP10 Assembly Instructions

MP10

Assembly Instructions (5 or 7 Panels)

Parts included:

A - Outside Panel Frame Caps (4)

Reserve Materials Take out and set aside 4 part B, 4 part D and the 2 canvas end

panel covers with Velcro tabs.

Panel Assembly

Layout ﬁ rst plain canvas panel, Velcro closure facing up. Insert 2 part D, one for each side.

Connect the panel frame posts with 2 of part A, facing the two plain ends the same direction.

Use 4 Screws on the inside of corners to secure the frame. Pull canvas ends taut and seal

Velcro ﬂ aps to ﬁ nish your outside panel.

B - End Panel Frame Caps (4)

D - Panel Frame Posts (10) 5-panel or (14) 7-panel

Hardware included:

Screws Wheels

Canvas panel covers (5) 5-panel or (7) 7-panel

(2 with Velcro Tabs are for end panels)

C - Center Panel Frame Caps

End

Hinge

Panel

Plates

(8) 5-panel or (10) 7-panel

Table of Contents

Do you have a question about the MP10 and is the answer not in the manual?

Page 1 MP10 Hardware included: Assembly Instructions (5 or 7 Panels) Screws Wheels Hinge Panel Plates Plates Parts included: Canvas panel covers (5) 5-panel or (7) 7-panel (2 with Velcro Tabs are for end panels) A - Outside Panel Frame Caps (4)
Page 2 Pull ends taut and seal Velcro ﬂ aps to ﬁ nish your center panel. If you have a 7-panel MP10 repeat this step two more times so you have a total of 3 center panels.
Page 3 Connecting the Panels With panels laid out next to each other, all Velcro tabs facing up, use 1 Hinge Plate and 2 Screws for each connection point of the completed panels. End Panels End Panel End Panel When all the panels are connected, top and bottom, for a total of 4 secured hinge plates (5-panel) or 8 secured hinge plates (7-panel), fold up screen like an accordion and set aside.
Page 4 Attach End Panels Unfold outside panel from top of panel stack and secure ﬁ rst end panel with 2 Screws through remaining holes of each End Panel Plate. (Velcro closures of end panel should be facing towards the bundle) Repeat to secure other end of end panel. Carefully turn stack over so panels are positioned vertically on end, resting on the ﬁ...

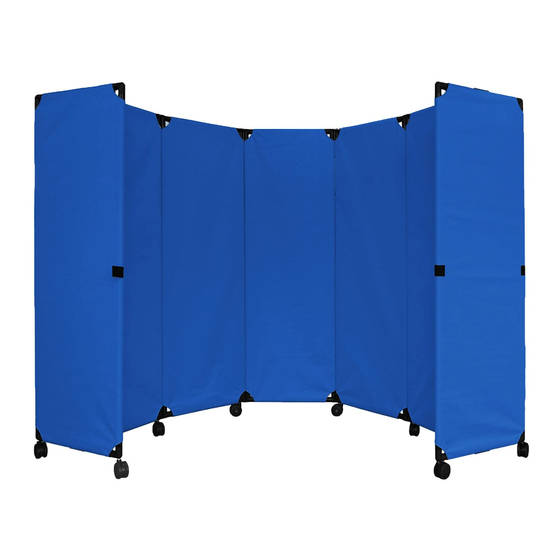

Page 5 Assembly complete! Carefully stand unit up and enjoy! We hope you enjoy your new MP10! For questions regarding your MP10 please contact us at 1-855-457-1473 or customerservice@versare.com Versare Solutions, LLC 3236 California St.
