VERSARE Straight Wall Sliding Portable Partition Assembly Instructions

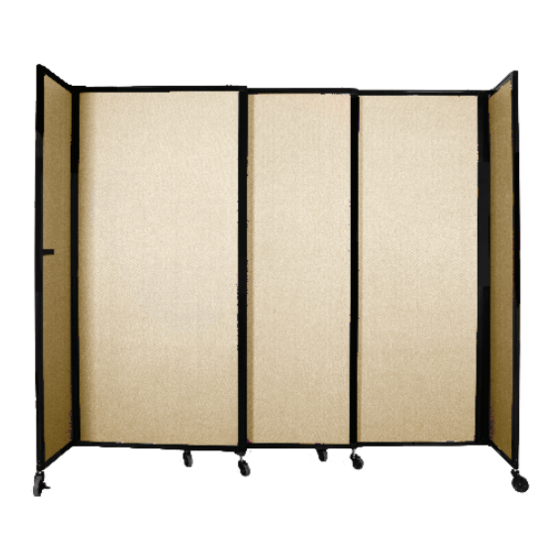

Straight Wall Sliding Portable Partition
Assembly Instructions
1.
2.
3.

Hardware included:

Small
Bolts
Using a small bolt, connect the plate and
washer to the shaft of the wheel.
Screw the wheeled bracket
into the top right corner of
the panel bundle using the
largest screw in the right
whole and the medium
screw in the left hole.
Repeat this process and
screw a second wheeled
bracket into the bottom left
corner opposite of the other
wheel.
Next twist in the remaining wheels into the
panels on both sides, fi lling every other hole.
Medium Large
Bolts Bolts
Washers
