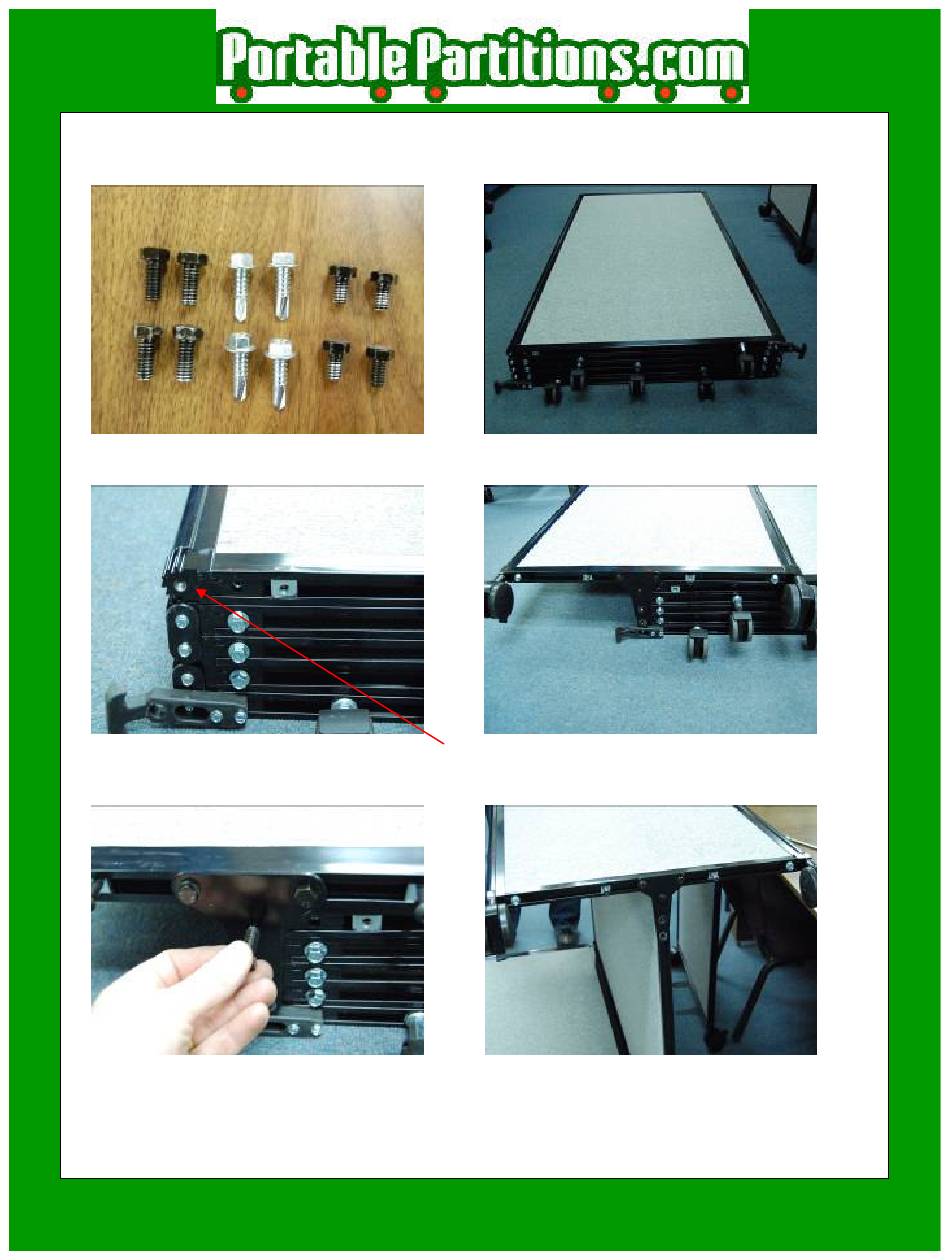

Room Divider Assembly Instructions
9/16", 7/16", 1/2 "
Recommended Tools 7/16",
1/2", and 9/16" wrench
Step #2: Locate the left top panel.
Step #4 Insert 9/16" bolt on top
hole on both ends, finger tight.
Versare Portable Products 3306 5
Phone: 800-833-7570 Fax: 800-833-8032 WWW.PortablePartitions.com
Step #1 Place Partition Assembly on the floor as
shown.
Step #3: Place one of the end
panels on top of the assembly as
shown.
Step #5 Rotate the first panel 90
degrees as shown.
th
street NE Minneapolis, MN 55418
Advertisement
Related Manuals for VERSARE Room Divider
Summary of Contents for VERSARE Room Divider
- Page 1 Room Divider Assembly Instructions 9/16”, 7/16”, 1/2 “ Step #1 Place Partition Assembly on the floor as Recommended Tools 7/16”, shown. 1/2”, and 9/16” wrench Step #3: Place one of the end Step #2: Locate the left top panel. panels on top of the assembly as shown.
- Page 2 Room Divider Assembly Instructions Step #7: Locate rectangular nut and Step #6: Insert 7/16” bolt as shown, top slide up channel and align with last and bottom. open hole. Step #8: Insert ½” bolt into rectangular Step #9: Tighten all bolts.
- Page 3 Room Divider Assembly Instructions Step #12: Insert 9/16” bolt in top hole as Step #13: Insert 7/16” bolt as shown, shown, top and bottom. top and bottom. Step #14: Insert ½” bolt into rectangular Step #15: Tighten all bolts. nut, top and bottom.
