- Page 1 All manuals and user guides at all-guides.com StarEye Maxi 10656 Integrated step down convertor...
-
Page 2: Table Of Contents
PPLICATION OF WARRANTY 9.2 RMA ................17 PROCEDURE 10 USED LIST OF ABBREVIATIONS .......... 18 StarEye Maxi p.2/18 LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM T: +32 3 293 35 50 – F: +32 3 293 35 44 www.lux-lumen.com... -
Page 3: Picture

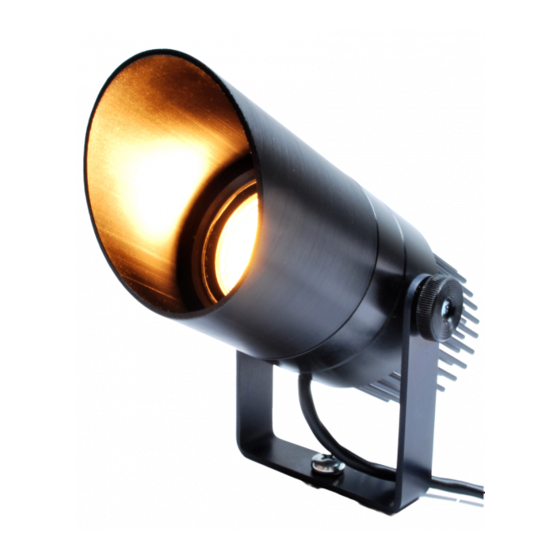

1.1 General StarEye Maxi spot with bracket StarEye Maxi spot with bracket and snoot StarEye Maxi p.3/18 LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM T: +32 3 293 35 50 – F: +32 3 293 35 44 www.lux-lumen.com... -
Page 4: Dimensions
All manuals and user guides at all-guides.com Dimensions StarEye Maxi p.4/18 LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM T: +32 3 293 35 50 – F: +32 3 293 35 44 www.lux-lumen.com... -
Page 5: Safety Information
All manuals and user guides at all-guides.com Safety information Before installing, powering up, or servicing the StarEye Maxi led-unit, it is highly recommended that you read this manual and ensure yourself that you completely understand its content. Observe the safety precautions in this manual. Install and operate the led-unit only as described in this manual, and in conformity with local regulations. -
Page 6: Protection From Electric Shock
Do not modify the LED fixture, in a way, not described in this manual. StarEye Maxi p.6/18 LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM T: +32 3 293 35 50 – F: +32 3 293 35 44 www.lux-lumen.com... -
Page 7: Protection From Injury
StarEye Maxi p.7/18 LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM T: +32 3 293 35 50 – F: +32 3 293 35 44 www.lux-lumen.com... -
Page 8: Physical Installation
This led-unit can be used in all directions. 4.3 Mounting Surface mounting The StarEye Maxi led-unit can be mounted on all kind of non combustible materials, but take in consideration that the module can have a Tc of approx 30 °C higher as ambient temperature. - Page 9 All manuals and user guides at all-guides.com 4.4 Adjusting of intensity The StarEye Maxi has a built-in step-down convertor. The StarEye Maxi is dimmable with a PWM 24 VDC constant voltage power supply or Lux Lumen constant voltage DMX LED driver. Preferred PWM power supply’s: OT 80/220…240/24 DIM P 80W 24vDC...
-
Page 10: External Connections
Never connect the live power on the input terminals of the StarEye Maxi led-unit! In case of doubts, contact your point of sale. Polarity The StarEye Maxi led-unit is polarity sensitive. So observe polarity and cabling: • Red inner conductor = positive • Black inner conductor = negative Improper connection, might damage the StarEye Maxi led-unit and power supply permanently. -
Page 11: Emc And Safety Requirements
All manuals and user guides at all-guides.com EMC and safety requirements The StarEye Maxi led-unit is fully compliant to the LVD and EMC directive of the European council, if used in a properly designed setup. EMC requirements of the power supply... -
Page 12: Installation Setup
All manuals and user guides at all-guides.com Installation setup 7.1 Specification The StarEye Maxi led-unit is a small and efficient solution for indoor detail lighting. It uses a simple stabilized DC power supply of 24 volt DC. It is possible to use a anti-glare filter to manipulate the light output. -
Page 13: Service And Maintenance
Never use solvents to clean the outer housing of the unit. Never use water, or wet cloth. StarEye Maxi p.13/18 LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM T: +32 3 293 35 50 – F: +32 3 293 35 44 www.lux-lumen.com... -
Page 14: Changing Lenses
Screw the front cover onto the housing clockwise. Do not displace the rubber band to prevent fluid ingress StarEye Maxi p.14/18 LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM T: +32 3 293 35 50 – F: +32 3 293 35 44 www.lux-lumen.com... -
Page 15: Warranty
Warranty service is valid for one year from the date of purchase by the consumer, as evidenced by invoice date given out by your point of sale. Warranty service Service under warranty can only be done by Lux Lumen. Coördinaties: Lux Lumen Kernenergiestraat 53 A... - Page 16 In the absence of applicable national legislation, this warranty will be the consumer’s sole and exclusive remedy, and Lux Lumen cannot be liable for any incidental or consequential damages for breach of any express or implied warranty of this product.
-
Page 17: Rma Procedure
All manuals and user guides at all-guides.com 9.2 RMA procedure To send material back to Lux Lumen, you need a RMA (Return Material Authorization) document that you will receive from Lux Lumen. Without the RMA document, we cannot accept the material. -
Page 18: Used List Of Abbreviations
• °C: Temperature in degrees Celsius • LED: Light Emitting Diode • CRI: Color Rendering Index StarEye Maxi p.18/18 LUX LUMEN - Kernenergiestraat 53A - 2610 WILRIJK - BELGIUM T: +32 3 293 35 50 – F: +32 3 293 35 44 www.lux-lumen.com...
