Heatit Z-Push Button 8 Quick Start Manual

Heatit (Thermo-Floor)

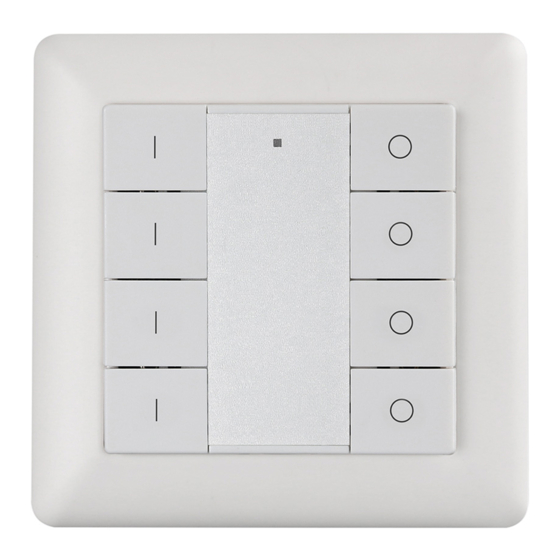

Heatit Z-Push Button 8
SKU: HEAE4512581
Quickstart
This is a secure Wall Controller for XXXQFrequencyName. To run this device please insert fresh 1 * CR2450 batteries. To run this device please make sure
the internal battery is fully charged.
1. Turn on your Push Button.
2. Activate adding mode on your Z-Wave controller.
3. Activate adding mode of your Push Button by pressing and holding down both I and O of Group 2 for 3 seconds.
Important safety information
Please read this manual carefully. Failure to follow the recommendations in this manual may be dangerous or may violate the law. The manufacturer, importer,
distributor and seller shall not be liable for any loss or damage resulting from failure to comply with the instructions in this manual or any other material. Use this
equipment only for its intended purpose. Follow the disposal instructions. Do not dispose of electronic equipment or batteries in a fire or near open heat
sources.
Product Description
The remote control is a Z-Wave device that can both control other Z-Wave devices and activate scenes in Gateways. Although it is controlling other devices,
the device cannot act as Z-Wave network controller (primary or secondary) and will always need a Z-Wave network controller to be added into the aZ-Wave
network. The remote control has the following functions:
1. Control of groups of other Z-Wave devices using ON, OFF and Dim commands.
2. Activation of scenes in Gateway mode.
Product Usage
Operation the device
- Push any button once or press and hold down any button to send scene activation command to association Group 1 using Command Class ​ C entral Scene
Notification V3​ .
- Push I-/O-button of Group 2 once, to send ON/OFF command to all associated devices of Association Group 2.
- Press and hold down I-/O-button of Group 2, to send light intensity increase/decrease command to all associated devices of Association Group 2.
- Push I-/O-button of Group 3 once, to send ON/OFF command to all associated devices of Association Group 3.
- Press and hold down I-/O-button of Group 3, to send light intensity increase/decrease command to all associated devices of Association Group 3.
- Push I-/O-button of Group 4 once, to send ON/OFF command to all associated devices of Association Group 4.
- Press and hold down I-/O-button of Group 4, to send light intensity increase/decrease command to all associated devices of Association Group 4.
- Push I-/O-button of Group 5 once, to send ON/OFF command to all associated devices of Association Group 5.
- Press and hold down I-/O-button of Group 5, to send light intensity increase/decrease command to all associated devices of Association Group 5
