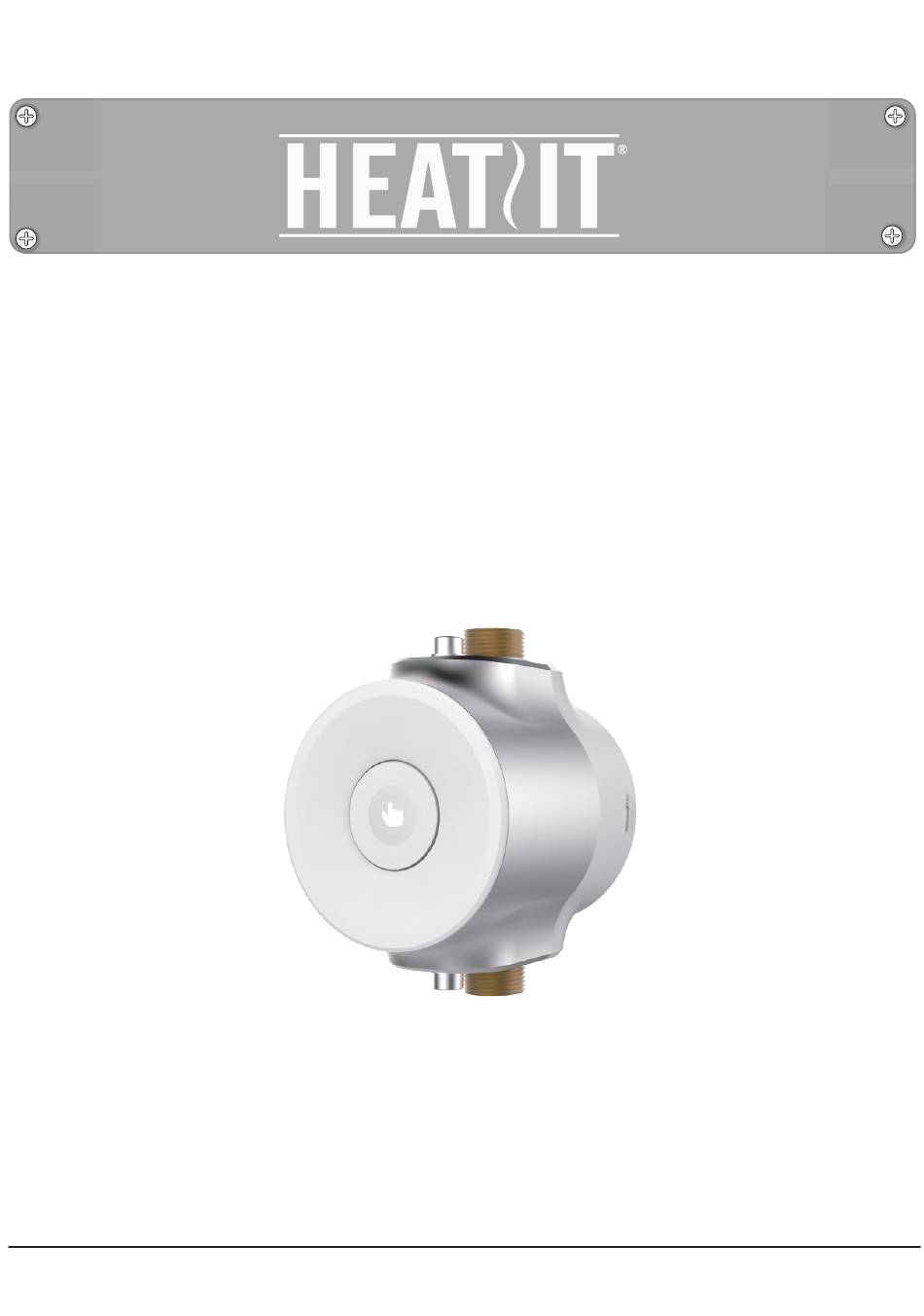

- Page 1 SMART INSTANT HOT WATER RECIRCULATING SYSTEM HIP 24-12A HEATITCABLE.COM...

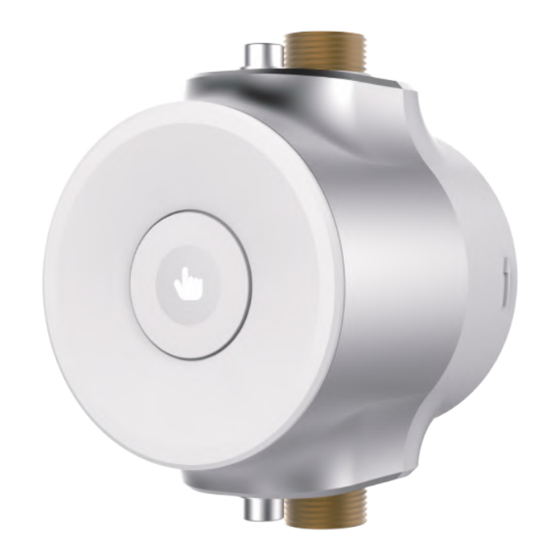

- Page 2 HEATIT HIP 24-12A smart pump was designed to be installed on the back water pipe to the water heater (see the picture 1). If there is no back water pipe to water heater in your water loop, you may need HEATIT HIP 24-12B to be installed under the faucet furthest from the water heater in each loop.
- Page 3 IMPORTANT SAFEGUARDS AND WARNINGS Thank you very much for choosing our products. Please read the Instruction Manual carefully and keep it properly before installation and use. Important safeguards and warnings • Please read the Instruction Manual and keep it properly before installing and using the product. •...
- Page 4 GENERAL INSTALLATION INSTRUCTIONS Installation tips 1. Before installing the pump, check whether the pipeline system is connected reliably and ensure that impurities, welding slag, dirt and the like in the pipeline have been removed. The output of the voltage adapter is low-voltage DC 24V. During installation, a filtering screen can be installed at the inlet of the recirculating pump to filter large particles and impurities in the water, and the filter screen shall be cleaned regularly.
- Page 5 When turned on, the icon lights green, and the pump operates at an energy-saving Energy-saving constant constant temperature state throughout a day.HEATIT Smart pump can decrease the temperature mode temperature setting point automatically if you didn’t use the hot water for some time.
- Page 6 Commissioning Commissioning method • Mode switch: press and hold the icon 2 second or above for mode switch • Speed switch: press the icon briefly for speed switching. Product installation dimension drawing: Troubleshooting Main cause Fault Troubleshooting Check power adapter and circuit connection Power failure The recirculating pump does Power on again after cutting off the power for...
