Heatit Z-PUSH BUTTON 4 Installer Manual

HEATIT
Z-PUSH
BUTTON 4
Installers manual
IMPORTANT
PLEASE READ THIS BEFORE INSTALLATION
Press and hold down both keys together for 3s to be
added to or removed from Z-Wave network by Z-Wave
master (primary) controller.
Group 2:
Click to turn on,
Press and hold
down to increase
light intensity
Group 3:
11 mm
Battery: CR 2450
Before the first use, please
remove the protective film
Norwegian version
Download
manuals.thermo-floor.no
www.thermo-floor.no
01.05.2019
Group 2:
Click to turn
off, Press and
hold down to
decrease light
intensity

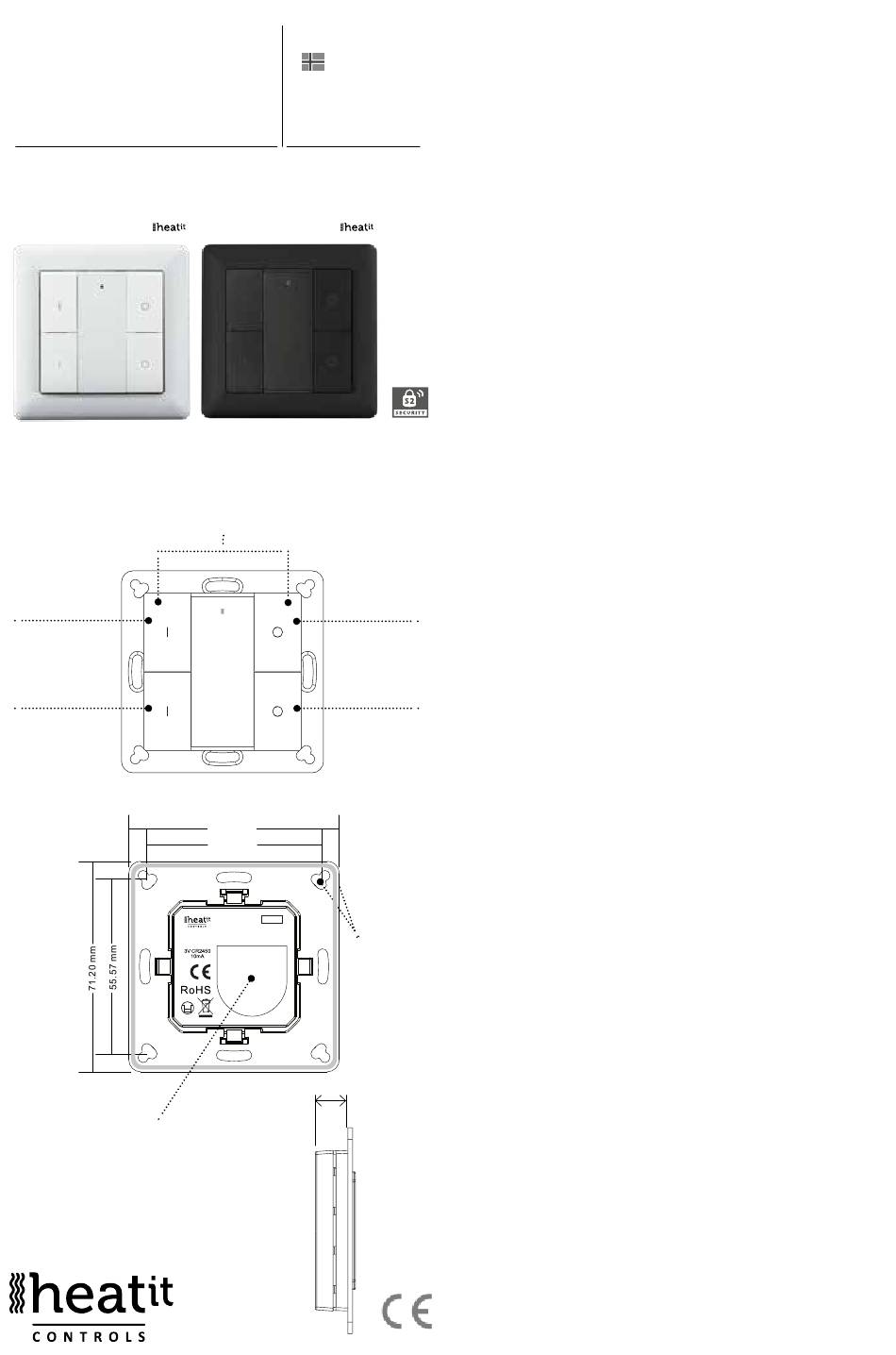

Front side
71.20 mm
55.57 mm
Heatit Z-Push Button 4 White
45 126 82
The Push
Button can be
fixed on the
wall with 3M
glue or screw.
11mm
Back side
SAFETY & WARNINGS
• This device contains a button lithium battery that must be
stored and disposed of properly.
• DO NOT expose the device to moisture.

QUICK START

• Step 1: Turn on your Push Button.
Ver 2019-A
• Step 2: Activate adding mode on your Z-Wave controller.
• Step 3: Activate adding mode of your Push Button by pressing
and holding down both I and O of Group 2 for 3 seconds.

PRODUCT DESCRIPTION

The Heatit Push Button is a Z-Wave device that can both
control other Z-Wave devices and activate scenes in gateways.
Although it is controlling other devices, the Push Button cannot
act as Z-Wave network controller (primary or secondary) and
will always need a Z-Wave network controller to be added into a
Z-Wave network. It also supports the Over The Air (OTA) feature
for the products firmware upgrade.
The Heatit Push Button has the following functions:
1. Control of groups of other Z-Wave devices using ON, OFF and
Dim commands.
2. Activation of scenes in Gateway mode.
The encryption modes that the Push Button supports are S0,
S2 Authenticated and S2 Unauthenticated. When the Push
Button is being added to a Z-Wave network, you can use your
primary controller/gateway to enable encryption mode or
Group 3:
disable encryption. (The primary controller/gateway must
support encryption mode configuration).

INSTALLATION GUIDE

Please read carefully the enclosed user manual before installing the
Push Button, in order to ensure error-free operation.
The Heait Push Button unit comes as a complete set for flush
mounting in standard European wall boxes with a 60mm diameter.

ADDING TO A Z-WAVE NETWORK

Step 1. Make sure the device does not belong to any Z-Wave
network by pressing any button once. If the LED indicator does
not turn on, the Push Button does not belong to any network,
and you may continue to step 2. If the LED indicator turns
on, it means that the Push Button has already been added
to a network. You must then run the removal process (see
"Removing from a Z-Wave network" in this guide) before moving
on to step 2.
Step 2. Set primary controller/gateway to adding mode (Please
refer to your primary controller manual on how to set your
controller to adding mode).
Step 3. Press and hold down both buttons I and O of Group 2
for 3 seconds. The LED indicator turns on, the Push Button will be
set to adding mode, and stand by to be added to the network.
After 10s the LED indicator blinks 6 times quickly to indicate that
the addition has been successful.
