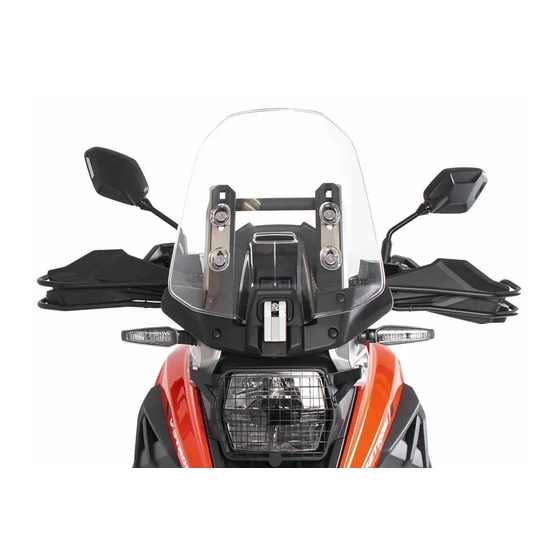

Griffschutz / Handle guard
Suzuki V Strom 1050 XT
2020-
Artikel Nr.: / Item-no.:
3544
4212
00 01
INHALT
CONTENT
1x 700010948 Griffschutz links
1x 700010949 Griffschutz rechts
1x 700010950 Schraubensatz:
4x Senkschraube M8x55
4x Aludistanz Ø 13xØ9x10
4x Senkscheibe M8
2x Senkscheibe M6
schwarz/black
1x 700010948 Handle guard left
1x 700010949 Handle guard right
1x 700010950 Screw kit:
4x Countersunk screw M8x55
4x Alu spacer Ø13xØ9x10
4x Countersunk washer M8
2x Countersunk washer M6
1
Advertisement
Table of Contents
Related Manuals for hepco & becker 42123544 00 01
Summary of Contents for hepco & becker 42123544 00 01
- Page 1 Griffschutz / Handle guard Suzuki V Strom 1050 XT 2020- Artikel Nr.: / Item-no.: 3544 4212 00 01 schwarz/black INHALT CONTENT 1x 700010948 Griffschutz links 1x 700010948 Handle guard left 1x 700010949 Griffschutz rechts 1x 700010949 Handle guard right 1x 700010950 Schraubensatz: 1x 700010950 Screw kit: 4x Senkschraube M8x55 4x Countersunk screw M8x55...
- Page 2 First, pre-assemble the previously disassem- bled parts of the handlebar end on the grip guard in the same order and join them toge- ther in the handlebar end. Insert the supplied countersunk washer M6 between original screw and handle guard. 42123544 00 01...
- Page 3 Weiteres Zubehör auf unsere Homepage. More accessories: see our homepage. Hepco & Becker GmbH Tel.: +49 (0)6331 - 1453 - 100 An der Steinmauer 6 Fax: +49 (0)6331 - 1453 - 120 D-66955 Pirmasens eMail: vertrieb@hepco-becker.de Germany www.hepco-becker.de 42123544 00 01...
