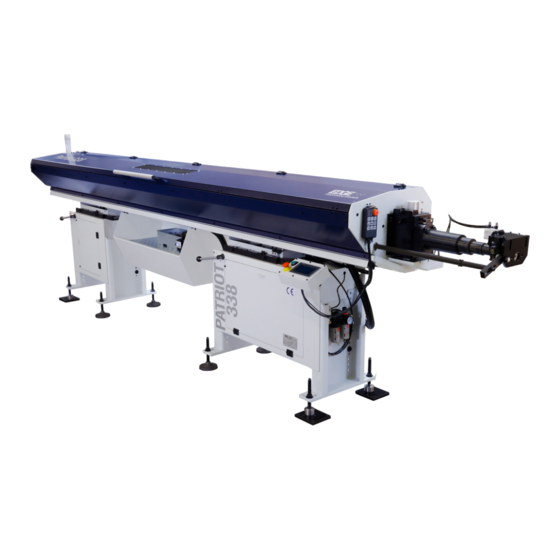

Edge Technologies Patriot Series Operation Manual

Hide thumbs Also See for Patriot Series:
Table of Contents

Advertisement

Quick Links

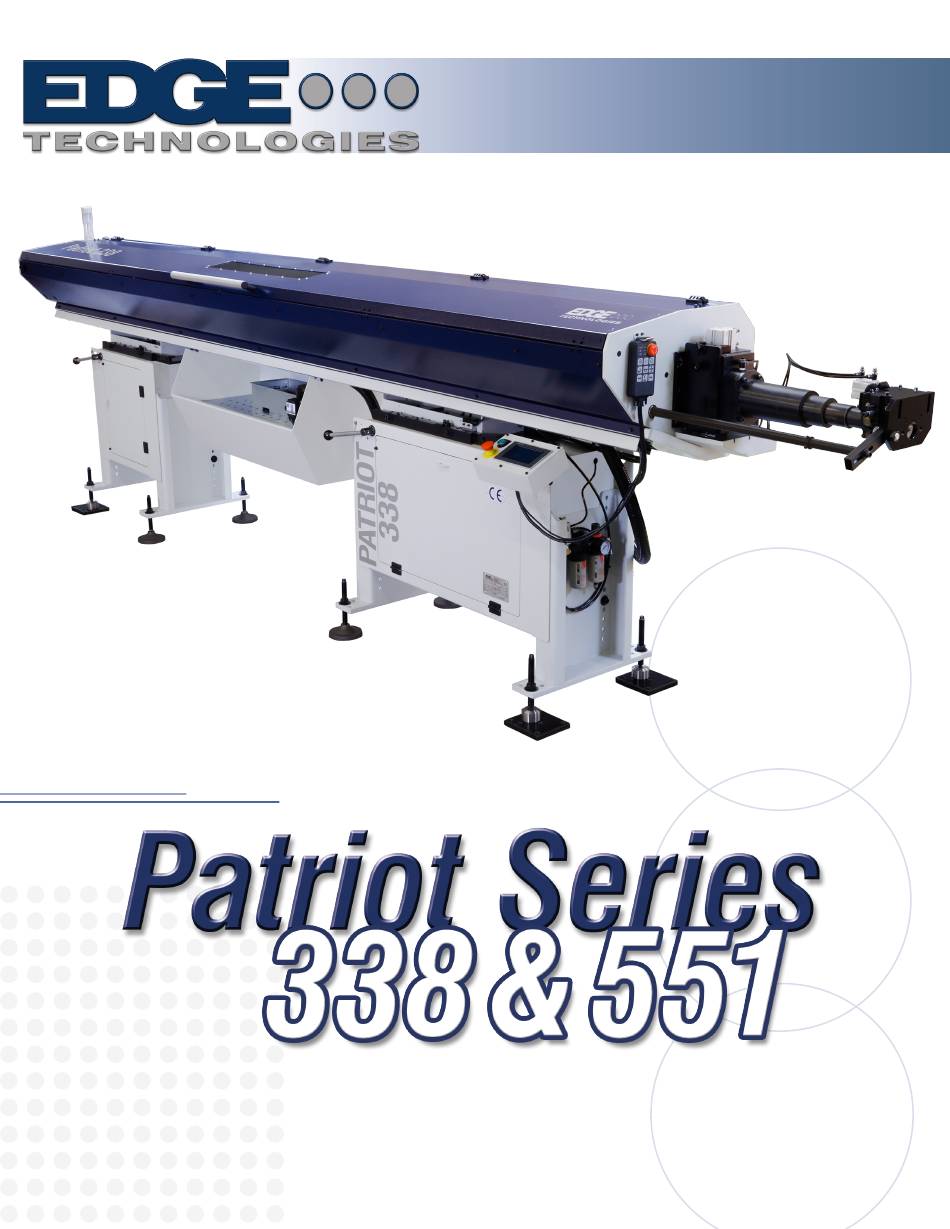

Patriot 338 & 551
Version 10
OPERATIONS MANUAL
OPERATIONS MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Patriot Series and is the answer not in the manual?

Questions and answers

Nathan Hughes
May 27, 2025

The guide channels were closed on the bar pusher. The correct process would be to close the channels while the pusher is forward, then retract the pusher through the ring, instead the channels were closed and the front ring guide is on top of the pusher instead of the pusher being inside the ring.

0
1 comments:
Mr. Anderson
May 27, 2025

To correctly close the guide channels on the Edge Technologies Series bar pusher:

1. Ensure the material is moved outside of the gripper area so the grippers can close without obstruction.
2. Check that no bar is present in the grippers; if there is, move it forward.
3. Confirm the channel lock system is functioning. The pneumatic cylinder must control the lock mechanism to hold the channel closed.
4. For the 8ft Patriot model, the channel open/close cylinder is used to hold the channel closed, as it does not use the lock linkage.

These steps ensure proper and safe closure of the guide channels.

This answer is automatically generated

0

Related Manuals for Edge Technologies Patriot Series

Summary of Contents for Edge Technologies Patriot Series

  • Page 1 Patriot 338 & 551 Version 10 OPERATIONS MANUAL OPERATIONS MANUAL...

  • Page 2: Table Of Contents

    PATRIOT 338/551 Table of Contents Section Page 1. General Information Contents of this Manual ……………………………………………………… 1 Machine Safety ………………………………………………………………. 2 Indemnification………………………………………………………………… 2 Hardware and Software Changes…………………………………………… 2 Machine Data Plate…………………………………………………………… 3 Technical Support …………………………………………………………….. 3 2. Technical Information Description of the Machine …………………………………….………..4 Machine Footprint and Installation Area………………………….…………..
  • Page 3 PATRIOT 338/551 Laser Alignment………. ……………………….………………………….…… 37 4.7.2 Alignment guidance, Level Pad Arbor and Threaded Rod Tightening …... 38 Axial Shifting …………………………………...…………….… ……………... 40 Setting Axial Track Synchronization Switches …………………………….. 45 4.10 Change Axial Swiss Mode to Chucker Mode ……………………………….. 47 4.10.2 Change Chucker Mode to Swiss Mode ………………………………………...
  • Page 4 PATRIOT 338/551 6.4.2 Advance / retreat at low-speed ……………………………….………………. 101 6.4.3 Automatic work operation ……………………………………….…………….. 101 6.4.4 Resetting the Bar Feeder Home Position ……………………….………….. 101 Loading and Unloading Bar Stock …………………………………..……….. 104 Tower Light………………………………………………………………...……. 105 Description of the Manual Screen ……………………………………..….. 106 Description of the Automatic Screen …………………………………..……..
  • Page 5 PATRIOT 338/551 7.1.4 Pneumatic System Lubrication ……………………………………………..… 144 8. Troubleshooting Troubleshooting Chart.…………………….……………….…………………. 145 Troubleshooting Chart …………………………….………………………….. 145 Alarm 01…………………………………………………….…….…………….. 146 Alarm 02 …….……...…………………………………….…………….……… 146 Alarm 03 …….….…………………………………………..………………….. 147 Alarm 04………………………………………………………………………... 147 Alarm 05 …..….………………..………………………………..……………... 147 Alarm 06.……………………………………………….…………………….…. 148 Alarm 07…………………………………………………..……………….…… 148 Alarm 08…………………………………………………………………………...
  • Page 6 PATRIOT 338/551 Alarm 45 ………………………………………………………………………... 163 Alarm 46 ………………………………………………………………………... 164 Alarm 47 ………………………………………………………………………... 164 Alarm 48 ………………………………………………………………………... 164 Alarm 51 ………………………………………………………………………... 165 Alarm 52 ………………………………………………………………………... 165 Resetting Emergency Stop Safety interlocks (ESSI) …………………...…. 167 Patriot Setting of the S2 and S3 Sensor Plate ………………….………….. 168 9.

  • Page 7: General Information

    PATRIOT 338/551 1. General information Please read and understand the Manual before operating the bar loader Contents of this Manual The bar feeder/Unloader manufacturer has provided this manual as an integral part of the machine. Adherence to the instructions of the manual will help prevent injury to the operator and damage to the machine as well as helping to realize the maximum potential of the bar feeder/unloader and machine tool.

  • Page 8: Machine Safety

    1.3 Indemnification User agrees to indemnify and hold harmless Edge Technologies from any and all claims or liabilities from accidents involving these machines caused by failure of users, his employees, or agents to follow instructions, warnings or recommendations furnished by Edge Technologies, or by failure of user to comply with Federal, State and local laws applicable to such equipment including the occupational Safety and Health Act of 1970.

  • Page 9: Machine Data Plate

    When inquiring about or ordering parts please have the machine model type and serial number on hand. Refer to the machine data plate for this information. 1.6 Technical Support For technical support please contact the Edge Technologies Service Department by phone at 314-810-3927 or by email edgeservice@edgetechnologies.com...

  • Page 10: Technical Information

    PATRIOT 338/551 2. Technical Information 2.1 Description of the Machine The Patriot is a PLC controlled automatic bar feeder designed for both Swiss style and fixed headstock lathes. The bar feeder is constructed to handle a wide variety of material profiles from round to hex and square stocks and can be adapted to feed materials with a more unique shape.
  • Page 11 PATRIOT 338/551 Following Features  (1) Guide channel set to be chosen by customer. Several sizes to choose from, each handling a specific stock range. See chart.  (1) Standard front telescopic nose to match guide channel set  (1) O.D. bar stock collet (to be chosen by customer, specific collet needed for each stock diameter) ...

  • Page 12: Machine Footprint And Installation Area

    PATRIOT 338/551 2.2 Machine footprint and Installation Area Caution machine placement is important and proper planning should be observed. A level floor free from cracks is ideal for anchoring of the machine. As the customer is the one that decides on machine installation placement it is their responsibility to be aware of proper floor requirements.
  • Page 13 PATRIOT 338/551 Installation Area The bar feeder must be bolted to a sound, reasonably level floor using anchor bolts. The area surrounding the machine must provide sufficient clearance the operator access to both sides and the rear of the machine as shown in the diagram below. Other necessities are suitable lighting and a compressed air supply.

  • Page 14: Specifications And Capacities

    PATRIOT 338/551 2.3 Specifications and Capacities 2.3.2 Bar Feeder Oil Requirements Oil Viscosity Brand Description Energol CS 100 Castrol Magna 100 Chevron Circulating Oil 100 ISO 100 Movixa 100 Esso Nuto 100 Mobil Vectra Oil Heavy Shell Vitrea 100 / Tellus C 100 REV 10:2019...

  • Page 15: Guide Channel Specifications

    PATRIOT 338/551 2.3.3 Guide Channel Specifications Warning if bar stock and channel set size are not with in the chart below damage to the bar feeder or lathe could occur. For a complete list of available guide channels offered review the parts section at the end of this manual or visit Edgetechnologies.com Permissible Diameter of Bar Stock Guide Channel...

  • Page 16: Compressed Air Supply Including Oil

    PATRIOT 338/551 2.3.4 Compressed air supply including oil Warning working with compressed air, proper PPE is required in accordance with federal state and local laws. Shop air must be present for machine installation 1. The supply hose for compressed air supply must be larger than 8mm , 71.11 –...

  • Page 17: Safety

    PATRIOT 338/551 2.4 Safety Warning safety switches should always be in place during bar feeder operation. The patriot is designed to be safe and reliable to operate. However, the machine can be dangerous if used improperly by untrained personnel. Personnel should be familiar with the operating instructions of the equipment before using and must follow standard safety practices.

  • Page 18: Emergency Stop Buttons

    The lathe will be stuck in emergency stop and the bar feeder will not power up. Please contact Edge Technologies for appropriate instructions. It is the responsibility of the bar feeder and lathe installer to verify emergency stop operation between the lathe and bar feeder is operational.

  • Page 19: Electrical Safety

    2.3 Specifications and Capacities. Failure to do so may result in injury or damage to the equipment. Normally a bar feeder is ordered from Edge Technologies to be placed with a specific lathe model. The wiring interface is set in accordance with current information received to Edge Technologies.

  • Page 20: Electrical Connection

    *Note the wiring interface contained in this manual is a generic 1 to 1 pin to wire call out. Each lathe brand is different from one to another. Please contact Edge Technologies for the proper interface schematic if you do not have one.

  • Page 21: Glossary Of Terms

    PATRIOT 338/551 2.6.3 Glossary of Terms Common (From Lathe) – This is the 24v DC supply voltage from the lathe for signal sent to the bar feeder control. The voltage cannot be mixed with the bar feeder power supply. Cycle start (bar change end, program start) – Typically a normally open circuit controlled by the bar feeder Cycle Start/M-Code Finish relay.

  • Page 22: Signal Functionality And Explanation

    PATRIOT 338/551 Door safety – Typically a normally open circuit controlled by the lathe. Voltage is supplied by the bar feed common. The signal prevents the bar pusher from feeding in automatic if the door is open. Circuit can be bypassed. Bar feeder Emergency stop –...
  • Page 23 PATRIOT 338/551 a crash between the lathe and bar feeder. If the M-code for bar change or feed is never satisfied, it may be an issue with the cycle start signal being set backwards. The first way to correct this issue would be to change the status of the jumper or wire that is controlling the cycle start signal.
  • Page 24 PATRIOT 338/551 Bar feeder on- This signal is typically used as a bar feeder alarm to the lathe. IF the lathe is always receiving the signal that the bar feeder is in alarm it will show a message saying that the bar feeder is in alarm.
  • Page 25 PATRIOT 338/551 IF wired incorrectly this can cause machines to go into automatic mode when the lathe is not in automatic. IF wired incorrectly this signal can also cause the bar feeder to not allow feeding because the automatic signal is not received. *Needs to be check if wired into the machine interface* To check if this signal is working correctly on the Edge product, put the bar feeder into automatic and check the HMI screen.
  • Page 26 PATRIOT 338/551 Chucker Mode: This setting allows the lathe to run without the bar feeder. When chosen the bar feeder sends an auto mode signal to the lathe while remaining in the manual mode. Feed stop- This signal is used to stop the bar feeder from pushing when bar feeder in automatic and collet open.
  • Page 27 PATRIOT 338/551 plug, and check that the voltage of the lathe is proper and does not fluctuate beyond safe operating voltage. IF the voltage is in the wrong pin location then simply move the bar feeder voltage to the correct location in the plug.

  • Page 28: Transportation And Handling

    PATRIOT 338/551 3. Transportation and Handling Warning The weight of the machine without packaging is approximately 2100 lbs. Only trained operators are to use lifting equipment. Verify the equipment to be used for moving the machine is rated to safely lift the weight of the bar feeder plus the packaging material.

  • Page 29: Transportation And Hoisting

    PATRIOT 338/551 3.2 Transportation and Hoisting Hoisting bar feeder Place two steel bars (Diameter: 30mm, length: 1M) under the bar feeder outside of the stands, using suitable lifting straps hoist the bar feeder. Hoisting with bar feeder on pallet Using suitable lifting straps positioned under the pallet near the stands.

  • Page 30: Installation

    PATRIOT 338/551 4. Installation 4.1 Lathe Preparation Prior to installing the bar feeder, the lathe installation must be completed and ready to produce parts. If no lathe spindle work holding is installed or no compressed air the bar feeder cannot be installed.

  • Page 31: Typical Installation Guide

    Purchase Order, as the customer will most likely be in need to initiate an Insurance claim. It is important to always communicate with the Edge Technologies when the equipment sustained any kind of damage. Together we’ll evaluate the situation and formulate a feasible solution designed to overcome the current situation, hopefully even before the customer is exposed to the trouble area.

  • Page 32: Swiss Headstock Shipped Components

    PATRIOT 338/551 Step 3 Check Inventory.  Adaptation kit. Check parts and test. If not familiar with the application, call Edge Technologies and request an assembly/detail drawing and or pictures.  Guide channel, pushers, collets and noses. Make sure that all is available and correct according to the customer’s pick ticket in the bar feeder.

  • Page 33: Fixed Headstock Shipped Components

    PATRIOT 338/551 4.2.3 Fixed Headstock Shipped Components Typical Fixed Headstock machine inventory check off list. Step 4 Lathe Condition While field retrofits on existing lathes maybe challenging when it comes to the presence of an effective and properly documented electrical interface, the installation on new lathes requires us to perform a comprehensive assessment as well.

  • Page 34: Bar Feeder Install Process

    PATRIOT 338/551 4.2.4 Bar feeder Install Process 1. Inspect bar feeder for any shipping or handling damage, report as necessary 2. Verify lathe installation condition a. Lathe level for operation b. Lathe will power up c. Lathe has collet or chuck package d.
  • Page 35 PATRIOT 338/551 7. Drill and anchor bar feeder to floor a. Verify floor is not heated b. Drill holes complete through floor, entire 12 inch drill stroke c. Drive anchors complete into floor with associated fender washers installed d. Tighten anchors fully 8.

  • Page 36: Distance From Lathe

    PATRIOT 338/551 4.3 Distance From Lathe Caution verify proper installation distance or machine crash may occur. Verifying the proper install location is critical for complete material utilization and collapsing of the telescoping nose. The bar feeder must be set the proper distance from the lathe. This distance is measured from the front of the anti-vibration device to the face of the lathe collet.

  • Page 37: Height Adjustment

    PATRIOT 338/551 4.4 Height adjustment Caution the assembly of the level pad mounting system must be completed with all the parts for proper installation. The anchoring system is unique to the Patriot and must be installed in a specific fashion. The storage and electrical cabinets feature stands attached via 4 screws per side.

  • Page 38: Leveling Pad Installation

    PATRIOT 338/551 4.5 Leveling Pad installation Caution only trained installers are to make stand adjustments. Not following proper procedure could lead to personal injury and 1. Locate and clean all the leveling pad components with a rag. A heavy amount of anti- corrosion lube is applied to keep parts fresh.
  • Page 39 PATRIOT 338/551 3. Thread the 8 arbors into the stand holes until contact with the floor is achieved. Caution do not allow the bar feeder to achieve an angle greater than 10 degrees to the floor. This could cause the bar feeder to fall over. Continue to thread the arbors located at the 4 end points a few thread turns at a time.
  • Page 40 PATRIOT 338/551 8. Place one level pad on the floor with one ejector block positioned into the pad. The pads are the same top and bottom with the longer portion placed towards the stands. See image below. Level pad hole callout 1.

  • Page 41: String Alignment

    Not supplied is the rear centering plug and spindle plug. These items can be made for the string alignment. These items are not available from Edge Technologies. The string is included with all Patriot models. The standard alignment procedure by an Edge Technician is by laser alignment.
  • Page 42 PATRIOT 338/551 Remove the bar pusher out and insert a centering plug, pull the nylon string from the lathe A, to the end of the bar feeder B. Select a proper plug size for lathe the collet, insert and close lathe collet, move lathe Z axis to –Z over travel, pull the nylon string tight and secure in place.

  • Page 43: Laser Alignment

    PATRIOT 338/551 4.7 Laser Alignment. Warning use protected eyewear when using a laser during bar feeder alignment. The preferred method of aligning the bar feeder is by way of a laser aligning. The instructions below are general in nature. Follow the laser tool manufactures instructions for laser usage. Caution disabling the hood switch on the bar feeder is required to view the laser target and align the bar feeder.

  • Page 44: Alignment Guidance, Level Pad Arbor And Threaded Rod Tightening

    PATRIOT 338/551 4.7.2 Alignment guidance, Level Pad Arbor and Threaded Rod Tightening. Once alignment has been completed it is important to lock the threaded rods and arbors in place. When tightening the lock nuts it is possible the alignment could change. It is suggested to check the alignment once the lock nuts have been tightened.
  • Page 45 PATRIOT 338/551 The image below is a non-axial shift Patriot foot pad configuration. Leveling pads 1 and 2 may be swapped position on axial track equipped machines for more efficient aligning. 1. Level pads positioned at outer locations 2. Supporting leveling pads REV 10:2019...

  • Page 46: Axial Shifting

    PATRIOT 338/551 4.8 Axial Shifting Caution incorrect machine placement may cause catastrophic damage to lathe or bar feeder. Caution all axial shift safeties must be adjusted and set correctly Caution bar feeder must be in emergency stop prior to axial shifting bar feeder.
  • Page 47 PATRIOT 338/551 Warning follow the instructions to shift the Patriot when equipped with Axial shift option. In each cabinet a supported shaft with eccentric bearing cams is used to lift the Patriot chassis up and slide fore and aft. Once the locking screws have been removed a lever is used for lifting. A small pin, tethered to the cabinet is used to hold the lever in place when the Patriot is lifted.
  • Page 48 PATRIOT 338/551 The graphic below represents the bar feeder movement and head stock movement during the Swiss and Chucker change. Guide Headstock Bushing Bar feeder is anchored down to floor and Guide bushing removed equipped with axial shift option and headstock in chucker position Bar feeder shifted into chucker position REV 10:2019...
  • Page 49 Edge and lathe manufacture application information. If the bar feeder was prepped and shipped from Edge Technologies the axial shift position will be set according to the lathe. On occasion a bar feeder from a dealer or a used bar feeder may have axial track settings for a different lathe than originally prepped for.
  • Page 50 PATRIOT 338/551 Axial shift setting options. The specific Position Movement length position is based on the following 120mm parameters. 160mm  Chucker/Swiss position 230mm  Pusher reach distance When position 2 is to be used, remove  Bar feeder material loading position screw from position 1 and place it into hole position 2.

  • Page 51: Setting Axial Track Synchronization Switches

    PATRIOT 338/551 4.9 Setting Axial Track Synchronization Switches Caution setting of the synchronization switches is extremely important to reduce a possible crash between lathe and bar feeder. Setting of the axial synchronization emergency stop switches is critical during the installation. The switch locations are preinstalled and do not require adjusting.
  • Page 52 PATRIOT 338/551 REV 10:2019...

  • Page 53: Change Axial Swiss Mode To Chucker Mode

    PATRIOT 338/551 4.10 Change Axial Swiss Mode to Chucker Mode Caution bar feeder must be in emergency stop prior to axial shifting bar feeder. Caution all attaching components must be installed and tightened prior to production. 1. Follow lathe manufactures instructing for chucker mode setup (removal of guide bushing) Once lathe has been converted to chucker mode proceed to step 2.

  • Page 54: Change Chucker Mode To Swiss Mode

    PATRIOT 338/551 4.10.2 Change Chucker Mode to Swiss Mode Caution bar feeder must be in emergency stop prior to axial shifting bar feeder. Caution all attaching components must be installed and tightened prior to production. 1. With the bar feed in manual operation be sure there are no active faults 2.

  • Page 55: Axial Track Programing Tech Tip

    PATRIOT 338/551 4.11 Axial Track Programing Tech Tip Anytime bar feed configuration is changed from one operational mode to another certain position parameters must be changed in order for proper operation. If these parameters are not changed machine alarms can be produced or excessive remnants will be observed. During initial setup it is required to measure and record the following ...
  • Page 56 PATRIOT 338/551 REV 10:2019...

  • Page 57: Bushing Block Alignment

    PATRIOT 338/551 4.12 Bushing Block Alignment Caution do not adjust bushing block when electrical power is applied to bar feeder. The bushing block is aligned by way of 4 jack screws at the mounting flange of the bushing block device. The mounting screws must be loosened. The vertical mounting plate holes on the bar feeder are threaded for the bushing block mounting flange.

  • Page 58: Hand Crank

    PATRIOT 338/551 4.12.2 Hand Crank Caution bar feeder power and air supply must be isolated from the bar feeder prior to using the hand crank. The pusher carriage may be manually operated with an included hand crank. This is helpful when performing a channel changeover of the bar feeder.

  • Page 59: Anchoring

    PATRIOT 338/551 4.13 Anchoring Caution wear protective eyewear when operating a hammer drill or hammer to strike a floor anchor. Warning do not install level pads over cracked concrete with uneven surfaces. Warning drilling anchor holes at an angle may affect the final aligning of the bar feeder.

  • Page 60: Installation Components

    PATRIOT 338/551 4.14 Installation Components Spindle Liner: Used to reduce spindle diameter to support the pusher. Some applications do not require a spindle liner. This is true when the spindle bore diameter is the same as the pusher. Fixed front nose and insert: This nose is cut to fit and used on fixed headstock lathes. If multiple inserts Telescopic front nose: The telescoping nose is normally used with sliding headstock lathes and attaches from the bar feeder to the MAVD when equipped.

  • Page 61: Spindle Liner

    13mm from the rear of the chuck jaws or collet. Any further and this could cause a load or remnant ejection issue Normally a spindle liner will be part of the options ordered from Edge Technologies. Additional spindle liners may be order from Edge technologies.

  • Page 62: Telescoping Nose

    PATRIOT 338/551 4.16 Telescoping Nose Caution cutting of the telescoping nose should be carefully performed. The telescoping nose is normally used with sliding headstock lathes and attaches from the bar feeder to the MAVD when equipped. This nose must be cut to provide room for the MAVD and keep the nose from collapsing into itself.
  • Page 63 PATRIOT 338/551 Each nose with a specific diameter uses a specific retaining ring for that diameter. The ring is attached to the last stage with 2 small grub screws that must be set very tight. The retaining bracket is one size fits all. Warning machine damage may occur if telescoping nose is not properly connected to lathe headstock.

  • Page 64: Hard Nose

    PATRIOT 338/551 4.17 Hard Nose The hard nose on the patriot is cut to size once the bar feeder is aligned and anchored. The oil gathering device is then attached to the end of the nose for ejected oil to gather and return to the with a drain hose to the bar feeder.
  • Page 65 PATRIOT 338/551 1. Flange 2. Hardnose insert 3. Hardnose 4. Oil Collector 5. Seal 6. Oil return hose The oil collector is held in place by 2 screws and lock nuts. There is about 2 inches of insertion avaiable of the hard nose. This is used to close up any gap between the lathe sheet metal and attaching seal.

  • Page 66: Mavd Installation

    When installing the MAVD all headstock adaption components must be installed. All adaption prints are shipped with the prepped bar feeder from Edge Technologies for the appropriate lathe. MAVD alignment may only be performed once the Patriot is aligned and anchored to the floor.
  • Page 67 PATRIOT 338/551 5. Remove the retaining screw from the synchronization rod. 6. Reset the bar feeder and lathe emergency stop circuits. 7. Using caution move the pusher into the lathe spindle until bar feeder collet is 13mm from lathe collet. 8.
  • Page 68 PATRIOT 338/551 Caution pinch hazard if proper observation is not adhered Loosen the lower lock nut and rotate the screw counterclockwise until all 4 rollers make equal contact with the pusher. 14. Allow the MAVD to find center on the pusher. 15.

  • Page 69: Systems And Adjustments

    PATRIOT 338/551 5. Systems and Adjustments 5.1 Bar feeder Component Locations REV 10:2019...

  • Page 70: Magazine Adjustment

    PATRIOT 338/551 5.2 Magazine adjustment Follow the procedure below anytime the bar diameter requires changing. Caution when adjusting the magazine be sure the lathe and bar feeder is in emergency stop Caution, adjusting the magazine can produce pinch points between magazine and material Caution when lifting material into the magazine, 2 or more people or a lifting device may be required to load material...
  • Page 71 PATRIOT 338/551 1. Lever 2. Support plate Adjustment Screw The vertical adjustment plate moves as the adjustment point. The material lifter is stationary and bar center should be just past the edge of the lifter Lifter will move up to lift bar into the channel REV 10:2019...

  • Page 72: Movable Anti-Vibration Device/Mavd Adjustment

    PATRIOT 338/551 5.3 Movable Anti-Vibration Device/MAVD Adjustment The Proper adjustment of the Movable Anti-Vibration Device is important for proper machine operation. Proper adjustment will help support the bar and possibly reduce vibrations during production. Warning lathe and bar feeder must be in a manual mode during the adjustment of the Movable Anti-Vibration Device.
  • Page 73 PATRIOT 338/551 MAVD Open Speed Valve Open adjustment screw MAVD Closed Lock nut (C) Speed Valve Adjustment screw (D) Close adjustment Lock nut (A) Adjustment screw (B) Warning improper MAVD adjustment can lead to premature roller wear. Adjustment to the open and close speed of the MAVD is by way of the thumb screws on the cylinder.

  • Page 74: Mavd Block Sets

    PATRIOT 338/551 5.3.2 MAVD Block Sets Caution do not insert blocks into MAVD with electrical power applied to the bar feeder or lathe. Warning the block sets must be used in same sized pairs. The use of bushing blocks may assist with optimizing the bar feeder performance with certain material, shapes, and operating speeds.

  • Page 75: Bushing Block Device With Air Knife

    PATRIOT 338/551 5.4 Bushing Block Device with Air Knife Caution the cover for the bushing block device must always be installed during bar feeder operation. Caution do not remove the bushing block cover while bar feeder is in operation. Caution when changing the bushing blocks the bar feeder must be in emergency stop.
  • Page 76 PATRIOT 338/551 Caution when installing bushing blocks remove material prior to removing bushing block cover. During automatic operation the bushing blocks will shadow the lathe collet open and closing. When the bushing block cover is removed during operation the following will occur •...
  • Page 77 PATRIOT 338/551 Valve full closed, the handle is in line with the valve, valve is closed in image Valve full open is 90 degrees from valve REV 10:2019...
  • Page 78 PATRIOT 338/551 Air knife Caution the air flow through the air knife can be set to high which produces an oil vapor around the bar feeder. The air knife is an oil blow off valve that helps to displace oil from the material and pusher upon entering the nose.

  • Page 79: Drip Pan, Oil Management

    Swiss headstock as it moves towards the bar feeder. The lathe sheet metal should be cut so the drain pan may be as long as possible without crashing the headstock. Extra-long drain pans are available from Edge Technologies. The drain pan can be cut based on the application.
  • Page 80 PATRIOT 338/551 Hardnose oil collector The oil collector on the hard nose is plumbed to allow oil flow back to the bar feeder. If flow is too high the bushing block devise oiler valve should be adjusted to limit the flow. REV 10:2019...

  • Page 81: Pusher Drive Chain

    PATRIOT 338/551 5.6 Pusher Drive Chain Caution bar feeder and lathe must be emergency stop for belt adjustment Warning properly trained personnel are required to adjust drive belt The pusher drive chain is a roller type chain with a master link connected to the carriage. The chain runs the length of the machine contained inside of a channel.

  • Page 82: Synchronization System

    PATRIOT 338/551 5.7 Synchronization System Caution Warning operation of the synchronization will move at random times during the automatic operation. Access covers to the synch device should always be in place during operation. Caution belt adjustment should only be performed when bar feeder electrical power has been removed.
  • Page 83 PATRIOT 338/551 Synch rod Adjustment plate w/attached pulley Air solenoid valve Timing belt Patriot AD synchronization shown 1. Place bar feeder in emergency stop. 2. Remove front cover from the bar feeder. 3. Loosen lock nut (1). 4. Loosen the adjustment plate locking screws (2). 5.

  • Page 84: Channel Set Components

    The channel set on the Patriot may be changed to a variety of sizes. It is important to note the material diameter to be used in the bar feeder fits in the proper channel set. Channel set components are specific to each channel set. Contact Edge Technologies for additional channel sizes and sets.
  • Page 85 All components with in a channel set is specific to the size of that channel set. Combining the channel; sets will not work properly and will produce poor bar feeder performance. For available guide channel sets reference this manual or contact Edge Technologies for the most up to date information.

  • Page 86: Pre-Run Setup Card

    PATRIOT 338/551 5.9 Pre-Run Setup Card The following card may be printed, laminated, and placed near the Patriot. Great for the changeover tech. Pre-Run Setup Follow bar feed and lathe manufactures instructions on machine changes All bar feed and Lathe safety’s installed and functional Air pressure set at 75-90 PSI (5-6 bar) Proper oil viscosity and oil level set...

  • Page 87: Pre-Feed Pusher And Pusher

    PATRIOT 338/551 5.10 Pre-feed Pusher and Pusher Caution do not replace pusher or pre-feeder pusher with electrical power applied to lathe or bar feeder. Warning the correct pusher length must be used for the correct length of bar feeder or machine damage may occur. Pusher and flag Basic layout of typical Patriot pusher.

  • Page 88: Rotating Tip

    The Patriot comes standard with 3 collet screw on tip adapters. An adaptor with a pin securement is available from Edge Technologies as well. Refer to parts section for part numbers and available sizes. The rotating tip diameter should be 1mm smaller diameter than the guide channel set.

  • Page 89: Channel Set

    PATRIOT 338/551 5.12 Channel Set When changing the channel set it is important to remove then replace one item at a time. If you get ahead of yourself it may take longer setting up the new channel set. The channels pieces are directional and may be installed 180 degrees off.
  • Page 90 PATRIOT 338/551 Pin should be centered to shaft. Replace broken and damaged pins. Upper channel screw without oil hole. Lower channel screw with oil hole, lower channels must always contain the mounting screw with hole. Be sure this oil passage is not clogged. When installed the screw pin will be carful to not over rotate.

  • Page 91: Material Measurement Sensor/Cutting Sensor

    PATRIOT 338/551 5.13 Material Measurement sensor/Cutting sensor Caution prior to inspecting the Material Measurement sensor/Cutting sensor place the bar feeder into emergency stop. The material measurement or cutting sensor is an input to the PLC. When material is moved forward during the pre-feed bar change process, the end of the bar makes contact with a steel flap.
  • Page 92 PATRIOT 338/551 Channel set has been removed. REV 10:2019...

  • Page 93: Gripper Assembly

    PATRIOT 338/551 5.14 Gripper Assembly Caution the Gripper is a pinch hazard. Caution the Gripper assembly is a moving component that should always be service with electrical power and air supply removed. Caution place lathe and bar feeder into emergency stop when replacing gripper jaws.
  • Page 94 PATRIOT 338/551 The gripper assembly is designed to function with out any adjustments. REV 10:2019...

  • Page 95: Shuttle - Extraction / Introduction Cylinder

    PATRIOT 338/551 5.15 Shuttle - Extraction / Introduction Cylinder Caution never adjust the air valves without being properly trained Caution Personal injury could result The Patriot is equipped with a robust extraction and insertion system designed to provide exceptional durability. The operation of this cylinder is known as the shuttle. During introduction of the bar feeder collet onto the bar end, the servo drive motor is engaged with the shuttle (air cylinder) moving simultaneously.
  • Page 96 PATRIOT 338/551 Spring loaded finger attached to the balance block. The finger will sit inside the carriage pocket Finger moves from this position back The chain guide removed from bar feeder. The finger will move under the chain guide at the point below as it moves forward. In the reverse the finger will engage the carriage pocket as moving in reverse.
  • Page 97 PATRIOT 338/551 The image below with the balance block in the installed position. The block is forward and finger is below the chain guide. The chain is not connected to the carriage for image purpose. When the balance block is moved back the finger will slide up in the opening and engage the carriage pocket.
  • Page 98 PATRIOT 338/551 The carriage is the central work horse for the bar feeder. The drive chain attaches to the underside of the carriage and is pulled from end to end of the bar feeder by the servo motor. There is a machined pocket in the underside in which the finger attached to the balance block will be positioned.

  • Page 99: Channel Lock System

    PATRIOT 338/551 5.16 Channel Lock system The channel lock system on the Patriot keeps the channel from being forced open during production. As the bar is rotated and the channel is filled with pressurized oil, this pressure could force the channel open. A pneumatic cylinder controls the opening and closing of the lock mechanism.

  • Page 100: Material Standards And Requirements

    PATRIOT 338/551 5.17 Material Standards and Requirements Caution the ends of the bar should be relatively straight to the diameter of the bar to help ensure proper positioning of the bar as it reaches the facing position and to keep the bar pusher from sliding off the bar while feeding the material.

  • Page 101: Procedure For Checking Bar Straightness

    PATRIOT 338/551 5.17.2 Procedure for Checking Bar Straightness (Reference ASTM B249) 1. Find a suitable surface to allow the bar to rest on V-blocks without any rocking movement. 2. Rotate the bar 360°. Record the dial indicator readings at each location. 3.

  • Page 102: Bar Stock Preparation

    PATRIOT 338/551 5.17.3 Bar Stock Preparation The bar stock must be free of burrs, chips and excessive dirt. Clean bars will extend the life of the channel guides and bearing unit of the pusher as well as the oil pump impeller. The bar ends should be relatively square to the length of the bar.

  • Page 103: Vibration Troubleshooting Check List

    PATRIOT 338/551 5.18 Vibration Troubleshooting Check List REV 10:2019...

  • Page 104: Control Operation And Hmi Description

    PATRIOT 338/551 6. Control Operation and HMI Description 6.1 HMI Operation Description Warning proper training is required for bar feeder operators. A lack of training may lead to personal or machine damage. The HMI is a microprocessor based, touch screen unit that receives the user input commands directly through the touch screen.

  • Page 105: Handheld Pendant

    PATRIOT 338/551 6.2 Handheld Pendant Layout Function Emergency STOP Pre Auto Pre Auto light Manual clamping Manual advance (Right) Manual retreat (Left) Origin point light (Left) Chuck open light Allow feeding on Manual mode Manual mode light Manual Gripping in/out Pusher extracted Manual channel open/close...

  • Page 106: Power Up

    PATRIOT 338/551 6.3 Power up: To Power Up and Place the Bar Feeder In Automatic (must have bar stock loaded in bar feeder and lathe ready for production) 1. Turn on the main switch on the bar feeder electrical cabinet. 2.

  • Page 107: Basic Movement Functions

    PATRIOT 338/551 6.4 Basic Movement Functions Warning proper training is required for bar feeder operators. A lack of training may lead to personal or machine damage. Warning be sure lathe is ready for bar feeder operation ( 6.4.2 ) Advance / retreat at low-speed (When the lathe on the left, the motion of are opposite).
  • Page 108 “Bar Off” feature. Warning this procedure requires access to the factory parameters. Contact Edge Technologies for further information. 1. While the power is “On” on the barfeeder, move the bar pusher 1’ away from the home sensor.
  • Page 109 PATRIOT 338/551 alarms from the barfeeder regarding “no remnant detected” or “no new bar detected”. Do NOT release the “gripper” button until the “Bar Off” cycle has completed. 6. After the bar pusher has completely stopped moving, release the “gripper” button and the zero reference will be complete.

  • Page 110: Loading And Unloading Bar Stock

    PATRIOT 338/551 6.5 Loading and Unloading Bar Stock Warning proper training is required for bar feeder operators. A lack of training may lead to personal or machine damage. Sequence to manually change bars Retract the bar stock from the lathe guide bushing and open the lathe collet. Make sure the lathe tools are clear of the guide bushing for the new bar to come in.

  • Page 111: Tower Light

    PATRIOT 338/551 6.5 Tower Light The indicator light provides quick visual indication of bar feeder status. The bar feeder PLC directly controls the operation of the tower light. Status conditions below,  Red light is on, bar feeder is in emergency stop. ...

  • Page 112: Description Of The Manual Screen

    PATRIOT 338/551 6.6 Description of the Manual Screen The Manual screen has several information items and function buttons. 1) In the upper left corner is the mode status showing if the bar feeder is in Manual or Automatic mode. 2) The current program number is displayed next to the mode status. 3) The Setup button is located in the upper right corner of the screen.

  • Page 113: Description Of The Automatic Screen

    PATRIOT 338/551 6.8 Description of the Automatic Screen 1) The AUTOMATIC screen has one function button to change to Manual mode and several information screens. 2) The top line shows the bar feeder mode status and the current program number. 3) The next line shows the position of the bar feeder from the zero position.

  • Page 114: Loading With The Bar On And Bar Off Buttons

    PATRIOT 338/551 6.9 Loading With the Bar On and Bar Off Buttons Caution do not use bar on if a bar is already in the bar feeder. Doing so will cause damage to the machine. A new bar can be loaded by using the BAR ON button. The lathe collet must be open for bar on to function.
  • Page 115 PATRIOT 338/551 Bar Off If the material in the channel is too long to drop through the remnant slot use the BAR OFF button. 1. Press BAR OFF. 2. The bar pusher will retract to the home position. 3. The grippers will close on the bar and the pusher will pull off the material. 4.

  • Page 116: Parameters And Program

    Certain parameter screens are accessible only with a password. If access to a password protected parameter is required an you don’t have the password contact Edge Technologies and speak with our service department. 7.1 Entering a New Program The Patriot can store up to 36 individual program setups.
  • Page 117 PATRIOT 338/551 The Patriot is capable of pushing and monitoring up to three separate distances per part by entering the individual feed distances in the Feedout 1, 2 and 3 parameters. The total value of the Feedout parameters should match the value in Part Length 1. Each Feedout parameter screen has a short and long feed safety setting to set allowable minimum and maximum pushing distances.
  • Page 118 PATRIOT 338/551 Check 1st Part: This parameter allows the long and short feed safety values to be disabled on the first part after switching the bar feeder to Automatic mode or for the first part after a bar change. 4. Press the Back button to return to the previous page when finished with this page. 5.
  • Page 119 PATRIOT 338/551 Facing Type: Selects the type of control of the bar pusher at the end of the bar change. Choices are facing to a hard stop on the lathe or facing to stop at a set position. Remnant Type: Selects the way the remnant is disposed of. Selections are Extraction, Ejection and Return and Wait.
  • Page 120 PATRIOT 338/551 Press the LOAD button to initialize the program. Press the EDIT button to make changes to the existing program, then press Save All to store the changes. REV 10:2019...

  • Page 121: Parameter

    PATRIOT 338/551 Parameter Page 1 PART LENGTH 1: Used with Max Feed Position to generate an end of bar signal. Calculate the proper setting by adding the Length of part + Width of cut-off tool + facing stock. End of bar is generated when the encoder reads the position (Max Feed Position –...

  • Page 122: Parameter Page 1.1

    PATRIOT 338/551 Parameter Page 1.1 Feedout 1: Used when making multiple feedouts per part. Feedout 1-1 is the first of 3 possible feedouts per part. Parameter is disabled if set to zero. Press the dimension button to set the length of the first feedout for fixed headstock lathes, or for the distance of headstock travel before the first re-grip on sliding headstock lathes.

  • Page 123: Parameter Page 1.2

    PATRIOT 338/551 Parameter Page 1.2 Feedout 2: Used when making multiple feedouts per part. Feedout 2 is the 2nd of 3 possible feedouts per part. Parameter is disabled if set to zero. Press the dimension button to set the length of the second feedout for fixed headstock lathes, or for the distance of headstock travel before the first re-grip on sliding headstock lathes.

  • Page 124: Parameter Page 1.3

    PATRIOT 338/551 Parameter Page 1.3 Feedout 3: Used when making multiple feedouts per part. Feedout 3 is the 3rd of 3 possible feedouts per part. Parameter is disabled if set to zero. Press the dimension button to set the length of the third feedout for fixed headstock lathes, or for the distance of headstock travel after the third re-grip on sliding headstock lathes.

  • Page 125: Parameter Page 2 (Option)

    PATRIOT 338/551 Parameter Page 2 (Option) This page may be hidden in the factory settings PART LENGTH 2: Used with Max Feed Position to generate second end of bar signal. This makes possible using the remnant to make shorter length parts after the end of bar signal is made.

  • Page 126: Parameter Page 2.1 (Option)

    PATRIOT 338/551 Parameter Page 2.1 (Option) This page may be hidden in the factory settings Feedout 1: Used when making multiple feedouts per part. Feedout 1-1 is the first of 3 possible feedouts per part. The parameter is disabled if set to zero. Press the dimension button to set the length of the first feedout for fixed headstock lathes, or for the distance of headstock travel before the first re-grip on sliding headstock lathes.

  • Page 127: Parameter Page 2.2 (Option)

    PATRIOT 338/551 Parameter Page 2.2 (Option) This page may be hidden in the factory settings Feedout 2: Used when making multiple feedouts per part. Feedout 2 is the 2nd of 3 possible feedouts per part. The parameter is disabled if set to zero. Press the dimension button to set the length of the second feedout for fixed headstock lathes, or for the distance of headstock travel before the first re-grip on sliding headstock lathes.

  • Page 128: Parameter Page 2.3 (Option)

    PATRIOT 338/551 Parameter Page 2.3 (Option) This page may be hidden in the factory settings Feedout 3: Used when making multiple feedouts per part. Feedout 3 is the 3rd of 3 possible feedouts per part. The parameter is disabled if set to zero. Press the dimension button to set the length of the third feedout for fixed headstock lathes, or for the distance of headstock travel after the third re-grip on sliding headstock lathes.

  • Page 129: Parameter Page 3 (Option)

    PATRIOT 338/551 Parameter Page 3 (Option) This page may be hidden in the factory settings Bar Diameter: Diameter of the material to be used. The control uses this information to set default values for the program. Facing Length: Stopping point of the material at the end of a bar change and bar on sequence. This dimension is the distance between the measuring flag and the desired stopping point of the material to be loaded.

  • Page 130: Parameter Page 4 (Option)

    PATRIOT 338/551 Parameter Page 4 (Option) This page may be hidden in the factory settings Open Collet Timeout: Allows for the lathe collet to be open when the bar feeder is in automatic for up to the number of seconds set in this parameter. If the length of time is exceeded an alarm is generated.

  • Page 131: Parameter Page 5 (Option)

    PATRIOT 338/551 Parameter Page 5 (Option) This page may be hidden in the factory settings Feeding Type: Selects the mode of feeding material in automatic. In feeding to a turret stop the bar feeder begins to push when the lathe collet opens and stops pushing when the lathe collet closes.

  • Page 132: Parameter Page 6 (Option)

    PATRIOT 338/551 Parameter Page 6 (Option) This page may be hidden in the factory settings MAVD Close After Opening Position: Enables or disables the moveable anti-vibration device from closing on the bar pusher after it has opened to allow the bar pusher collet to pass through. MAVD Opening Position: Sets the position for the moveable anti-vibration device open.

  • Page 133: Factory Parameter

    PATRIOT 338/551 Factory Parameter Page 11 Max. End Of Bar - Collet Fixed headstock lathes: Distance of bar pusher with the collet at the back of the gripping surface of the collet pads to the home position. Sliding headstock lathes: Distance of the bar pusher from the gripping surface of the collet pads when the lathe headstock forward to the guide bushing.

  • Page 134: Factory Parameter

    PATRIOT 338/551 Factory Parameter Page 12 First Feeding Distance: Sets the stopping point for the pre-feed pusher. Oil Pump Shutoff Distance: Sets the position from zero for the oil pump to turn off. MAVD Opening Position: Sets the position from zero that the movable anti-vibration device opens to allow the bar pusher to pass through.

  • Page 135: Factory Parameter

    (also called the fixed steady roller). Position should be set 1-2 inches before the pusher collet reaches the steady roller unit. 2nd Anti-Vibration Opening Position: Not used on the Patriot Series. 3rd Anti-Vibration Opening Position: Not used on the Patriot Series.

  • Page 136: Factory Parameter

    PATRIOT 338/551 Factory Parameter Page 14 End of Bar Type: Selects between different modes of generating the end of bar signal. Choices are: Off at Bar Change: Signal resets when the command “Bar Change” is received from the lathe. Pulse: Signal is a pulse for a duration set in the parameter End Of Bar Pulse on page 16. Latch: Signal comes on at the end of bar position and turns off when facing position is reached.

  • Page 137: Factory Parameter

    PATRIOT 338/551 Factory Parameter Page 15 Bar Change Return Delay: Sets a delay in seconds for the pusher to begin the return to home position after the bar change command is received. Cycle Start Delay: Sets a delay in seconds for the signal to the lathe that the bar change is complete to be sent.

  • Page 138: Factory Parameter

    PATRIOT 338/551 Factory Parameter Page 16 End Of Bar Pulse: Sets the length of time in seconds for the signal to remain on when the end of bar signal is set to pulse. Feed Confirm Pulse: Sets the length of time in seconds for the signal to remain on when the feed confirmation signal is set to pulse.

  • Page 139: Factory Parameter

    PATRIOT 338/551 Factory Parameter Page 17 Manual/Auto: Allows the bar feeder to accept the Manual / Automatic signal from the lathe as either a normally open or normally closed signal. Lathe Door Safety: Allows the bar feeder to accept the Lathe Door Open signal from the lathe as either a normally open or normally closed signal.

  • Page 140: Factory Parameter

    PATRIOT 338/551 Factory Parameter Page 18 Barfeed Alarm: Test button to check the operation of the output for Barfeed Alarm. Pressing the button will turn on output Y24 and relay R1. Barfeed Auto: Test button to check the operation of the output for Barfeed in Automatic. Pressing the button will turn on output Y25 and relay R2.

  • Page 141: Factory Parameter

    PATRIOT 338/551 Factory Parameter Page 19 Manual Feed: Provides visual aid to check the signal Manual Feed from the lathe. Button highlights when the signal is active. Input X16 will also be on. Manual Return: Provides visual aid to check the signal Manual Return from the lathe. Button highlights when the signal is active.

  • Page 142: Factory Parameter

    PATRIOT 338/551 Factory Parameter Page 20 User New Program Password: Sets a password to be required before access to write a new barfeeder program is allowed. Default password is 0. User Load Program Password: Sets a password to be required before access to load a new barfeeder program is allowed.

  • Page 143: Factory Parameter

    PATRIOT 338/551 Factory Parameter Page 21 User Page 2: Allows User Page 2 to be seen and accessed in User parameters when set to User Page 4: Allows User Page 4 to be seen and accessed in User parameters when set to User Page 5: Allows User Page 5 to be seen and accessed in User parameters when set to User Page 6: Allows User Page 6 to be seen and accessed in User parameters when set to Initial User Setup: Used to set up the user’s template for basic parameters.

  • Page 144: Factory Parameter

    PATRIOT 338/551 Factory Parameter Page 22 Bar Change Return Speed: Speed of the bar pusher as it retracts to the home position at the beginning of a bar change. Feed Speed 1: Speed of the pre-feed pusher as it advances until it reaches the slowdown position.

  • Page 145: Factory Parameter

    PATRIOT 338/551 Factory Parameter Page 23 Facing Speed 1: Forward speed of the bar pusher during the facing operation until it reaches the Facing Speed Slowdown Distance. Facing Speed 2: Forward speed of the bar pusher during the distance specified in the Facing Speed Slowdown Distance Parameter.

  • Page 146: Factory Parameter

    PATRIOT 338/551 Factory Parameter Page 24 Manual Forward Speed: Forward speed of the pusher and pre-feed pusher when commanded to move via the jog buttons or through the input for Manual Forward. Manual Forward Torque: Sets the amount of force developed by the clutch when moving the bar pusher forward in manual mode via the jog buttons or through the input for Manual Forward.

  • Page 147: Factory Parameter

    PATRIOT 338/551 Factory Parameter Page 25 Collet Close Speed: Speed of the bar pusher motor in automatic mode when the lathe collet is closed. Collet Close Torque: Sets the pushing force for the bar pusher when the bar feeder is in automatic mode and the lathe collet is closed.

  • Page 148: Factory Parameter

    PATRIOT 338/551 Factory Parameter Page 26 Pusher Back Off Tolerance: Sets an allowable distance for the bar pusher to move backward when the bar feeder is in automatic and the lathe collet is open. If the pusher moves backward in excess of the setting an alarm is generated. REV 10:2019...

  • Page 149: Maintenance

    PATRIOT 338/551 7. Maintenance 7.1 Maintenance Chart Warning prior to bar feeder maintenance turn off 3 phase power to the bar feeder and place the lathe into emergency stop Warning prior to pneumatic system service be sure to evacuate the system.

  • Page 150: Inspecting The Air Regulator

    PATRIOT 338/551 missing. Replace as required. Warning always use proper eye protection when working with compressed air systems. 7.1.3 Inspecting the air regulator  Check the bottle (B) for water.  Press button (C) to exhaust water out of bottle. Inspect for the following ...

  • Page 151: Troubleshooting

    8 Troubleshooting Caution troubleshooting and diagnosis of the bar feeder must be carried out by a trained and qualified technician. Contact Edge Technologies if a qualified technician is unavailable. The PLC monitors various systems with in the bar feeder. When problems are detected with in this system an alarm code will be displayed on the HMI.

  • Page 152: Alarm 01

    PATRIOT 338/551 Material feeding failure Situation Cause Solution Material can't feed into the The center of the bar feeder Re-adjust the alignment spindle smoothly and the lathe isn't correct Material can't feed into the The front of the material is too Chamfering before loading chuck of the lathe smoothly rough.

  • Page 153: Alarm 03

    PATRIOT 338/551 -K41 not energized. -Torque setting exceeded- Reduce the Open Collet Torque on User Parameter page 3. -Max torque on time exceeded- Reduce the length of time the lathe collet is open when the bar feeder is in automatic. -Inverter Alarm.

  • Page 154: Alarm 06

    PATRIOT 338/551 -Check Air Pressure 6-8 Bar- If the pressure is low; adjust the regulator to increase setting. -Check the incoming pressure to the bar feeder- Observe the pressure gauge while the bar feeder operates. A rapid decrease in pressure as an air cylinder operates may indicate low volume.

  • Page 155: Alarm 10

    PATRIOT 338/551 -Check collet ID size is correct size- Check the collapsed ID of the collet. -Check air cylinder for operation- Operate the pusher shuttle without material in the collet to check for proper operation. -Check air valve for operation- Operate the pusher shuttle without material in the collet to check for proper operation.
  • Page 156 PATRIOT 338/551 -Not enough air pressure to lift channel- Check the air pressure gauge. Increase pressure with the regulator if necessary. -Bind in channel opening mechanism- Check for loose channel sections, alignment of pusher flag in opening, attachment of the air cylinder to the upper channel mechanism. -Pusher flag not lined up with opening- Cycle the pusher shuttle.

  • Page 157: Alarm 12

    PATRIOT 338/551 -Move material outside of gripper area- Before the channel can open the gripper’s first check for material in the grippers. If a bar is present it must be moved forward so the grippers will not close on it. -Gripper sensor not detected- Check the proximity switch on the gripper unit.

  • Page 158: Alarm 14

    PATRIOT 338/551 -Rezero barfeed- Start with the guide channel closed and the pusher forward about 12 inches. Press and hold the forward and reverse buttons on the pendant. After 8 seconds the pusher will begin to move backward. Release the buttons. The pusher will move back to the proximity switch for zero and then stop.

  • Page 159: Alarm 16

    PATRIOT 338/551 -Check pusher position- The zero proximity switch must be on, the pusher position should read near 0. -Check zero proximity switch- Move the pusher back and forward under the zero proximity switch and check that the LED lights, check input X2 - it should light when the proximity switch lights.

  • Page 160: Alarm 17

    PATRIOT 338/551 -Check pusher position- The zero proximity switch must be on, the pusher position should read near 0. -Check extraction proximity switch- Verify proximity switch PS3 is on, verify input X3 is on. -Check zero proximity switch- Move the pusher back and forward under the zero proximity switch and check that the LED lights, check input X2 - it should light when the proximity switch lights.

  • Page 161: Alarm 22

    PATRIOT 338/551 -Pusher could not return to home sensor within the time allotted- Check pusher flag for damage, check bar pusher for protruding roll pins. -Check for pusher impedance in channel- Verify that channels are free of debris and are securely locked in place.

  • Page 162: Alarm 25

    PATRIOT 338/551 -Check collet position on lathe- Verify state of the lathe collet and compare to the bar feeder screen to see if they match. -Check interface- See interface drawing specific to the lathe, check connections for the collet open signal. -Check input on PLC (X23)- The input should toggle on and off with the opening and closing of the lathe collet.

  • Page 163: Alarm 27

    PATRIOT 338/551 -Check spindle for steps that catch bar. -Check prefeed distance parameter- Setting should place the rear of the bar to rest slightly on the edge of the channel so the pusher collet will clear the bar when the channel closes. -Rotate the lathe spindle during the bar change- If possible, rotate the lathe spindle at 50 –...

  • Page 164: Alarm 29

    PATRIOT 338/551 -Check signal from lathe- Switch the lathe from Auto to Manual modes and check the signal to the bar feeder. -Check X32 input on PLC- The X32 input changes state with the mode of the lathe. -Leave lathe in auto during bar change- Some lathes must be left in cycle to maintain the automatic signal.

  • Page 165: Alarm 31

    PATRIOT 338/551 -Material feed out longer that setting in parameter- Tighten the pusher drive chain. Verify the pusher collet is fully seated on the material. -Set long feed value longer than feed out for part- The value should be set at least 1mm longer than the part feed out.

  • Page 166: Alarm 34

    PATRIOT 338/551 -Material feed out shorter than setting in parameter- Check open collet torque setting. Check lathe collet/spindle for debris. Check for impedance to the bar pusher. -Set short feed value shorter than feed out needed for part- The value should be set at least 1mm shorter than the part feed out.

  • Page 167: Alarm 37

    PATRIOT 338/551 -Material feed out longer that setting in parameter- Tighten the pusher drive chain. Verify the pusher collet is fully seated on the material. -Set long feed value longer than feed out for part- The value should be set at least 1mm longer than the part feed out.

  • Page 168: Alarm 40

    PATRIOT 338/551 -Material feed out shorter than setting in parameter- Check open collet torque setting. Check lathe collet/spindle for debris. Check for impedance to the bar pusher. -Set short feed value shorter than feed out needed for part- The value should be set at least 1mm shorter than the part feed out.

  • Page 169: Alarm 43

    PATRIOT 338/551 -Close hood before start of bar change or channel open/close- The safety switch on the hood sends a signal to the PLC input X21. Check the switch to make sure it is connected. -Check input on PLC (X21)- Observe input X21 while opening and closing the hood. The input should change state with the motion of the hood.

  • Page 170: Alarm 46

    PATRIOT 338/551 -Close the lathe door- Verify that the lathe door is closed and the safety switches are enabled. -Check input X37- The input should turn on and off with the door opening and closing. -Load bar into barfeed- Place material on the bar feeder magazine before the bar change begins.

  • Page 171: Alarm 51

    PATRIOT 338/551 -Check S2 switch is on- Verify that the LED of the PS2 switch is on when the pusher reaches the home position and that input X2 is on when the LED of PS2 is on. -Rezero Barfeed- Start with the guide channel closed and the pusher forward about 12 inches. Press and hold the forward and reverse buttons on the pendant.
  • Page 172 PATRIOT 338/551 REV 10:2019...

  • Page 173: Resetting Emergency Stop Safety Interlocks (Essi)

    PATRIOT 338/551 Resetting Emergency Stop Safety interlocks (ESSI) Caution the emergency stop switches must be set correctly to keep lathe and bar feeder from crashing together. Caution all covers must be in place once adjustments have been made Caution the reset procedure requires proper training to do so. In the event of operating the lathe headstock and bar feed outside the intended design envelop, will cause a bar feed safety interlock to engage.

  • Page 174: Patriot Setting Of The S2 And S3 Sensor Plate

    PATRIOT 338/551 Patriot Setting of the S2 and S3 Sensor Plate Warning remove electrical power and pneumatic air from lathe and bar feeder prior to setting or checking the S2 and S3 sensor plate. A nominal value to use when setting the plate is 52.75mm from the vertical bar feeder plate to the rear edge.
  • Page 175 Patriot Parameter Record Customer: HMI Version Bar feeder Model: S/N: Lathe Model: S/N: Service Technician: PLC Version Date: Distance From Lathe: Center Height: Pg. 1 Pg. 1-1 Part Length 1 Feedout 1-1 Feedout 1-1 Short Feed Safety Feedout 1-2 Long Feed Safety Feedout 1-3 Check 1 Part:...
  • Page 176 Patriot Parameter Record Pg. 3 Pg. 4 Bar Diameter Open Collet Timeout sec0-60 Facing Length Close Collet Timeout sec0-60 Collet / Chuck Collet Chuck Open Collet Push Delay sec0-10 mm/sec in/min Open Collet Speed Close Collet Push Delay sec0-10 Open Collet Torque Pg.
  • Page 177 Patriot Parameter Record Pg. 13 AVD Opening Position Intentional left blank AVD Opening Position AVD Opening Position AVD Opening Position Pg. 14 End of Bar Type: Off at Bar Change Pulse Latch Double Pulse Feed Confirm Signal: Not Used Finished Feeding Start Feeding During Feeding Pusher Feed Direction;...
  • Page 178 Patriot Parameter Record Pg. 20 Pg. 21 Note switch HMI to settings below User New Program Password 0000 User Page 2 User Load Program Password 0000 User Page 3 User Edit Program Password 0000 User Page 4 Factory Password 0000 User Page 5 User Page 6 Initial User Setup...
  • Page 272 OPERATIONS MANUAL OPERATIONS MANUAL Technical data subject to change without notice EDGE TECHNOLOGIES PRODUCTIVITY SOLUTIONS PROVIDER 11600 ADIE ROAD MARYLAND HEIGHTS, MO 63043 314.692.8388 f 314.692.5152 www.edgetechnologies.com...

This manual is also suitable for:

Patriot 338Patriot 551

Table of Contents

Save PDF
