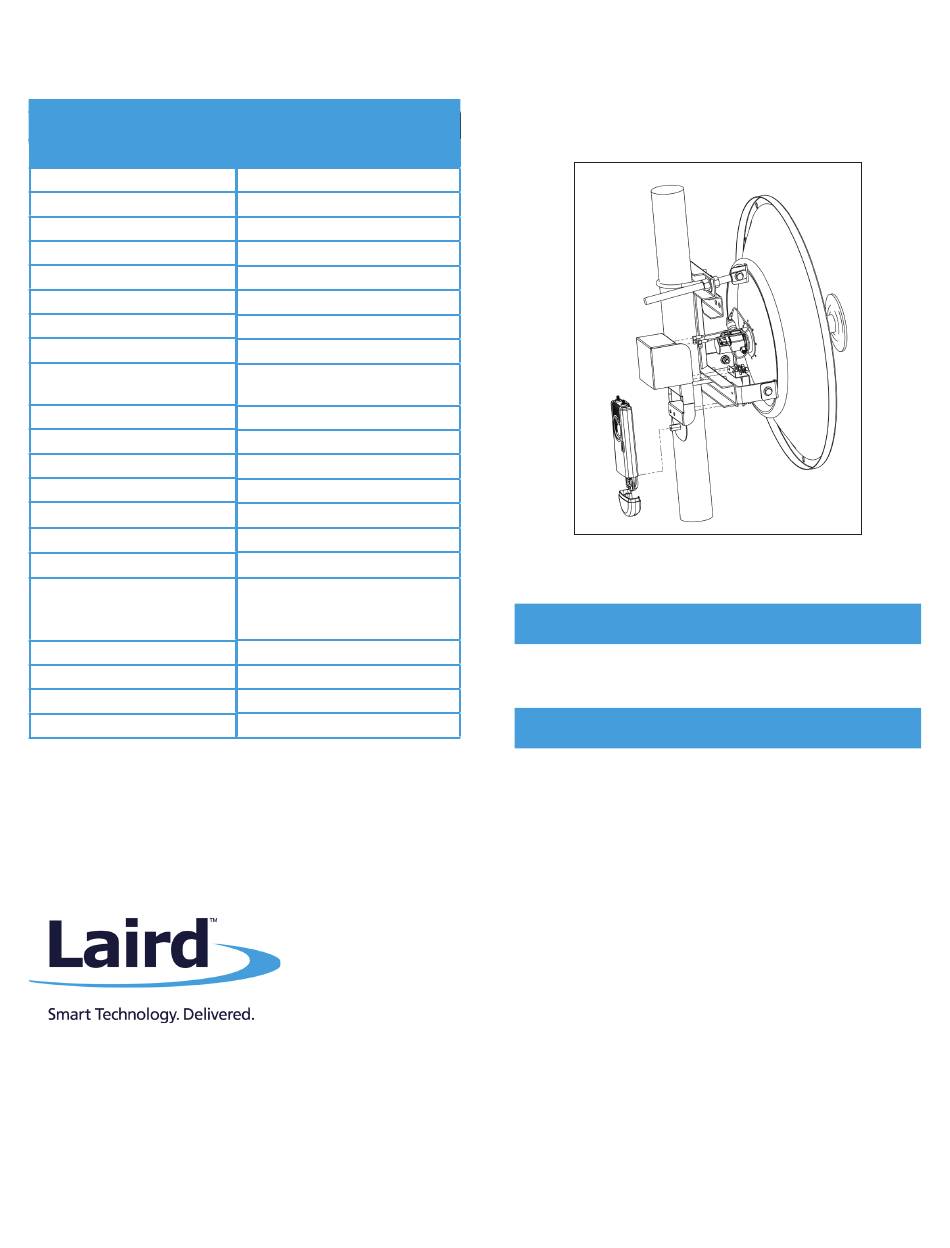

Laird HDDA5W Series Assembly And Installation Instructions

SPECIFICATIONS
Model
Frequency (MHz)
Gain (dBi)
VSWR
Beamwidth E Plane (Typ)
Beamwidth H Plane (Typ)
Port Isolation (dB)
Front-to-Back Ratio (dB)
Polarization
Maximum Input Power
@25°C
Input Impedance
Mechanical Size
Mechanical Tilt
Antenna Weight
Antenna Connector
Finish
Radome (optional)
Pole Mounting Hardware
Temperature
Lightning Protection
Ingress Protection (feed)
RoHS Compliant
Americas: +1.847 839.6925
IAS-AmericasSales@lairdtech.com
Europe: +44.1628.858941
IAS-EUSales@lairdtech.com
Asia:
IAS-AsiaSales@lairdtech.com
Middle East and Africa: +44.1628.858941
IAS-MEAUSales@lairdtech.com
www.lairdtech.com
HDDA5W-XX-XXX
4900-5875 MHz
29
<1.8:1
6°
6°
> 30
> 32
Dual Linear
100W per port
50 Ohms
See drawing
+5 / -30°
9.0 Kg
2x N-type Female
Polyurethane, gray
Fiberglass, gray
Tilt Mounting Kit for 50.0 mm
[2.0"] to 115.0 mm
[4.5"] Dia Mast
-40°C to +85°C
DC grounded
IP67
Compliant
HDDA5W-XX-XXX
4900-5875 MHz
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
Please read all instructions carefully before attempting
to install this product.
SAFETY
The antennas and all associated equipment should be installed in
accordance with all applicable local and national electrical code
guidelines to ensure safe operation.
INSTALLATION
1. Assemble your new antenna on the ground at the installation
site. Keep separate assembly instructions that come with it. Large
CB and Ameteur beams may have to be finally assembled on the
lower or mast.
2. On the ground, clamp the antenna to mast and connect the
coaxial cable to the antenna.
3. Refer to manual 931525 included with the dish antenna for
proper mast installation and safety precautions.
4. Install selected mounting bracket.
5. If you are going to use guy wire installation instead of a
mounting bracket:
a. Install guy anchor bolts
b. Estimate length of guy wire and out
c. Attach a mast using guy ring
165-00278_AA
