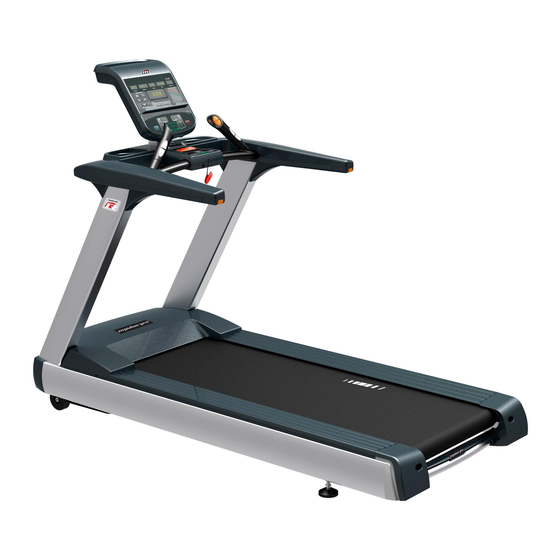

Impulse RT700 Owner's Manual
  1. Manuals
  2. Brands
  3. Impulse Manuals
  4. Treadmill
  5. RT700
  6. Owner's manual

Impulse RT700 Owner's Manual

Hide thumbs Also See for RT700:

Advertisement

Table of Contents

RT700
Treadmill
Owner's Manual
220V 19Q Rev K
CAUTION! Read all precautions and instructions in this manual
before using this equipment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RT700 and is the answer not in the manual?

Questions and answers

Related Manuals for Impulse RT700

Summary of Contents for Impulse RT700

  • Page 1 RT700 Treadmill Owner's Manual 220V 19Q Rev K CAUTION! Read all precautions and instructions in this manual before using this equipment.

  • Page 2: Table Of Contents

    ! CAUTION Read all precautions and instructions in this manual before using this equipment. Table Of Contents Important Safety Instructions-------------------------------------------------------------------- 3 Before You Start-------------------------------------------------------------------------------------- 6 Main Parts List---------------------------------------------------------------------------------------- 7 Warning------------------------------------------------------------------------------------------------ 8 Using Method---------------------------------------------------------------------------------------- 9 Warm Up Exercises--------------------------------------------------------------------------------- 10 Power Requirements------------------------------------------------------------------------------ 11 Console Information------------------------------------------------------------------------------- 12 Moving Instructions------------------------------------------------------------------------------- 13 Parts List and Exploded View-------------------------------------------------------------------- 14...

  • Page 3: Important Safety Instructions

    Impor tant Safety Instructions IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this Treadmill: DANGER - To reduce the risk of electric shock: 1. Always unplug this appliance from the electrical outlet immediately after using and before cleaning.
  • Page 4 Impor tant Safety Instructions 9. Never drop or insert any object into any opening. 10. Do not use outdoors. 11. Do not operate where aerosol (spray) products are being used or where oxygen is being administered. 12. To disconnect, turn all controls to the off position, then remove plug from outlet.
  • Page 5 Impor tant Safety Instructions CAUTION - Risk of Injury to Persons - To Avoid Injury, use extreme caution when stepping onto or off of a moving belt. Read Instruction Manual Before Using. ATTENTION - Risque des blessures aux personnes - Pour éviter des blessures, avec une extrême prudence en marchant sur ou hors d'une ceinture mobile.

  • Page 6: Before You Start

    Before You Star t Remember to take the time to review owner's manuals before you start. 1. Before using this treadmill or starting any exercise program, consult your physician and accompanied by specialized person. Adjust the speed not over 8KMH. 2.

  • Page 7: Main Parts List

    Main parts list ─ 7 ─...

  • Page 8: Warning

    War ning Before using this treadmill or starting any exercise program, It is important to review this manual and the following precautions. Power switch WARNING 1. Always unplug the treadmill after using to keep the life of treadmill and avoid any risk of injuries.

  • Page 9: Using Method

    Using Method Please read carefully and using follow the functions: 1. put the plug in the socket, turn on the switch. 2. grasp the handle firmly, stand on the treadmill. 3. Push red safety switch into the casing, tie the safety clip to your cloth, then start the treadmill for exercise.

  • Page 10: Warm Up Exercises

    War m Up Exercises EXERCISE GUIDELINES WARNING! Before beginning this or any exercise program, you should consult your physician. This is especially important for individuals over the age of 35 or individuals with pre-existing health problems. Warming up prepares the body for the exercise by increasing circulation, supplying more oxygen to the muscles and raising body temperature.

  • Page 11: Power Requirements

    Power Requirements IMPROPER CONNECTION OF THE EQUIPMENT GROUNDING CONNECTOR CAN RESULT IN A RISK OF AN ELECTRIC SHOCK. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE MAN IF YOU ARE IN DOUBT AS TO WHETHER THE PRODUCT IS PROPERLY GROUNDED. DO NOT MODIFY THE PLUG PROVIDED WITH THE PRODUCT.

  • Page 12: Console Information

    Console Infor mation Before beginning your workout, check your normal resting heart rate. Place your fingers lightly against your neck, or against your wrist over the main artery. After finding your pulse, count the number of beats in 10 seconds. Multiply the number of beats by six to determine your pulse rate per minute.

  • Page 13: Moving Instructions

    Moving Instructions Caution! To avoid the risk of injury, never attempt to move the treadmill while it is operating. To reduce the possibility of injury while lifting, bend your legs and keep your back straight. As you raise the treadmill, lift using your legs, not your back. In order to raise or lower the treadmill safely, you must be able to lift 220 pounds (100kg).

  • Page 14: Parts List And Exploded View

    Parts List and Exploded View Installation Instructions Part No. Description Grade No. Item No. RT700H01ASSY Console Frame Assembly RT7000200 Left Upright RT7000300 Right Upright RT700K04-22WXASSY Mainframe 4.35 RT7002000 Motor Cover 4.50 GB70M6*20DHS20 Socket Head Cap Screw M6*20 RT700HDZBASSY Console Component RT7004300 Left Routing Cover RT7004400...
  • Page 15 Parts List and Exploded View Installation Instructions ─ 15 ─...
  • Page 16 Parts List and Exploded View Console Component Part No. Description Item No. Grade No. B107H Console Pcb GB818M4*10DHS2 Phillip Screw M4*10 GB845ST2.9*9.5DS Phillip Screw ST2.9*9.5 GB845ST4.2*16DS Phillip Screw ST4.2*16 L190XHB-SMA-7 Joint Wire 2 L260VHR-SMA-2 12 Voltage Power Wire L260XHB-SMA-4 Joint Wire 1 L300XHB-SMA-12 Joint Wire 3 PR3003000...
  • Page 17 Parts List and Exploded View Console Frame Assembly Item No. Grade No. Part No. Description RT7000100 Console Frame GB17880.3M8*16.5DS17 Countersunk head hexagon riveted nuts M8 GB17880.3M5*13DS17 Countersunk head hexagon riveted nuts M5 RT7000800 Console Plate Frame RT7001600V1 Middle Z Fixing Plate RT90012ASSY Handle Assembly Washer Φ9*Φ22*2...
  • Page 18 Parts List and Exploded View Console Frame Assembly Grade No. Item No. Part No. Description Serrated lock washers Φ4 1.39 GB862.24DS12 1.40 GB6560M4*8DSG Phillip Screw M4*8 1.41 RT7004700 Cup Holder 1.42 GB845ST4.2*50DHS Phillip Screw ST4.2*50 1.43 RT700H08ASSY A-ZONE Up Cover Assembly 1.44 RT7005500 A-ZONE Down Cover...
  • Page 19 Parts List and Exploded View Deck Frame and Inverter Frame Assembly Part No. Description Grade No. Item No. 4.1.1 RT700H0400 Deck Frame 4.1.2 STDP3400 Adjust Support 4.1.3 RT75005ASSY Inverter Frame ASSY 4.1.4 RT7001900 Hex Head Bolt M10*130 4.1.5 R37-22Y-RDS Actuator 4.1.6 GB6177M16DS2 Hex flange nut M16...
  • Page 20 Parts List and Exploded View Mainframe Grade No. Part No. Description Item No. RT700H03-22ASSY Deck Frame and Inverter Frame Assembly Washer Φ30*Φ9*3 AC32700636 PT3002800P294U Bumper A PT3002900P294U Bumper B AC3170B5200 Bumper RT7501000V1 Dust Proof Plate RT3002400V1 Deck RT7501700 Running Belt DXD270J12A V-Belt 4.10...
  • Page 21 Parts List and Exploded View Mainframe Grade No. Part No. Description Item No. 4.37 STDP6800 Locknut M8 4.38 GB17880.5M6*16.5DS17 Flat head hexagon riveted nuts M6 4.39 GB17880.3M6*15DS17 Countersunk head hexagon riveted nuts M6 4.40 NM8DS2 Locknut M8 4.41 GB845ST4.2*13DS Phillip Screw ST4.2*13 Hexagon socket countersunk head cap head screw M8*35 4.42 CNLM8*35DHS20NL...
  • Page 22 Parts List and Exploded View Mainframe ─ 22 ─...
  • Page 23 Parts List and Exploded View Inverter Frame ASSY Part No. Description Grade No. Item No. 4.1.3.1 RT7500500 Inverter Frame 4.1.3.2 L1-6800 Neck bush 4.1.3.3 IN-B75052000 Ground bumper 4.1.3.4 DC29002200 Wheel 4.1.3.5 GB17880.3M5*13DS17 Countersunk head hexagon riveted nuts M5 4.1.3.6 GB818M5*20DS2 Phillip Screw M5*20 Adjust Washer Φ25 4.1.3.7...
  • Page 24 Parts List and Exploded View A-ZONE Up Cover Assembly Part No. Description Grade No. Item No. 1.43.1 RT7005400V1 A-ZONE Up Cover 1.43.2 RT7006300 A-ZONE Insert 1.43.3 RT7005700 Fan Key 1.43.4 RT7005800 COOL DOWN\PAUSE Key 1.43.5 Key PCB 1.43.6 GB845ST2.9*6.5DS Phillip Screw ST2.9*6.5 1.43.7 GB845ST2.9*9.5DS Phillip Screw ST2.9*9.5...
  • Page 25 Parts List and Exploded View A-ZONE Up Cover Assembly ─ 25 ─...
  • Page 26 Parts List and Exploded View Handle Assembly Part No. Description Grade No. Item No. 1.6.1 L1000ST0-XHB-4 Pulse Connect Wire 1.6.2 RT7000600 Left Handle Frame 1.6.3 X12L Pulse Plate Left Cover 1.6.4 X12RV1 Left Cover W/ Pulse Plate 1.6.5 X12T Pulse Plate Top Cover 1.6.6 X17K Incline Key...
  • Page 27 Parts List and Exploded View Fan Assembly Part No. Description Item No. Grade No. 1.27.1 RT7004100 Fan Fixing Plate 1.27.2 GB17880.3M5*13DS17 Countersunk head hexagon riveted nuts M5 1.27.3 GB818M4*40DS2 Phillip Screw M4*40 1.27.4 GB41M4DS2 Hex nut M4 1.27.5 ─ 27 ─...
  • Page 28 Parts List and Exploded View Switch Cover ASSY Part No. Description Item No. Grade No. 4.22.1 RT7003000 Switch Cover 4.22.2 Power Switch 4.22.3 Power Outlet 4.22.4 08-0004 Fuse 4.22.5 GB41M3DS2 Nut M3 4.22.6 GB818M3*10DS2 Phillip Screw M3*10 4.22.7 L350AMP175022-JD-1 Earth Wire 4.22.8 L100AMP175022-1-L-14 Connect Wire...
  • Page 29 Parts List and Exploded View Left Side Rail Assembly Part No. Description Grade No. Item No. 4.23.1 RT7007200 Left Side Rail 4.23.2 RT7007400 Frame for Left Side Rail 4.23.3 PT300H5200 Single Sided Adhesive 4.23.4 GB17880.5M8*16.5DCS17 Flat head hexagon riveted nuts M8 Right Side Rail Assembly Part No.

  • Page 30: Console Panel Functions

    Console Panel Functions ─ 30 ─...
  • Page 31 Console Panel Functions INPUT VOLTGAE: 220-240V~ 50/60Hz RATED POWER: 3100W SPEED RANGE: 1.0-25KPH INCLINE RANGE: 0-15% SPEED, TIME, PULSE, INCLINE, STEPS, DISPLAY: CALORIE, DISTANCE, DOT MATRIX CONSOLE PANEL FUNCTION 1. TIME WINDOW Indicates elapsed time after pressing start in minutes and seconds (0-99minutes, 0-59seconds).
  • Page 32 Console Panel Functions 8.3 Indicates message when enter value. 8.4 Indicates workout curve in Program mode. CONSOLE BUTTONS 1. START This button is used to start the current program. 2. STOP Press once, Speed drop to 0, every other window remains un-changed. Hold for 3 seconds, console resets.
  • Page 33 Console Panel Functions 12. TARGET ONE TOUCH This button is used to select workout "target mode". 13. COOLDOWN This button is used select workout "cool down mode". 14. DELETE (▲) BUTTON This button is used delete data. 15. FAN BUTTON Turn on and turn off the fan and adjust the fan speed.
  • Page 34 Console Panel Functions 2.1.8 Press OK or QUICK START to confirm; 2.1.9 Top time LED updates; 2.1.10 LED displays "3", "2", "1"; 2.1.11 Belt starts moving. 2.2 If Cardio is selected 2.2.1 LED scrolls "CARDIO MODE: ENTER WEIGHT"; 2.2.2 LED displays "70"; 2.2.3 Uses speed keys or Speed adjustment keys: "+"...
  • Page 35 Console Panel Functions 2.3.12 Uses speed keys or Speed adjustment keys: "+" or "-" to adjust the default value; 2.3.13 Press OK to confirm; 2.3.14 LED scrolls "ENTER UPPER SPEED LIMIT"; 2.3.15 LED displays "10"; 2.3.16 Uses speed keys or Speed adjustment keys: "+" or "-" to adjust the default value;...
  • Page 36 Console Panel Functions 2.5.1.6 LED displays "20"; 2.5.1.7 Uses speed keys or Speed "+" or "-" keys to adjust the default value; 2.5.1.8 Press OK to confirm; 2.5.1.9 LED scrolls "ENTER AGE"; 2.5.1.10 LED displays "40"; 2.5.1.11 Uses speed keys or Speed adjustment keys: "+" or "-" to adjust the default value;...
  • Page 37 Console Panel Functions 2.6.2 If 2 is selected; 2.6.2.1 LED scrolls "DISTANCE TARGET: ENTER DISTANCE"; 2.6.2.2 LED displays "5KM"; 2.6.2.3 Uses speed keys or Speed adjustment keys: "+" or "-" to adjust the default value; 2.6.2.4 Press OK or QUICK START to confirm; 2.6.2.5 LED displays "3", "2", "1";...
  • Page 38 Console Panel Functions 2.7.2.1 IF 1 IS SELECTED, LED DISPLAYS "3", "2", "1", BELT STARTS MOVING; 2.7.2.2 IF 2 IS SELECTED, LED DISPLAYS "3", "2", "1", BELT STARTS MOVING; 2.7.2.3 IF 3 IS SELECTED; (1) LED SCROLLS "CUSTOM DISTANCE: ENTER DISTANCE"; (2) LED DISPLAYS "5KM";...
  • Page 39 Console Panel Functions 3.3 Safe-key Error message: ER03 3.3.1 Check safe-key button; 3.3.2 Check cable of safe-key; 3.3.3 Replace safe-key PCB; 3.3.4 Replace console. 3.4 Over current message: ER04 3.4.1 Add silicon to run belt and board; 3.4.2 Replace inverter; 3.4.3 Replace motor.

  • Page 40: Electrical Connection

    Electrical Connection ─ 40 ─...

  • Page 41: Belt Adjustment And Maintenance

    Belt Adjustment and Maintenance 1. Running Belt Adjustment Caution Over-tightening of the roller will severely shorten the life of the running belt and may cause further damage to other components (such as Roller, Motor etc.). Speed of Running Belt don't exceed 4KMH, during adjustment. 1.1 Adjust Running Belt in center of treadmill Running belt is possible off normal while using for period of time or just use a new treadmill, solution of two situations are as following:...
  • Page 42 Belt Adjustment and Maintenance 2. CLEANING Warning! To prevent electrical shock, be sure the power is turn off and disconnect plug from socket before attempting any cleaning or mainteance. Routine maintenance and cleaning for your unit will keep good function and extend the life of your unit.

  • Page 43: Maintenance Check List

    Maintenance Check List Safety Switch ─ 43 ─...
