Notes :
MT04-001 AquariTherm Tap (Manual)
Page 4
Page 8
www.dartvalley.co.uk

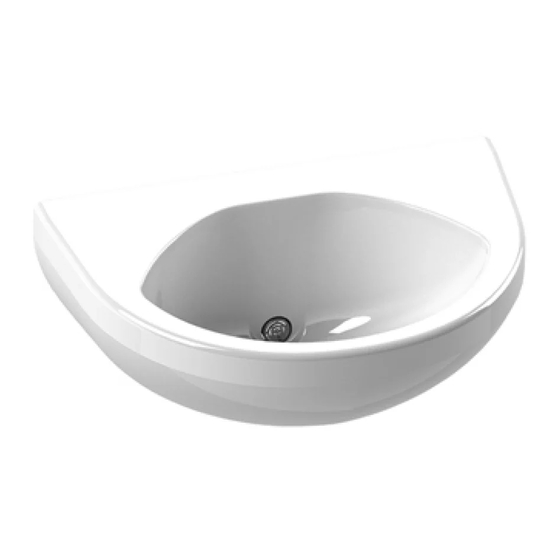

Safe Ensuite Low Profile Basin
Installation instructions
VR01-081 - NTH
VR01-082 - 1TH L
VR01-083 - 1TH R
VR01-084 - 2TH
Step 1 : Safety first
These instructions relate to the use of the Low Profile Basin,
any external or 'add-on' parts will be supplied with separate
instructions.
IMPORTANT : Please read these instructions carefully
and follow each stage in order!
The supplied fixing kit is suitable for fixing the basin on up to
250mm wall thicknesses.
For fixing kits suitable for wall thicknesses deeper than 250mm,
P.O.A.
Dart Valley Systems Ltd | Kemmings Close | Long Road | Paignton | Devon | TQ4 7TW | UK
t +44 (0)1803 529021 | f +44 (0)1803 559016 | techsupport@dartvalley.co.uk | www.dartvalley.co.uk
Step 2 : Parts (Supplied)
VR01-081* (basin)
Waste grid
Waste bung
1¼" plastic
VR01-032 (x1)
VR01-033 (x1)
male iron
PP00-123 (x1)
Fixing Kit
VR01-021
M12 Square
M12 hex nut
M12 All thread
Drilling template
washer (x4)
(x4)
(x4)
