- Page 1 MVP9104 Users’ Manual Multi-viewer Model: MVP9104 VER 2.1 Website: www.devicewell.com Email: support@devicewell.cn...
-
Page 2: Precautions
MVP9104 About this device: Copyright: ●This device belongs to the When using this unit for video and/or audio switching, publishing over the Internet, or the high-frequency video processing like, in some cases it may be necessary to equipment. Therefore, please strictly... -
Page 3: Table Of Contents
MVP9104 Contents Precautions ..........................2 Overview ........................... 4 Product Introduction ................... 4 Equipment Unpacking ....................... 5 Size ........................5 Preparation Before Installation ..................6 Interface Specification ....................... 7 Interface Introduction ..................7 Interface Parameters ................... 8 Function Features ......................10 Control Panel &... -
Page 4: Overview
1. Overview 1.1 Product Introduction DeviceWell SDI 4-Screen MVP9104 is a professional-grade multi-picture multi-viewer, which supports 4-CH SDI input, 4-CH SDI loop output, 2-CH SDI multi-screen output, and 1-CH HDMI multi-screen output. The device is configured through the keypad, and supports single-screen full-screen, PIP, POP, and four-screen segmentation. -
Page 5: Equipment Unpacking
MVP9104 2. Equipment Unpacking When unpacking inspection, if the sealing label or packaging is found to be damaged, stop unpacking and report the situation to the equipment dealer. If the quantity of the goods is correct and the packaging is intact, the goods can be inspected. -
Page 6: Preparation Before Installation
MVP9104 Preparation Before Installation Caution ●During transportation, handling, and installation of the equipment, avoid collisions between the equipment and doors, walls, shelves, etc. ●When the equipment is unpacked and transported, it is strictly forbidden to put it down and drag it gently to avoid damage to the equipment. -
Page 7: Interface Specification

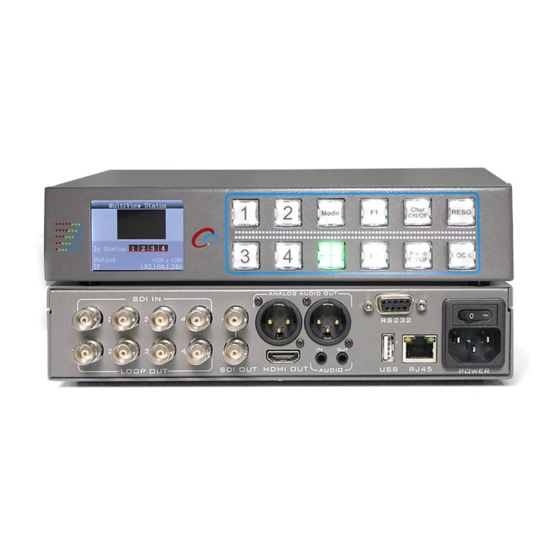

MVP9104 4. Interface Specification Interface Introduction DeviceWell MVP9104 interface is shown below. Difinition Description System information and settings SDI IN SDI input SDI OUT SDI Loop output SDI OUT Multi-screen split output HDMI OUT Multi-screen split output Headphone Holder Reserved... -
Page 8: Interface Parameters
MVP9104 Interface Parameters Name MVP9104 SDI 4- Screen Multi-viewer Input Signal SDI HD serial digital video signal Rate 143Mbps~2.97Gbps Connector BNC complies with IEC169-8 Reflection loss >15dB 5MHz~3GHz SDI Input Signal amplitude 800mV± 10% 75Ω Impedance 100m Belden 1694A HD... - Page 9 MVP9104 1 set of XLR balanced audio cannon input/1 channel analog Input audio input Output 1 channel analog audio output AUDIO Response frequency 550-3.6KHz, < +/-3dB < 3% > 50dB Local control button (front panel) Serial control RS232 Control Connection port...
-
Page 10: Function Features
MVP9104 5. Function Features 6. Input OSD, audio column display 1. Half 1U body design, can be a single device on the rack, or two devices can be assembled into a 7. Output port: SDI × 4 loop output; SDI × 2 / standard 1U. -
Page 11: Control Panel & Interface Definition
In addition to the innovation of the case, the HD SDI 4-screen MVP9104 has also been completely optimized for the interface connector. Environmentally friendly materials with new RoHS standards are more demanding in terms of durability and environmental protection, providing customers with more stable, cost-effective and environmentally friendly products. -
Page 12: Button Definition
MVP9104 6.1.2 Button Definition The button is as shown below: The button below is the multi-screen split output mode selection. Audio column switch Character switch Resolution switching Key lock Buttons F1 and F2 are reserved function keys Note: The above picture belongs to the composite picture; the actual button is subject to the actual object. -
Page 13: Operating Instructions
MVP9104 7. Operating instructions Control panel operation When the button is pressed, the button will light green to indicate that the device is displaying the button mode. When the button is pressed, the output image is the single-screen full-screen image of input channel 1, and so on. - Page 14 MVP9104 When the button is pressed, the output image is displayed in full screen on four screens. The effect is as follows: Press to switch the output resolution; When pressed, the device enters the locked state. At this time, pressing other buttons is invalid.
-
Page 15: Software Control
MVP9104 Software Control 1．Open the software The main interface is as shown below 2．Search device The factory default IP of the device is 192.168.1.218, so you need to ensure that the network field of the PC running the software is 192.168.1.X. - Page 16 MVP9104 If the search fails, the list shows No device, which may be the following two reasons. 2.1 The network field of the PC is inconsistent with the network field of the device. 2.2 If you are using a laptop, you can disable the wireless network card of the laptop, change the connection method of the network cable, and then try to search.
-
Page 17: Failure And Maintenance
MVP9104 8. Failure and 8.1 Common Faults and Solutions (1) The output image is disturbed and may be disturbed by other devices. (2) When plugging in the audio and video interface, if there is obvious static electricity, the device power ground wire may not be good grounding, please ground in the correct way;... - Page 18 MVP9104 http://www.devicewell.com Website: www.devicewell.com Email: support@devicewell.cn...
