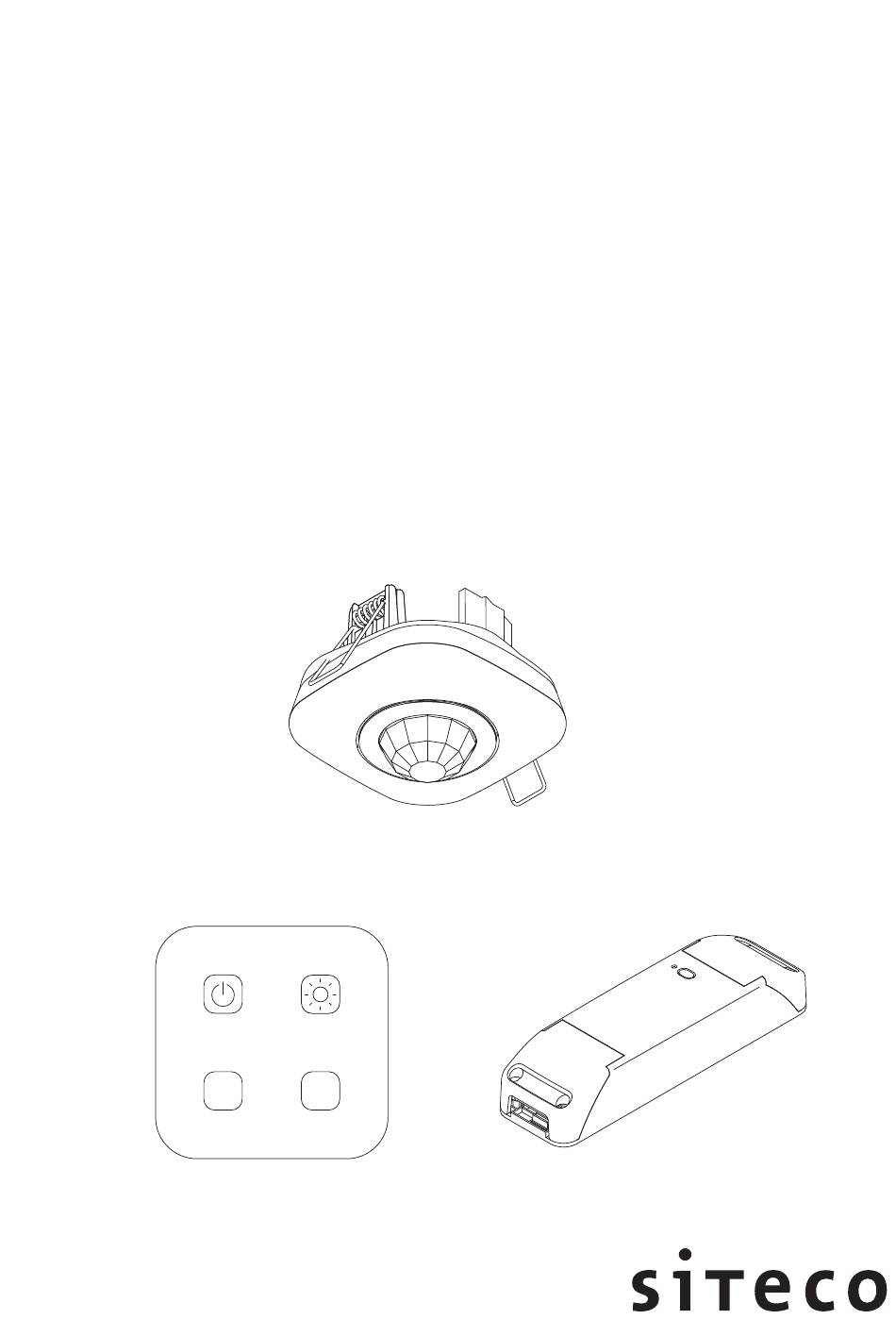

- Page 1 Siteco Connect 31 5LZ910MDL401 - MOVE 5LZ910W1 . 401 - WORK 5LZ910T1 . 401 - MEET 5LZ910100 - Controller 5LZ910200 - Sensor 5LZ910300 - Touchpanel...
- Page 2 Siteco - Connect31 5LZ910MDL401 - MOVE 5LZ910W1 . 401 - WORK 5LZ910T1 . 401 - MEET...
- Page 3 Siteco - Connect31 5LZ910100 5LZ910300 5LZ910200 Controller Touchpanel Sensor Wireless RF mode frequency band 2402…2480MHz 2402…2480MHz Wireless communication protocol BLE 4.2 mesh BLE 4.2 mesh Operating channels 37/38/39 37/38/39 maximum transmitted power 7dBm 7dBm Controller Touchpanel Sensor Ambient temperature (Ta on free air) -20…60°C...
- Page 4 Siteco - Connect31 ® LumIdent Mains 220…240V DALI broadcast Controller Sensor Touchpanel ≤3 ≤3 ≤3 ≤3 Luminaires Leuchten ≤38 ≤32 ≤26 ≤20 Installing all components ≤1min Installiere alle Komponenten finished fertig T1 = 5min. D1 = 100% D1 = 100% Short Press >...
- Page 5 Siteco - Connect31 LumIdent ® Mains 220…240V DALI broadcast Controller Sensor Touchpanel ≤3 ≤3 ≤3 ≤3 Luminaires Leuchten ≤38 ≤32 ≤26 ≤20 Installing all components ≤1min Installiere alle Komponenten SITECO APP-Store settings finished SITECO Connect 31 Einstellungen fertig...
- Page 6 Siteco - Connect31 Lokale Steuerung - Stromlaufplan Local control - circuit diagram DA+ DA- COM S1+ S2- (in) (in) (out) (out) Controller Sensor Lokale Steuerung - Stromlaufplan Local control - circuit diagram DA+ DA- COM S1+ S2- (in) (in) (out)
- Page 7 Siteco - Connect31 DA+ DA- DA+ DA- Luminaire DALI Luminaire DALI … Leuchte DALI Leuchte DALI DA+ DA- DA+ DA- Luminaire DALI Luminaire DALI … Leuchte DALI Leuchte DALI...
- Page 8 Siteco - Connect31 Pushbutton Reset Taster Reset LED indicates green and red LED leuchtet grün und rot LED off LED aus Info Reset 5sec Controller is not paired Controller ist nicht verbunden Controller is paired Controller ist verbunden ® LumIdent...
- Page 9 Siteco - Connect31 ø68mm tangential Präsenz/ presence radial Präsenz Radial Tangential 2.5m ø3.5m ø5m ø6.5m ø4.5m ø6m ø7.5m ø6.0m ø7m ø8.5m ® LumIdent LumIdent ® LumIdent® RESET...
- Page 10 Siteco - Connect31...
- Page 11 Siteco - Connect31 LED indicates green and red LED leuchtet grün und rot LED off LED aus RESET Info Reset 5sec 1min Ready for pairing Start Bereit zum Verbinden 10sec (Touchpanel New battery not paired) Neue Batterie (Touchpanel nicht verbunden)
- Page 12 BG Само за вътрешна употреба. EST EAinult siseruumides kasutamiseks. LT Skirtas naudoti tik vidaus sąlygomis. LV Izmantošanai tikai iekštelpās. SRB Samo za unutrašnju upotrebu. UA Лише для використання усередині приміщення. KZ Тек үй ішінде пайдалануға арналған. Siteco GmbH Georg-Simon-Ohm-Straße 50 83301 Traunreut, Germany mail: technicalsupport@siteco.de...
