HUAWEI NetEngine40E Universal Service Router
Hardware Description

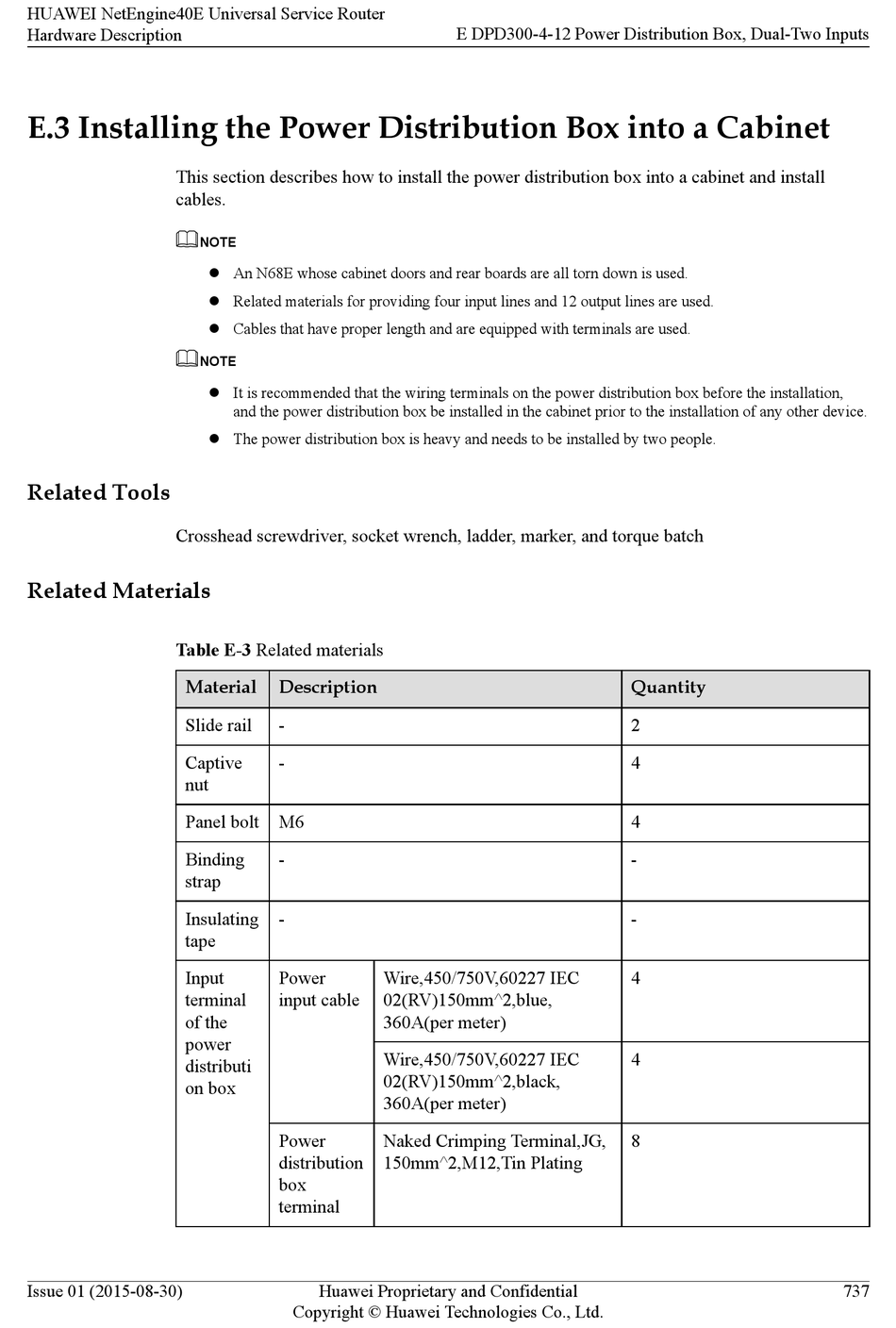

E.3 Installing the Power Distribution Box into a Cabinet
This section describes how to install the power distribution box into a cabinet and install
cables.

Related Tools

Crosshead screwdriver, socket wrench, ladder, marker, and torque batch

Related Materials

Table E-3 Related materials
Material
Slide rail
Captive
nut
Panel bolt
Binding
strap
Insulating
tape
Input
terminal
of the
power
distributi
on box
Issue 01 (2015-08-30)
NOTE
l An N68E whose cabinet doors and rear boards are all torn down is used.
l Related materials for providing four input lines and 12 output lines are used.
l Cables that have proper length and are equipped with terminals are used.
NOTE
l It is recommended that the wiring terminals on the power distribution box before the installation,
and the power distribution box be installed in the cabinet prior to the installation of any other device.
l The power distribution box is heavy and needs to be installed by two people.
Description
-
-
M6
-
-
Power
input cable
Power
distribution
box
terminal
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
E DPD300-4-12 Power Distribution Box, Dual-Two Inputs
Wire,450/750V,60227 IEC
02(RV)150mm^2,blue,
360A(per meter)
Wire,450/750V,60227 IEC
02(RV)150mm^2,black,
360A(per meter)
Naked Crimping Terminal,JG,
150mm^2,M12,Tin Plating
Quantity
2
4
4
-
-
4
4
8
737
