Aura AR-40-102 Quick Operation Manual

18Gbps HDMI V2.0 4K 60Hz Extender Set over CAT6

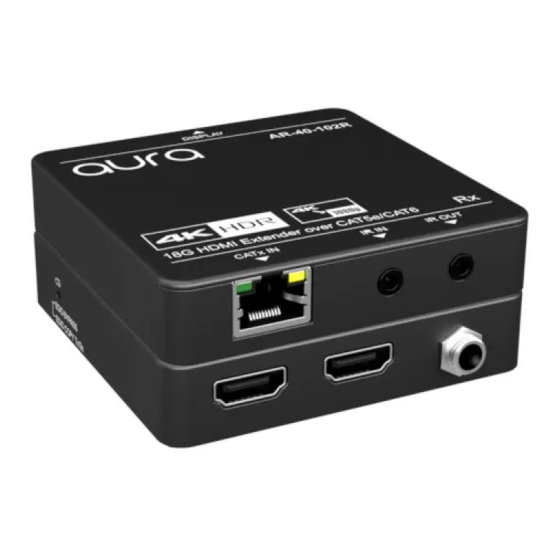

The AR-40-102 is a great point-to-point extender set for HDMI V2.0 and IR signals;
this kit supports 4K/UHD video @ 60 Hz with 4:4:4 Chroma sampling, as well as HDMI
data rates up to 18Gbps, HDCP 2.2 compliant; It provides HDMI transmission up to
230 feet (70 meters) for 4K@60Hz 4:4: 4 and 262 feet (80 meters) for 1080p over
single CAT 6 cable. It supports video resolution down-scaling, the 4K input can be
automatically downscale to 1080p output for compatibility with 1080p display.

Features

▪ Supports HDMI V2.0, up to 4K@60Hz 4:4:4, HDR 10, 18G, HDCP 2.2.
▪ Extends 4K up to 230 feet (70m) or 1080p up to 262 feet (80m) over a single CAT6
cable.
▪ HDMI loop out on transmitter.
▪ Bi-directional IR pass-through.
▪ Supports video resolution down-scaling, the 4K input can be automatically
degraded to 1080p output on receiver for compatibility with legacy 1080p display
device.
▪ Features visually lossless compression with no latency.
▪ Smart EDID management.
▪ Compact design, easy to install and simple to operate.

Packing List

▪ 1x Transmitter (Tx)
▪ 1x Receiver (Rx)
▪ 1x IR Receiver
▪ 1x IR Emitter
▪ 2x Velcro Strips
▪ 1x Power Adaptor (12V DC 1A)
▪ 1x User Manual
Quick Operation Guide
AR-40-102
2020V1.0
