The AR-40-104 is a great point-to-point HDMI KVM extender set for HDMI and USB
signals; this kit supports 4K/UHD video@30 Hz, as well as HDMI data rates up to
10.2Gbps, HDCP 1.4 compliant; It provides HDMI transmission up to 393 feet
(120m) for 1080p or 4K@30Hz over single CAT6 cable. It supports video resolution
down-scaling, the 4K input can be automatically downscale to 1080p output for
compatibility with 1080p display.
Features
Supports HDMI 1.4, up to 4K@30Hz 4:4:4, HDCP 1.4.
⚫
Extends 1080p or 4K HDMI signal up to 393 feet (120m) over a single CAT6 cable.
⚫
Supports USB 1.1, and the USB extension is up to 393 feet (120m).
⚫
HDMI loop out on transmitter.
⚫
Supports down-scaling, the 4K input can be automatically degraded to 1080p
⚫
output on receiver to compatible with the1080p legacy devices.
Supports bi-directional 12V PoC, only one power supply required.
⚫
Compact design, easy to install and simple to operate.
⚫
Packing List
1x Transmitter (Tx)
⚫
1x Receiver (Rx)
⚫
1x Power Adaptor (12V DC 1A)
⚫
1x Quick Operation Guide
⚫
Quick Operation Guide
AR-40-104
4K HDMI Extender with KVM
2020V1.0
Advertisement
Table of Contents
Related Manuals for Aura AR-40-104
Summary of Contents for Aura AR-40-104

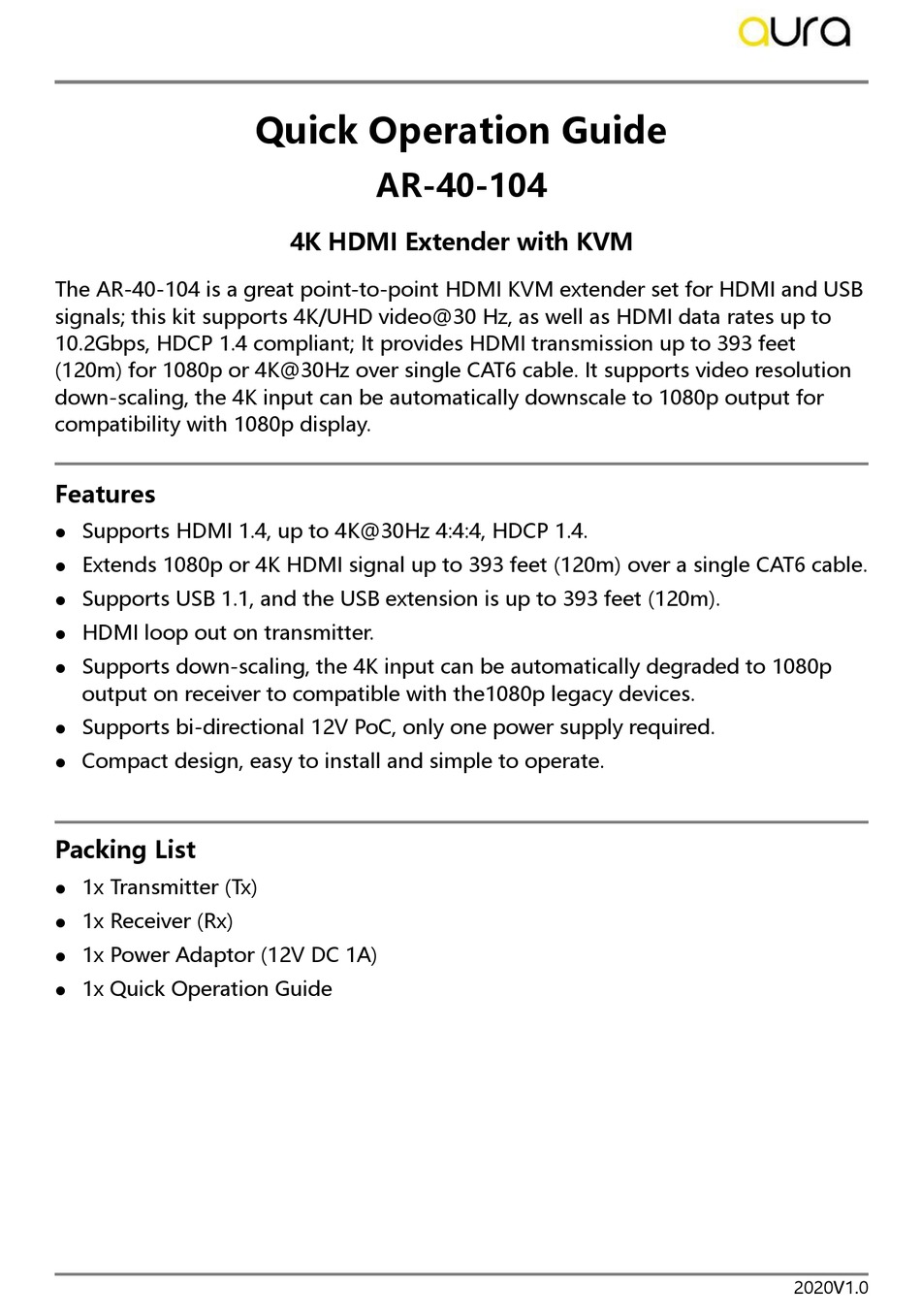

- Page 1 AR-40-104 4K HDMI Extender with KVM The AR-40-104 is a great point-to-point HDMI KVM extender set for HDMI and USB signals; this kit supports 4K/UHD video@30 Hz, as well as HDMI data rates up to 10.2Gbps, HDCP 1.4 compliant; It provides HDMI transmission up to 393 feet (120m) for 1080p or 4K@30Hz over single CAT6 cable.
- Page 2 Transmitter Panel Description 1. HDMI OUT: Connects to HDMI display device. 2. HDMI IN: Connects to HDMI source device. 3. USB port to connect source device (e.g. desktop) that needs to be controlled by USB devices at receiver end. 4. DC 12V: DC connector for the power adapter connection. 5.
- Page 3 HDCP Handling If the source device has no HDCP content, both the TX HDMI loop out and RX ⚫ HDMI out also has no HDCP content. The HDCP content of HDMI loop out on TX automatically follows the source ⚫ device.
- Page 4 Specifications Transmitter Input (1) HDMI IN Input Connector (1) 19-pin type-A female HDMI Output (1) HDMI OUT, (1) CAT Output Connector (1) 19-pin type-A female HDMI, (1) RJ45 Control (1) Type-A USB Receiver Input (1) CAT Input Connector (1) RJ45 Output (1) HDMI OUT Output Connector...
- Page 5 2020V1.0...
