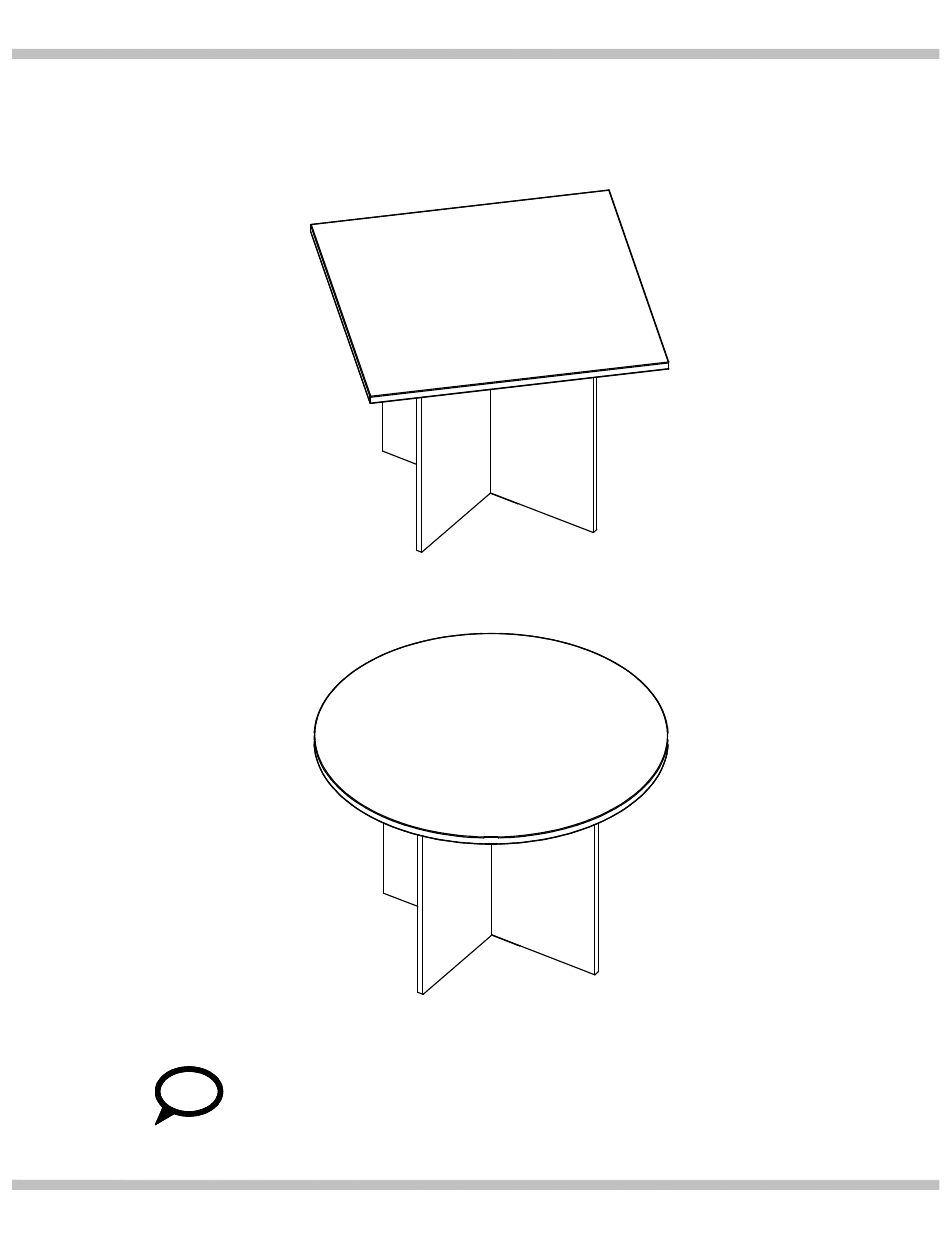

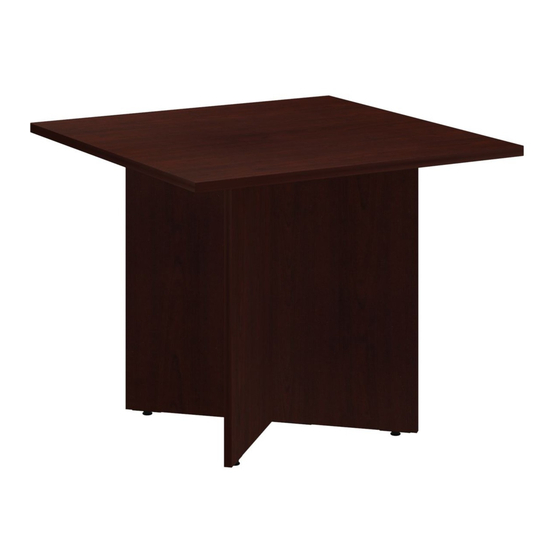

- Page 1 ASSEMBLY INSTRUCTIONS 36" Square Conference Table 42" Round Conference Table Lot Code # NEED HELP? Call 1−800−950−4782 www.bushbusinessfurniture.com Part Number A179922B Keep manual for future reference.
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION A179922B WARNING Do not move unit when loaded. Doing so could cause instability, product collapse, tip over, and/or serious injury. No mueva la unidad cuando esté cargada. Hacerlo puede causar inestabilidad, que el producto se derrumbe, que se la caiga encima y/o heridas (golpes) serias. -
Page 3: Exploded View
EXPLODED VIEW A179922B... -
Page 4: Parts List
PARTS LIST A179922B 99TB3636CS 99TB3636MR A [1] W172234 A [1] W172235 B [1] W184617 B [1] W184619 C [2] W184618 C [2] W184620 99TB3636MC 99TB3636AC A [1] W172236 A [1] W172237 B [1] W184621 B [1] W184625 C [2] W184622... -
Page 5: Fasteners / Hardware
FASTENERS / HARDWARE A179922B Fasteners are shown in actual size. los fijadores son demonstrados en su tamaño actual. les attaches sont montrées dans l'échelle grandeur. [ 4 ] H71659 KD Cam [ 5 ] H26053 #10 x 1-1/4" [ 4 ] H72988 KD Bolt [ 6 ]... - Page 6 ATTENTION A179922B Common assembly techniques. Técnica común de ensamblaje. Techniques communes d’assemblage. −Use a screwdriver with H72988. −Favor de usar un desarmador con el tornillo H72988. −Utilisez un tournevis avec H72988. −Wood dowel installation. −Instalación del tornillo de madera. −Installation de chevilles de bois. −Panel to panel attachment.
- Page 7 A179922B STEP [ 6 ] Wood Dowel...
- Page 8 A179922B STEP [ 4 ] KD Bolt 99TB42XX 99TB3636XX...
- Page 9 A179922B STEP An assistant is required. Es necesario un ayudante. Un assistant est nécessaire. [ 5 ] [ 3 ] #10 x 1-1/4" Wood Dowel 1/4 x 2 [ 1 ] X-Base Strap...
- Page 10 A179922B STEP An assistant is required. Es necesario un ayudante. [ 4 ] Un assistant est nécessaire. KD Cam...
- Page 11 A179922B STEP [ 4 ] Leveler...
- Page 12 A179922B STEP With an assistant carefully stand unit upright. Con un asistente cuidadosamente levante la unided a una posicion vertical. Avec l'aide d'un assistant placez soigneusement l'unité debout. Maximum Weight: 125 Lbs. Peso Máximo: 125 Libras Poids Maximum: 56.7 kilogramme Maximum Weight: 125 Lbs.
